Futaba 16IZS 2.4GHz 18 Channel FASSTest Radio System (No Receiver) (Airplane)
About this part
Futaba 16IZS 2.4GHz 18-Channel FASSTest Radio System (Air)
Futaba 16IZS 2.4GHz 18 Channel FASSTest Radio System. This 16IZS Telemetry Radio System is an incredibly sophisticated 18-channel air radio system! Perfect for pro pilots and weekend warriors alike the 16IZS offers multiple flight modes, in addition to the top of the line system functions and features, all at a price that is much more affordable when compared to similar systems.
With full telemetry functionality, the 16SZ can receive temperature, RPM, altitude, GPS, voltage, current, and telemetry data logging information, keeping you more connected to your aircraft than ever before. In addition, the intuitive LCD display and long battery life make it the perfect radio that all pilots would be proud to own.
Features:
- FASSTEST SYSTEM: The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (16 linear channels & 2 switch channels) 2.4 GHz dedicated system.
- S.BUS2 SYSTEM: By using the S.Bus2 system, multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.
- USB SIMULATOR CONTROL: The T16IZS offers USB C compatibility for simulator control when used with the Windows OS Joystick function.
- COLOR TOUCH SCREEN LCD: T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen with both indoor and outdoor visibility.
- MULTI HOLDER: T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using a 3mm screw.
- Voice Telemetry: The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.
- SECURE DATA (SD CARD): Model data files can be stored on an optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.
- HIGH CAPACITY LITHIUM POLYMER BATTERY (2000 MAH): The high capacity 2S Lithium Polymer battery gives you extended flight time.
- EDITING: The touch panel and two enter keys allow you to edit your model in the manner that works better for you.
- FUNCTIONS: The internal processor the response time. Most of the mixing functions are operated by curves which give you very precise settings.
- STICK: Each stick offers our reliable single ball bearing for each axis. With Futaba high cycle potentiometer allows for finer and more precise operation.
- VIBRATION FUNCTION: Low voltage and other alarms are generated by a vibration motor and can be customized by pilots.
- AIR VERSION: Includes ratcheting throttle
- HELICOPTER VERSION: Includes smooth throttle
Specifications:
- Application: Airplanes and Helicopters
- Frequency: 2.4GHz
- Operating System: FASSTest/FASST/T-FHSS/S-FHSS
- Number of Channels: 18CH
- Power Supply: 2S (7.4V) LiPo battery
- RF Power Output: 100mW EIRP
- Dimensions (LxWxH): 10.04×10.04×4.53in
- Weight: 64oz

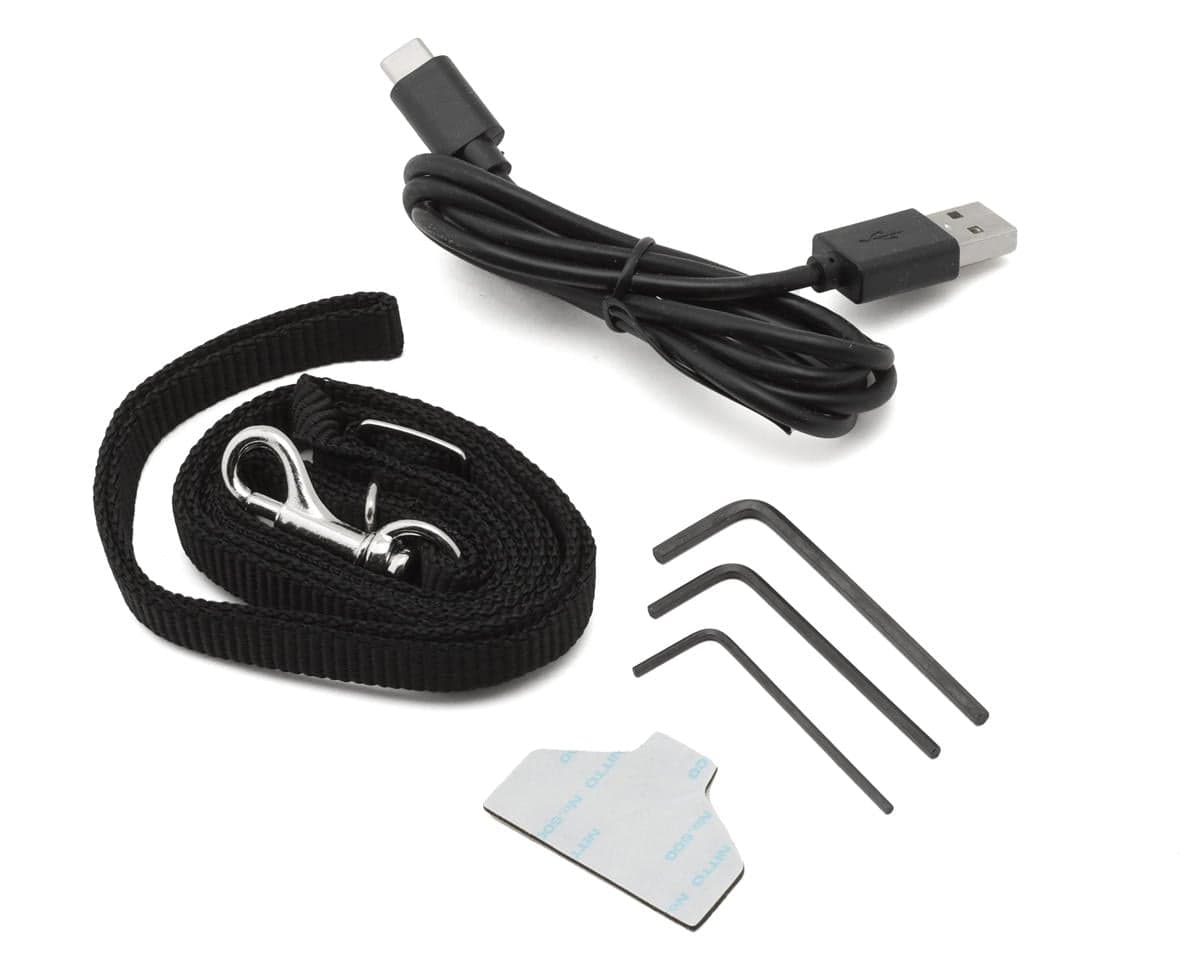

Includes:
- (1) T16IZS Transmitter
- (1) 2S (7.4V) LiPo Battery and USB cable for charging
- (1) Neck Strap
- (1) Manual
Reviews4.8 · 4 reviews
The 16IZ Super is a great transmitter with voice alerts for certain settings. I like the feel of the transmitter and I trust Futaba products.
I purchased this radio as a backup for my existing T16IZ radio. The new one is called T16IZS meaning "Super". I have no clue what makes it "Super" but it's identical to my original radio. I have 14 airplanes on my original radio and I simply transferred the airplanes to the new radio using a Micro SD Card. It transferred the airplanes perfectly however, I had to re-link to each receiver. It was no big deal but kind of a nuisance. You'd think Futaba could do better than this. I like Futaba but their programming leaves a lot to be desired.
Completely invested with Futaba. After 6 years with my old system, I wanted an upgrade. I chose the 16IZS because of the advertised screen and programming. I was not disappointed. The large screen is easy to see in bright light. Programming my current planes was a breeze. I really liked being able to add aileron differential with just a few clicks.
Really enjoying this radio. It feels solid in my hands and is very easy to program. Liking the new antenna design, and other upgrades from previous models I’ve owned.
Four verified owners rate the Futaba 16IZS at 4 to 5 out of 5. Reviewers praise its solid feel, the large screen that stays readable in bright light, and ease of programming, including aileron differential and transferring existing airplane models via Micro SD card. One reviewer notes a voice alert feature for certain settings and a new antenna design. The main recurring complaint, from a reviewer upgrading a backup radio, is that existing receivers must be re-linked individually after a model transfer, which they found a nuisance. One reviewer was unclear what the 'Super' designation adds, saying the unit appeared identical to their earlier T16IZ. All reviews concern the Airplane variant with no receiver included.
- + Solid, comfortable feel
- + Large screen readable in bright light
- + Easy programming
- + Model transfer via Micro SD card
- − Receivers must be re-linked after model transfer
- − Programming quality questioned by one reviewer
- − Unclear what 'Super' adds over earlier model
