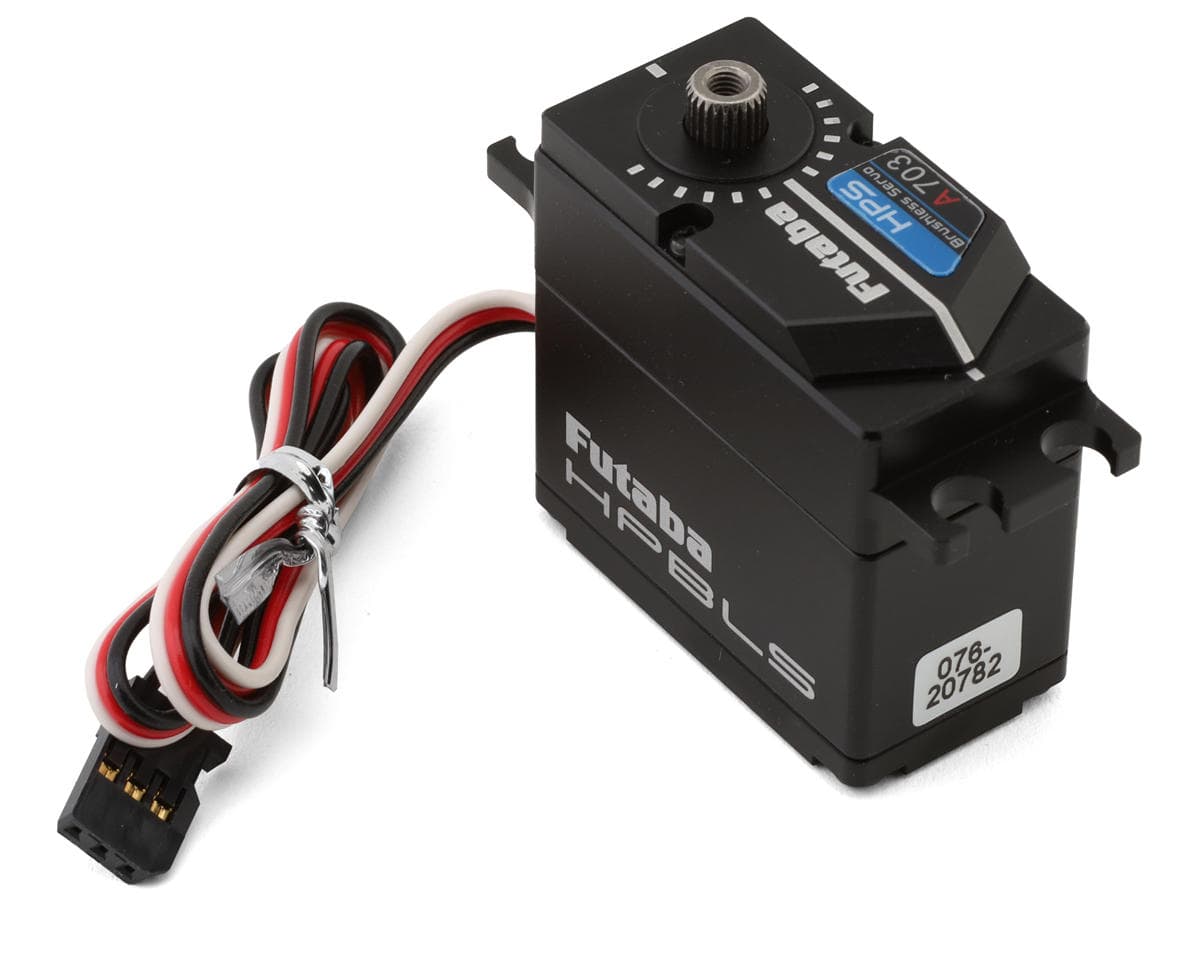

Futaba HPS-A703 Brushless Ultra Torque S.Bus2 Airplane Servo (High Voltage)

HPS-A703 Servo Overview:

This is the Futaba HPS-A703 Brushless Ultra Torque S.Bus2 Airplane Servo. Designed for big scale airplane applications in need of a high quality brushless servo with all the torque needed! Features a high input voltage capable and all-metal gear design with a durable aluminum case, this HPS-A703 is capable of putting out 916.6 oz-in of torque at a speed of 0.12 sec/60° while operating at 7.4 Volts! In addition, the HPS-A703 is programmable and compatible with S.Bus and S.Bus2 systems! Get this HPS-A703 ultra torque servo for your big-scale airplanes and experience the enhanced performance and durability this servo can offer.

Features

• For all-purpose giant scale airplanes
• Programmable/HV Brushless Servo
• High power Brushless Motor
• Compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the optional (CIU-2/-3 USB adapter - sold separately)
• Aluminum Case with all metal gears

Specifications:

• Speed:
• @6.0V: 0.13 sec/60°
• @7.4V: 0.12 sec/60°
• Torque:
• @6.0V: 847.17 oz-in (61 kg-cm)
• @7.4V: 916.6 oz-in (66 kg-cm)
• Dimensions: 1.59x0.83x1.55" (40.5x21x39.4mm)
• Weight: 82g
• Size/Type: Standard Airplane Servo
• Motor: Brushless
• Operating Voltage: 4.8-8.4V
• Operating Spline: 25T

Includes

• (1) HPS-A703 Brushless Ultra Torque S.Bus2 Airplane Servo
