Servo Overview:

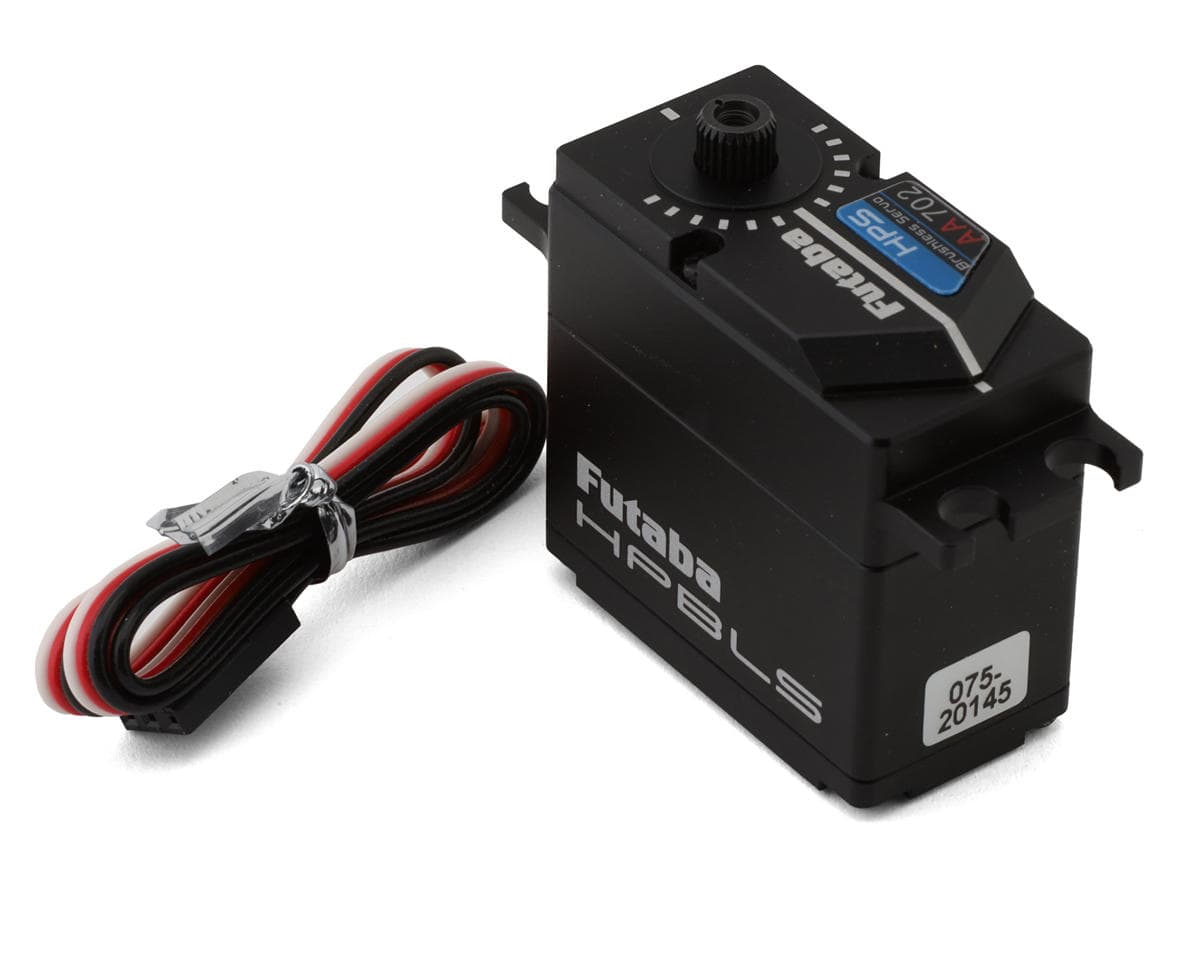

This is the HPS-AA702 Brushless S.Bus2 Airplane Servo from Futaba, a high-performance servo designed for all-purpose giant scale airplanes. With its programmable and HV brushless motor, this servo offers exceptional precision and power, making it an ideal upgrade for various models.
Features:
- Custom high power Brushless Motor
- Programmable and compatible with S.Bus and S.Bus2 systems
- Final gear material is Stainless Steel
- Aluminum Case construction for durability
Specifications:
- Speed:
- @6.6V: 0.08sec/60°
- @7.4V: 0.075sec/60°
- Torque:
- @6.6V: 513.86oz-in (37.0kg-cm)
- @7.4V: 569.41oz-in (41.0kg-cm)
- Dimensions: 1.59x0.83x1.55in (40.5x21x39.4mm)
- Weight: 2.82oz (80g)
- Operating Voltage: 6.0-7.4V
- Spline: 25T
- Waterproof: No
Includes:

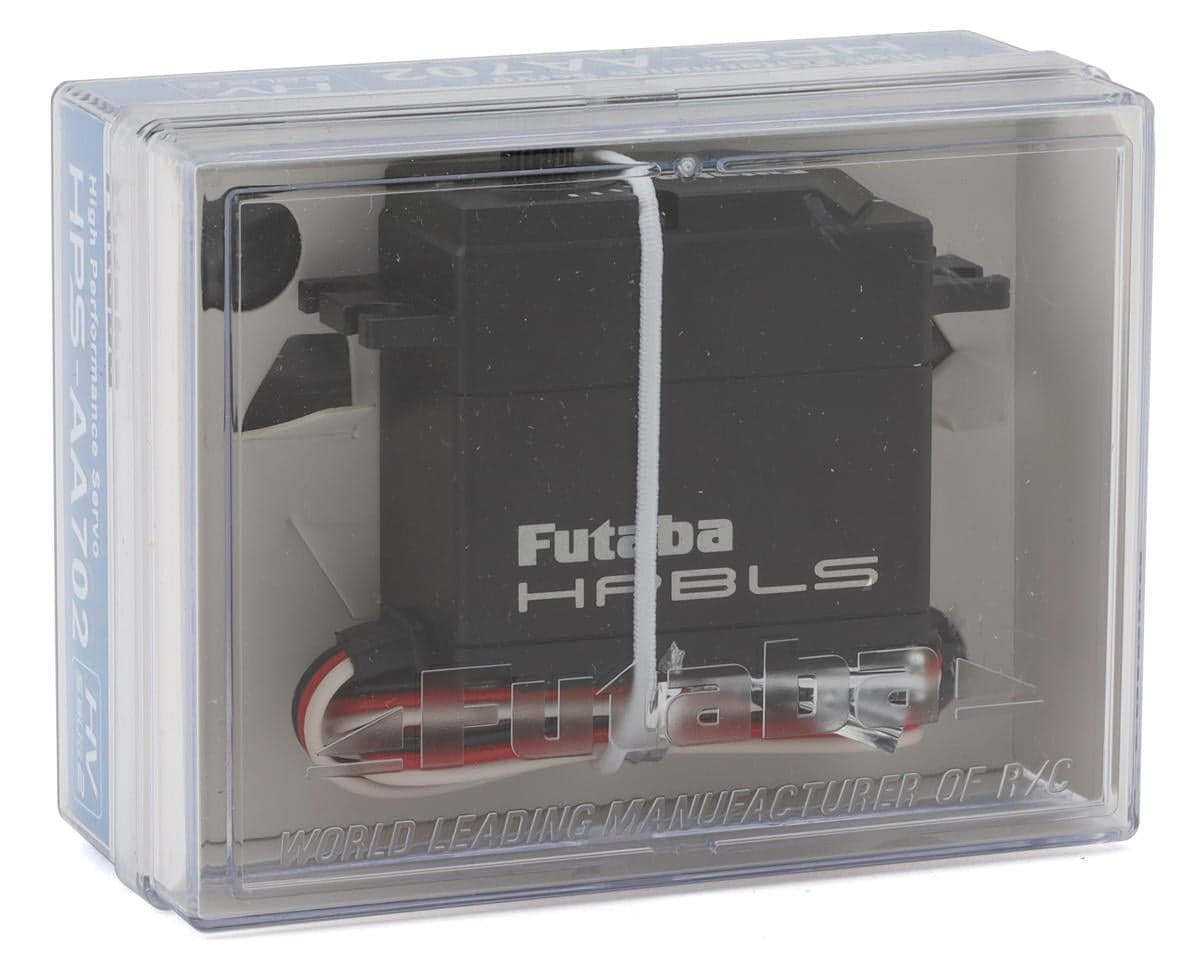

- (1) HPS-AA702 Brushless S.Bus2 Airplane Servo

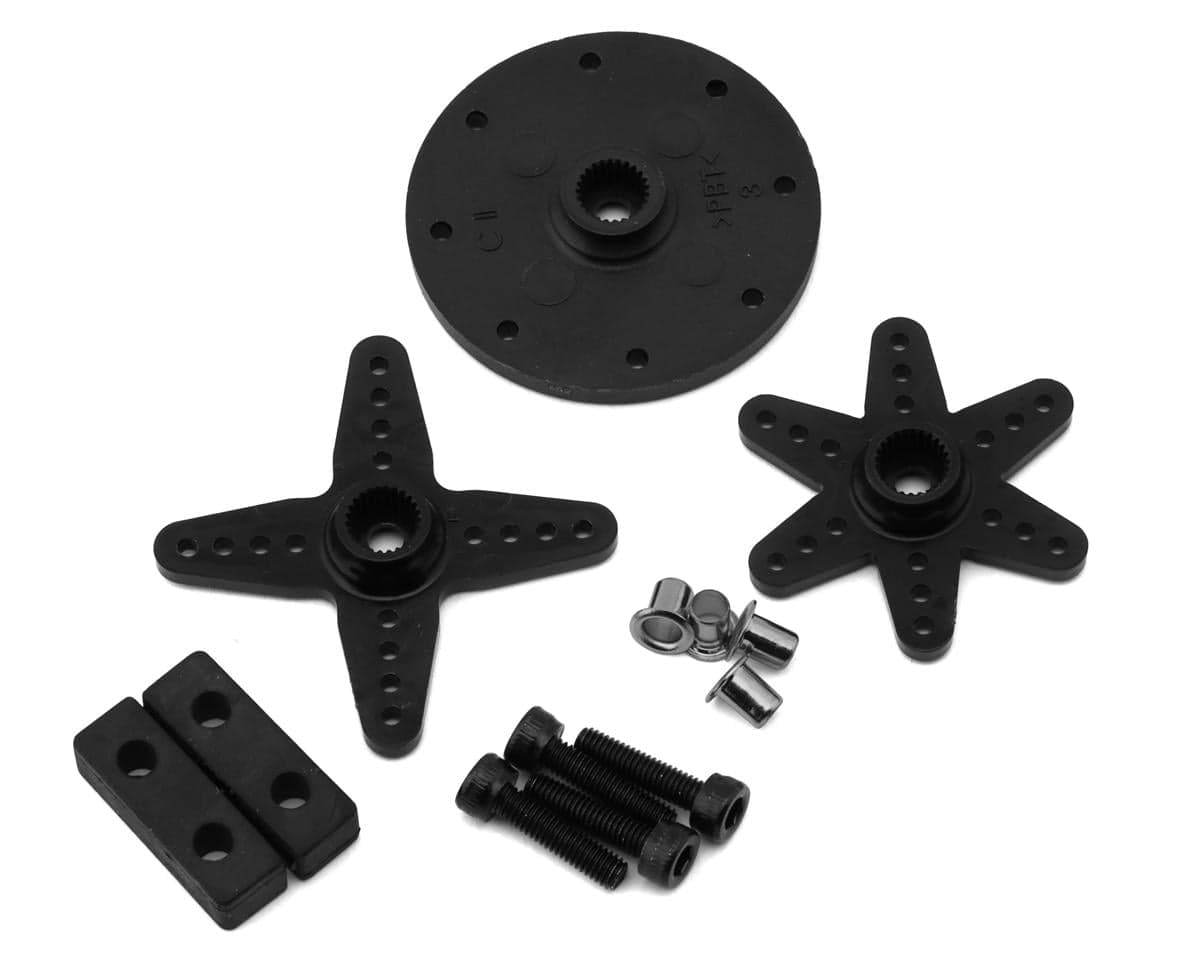

- Assorted Servo Horns and Mounting Hardware
