About this part

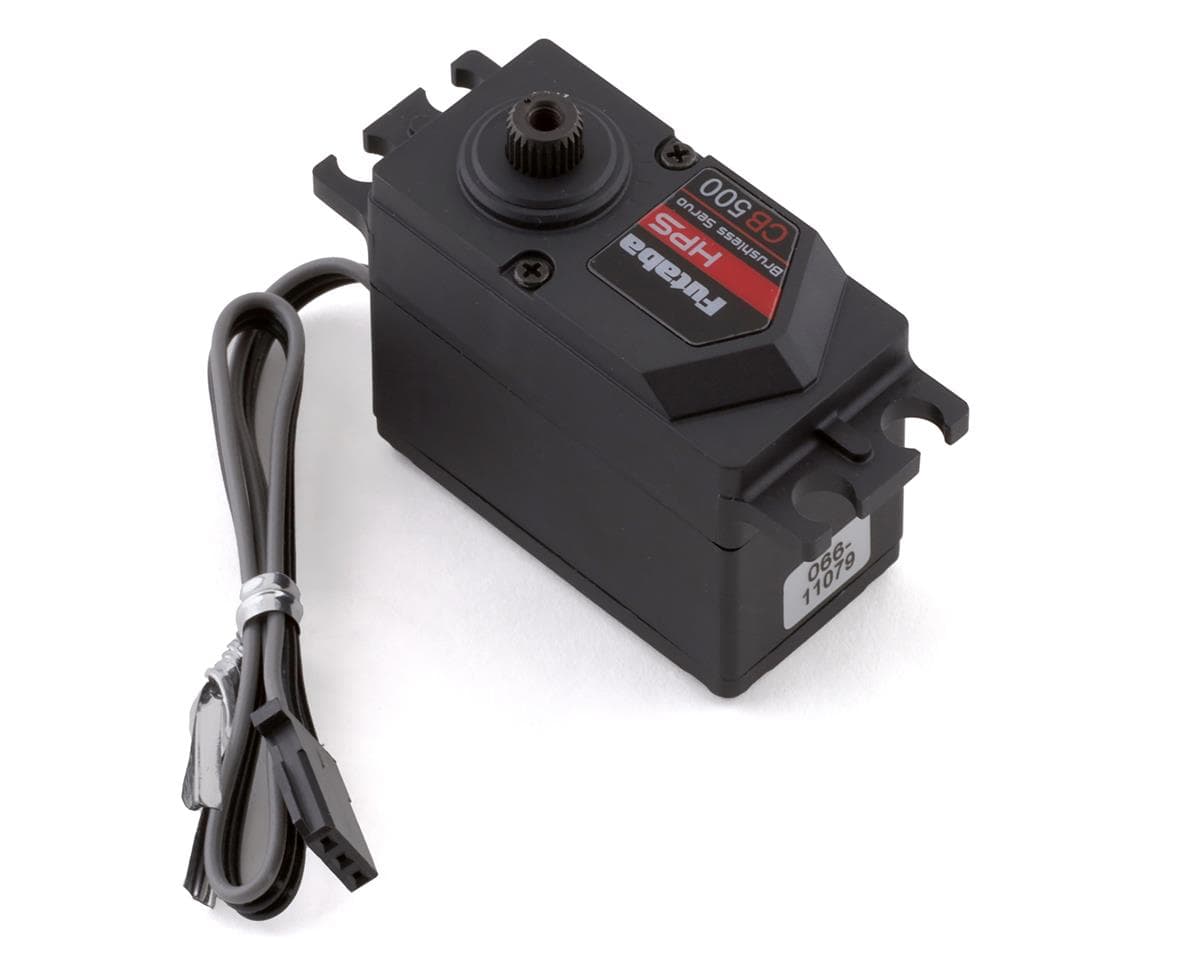

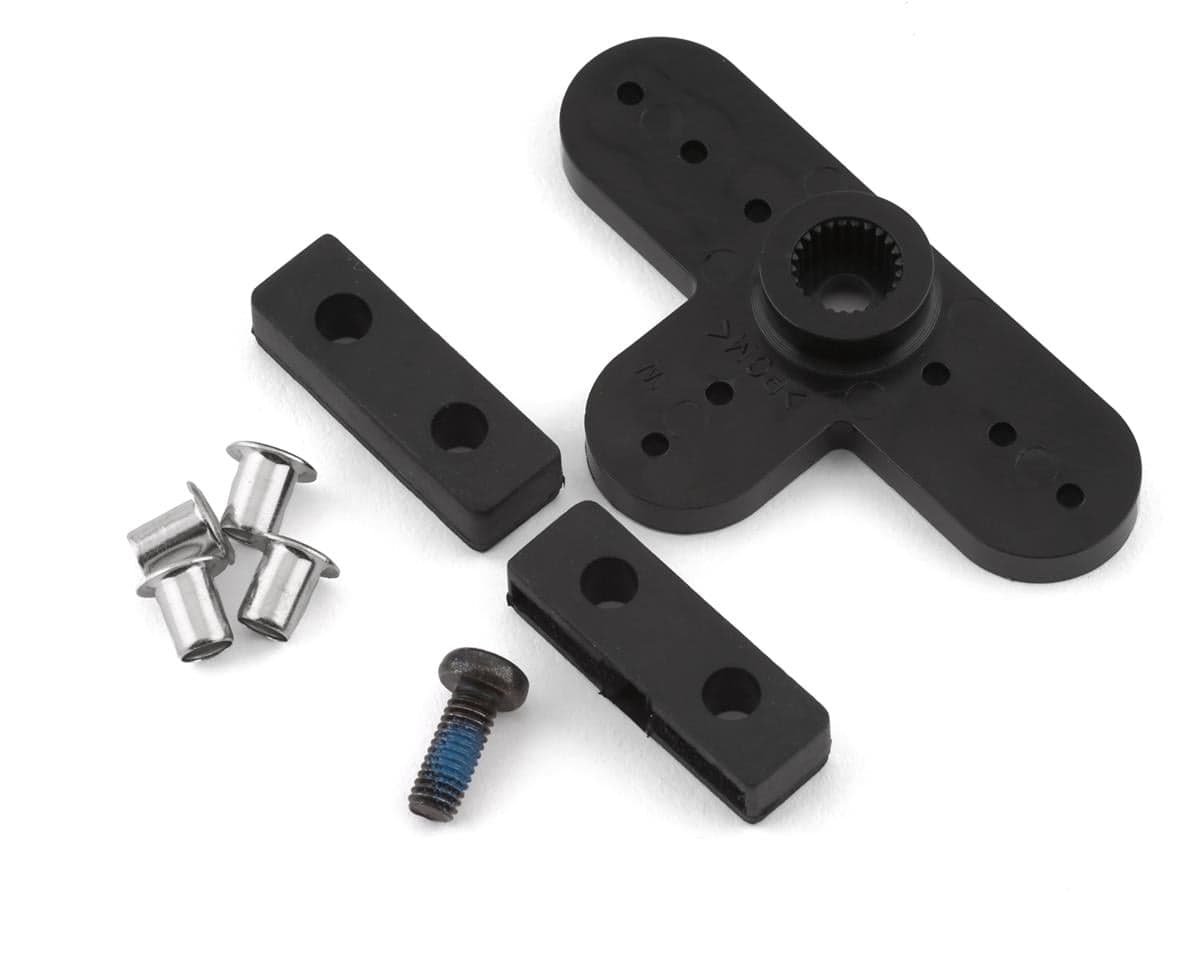

Futaba HPS-CB500 Brushless S.Bus2 Metal Gear Servo. This programmable servo boasts .06 transit speeds, with 354oz-in of torque, making it a great choice for 1/10 scale on/off road and 1/8 scale on/off road applications. Package includes servo, servo horn and mounting hardware.
NOTE:
- No dry battery or BEC use
- Only for RC Cars smaller than 1/5 scale
Features:
- Suitable for RC cars 1/10 scale on/off road and 1/8 scale on/off road
- Programmable/HV Brushless Servo
- Custom high power Brushless Motor
- Supports SR mode with T7PX/7PXR
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
Specifications:
Upper/middle/bottom case: Plastic
Gears: Metal
Cable color: Black-grey
Speed: 0.06 sec/60° at 7.4V
Torque: 354.1 oz/in at 7.4V (25.5 kgf/cm)
Size: 40.5x21mm34.8mm
Weight: 57g (2.01 oz)
Rated Voltage: DC 4.8V-7.4V
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews5.0 · 1 review
Fantastic servo, with one potential caveat. This servo is FAST. I put this in an old Tekno EB48SL, which is basically a light SCT with 1/8 buggy bits. For this platform, this servo is a perfect mix of speed and torque, absolutely zero complaints about its performance. It responds instantly, feels like I merely think a steering angle and its already happened. Time will tell on its durability and reliability, but I have Futaba servos from the early 90's that are working perfect, so I have high hopes. Now for the caveat: this servo is a SMIDGE wider than typical. At 21mm wide, its a little over 1mm wider than my other "standard"-size servos. This meant I had to trim the servo cage on my buggy to get it to fit properly. Well worth it in the end given the performance of this servo, but just something to be aware of. Depending on what you want to use it in, may not matter at all.
