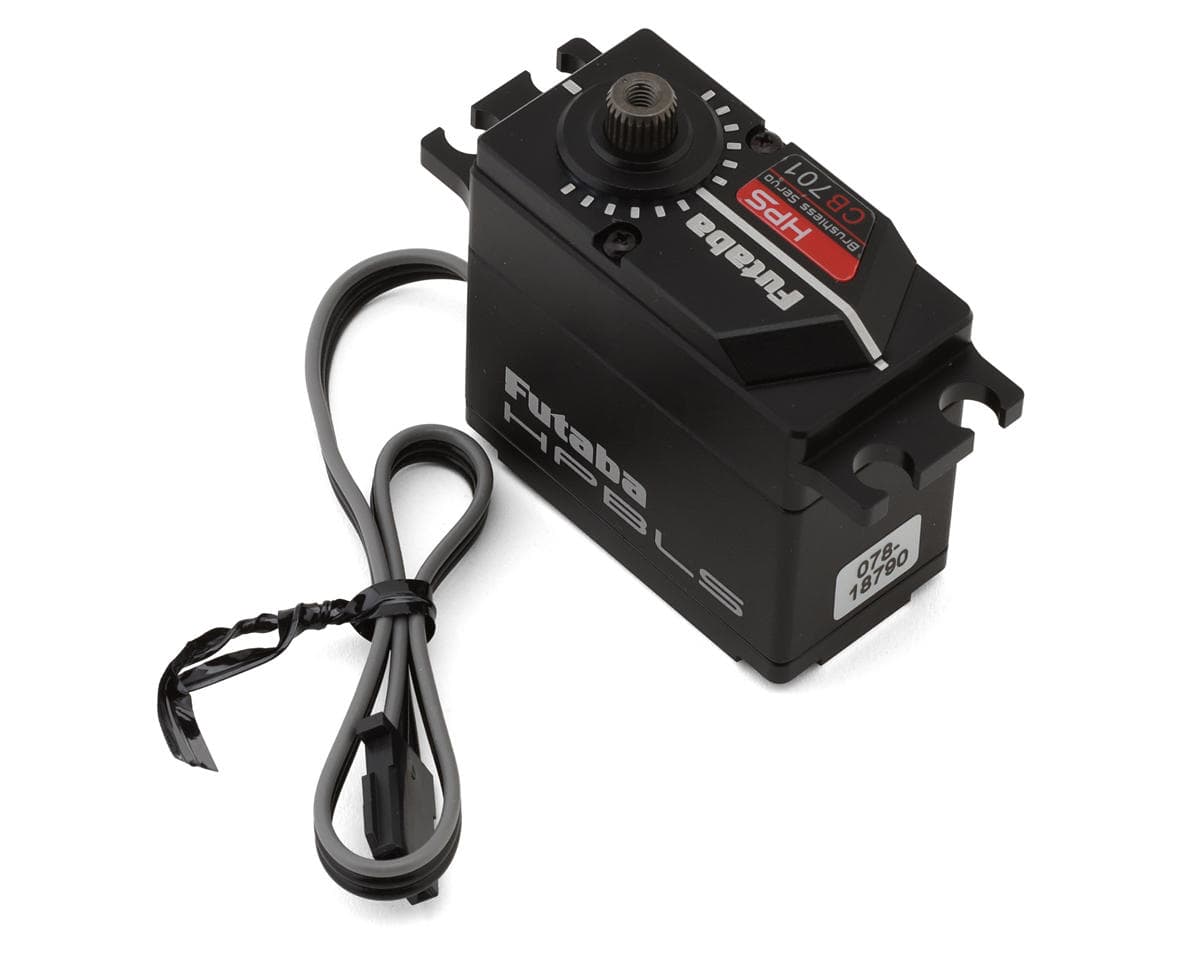

Futaba HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)
About this part
Servo Overview:
The HPS-CB701 Brushless High-Performance Surface Servo from Futaba is engineered for serious RC drivers demanding precision, speed, and durability. Designed for both 1/10 and 1/8 scale on-road and off-road vehicles, this high-voltage brushless servo delivers consistent performance under extreme conditions. Its full aluminum case construction enhances strength and heat dissipation for long race sessions.
About the HPS-CB701 Brushless Servo
Brushless Power With Advanced Programmability
At the heart of the HPS-CB701 is a custom high-power brushless motor that provides smooth, precise steering response with exceptional holding strength. The servo supports SR mode when paired with compatible Futaba transmitters such as the T4PM/P, T7PX/R, and T10PX, and also supports UR mode with the T10PX for ultra-responsive control. Fully programmable through S.Bus and S.Bus2 systems, it can be connected to a PC using the optional CIU-2 or CIU-3 USB adapter for detailed setup adjustments. The aluminum upper, middle, and bottom case sections maximize rigidity and cooling efficiency for high-performance applications.
Features:
- High-Voltage Brushless Surface Servo
- Suitable For 1/10 And 1/8 On/Off Road Vehicles
- Custom High-Power Brushless Motor
- SR Mode Compatible
- UR Mode Support With T10PX
- S.Bus And S.Bus2 Programmable
- PC Programmable With Optional CIU-2/CIU-3
- Full Aluminum Case Construction
- High Strength And Heat Dissipation Design
Includes:
- (1) HPS-CB701 Brushless High-Performance Surface Servo (High Voltage)

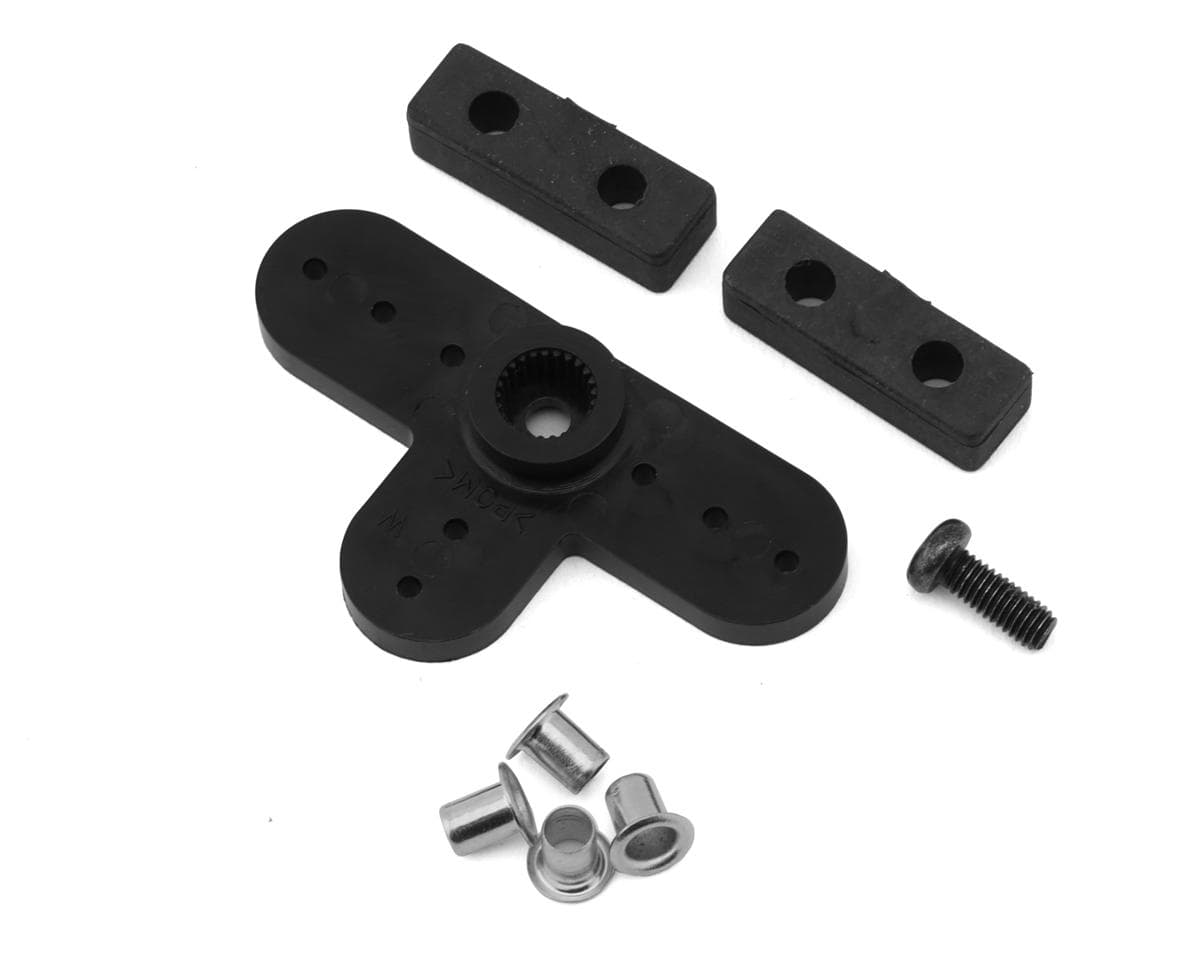

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10-1/8 |
|---|---|
| Input Voltage | 6.0-7.4V |
| Operating Speed @ 6.0V | .09 sec/60° |
| Operating Speed @ 7.4V | .075 sec/60° |
| Dynamic Torque @ 6.0V | 583.3oz-in (42Kg-cm) |
| Dynamic Torque @ 7.4V | 680.5oz-in (49.0Kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.83x1.49in (40.5x21x37.8mm) |
| Weight | 2.65oz (75g) |
