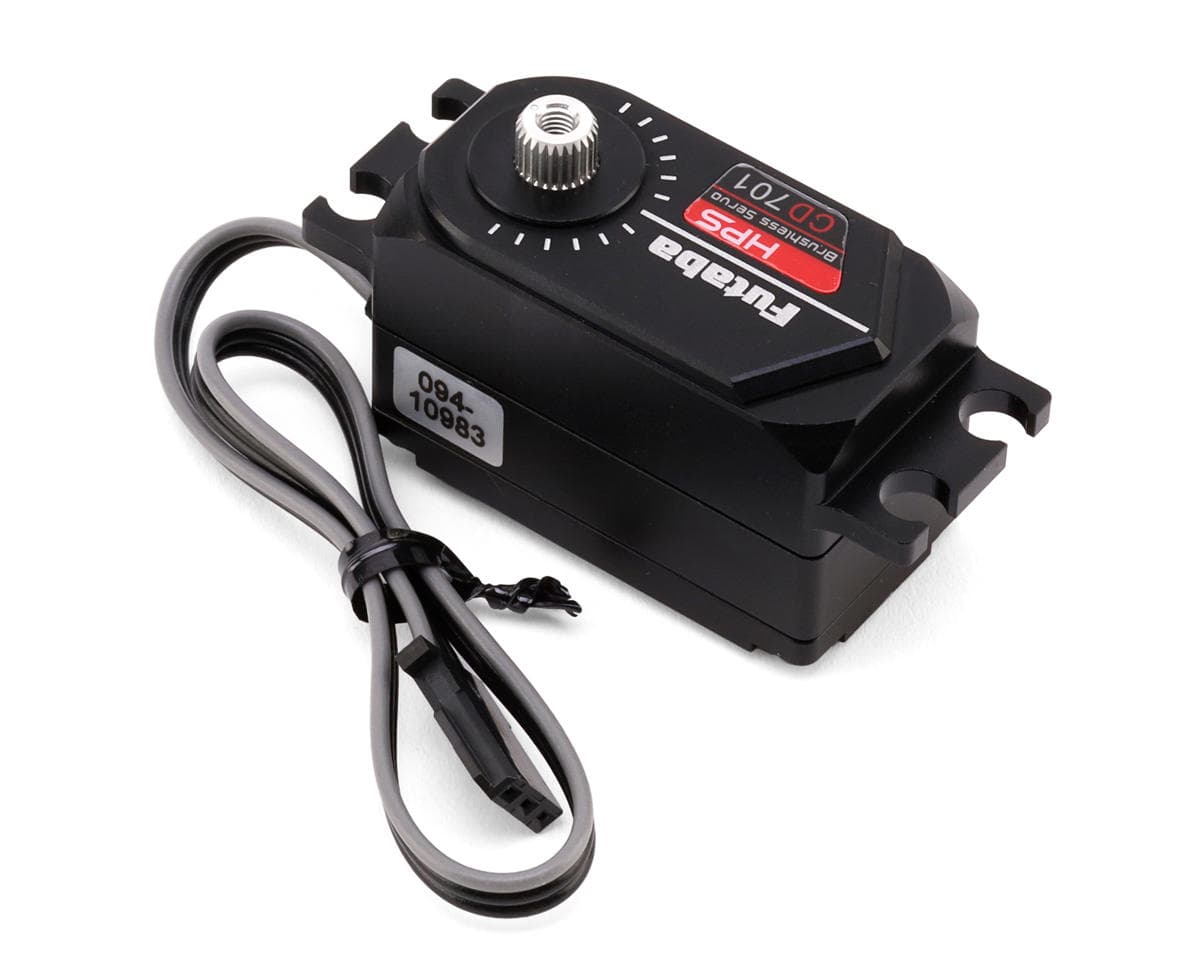

Futaba HPS-CD701 S.Bus2 Low Profile Surface Brushless Drift Servo (High Voltage)
About this part
Servo Overview:
Take full control of every drift with the Futaba HPS-CD701 — a high-voltage, brushless powerhouse engineered for 1/10 scale competition. With lightning-fast 0.045 sec speed, massive torque, and advanced UR/SR mode compatibility, this low-profile servo delivers razor-sharp response, smooth precision, and the durability serious drifters demand.
About the HPS-CD701 S.Bus2 Low Profile Servo
Ultimate Drift Steering Performance
The Futaba HPS-CD701 S.Bus2 Low Profile Surface Brushless High Voltage Drift Servo is purpose-built for 1/10 scale drifting, delivering extreme precision with UR/SR mode compatibility and full S.BUS/S.BUS2 programmability. Its high-performance brushless HPS motor produces up to 17.0kgf·cm torque at 7.4V with blazing 0.045 sec/60° speed, while supporting high voltage up to 8.4V for competition-ready power. A full aluminum case enhances heat dissipation and durability, and the high-strength metal gears ensure long-lasting reliability. Compact, lightweight (53g), and PC-programmable via CIU-2/CIU-3, it’s an elite choice for serious drift performance.
Features:
- Designed specifically for 1/10 scale drift cars
- Supports both UR and SR modes for precise response
- Smooth and stable output for precise drifting
- High-voltage capable up to 7.4V
- Delivers 17.0kgf·cm torque at 7.4V
- Ultra-fast 0.045 sec/60° speed at 7.4V
- High-performance brushless HPS motor
- Full aluminum case for strength and cooling
- Compatible with S.BUS and S.BUS2 systems for advanced tuning
Includes:
- (1) HPS-CD701 S.Bus2 Low Profile Surface Brushless Drift Servo
Specifications:
| Application | 1/10 Drift |
|---|---|
| Input Voltage | 4.8-7.4V |
| Operating Speed @ 6.0V | 0.055 sec/60° |
| Operating Speed @ 7.4V | 0.045 sec/60° |
| Dynamic Torque @ 6.0V | 194.4 oz-in (14 kg-cm) |
| Dynamic Torque @ 7.4V | 236 oz-in (17 kg-cm) |
| Programmable | Yes (via RS-PGC USB programmer) |
| Motor Type | Brushless |
| Output Shaft Spline | 25T (Futaba/ProTek) |
| Gear Material | Steel |
| Dimensions | 1.59x0.82x1.03in (40.5×21×26.2mm) |
| Weight | 1.86oz (53g) |
