Parts/Radio & control/Servos/Futaba HPS-CT501 Low Profile Brushless S.Bus2 Metal Gear Servo (High Voltage)
Futaba

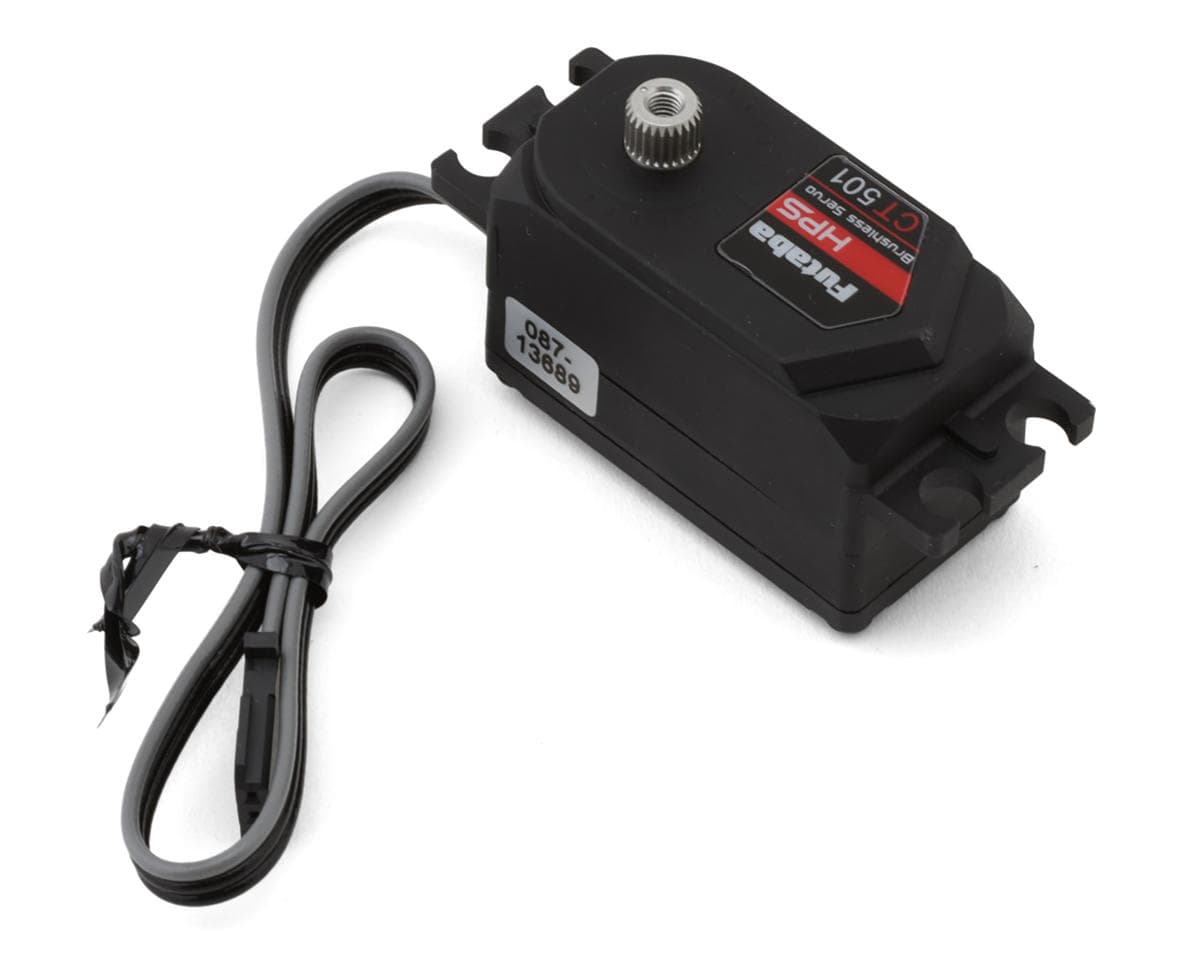

Futaba HPS-CT501 Low Profile Brushless S.Bus2 Metal Gear Servo (High Voltage)
Part # FUT01102389-1
Where to buy
$244.99
Prices are as last seen at the store; stock is not tracked.
About this part
Servo Overview:
The Futaba HPS-CT501 packs serious speed, torque, and precision into a lightweight low-profile design, delivering up to 291.6 oz-in of torque and a lightning-fast 0.06-second response for 1/10 on-road and drift cars.
About the HPS-CT501 Low Profile Servo
High-Performance Control
The Futaba HPS-CT501 is a lightweight low-profile brushless servo built for demanding 1/10 on-road and drift applications, delivering an impressive 291.6 oz-in of torque and ultra-fast 0.06-second response at 7.4V, while its all-metal gears, dual ball bearings, high-voltage capability, and programmable S.Bus/S.Bus2 compatibility provide exceptional speed, precision, durability, and tuning flexibility.
Features:
- Up to 291.6 oz-in of torque at 7.4V
- Ultra-fast 0.06 sec/60° speed at 7.4V
- Powerful brushless motor
- Durable all-metal gears
- Smooth operation with dual ball bearings
- Lightweight low-profile design
- Programmable S.Bus and S.Bus2 compatible
- Supports 6.0–7.4V high-voltage operation

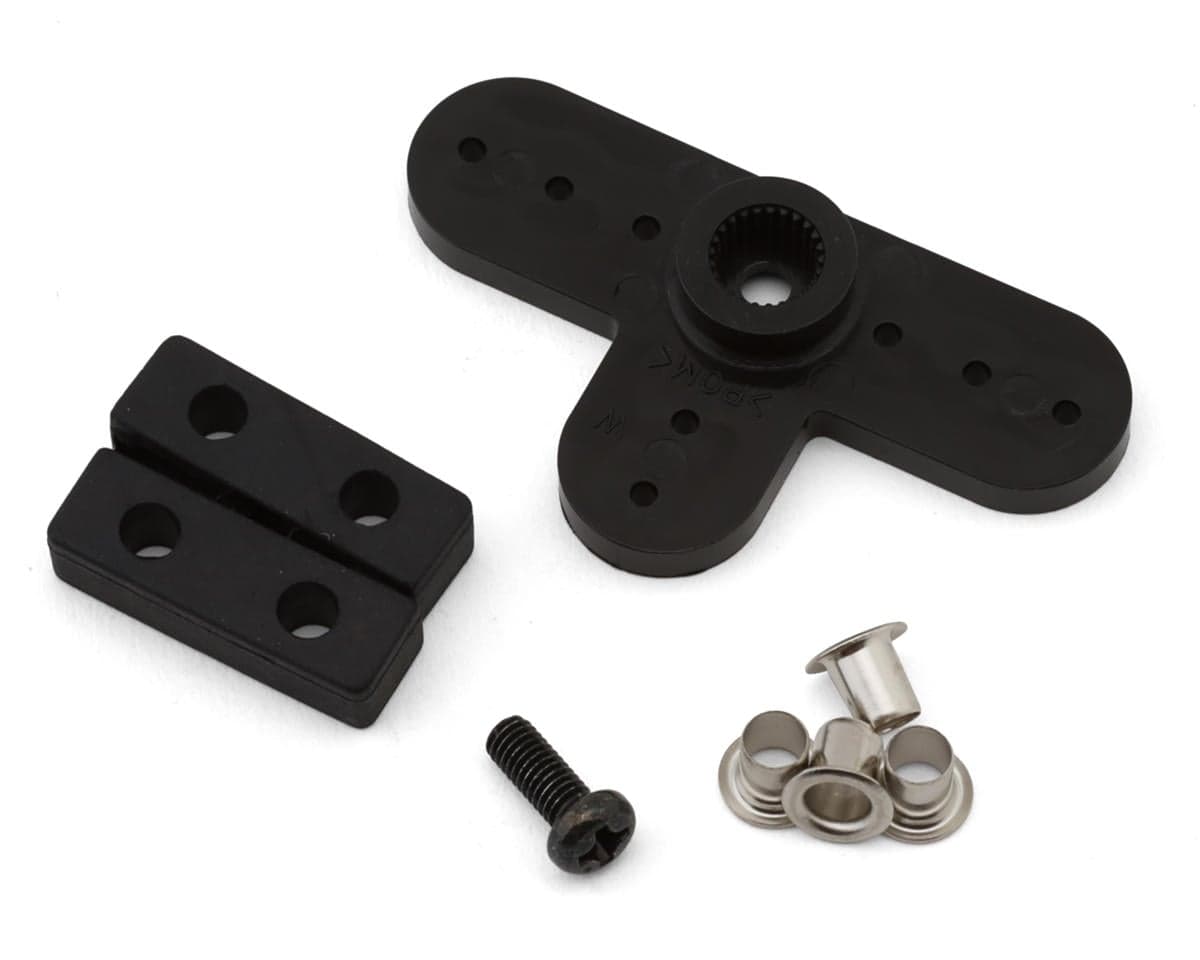

Includes:
- (1) HPS-CT501 Low Profile Brushless S.Bus2 Metal Gear Servo
Specifications:
| Application | Low Profile 1/10 Scale On-Road |
|---|---|
| Input Voltage | 6.0-7.4V |
| Operating Speed @ 6.0V | 0.07 sec/60° |
| Operating Speed @ 7.4V | 0.06 sec/60° |
| Dynamic Torque @ 6.0V | 237.5oz-in (17.1kg-cm) |
| Dynamic Torque @ 7.4V | 291.6oz-in (21kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.83nx1.06in (40.5x21x26.9mm) |
| Weight | 1.55oz (44g) |
