Servo Overview:

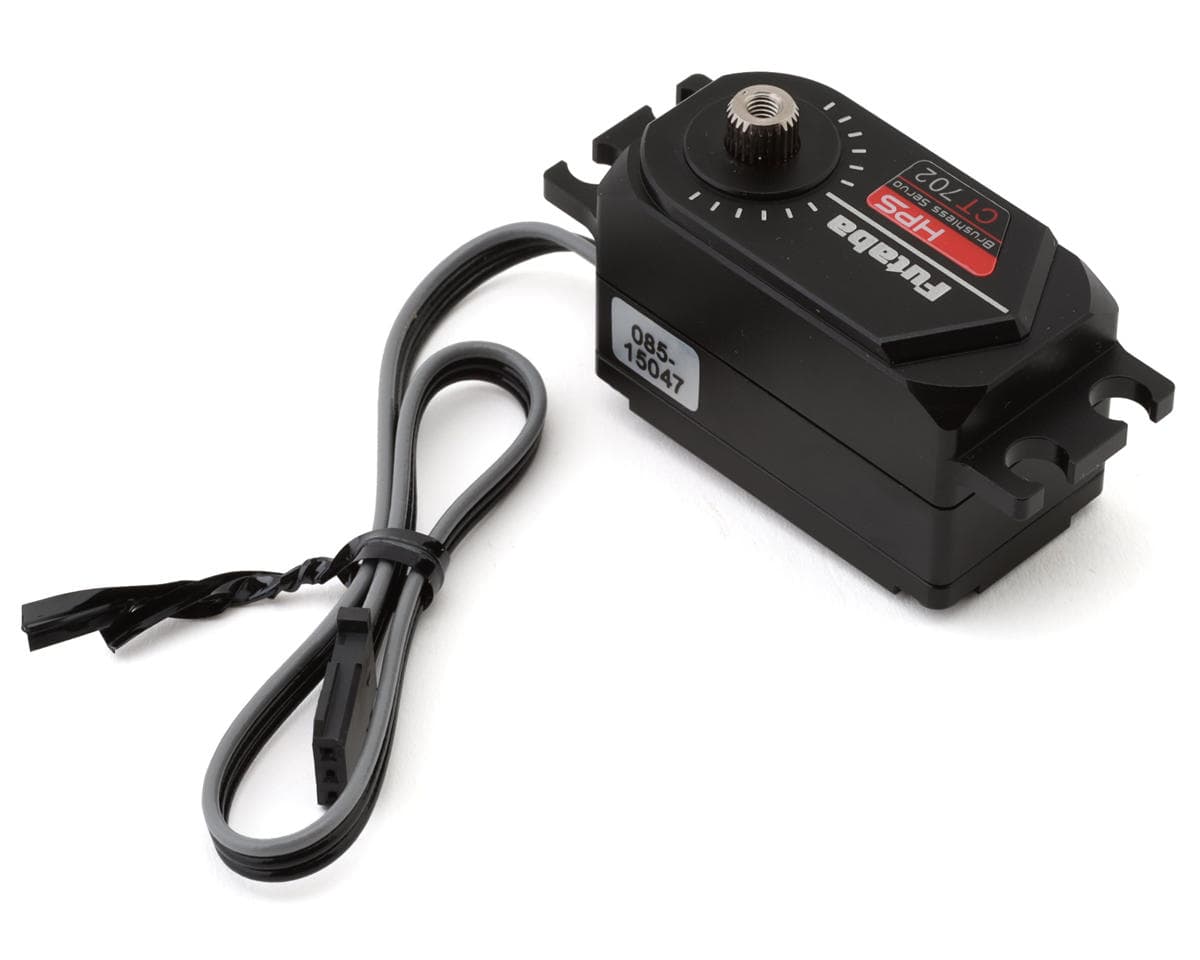

The Futaba HPS-CT702 Aluminum Standard Low Profile Surface Brushless Servo is a high-performance programmable servo designed for 1/10 scale on-road, off-road, and drift RC vehicles. Featuring a low-profile design and a custom high-power brushless motor, this servo delivers fast response and precise steering control for competitive driving applications. The full aluminum case provides increased durability while helping dissipate heat during demanding operation. Compatibility with Futaba's advanced programming features and high-voltage operation makes it a versatile choice for racers seeking maximum performance.
About the HPS-CT702 Aluminum Low Profile Servo
High-Speed Brushless Performance
At the core of the HPS-CT702 is a custom high-power brushless motor engineered to provide rapid response and consistent output. With an impressive transit speed of 0.07 seconds per 60 degrees at 7.4V, the servo delivers the quick steering reaction needed for racing, drifting, and other precision driving disciplines. The brushless design also contributes to smooth operation and long-term reliability.
Advanced Programmability & System Integration
The HPS-CT702 is fully programmable and compatible with Futaba S.Bus and S.Bus2 systems, allowing users to fine-tune performance settings to match their driving preferences. When paired with compatible Futaba transmitters such as the T4PM, T7PX, or T10PX, the servo supports Super Response (SR) mode for even faster signal processing. Additional customization can be performed through a PC using the Futaba CIU-3 USB PC Interface (FUT01102291-1 - sold separately).
Durable Aluminum Construction
A full aluminum case provides the strength required for demanding RC applications while maintaining the compact dimensions of a low-profile servo. The rigid housing helps protect internal components from impact and vibration while also improving heat dissipation during extended operation. This combination of durability and performance makes the HPS-CT702 well suited for high-performance surface vehicles.
Features:
- Designed for 1/10 scale on-road, off-road, and drift vehicles
- Low-profile servo design
- Custom high-power brushless motor
- High-voltage compatible operation
- 0.07 sec/60° transit speed at 7.4V
- Supports Futaba Super Response (SR) mode
- Programmable servo functionality
- Compatible with S.Bus and S.Bus2 systems
- PC programmable with CIU-3 interface
- Full aluminum servo case
Includes:
- (1) HPS-CT702 Aluminum Standard Low Profile Surface Brushless Servo

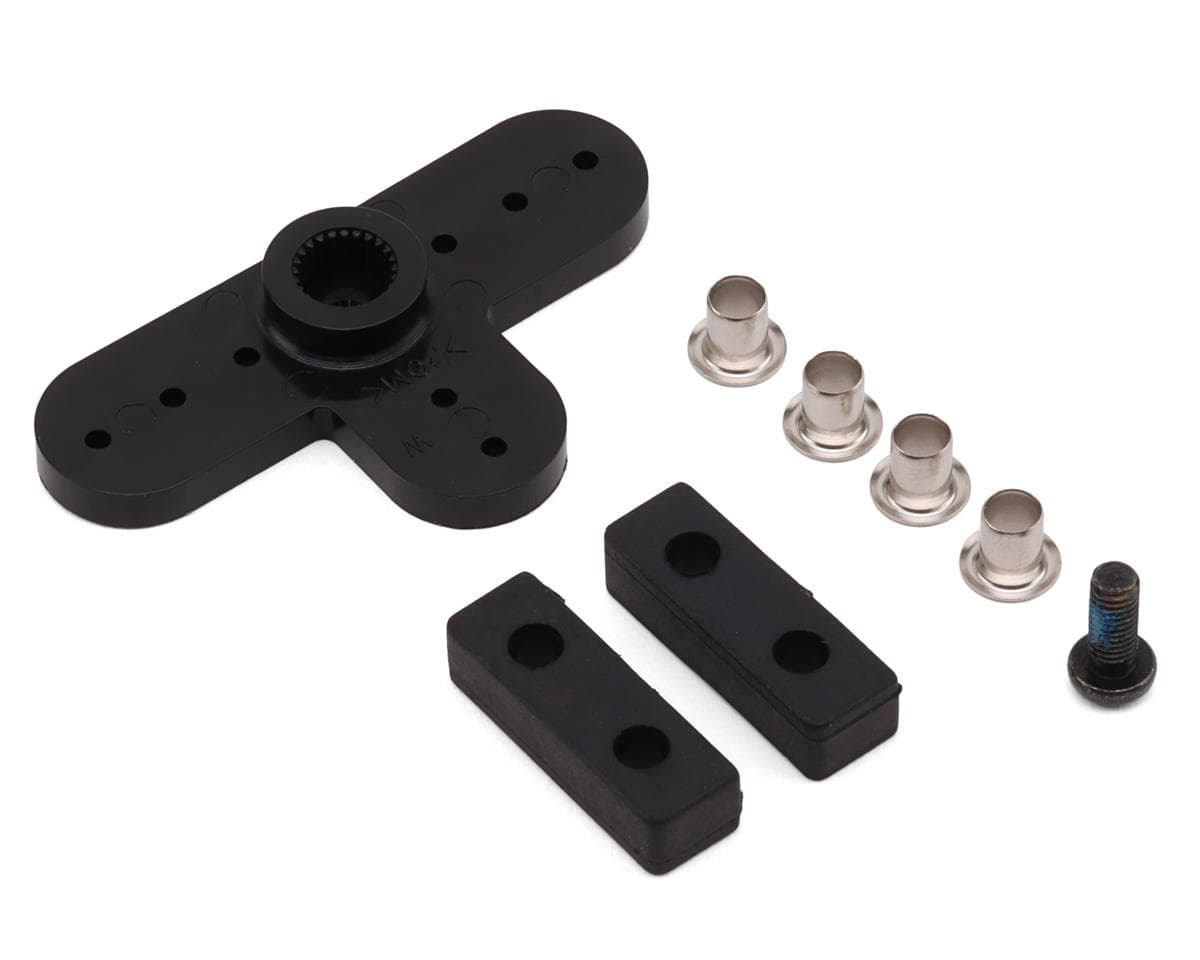

- Servo Horns & Accessories
Specifications:
| Application | 1/10 |
|---|---|
| Input Voltage | 6.0-7.4V |
| Operating Speed @ 6.0V | 0.08 sec/60° |
| Operating Speed @ 7.4V | 0.07 sec/60° |
| Dynamic Torque @ 6.0V | 319.4oz-in (23kg-cm) |
| Dynamic Torque @ 7.4V | 416.6oz-in (30kg-cm) |
| Gear Material | - |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.59x0.83x1.03in (40.5x21x26.2mm) |
| Weight | 1.87oz (53g) |
