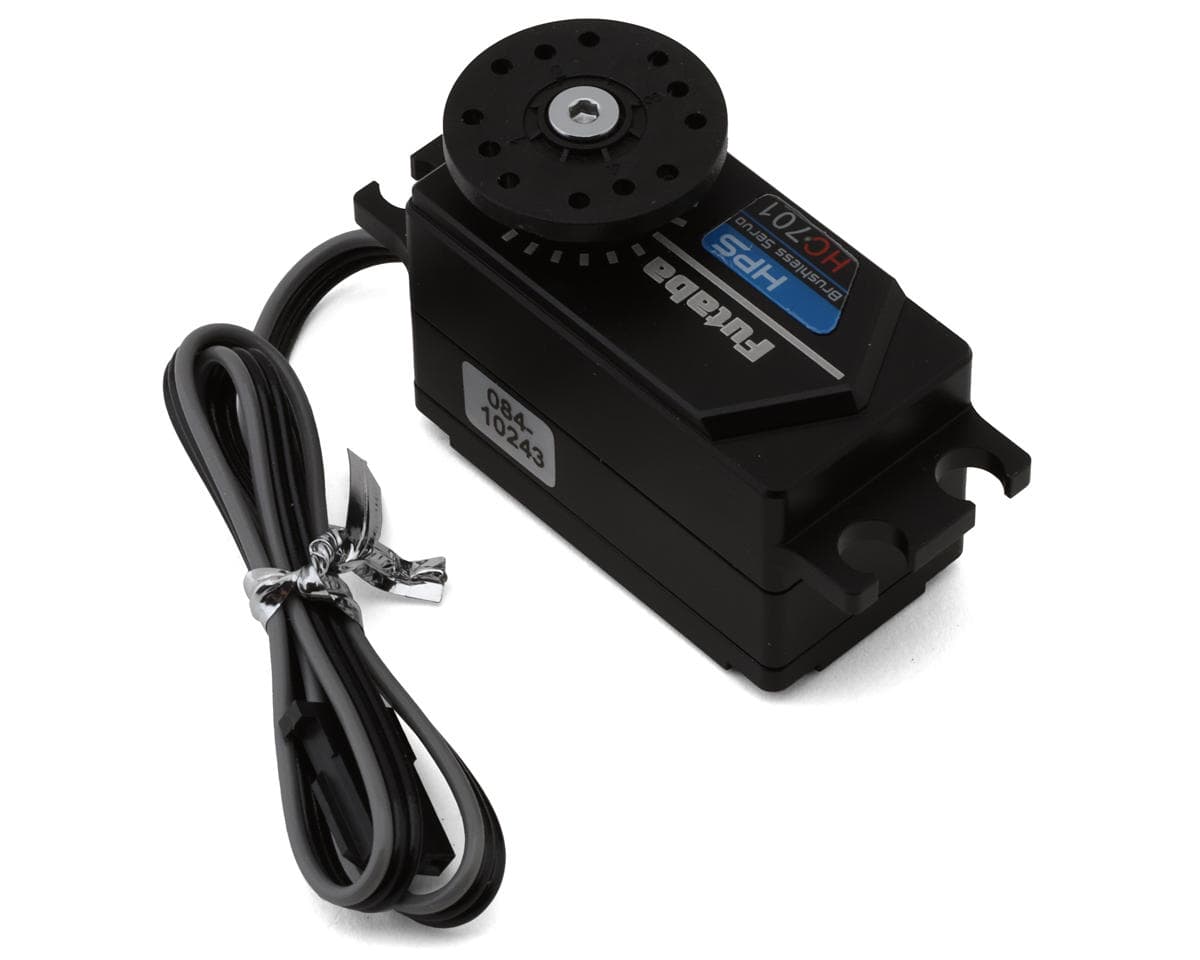

Parts/Radio & control/Servos/Futaba HPS-HC701 S.Bus2 Low Profile Brushless Cyclic Servo (High Voltage)
About this part
Futaba HPS-HC701 S.Bus2 Low Profile Brushless Cyclic Servo. This servo is a high-voltage, high-performance brushless servo that features switchable programming from 760uS to 1520uS, making it ideal for use in the tail of 500-800 size helicopters.
Features
Specifications:
- 1520uS:
- Speed:
- @7.4V: 0.07sec/60°
- @6.6V: 0.08sec/60°
- Torque:
- @7.4V: 416.6 oz-in (30.0kg-cm
- @6.6: 368 oz-in (26.5kg-cm)
- 760uS:
- Speed:
- @7.4V: 0.07sec/60°
- @6.6V: 0.08sec/60°
- Torque:
- @7.4V: 375.0 oz-in (27.0kg-cm
- @6.6: 333.3 oz-in (24.0kg-cm)
- Length: 1.5in (40.5mm)
- Width: 0.82in (21.0mm)
- Height: 1.03in (26.2mm)
- Weight: 1.9oz (54g)
- Operating Voltage: DC 4.8 - 8.4V
Includes:

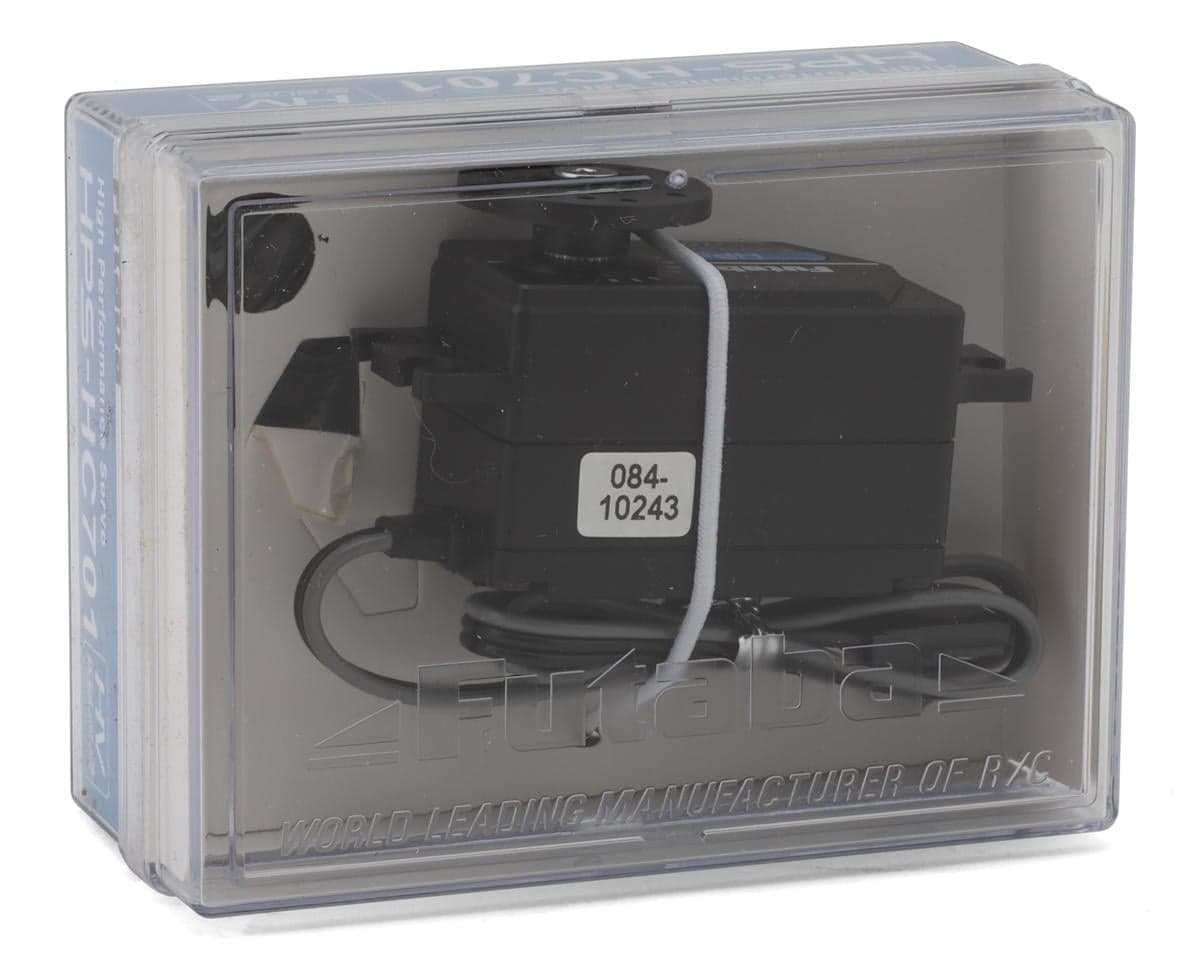

- (1) HPS-HC701 S.Bus2 Low Profile Brushless Cyclic Servo
