Parts/Radio & control/Servos/Futaba HPS-HT700 S.Bus2 Low Profile Brushless Tail Servo (High Voltage)

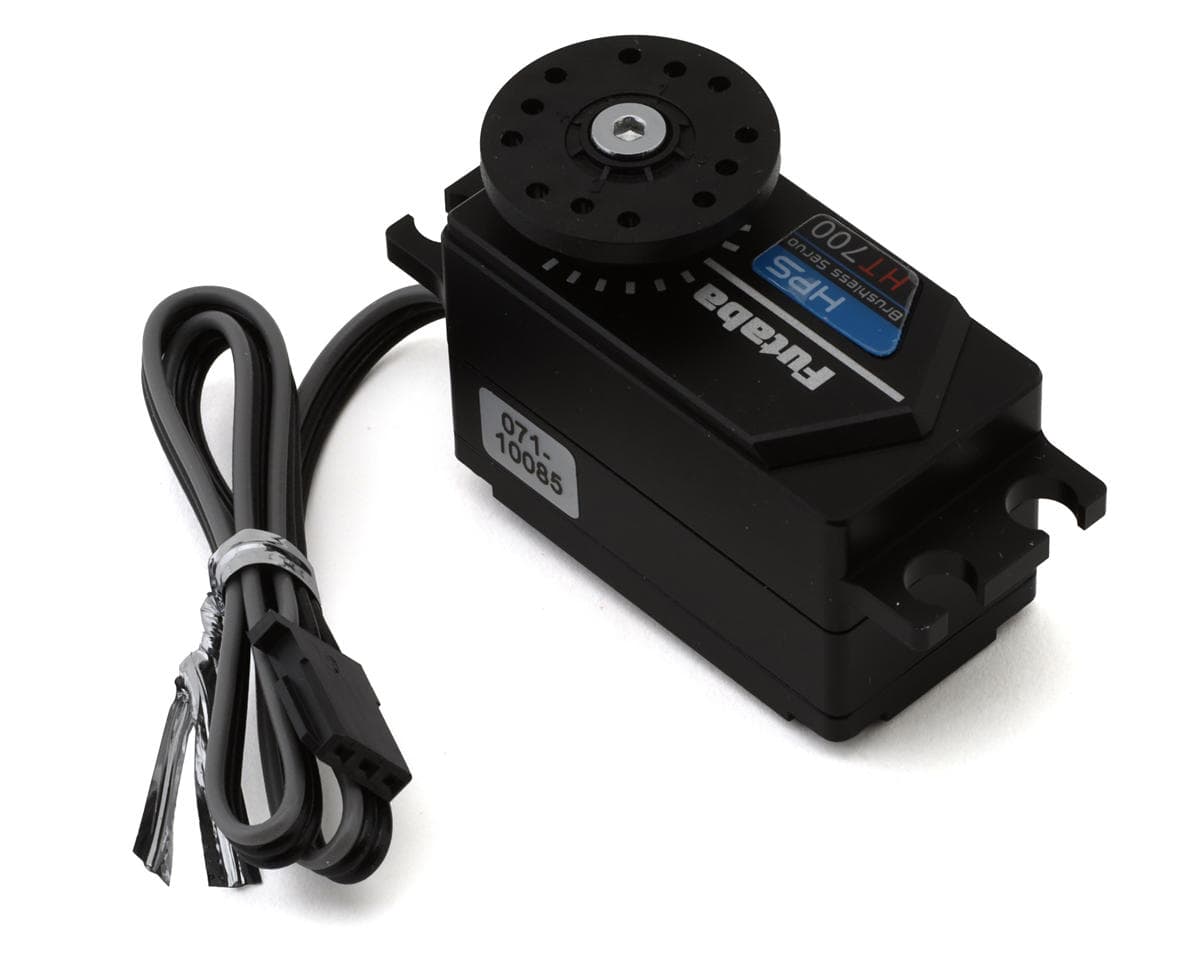

Futaba HPS-HT700 S.Bus2 Low Profile Brushless Tail Servo (High Voltage)
Futaba

Futaba HPS-HT700 S.Bus2 Low Profile Brushless Tail Servo (High Voltage)

Part # FUT01102378-3
ServosAircraftLandcraftRotorcraftWatercraft
Where to buy
$341.99
AMain Hobbies
Seen Oct 12, 2026
$341.99Buy
Prices are as last seen at the store; stock is not tracked.

About this part

Futaba HPS-HT700 S.Bus2 Low Profile Brushless Tail Servo. This is a high performance brushless servo intended for use in the tail of 500-800 size helicopters.


Features

  • Programmable/HV Brushless Servo
  • S.Bus and S.Bus2 compatible
  • Supports 760uS and 1520uS
  • Full aluminum case
  • High power Brushless Motor

  • Specifications:

    • Speed:
      • @7.4V: 0.045sec/60°
      • @6.6: 0.05sec/60°
    • Torque:
      • @7.4V: 133.3 oz-in (9.6kg-cm)
      • @6.6V: 119.4 oz-in (8.6kg-cm)
    • Dimensions: 40.5x21.0x26.2mm
    • Weight: 54g
    • Operating Voltage: DC 4.8 - 8.4V

    Includes:

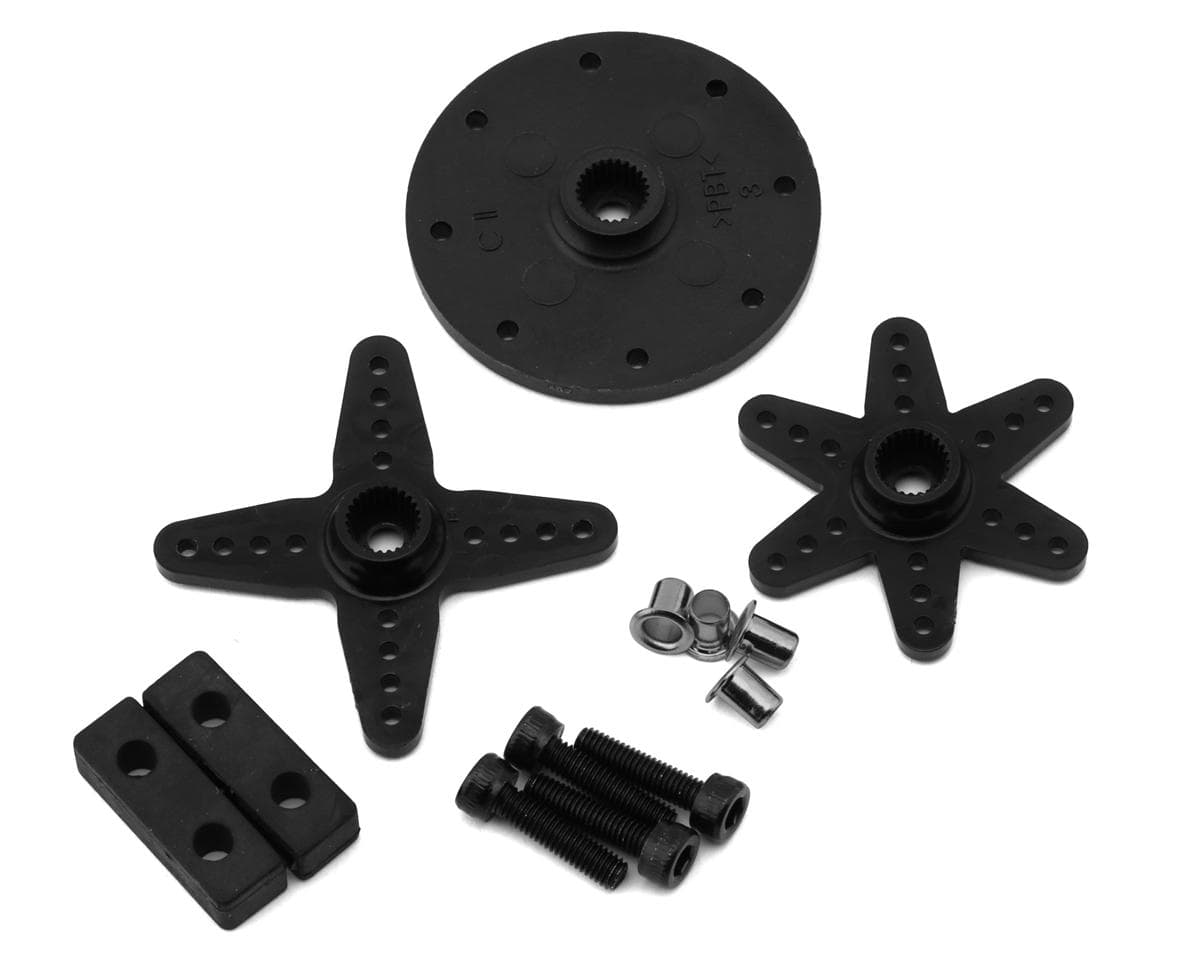

    • (1) HPS-HT700 S.Bus2 Low Profile Brushless Tail Servo
    CA Residents Prop 65 Warning WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...

    Reviews

    No reviews yet.

    Builds using this part

    No builds use this part yet — add it to yours from the build editor.
