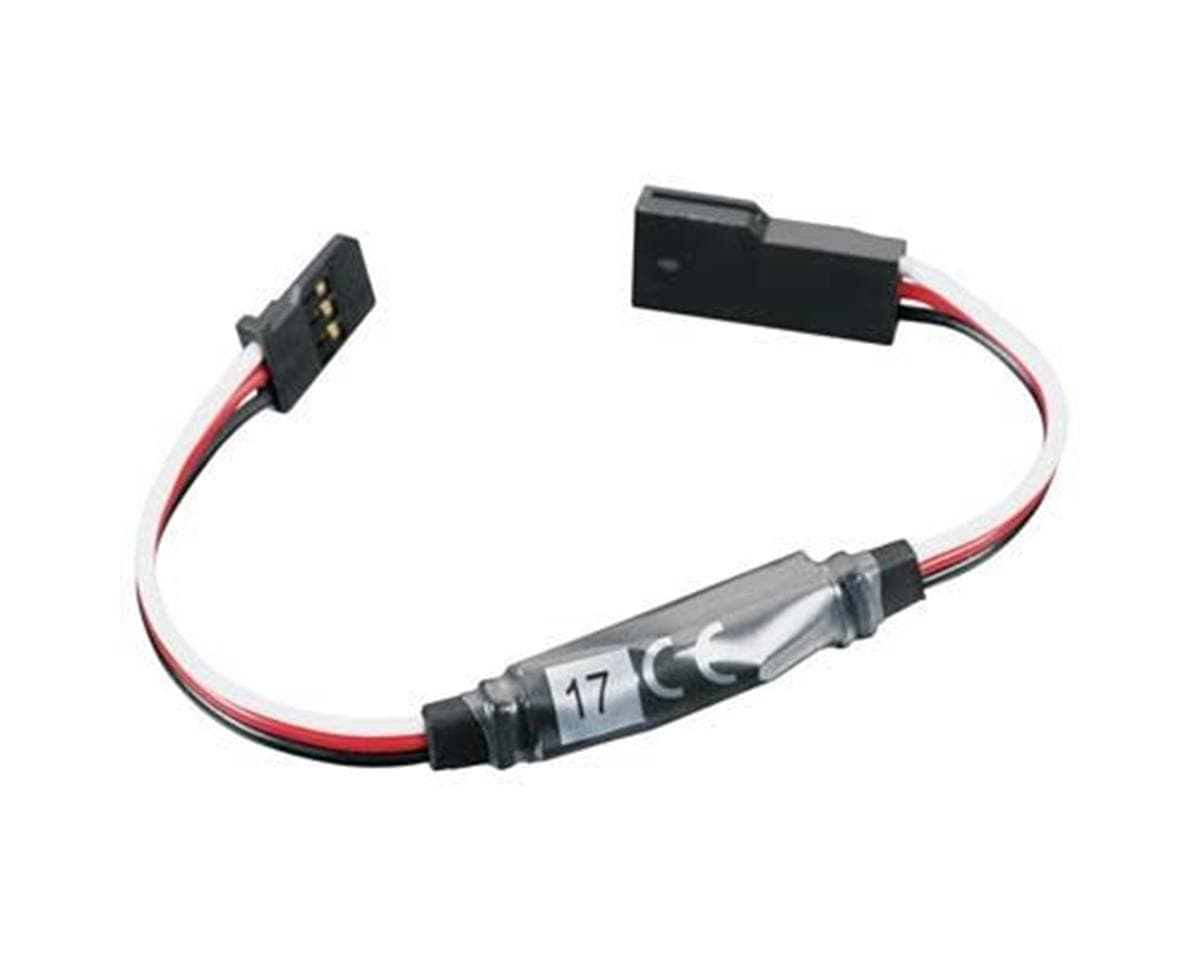

Futaba PS-01RS 1 Amp Step Down Voltage Regulator
Part # FUT01102286-1
Where to buy
$27.99
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Futaba PS-01RS 1 Amp Step Down Voltage Regulator.
Features:
- Ideal for heli tail rotor servos
- Allows you to use a 4.8V servo with higher voltage batteries
- Regulates battery voltage to 5V
- Very compact and lightweight
Specifications:
Main Application: 4.8V heli tail rotor servos
Input Voltage Range: 6.0 - 8.5V
Output Voltage: 5.0V
Rated Output Current: 1.0A (momentary maximum 5.0A)
Operating Temperature Range: -10 to +45°C
Storage Temperature Range: -20 to +60°C
Dimensions: 0.95x0.31x0.33" (24.2x7.8x8.3mm)
Weight: 0.18 oz (5.2 g)
