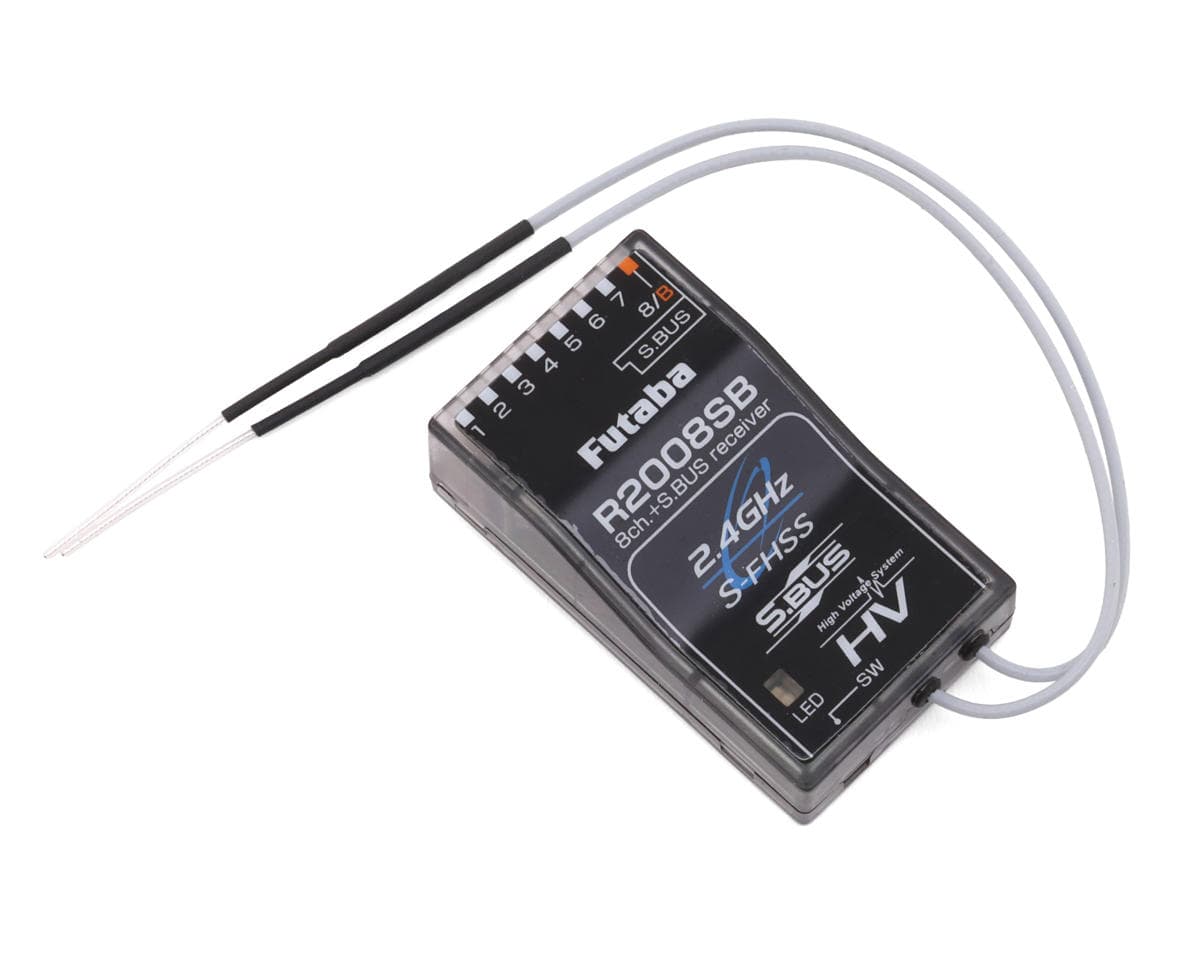

Futaba R2008SB 2.4GHz S-FHSS 8-Channel S.Bus Receiver
About this part
Receiver Overview:
The Futaba R2008SB 2.4GHz S-FHSS 8-Channel S.Bus Receiver delivers reliable performance for a wide range of RC aircraft and surface models. Designed with Futaba’s proven frequency hopping spread spectrum technology, it provides stable signal reception even in demanding environments. Its compact size and lightweight design make it easy to install in space-conscious setups. Compatibility with multiple Futaba transmitters ensures flexibility for both current and future radio systems.
About the Receiver
Reliable Multi-Protocol Compatibility
The R2008SB is compatible with Futaba S-FHSS and FHSS systems with automatic detection, making it an excellent match for transmitters such as the Futaba 8J and 14SG. Eight standard output ports are complemented by an S.Bus port, allowing streamlined wiring with Futaba S.Bus servos and accessories. High-voltage support from 4.8V to 7.4V enables use with a variety of power systems, while the dual diversity antenna enhances signal stability and range.
Features:
- S-FHSS and FHSS auto-detection
- 8-channel output capability
- Integrated S.Bus port
- Compatible with Futaba 8J and 14SG transmitters
- High-voltage operation support
- Frequency hopping spread spectrum technology
- Dual diversity antenna design
- Compact and lightweight construction
Includes:
- (1) R2008SB 2.4GHz S-FHSS 8-Channel S.Bus Receiver
Specifications:
| Application | Air |
|---|---|
| Channels | 8 |
| Frequency | 2.4GHz |
| Protocol | FHSS / S-FHSS |
| Range | Full |
| Input Power | 4.8-7.4V |
| Dimensions | 1.69x0.98x0.55in (42.8x24.9x14mm) |
| Weight | 0.34oz (9.5g) |
