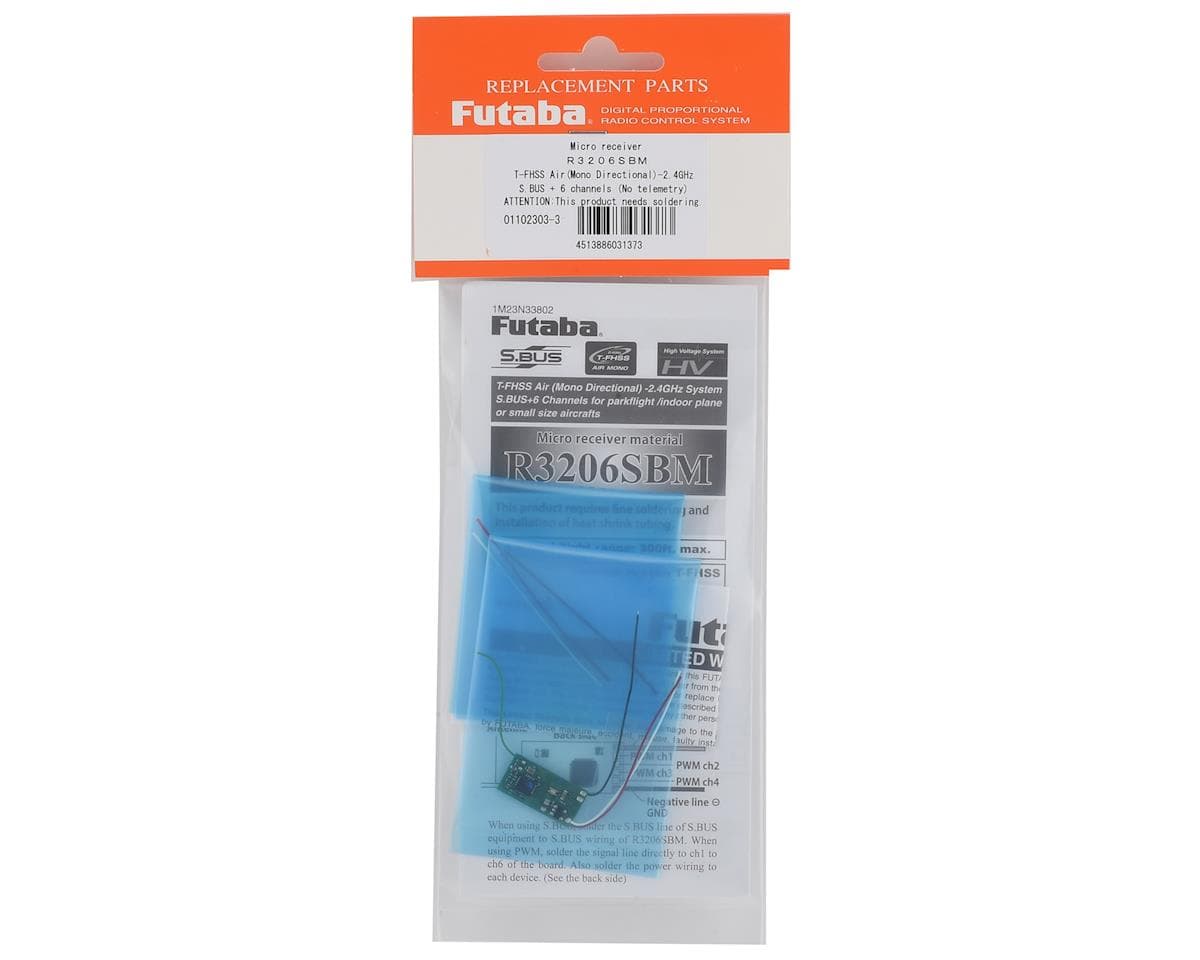

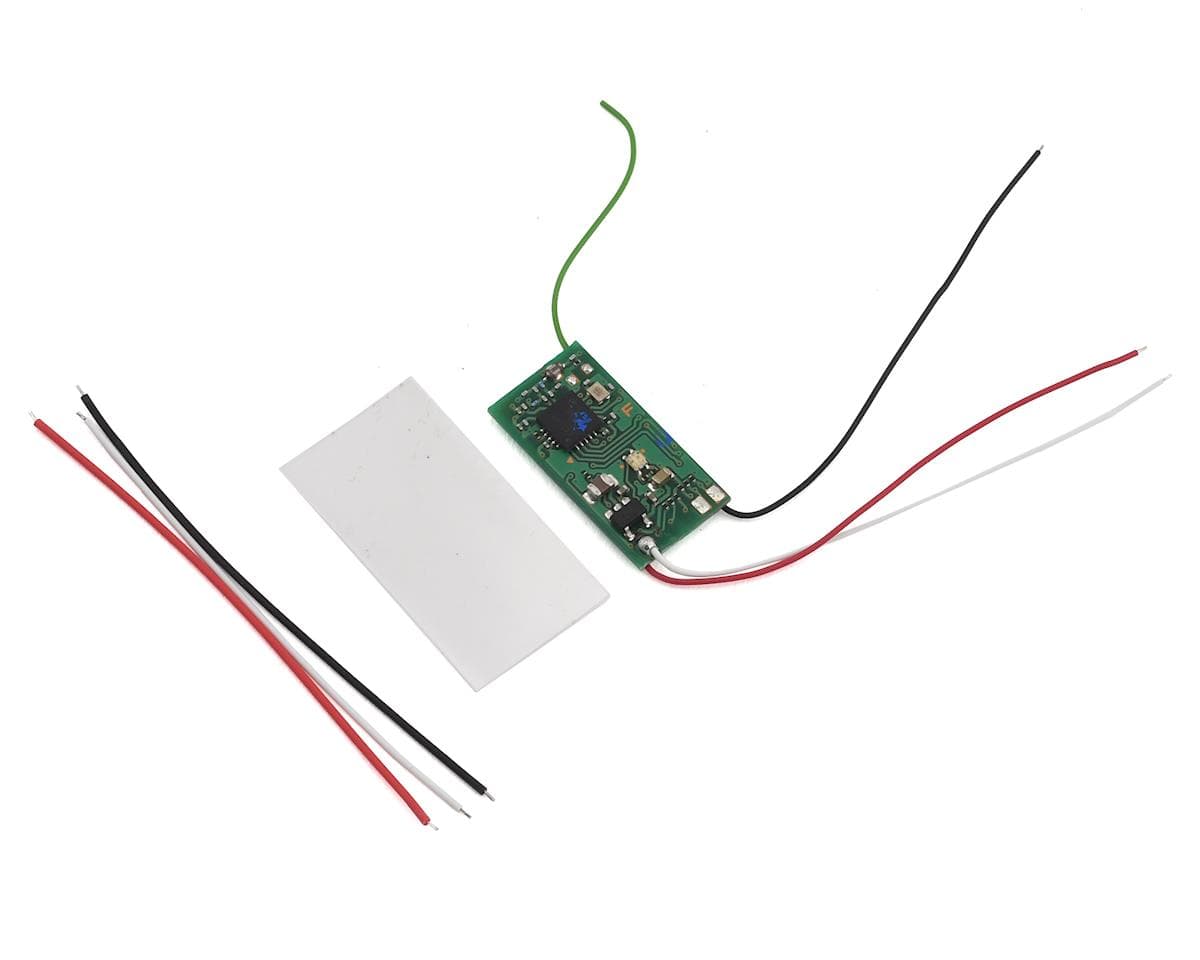

Futaba R3206SBM T-FHSS 6-Channel 2.4GHz Micro Indoor Receiver

The Futaba R3206SBM T-FHSS 6-Channel 2.4GHz Micro Indoor Receiver is the smallest receiver Futaba has ever produced. The design allows you to install the receiver in one of two ways, allowing the use of S-BUS for a direct link to drone controllers or using PWM with up to 6 channels. The R3206SBM uses T-FHSS Air-mono system without the telemetry capability. This opens Futaba users to another world of micro RC models from indoor aircraft to micro racing drones.

NOTE: To keep weight at a minimum, this receiver does not have plugs and it requires precision soldering to install. This is done by the user to match your application. Once installed in you chosen model you will need to use heatshrink to finish.

Features:

• Approximately 1 gram in weight!
• Ultra compact for micro models
• Uses the T-FHSS AIR-mono system (no telemetry)
• Wide 3.2 to 8.4V (HV) voltage range
• Battery Failsafe Voltage (Set from transmitter)

Specifications:

Modulation: T-FHSS AIR-mono

Range: 100m (Approx)

S.BUS: Yes

Connectors: None (Uses Solder Pads)

Telemetry: No

Weight: 1g (or less)

Channels: 6 + S.Bus

Voltage: 3.2 - 8.4V

Dimensions: 20 x 10 x 3mm

Frequency: 2.4GHz

Skill: Intermediate/Advanced
