Servo Overview:

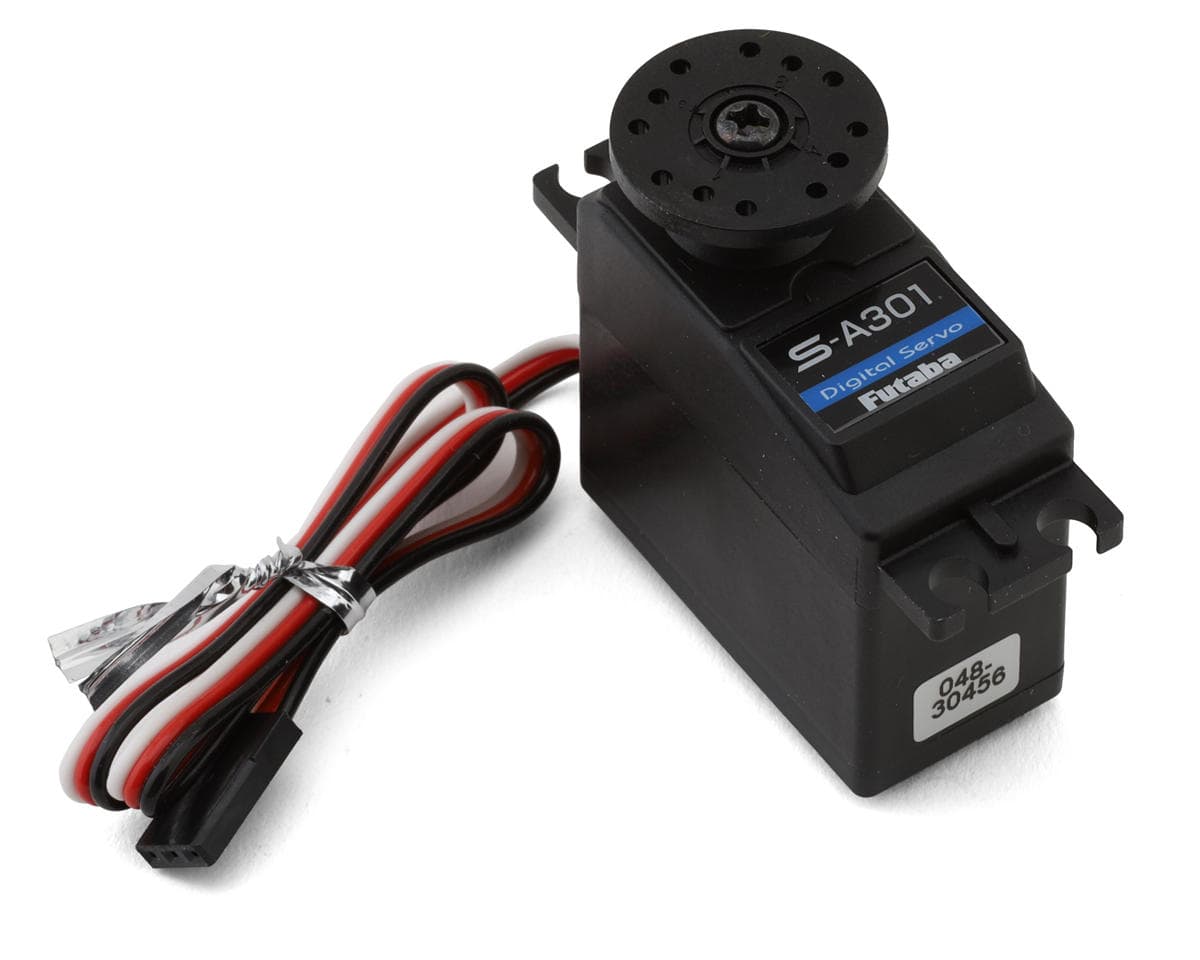

Elevate your RC experience with the Futaba S-A301 Digital Standard Airplane Servo. Engineered for precision and reliability, this servo delivers exceptional performance, making it ideal for various RC applications such as aircraft and helicopters. With its high-speed operation, high torque output, and programmable features, it's the perfect choice for demanding RC applications.
Features:
- High-speed operation
- Wide voltage range
- High torque
- Compact size
- Lightweight
- Metal gears with bearing for durability
Specifications:
- Speed:
- @6.0V: 0.14sec/60°
- @7.4V: 0.13sec/60°
- Torque:
- @6.0V: 118.1oz-in (8.50kg-cm)
- @7.4V: 125.0oz-in (9.00kg-cm)
- Dimensions: 1.57x.0.79×1.5in (39.9x20.1x38.1mm)
- Weight: 1.66oz (47.06g)
- Operating Voltage: 6.0-7.4V
- Spline: 25T
- Waterproof: No
Includes:

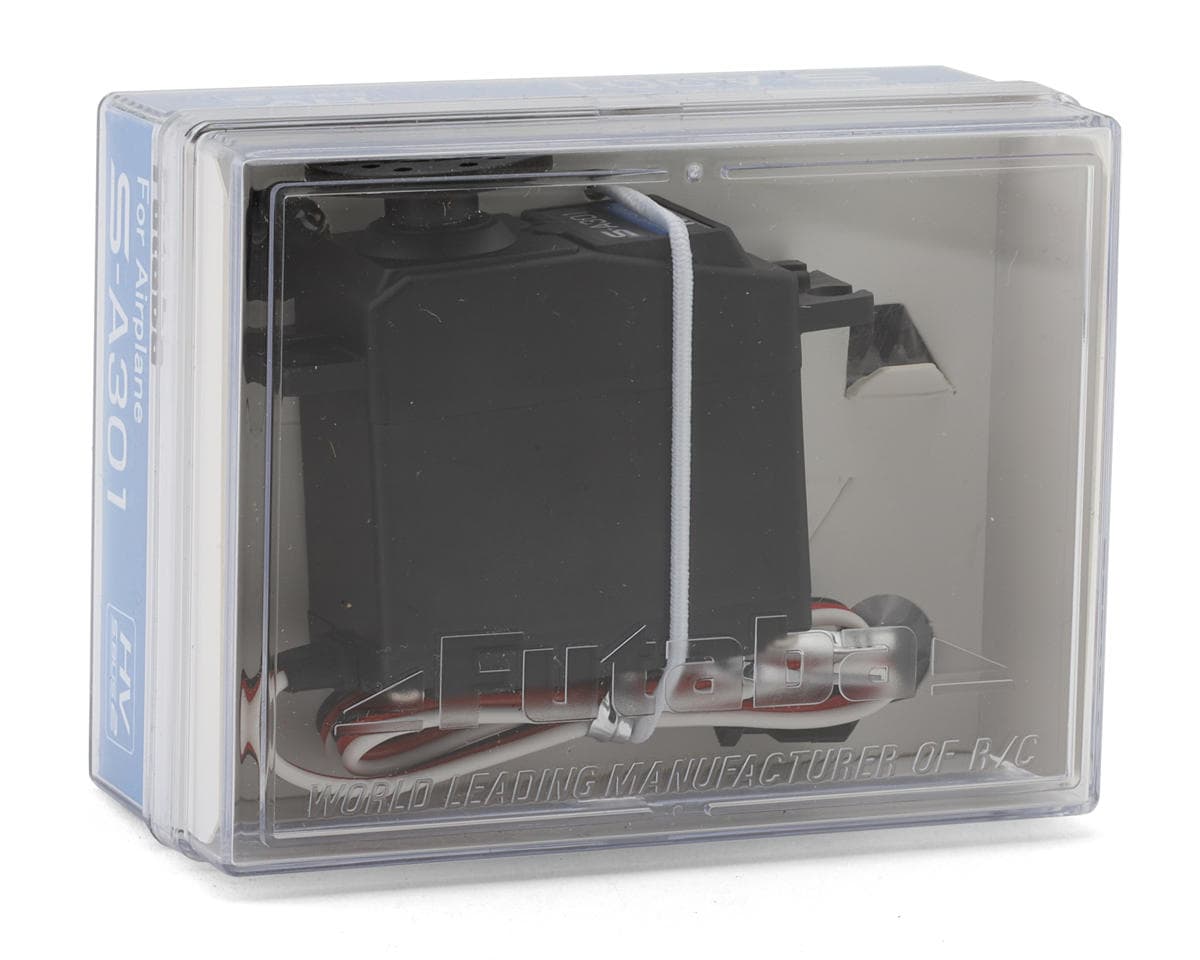

- (1) S-A301 Digital Standard Airplane Servo (High Speed)

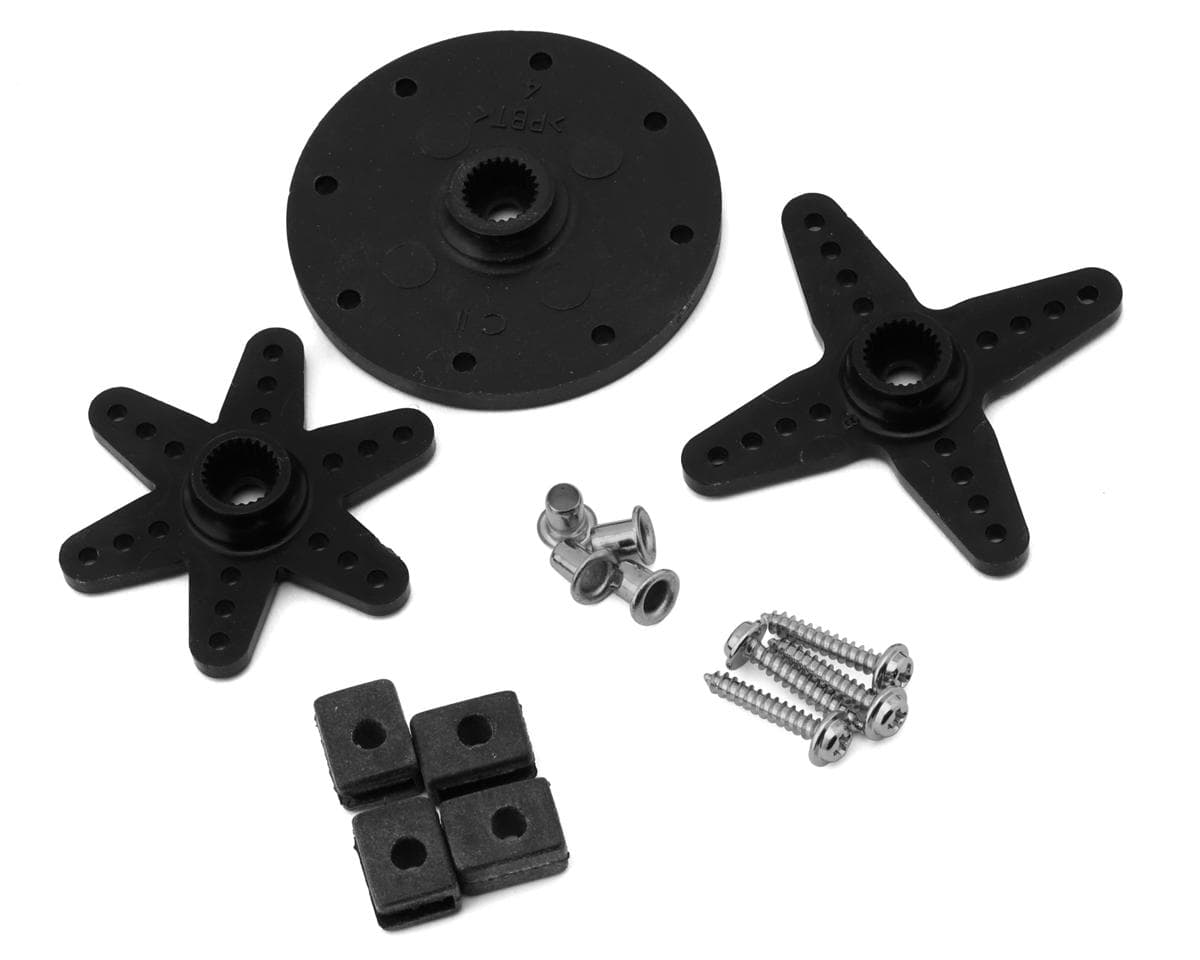

- Assorted Servo Horns and Mounting Hardware
