Servo Overview:

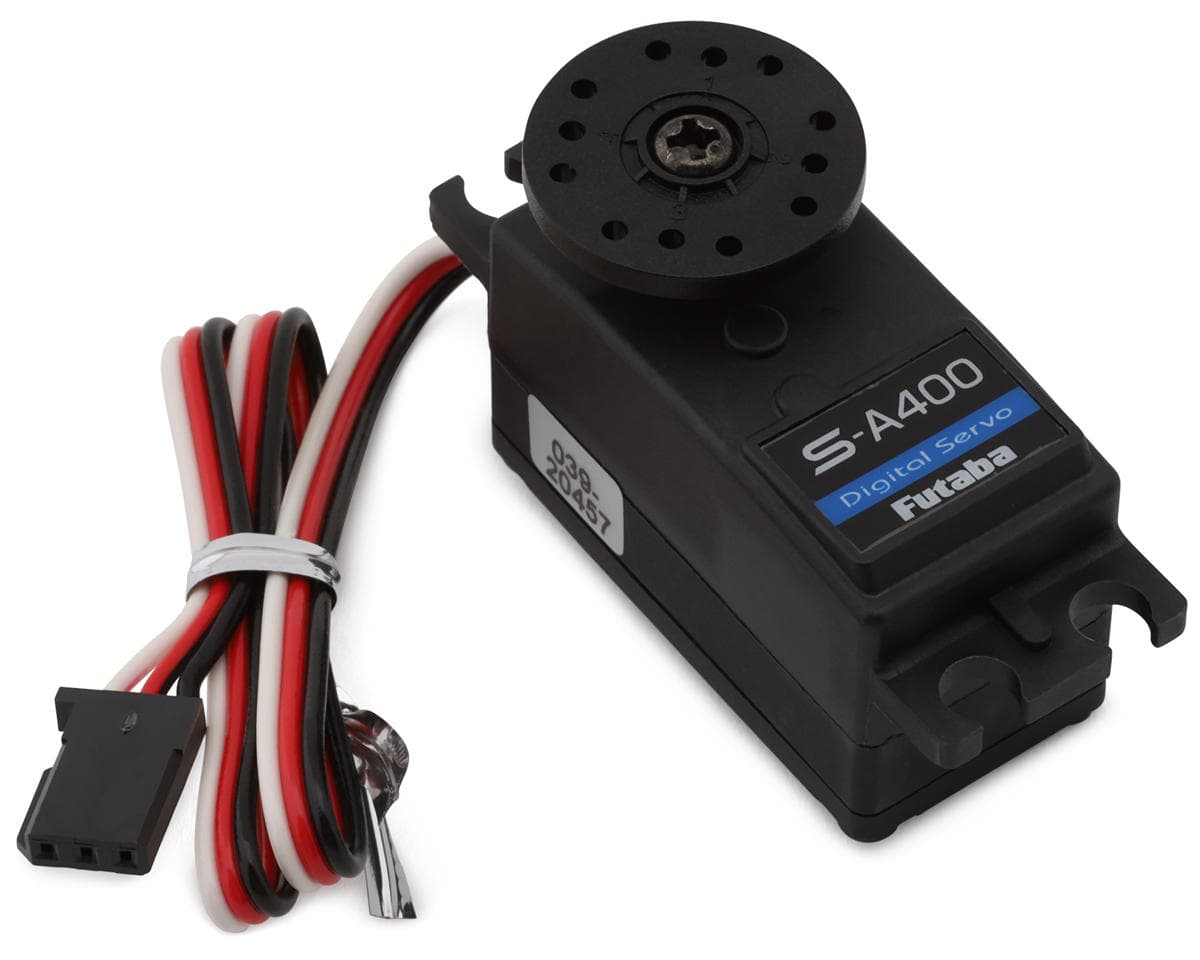

This is the S-A400 Brushless S.Bus2 Digital Low Profile Airplane Servo from Futaba. Engineered for precision control, this coreless digital servo delivers fast speed and high torque, making it an excellent choice for performance-driven RC airplanes. With its S.Bus2 compatibility and durable metal gears, it offers reliable and smooth operation in demanding flight conditions.
Features:
- Coreless motor for high efficiency
- S.Bus2 compatibility for easy integration
- Fast response with low profile design
- Metal gears with bearings for durability
- High-torque performance at multiple voltages
Specifications:
- Input Voltage: 6.0-7.4V
- Speed:
- @6.6V: 0.09sec/60°
- @7.4V: 0.08sec/60°
- Torque:
- @6.6V: 100oz-in (7.20kg-cm)
- @7.4V: 111.1oz-in (8.00kg-cm)
- Pulse/Frequency: -
- Motor Type: Brushless
- Output Shaft: 25T
- Gear Material: Steel
- Dimensions: 1.59x0.79x1.0in (40.39x20.1x25.4mm)
- Servo Lead Length: -
- Weight: 1.62oz (45.9g)
Includes:
- (1) S-A400 Brushless S.Bus2 Digital Low Profile Airplane Servo

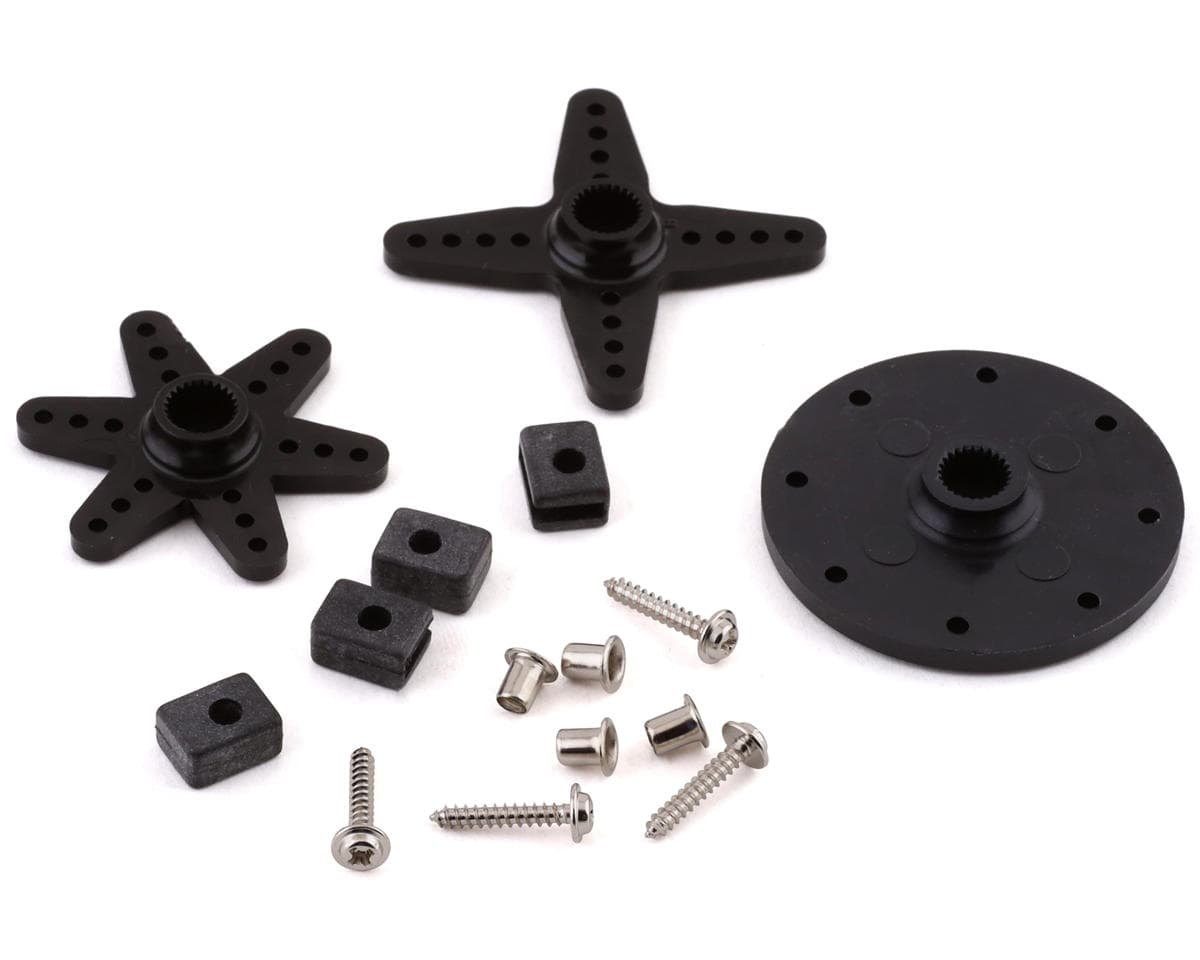

- Assorted Servo Horns and Mounting Hardware
