Futaba
Futaba SBE-1 S.Bus PWM Adapter
Part # FUT01102215-1
Where to buy
$60.99
Prices are as last seen at the store; stock is not tracked.
About this part

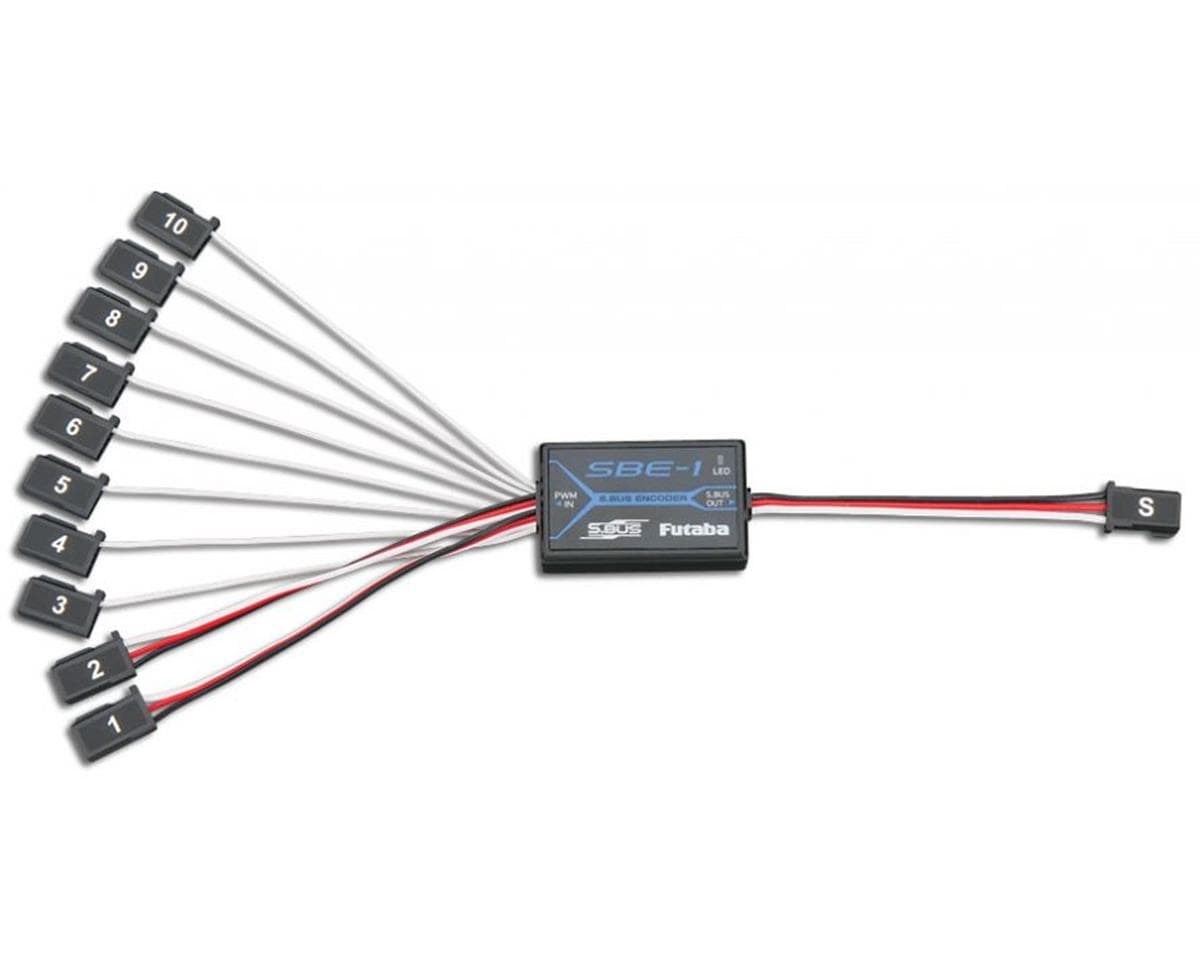

This is the Futaba SBE-1 S.Bus PWM Adapter. With the Futaba SBE-1 S.Bus PWM Adapter, almost any receiver becomes instantly compatible with S.Bus programmable servos, as well as the CGY750 3-axis gyro and other S.Bus compatible equipment. The SBE-1 S.Bus PWM Adapter converts input from up to 10 PWM channels into a single S.Bus output.
Specifications:
PWM Input: Max 10 Channels
Input Pulse Width: 805 - 2,235?S
Input Frame Rate: 3 - 27.3mS
Output Signal: S.Bus
S.Bus Data Rate: 100kbps
Output Frame Rate: Approx. 7mS
Operating Voltage Range (Rated): 4.8 - 7.4V
Dimensions: 23.5x33.5x9.5mm (excluding cable)
Weight: 15g
Operating Temperature Range: -10 - +45°C
Storage Temperature Range: -20 - +60°C
