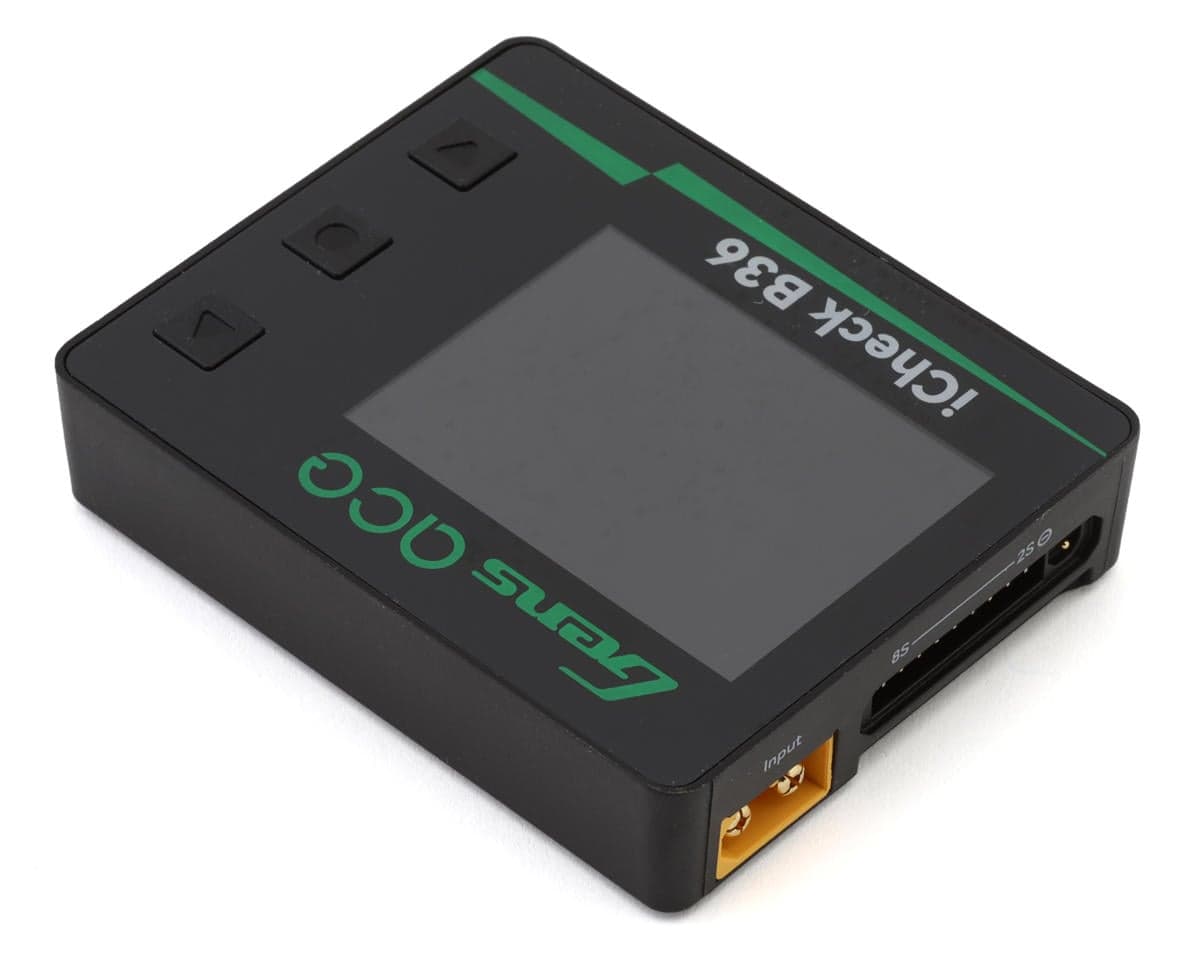

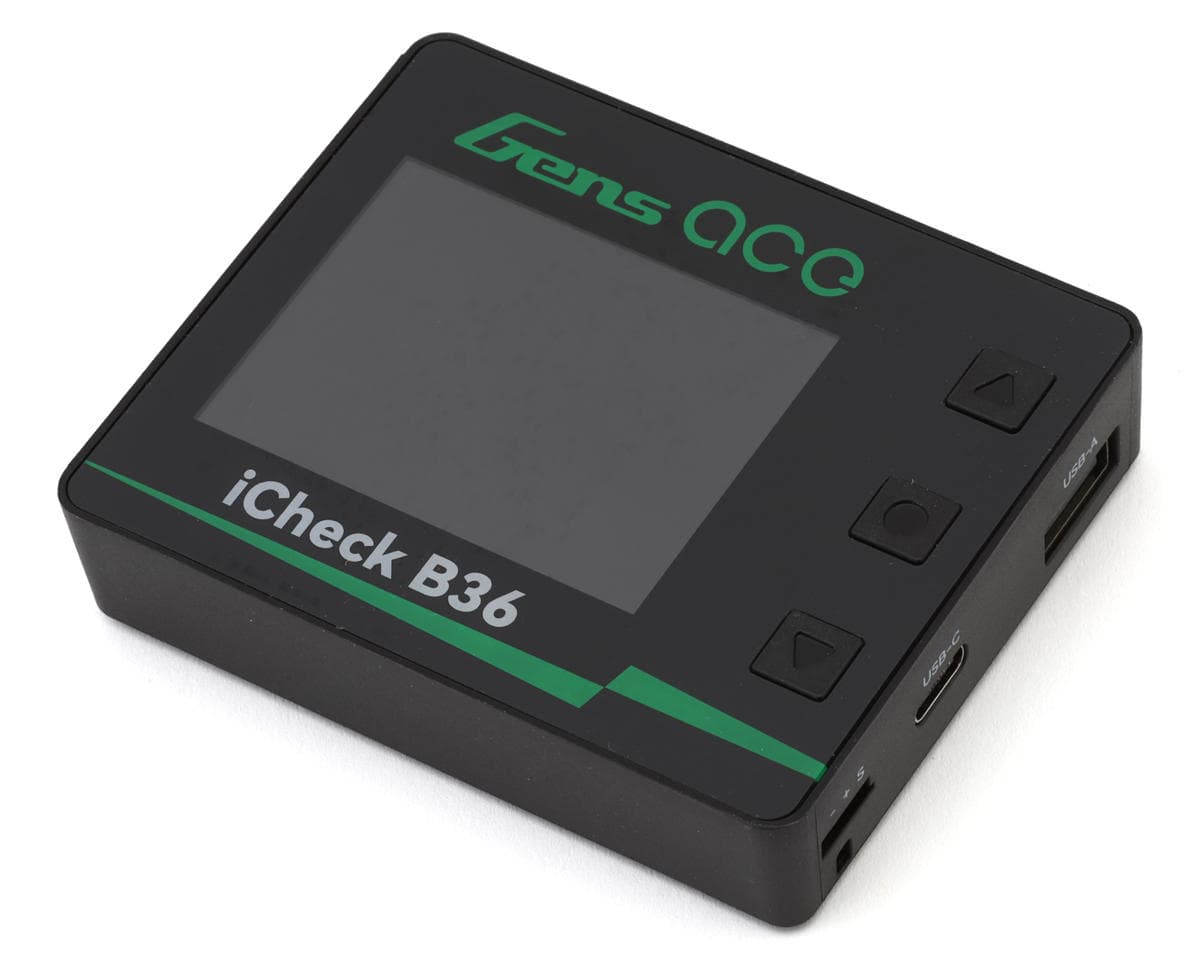

Gens Ace iCheck B36 Smart RC Battery Checker
About this part
Battery Checker Overview:
Stay in control of your RC batteries with the Gens Ace iCheck B36 Smart RC Battery Checker, a compact all-in-one tool that monitors voltage, balances cells, tracks battery health, and even doubles as a USB power bank — keeping your hobby safe, efficient, and ready to run.
About the iCheck B36
Comprehensive Battery Monitoring
The Gens Ace iCheck B36 Smart RC Battery Checker supports 1–8S LiPo, LiHV, LiFe, LiIon, and NiMH batteries via XT60 and G-Tech balance ports. Its high-visibility screen provides real-time voltage, individual cell balance, and battery health monitoring, allowing hobbyists to track performance and prevent over-discharge for safer, worry-free RC operation.
Versatile Power & Safety
Beyond checking batteries, the iCheck B36 functions as a 30W USB-C and 22.5W USB-A power bank for charging devices or transmitters. Built-in active cell balancing, smart auto-stop, multi-safety protections, and a compact portable design make it both convenient and reliable for field use, combining monitoring, balancing, and power supply in one smart device.
Features:
- Supports 1–8S LiPo, LiHV, LiFe, LiIon, and NiMH batteries
- Real-time monitoring of voltage, cell balance, and battery health
- Built-in active cell balancing at 100mA per cell
- USB-C (30W) and USB-A (22.5W) power bank outputs
- Smart auto-stop and multi-safety protection features
- Compact, portable design with high-visibility screen for easy use
Includes:
- (1) iCheck B36 Smart RC Battery Checker

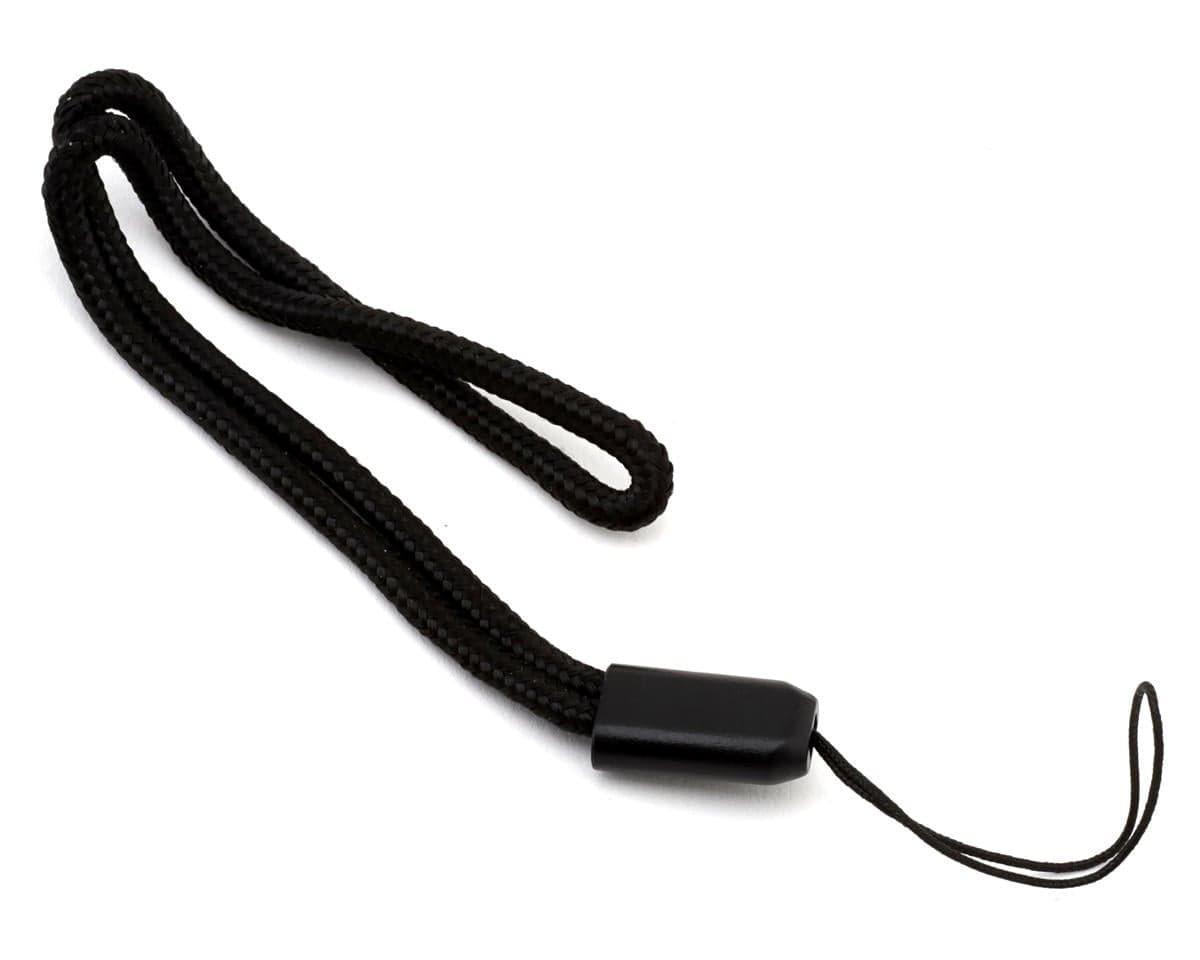

- (1) Wrist Strap
- (1) Manual
Specifications:
| REMOVE SPECS IF NOT NEEDED | |
|---|---|
| Output Power | Type-C PD30W (Max)/USB QC22.5W (Max) |
| Operating Modes | Balance discharge/USB charging |
| Battery Types | LiHv/LiPo/LiFe/LiIon (1-8S) |
| USB Output Current | 3A (Max) |
| Display Type | 2.4-inch IPS |
| Dimensions | 3.22x2.63x0.74in (82×67×19mm) |
| Weight | 2.64oz (75g) |
