Gmade 75mm XD Diaphragm Shock Set (2)
Part # GMA22307
Where to buy
$27.00
Prices are as last seen at the store; stock is not tracked.
About this part
This is the Gmade 75mm XD Diaphragm Shock Set.
Features:
- Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys (such as Associated B4/B44 front)
- CNC machined Aluminum shock bodies and caps
- Titanium gray anodized shock bodies and caps
- Lower shock ends includes red anodized aluminum balls
- Fully threaded for rapid adjustment
- Delrin pistons
- 3.5mm thick shock shafts
- Shaft exits through double O-ring seals
- Easy load shock seal assembly
- Laser engraved for authenticity
Specifications:
Length (Mounting hole to hole): 75mm
Shock Body Diameter: 14mm
Spring Diameter: 19mm
Spring Length: 40mm
Full Shaft Travel Range: 17mm (without Rubber bump stop)
Shaft Diameter: 3.5mm

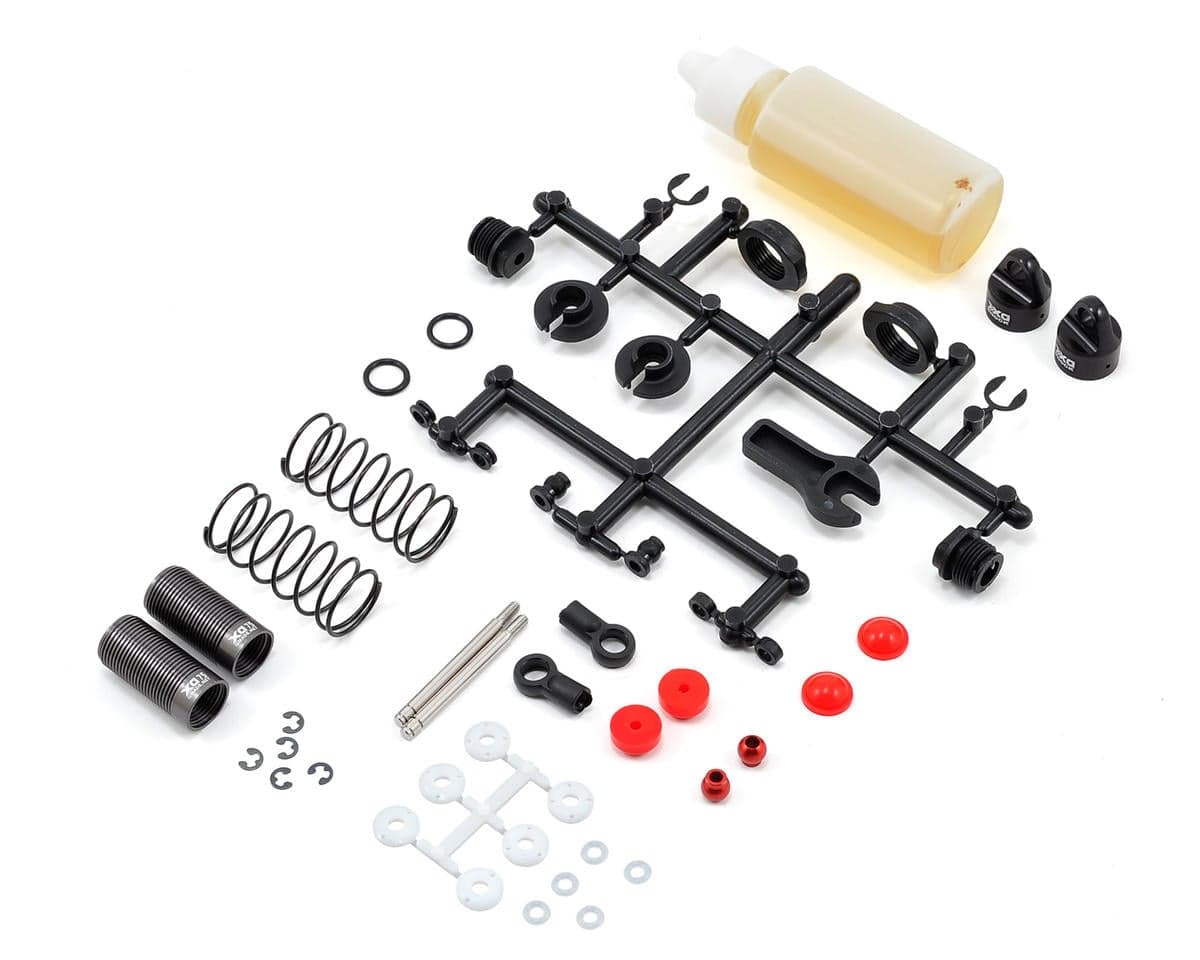

Includes:
- (2) Titanium gray anodized aluminum shock bodies
- (2) Titanium gray anodized aluminum shock caps
- (2) Diaphragms
- (2) Shock springs
- All necessary hardware to finish the shocks
- Assembly instructions
- Bottle of shock oil
