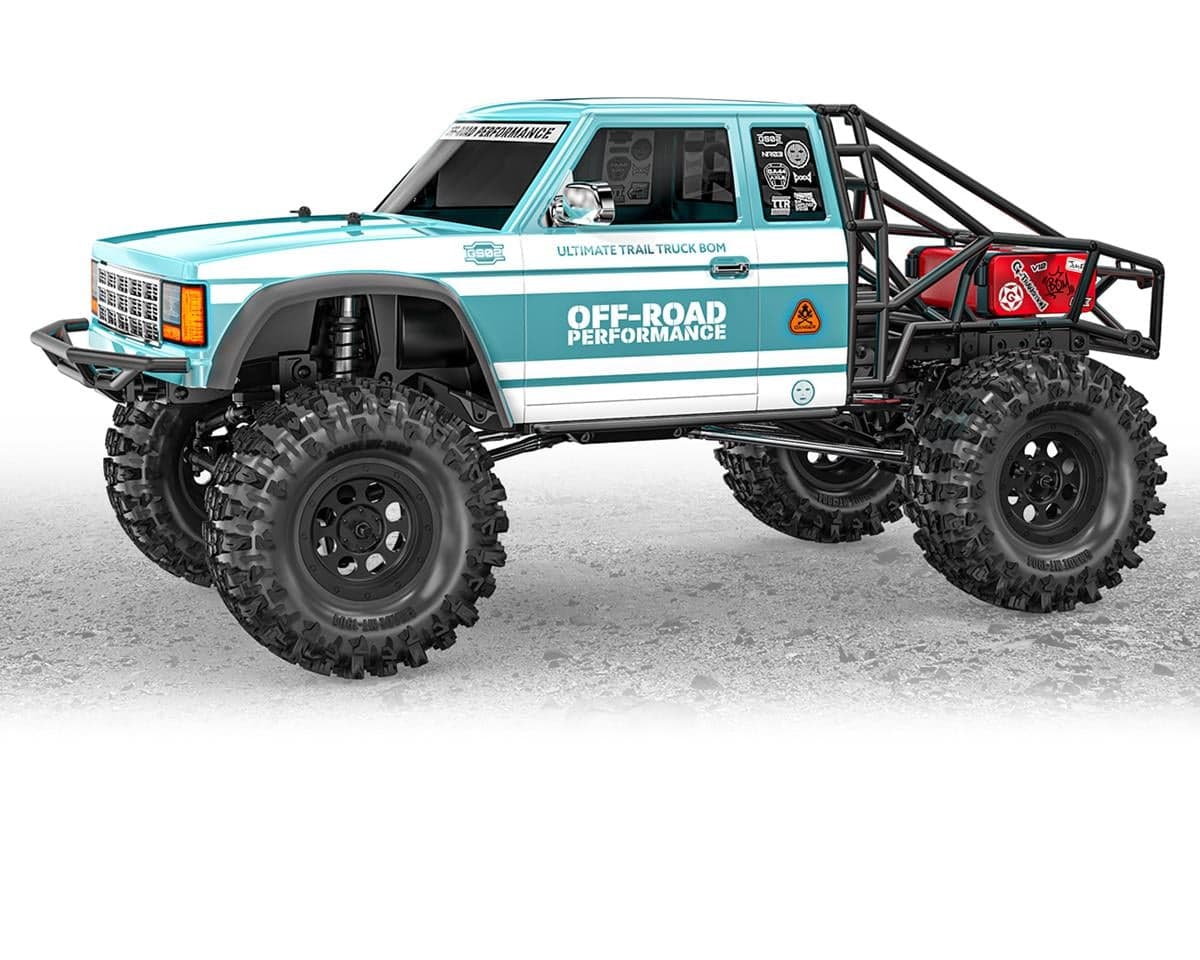

Gmade GS02F BOM TC 1/10 4WD Rock Crawler Kit

Gmade GS02F BOM TC - 1/10 Scale RC Rock Crawler Kit

The GS02F BOM TC 1/10 4WD Rock Crawler Kit is a great option for those wanting a scale-looking truck with incredible performance. Built on steel C-channel frames, this chassis features inner fenders, an adjustable wheelbase, front-mounted motor, adjustable battery tray, chassis-mounted servo with panhard bar, overdriven front axle, 2-speed transmission and much more! Add your electronics and hit the trail with the Gmade FS02F BOM TC.

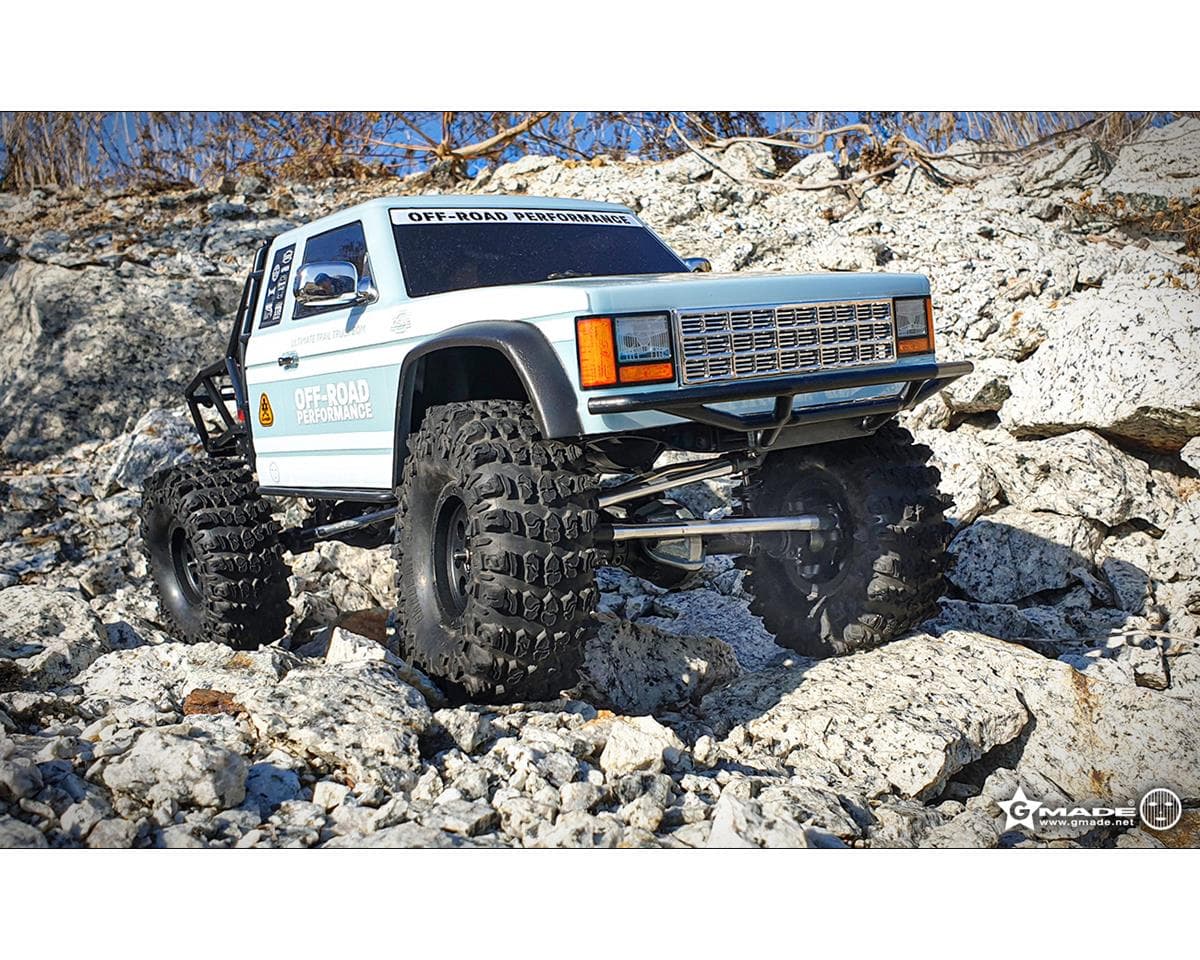

NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

• Steel frame rails
• Adjustable wheelbase
• Chassis-mounted servo (CMS)
• Factory front axle overdrive
• 2-speed transmission
• Dual slipper clutch
• Full metal gear drivetrain
• Carbon steel universal joints
• Adjustable caster
• Cantilever rear suspension system
• Includes 1.9" M/T Off-Road Tires!

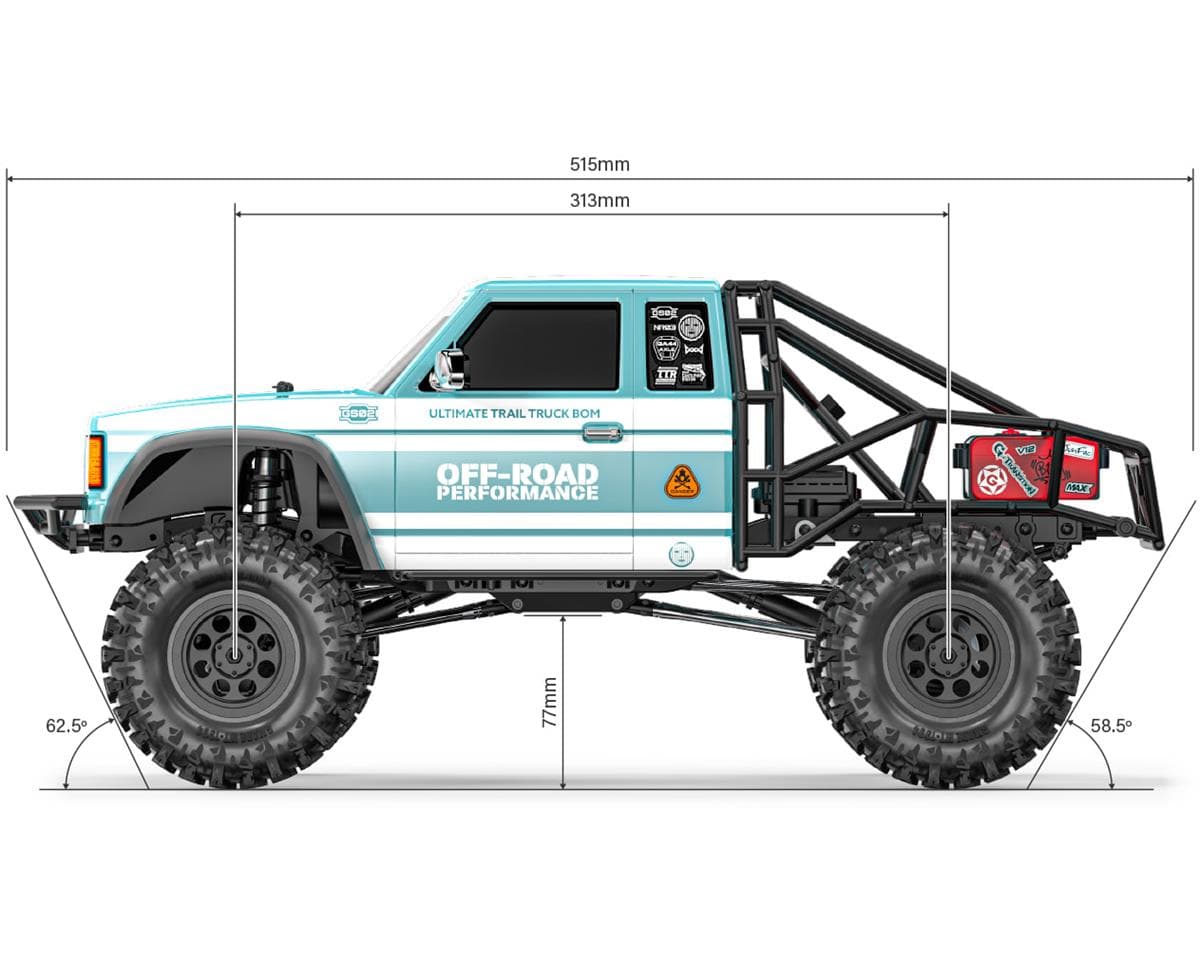

Specifications:

• Width: 240mm
• Height: 226mm
• Length: 515mm
• Wheelbase: 313mm
• Ground Clearance: 77mm
• Weight: 1.97kg
• Approach Angle: 62.5°
• Departure Angle: 58.5°

Includes:

• (1) GS02F BOM TC 1/10 4WD Rock Crawler Kit

Needed to Complete:

• (1) 3-Channel Transmitter and Receiver
• (2) Servos
• (1) 540 size Motor and Compatible ESC
• (1) Standard or Shorty Battery
• (1) Compatible Battery Charger
