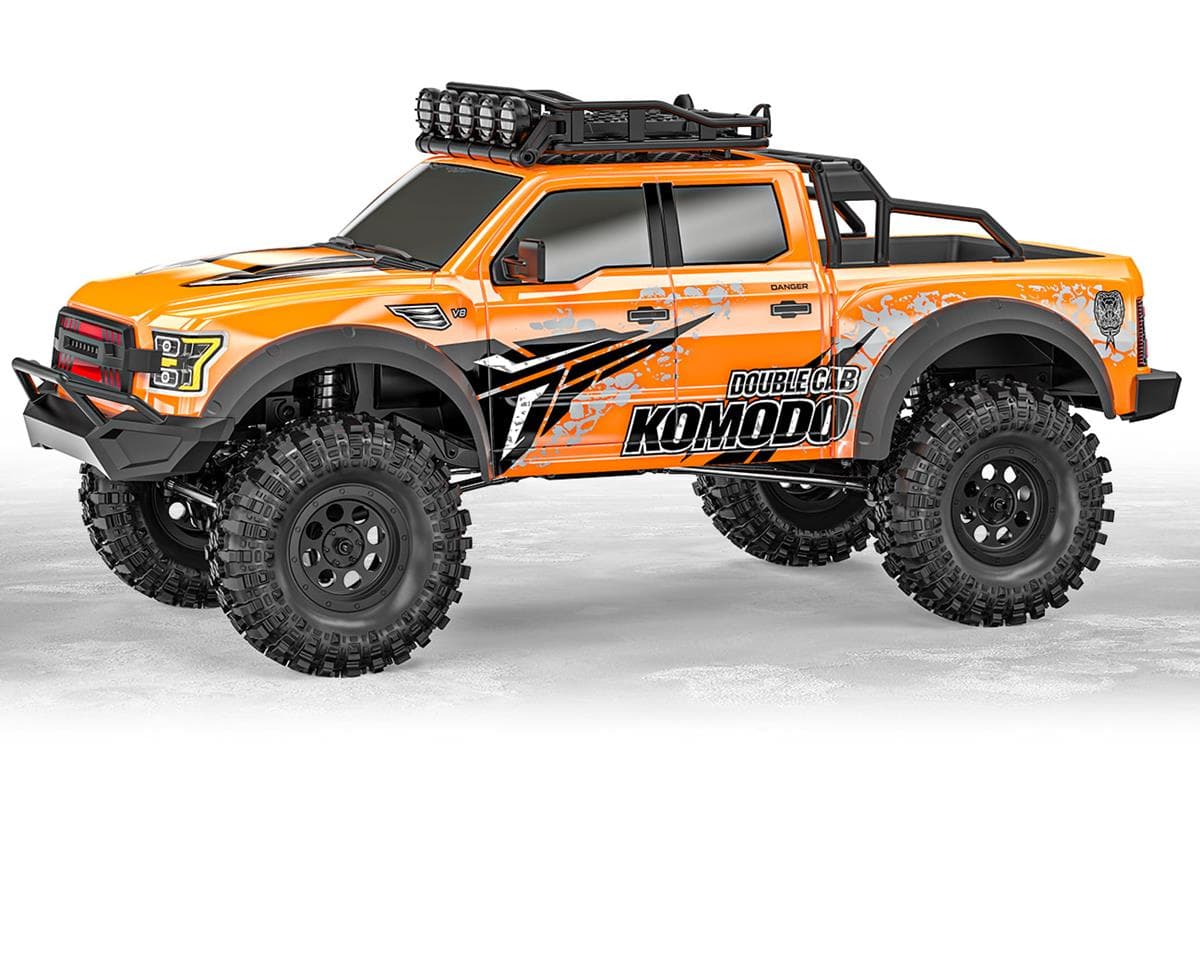

Gmade Komodo GS02F Double Cab TS 1/10 4WD Rock Crawler Kit
About this part
Gmade Komodo GS02F - 1/10 Scale RC Rock Crawler Kit
The Gmade Komodo GS02F Double Cab TS 1/10 4WD Rock Crawler Kit is a great option for those wanting both scale looks and performance. Built on steel C-channels frame rails, this chassis features inner fenders, an adjustable wheelbase, front-mounted motor, adjustable battery tray, chassis-mounted servo with panhard bar, overdriven front axle, 2-speed transmission and much more! Add your electronics and hit the trail with the Gmade Komodo GS02F Double Cab TS.
NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.
Features:
- Steel frame rails
- Chassis-mounted servo (CMS)
- Factory front axle overdrive
- 2-speed transmission
- Dual slipper clutch
- Full metal gear drivetrain
- Carbon steel universal joints
- Adjustable caster
- Includes 1.9" M/T Off-Road Tires!

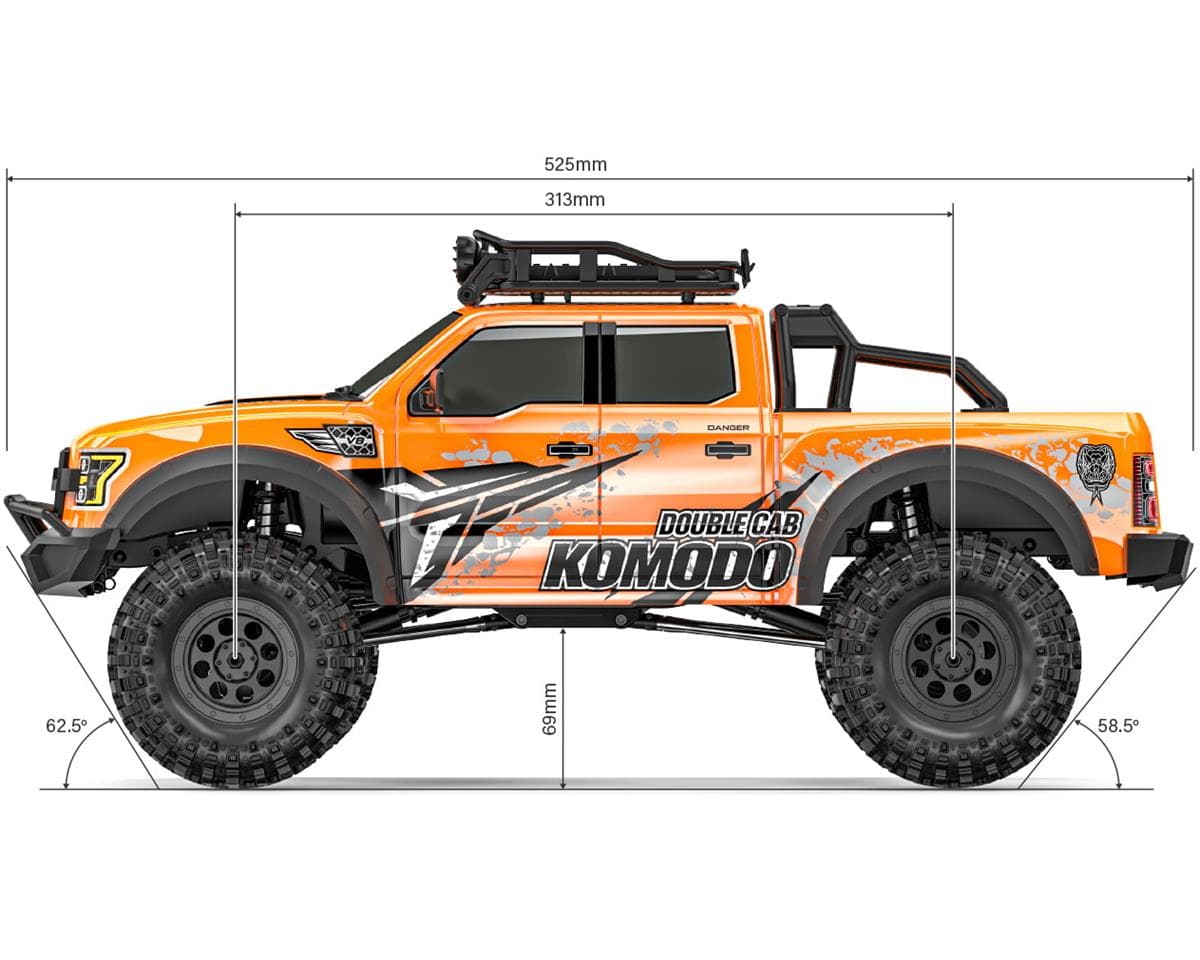

Specifications:
- Width: 230mm
- Height: 245mm
- Length: 525mm
- Wheelbase: 313mm
- Ground Clearance: 69mm
- Weight: 2.08kg
- Approach Angle: 62.5°
- Departure Angle: 58.5°
Includes:
- (1) Komodo GS02F Double Cab TS 1/10 4WD Rock Crawler Kit
Needed to Complete:
- (1) 3-Channel Transmitter and Receiver
- (2) Servos
- (1) 540 size Motor and Compatible ESC
- (1) Standard or Shorty Battery
- (1) Compatible Battery Charger
- Polycarbonate Paint for Body
Reviews3.7 · 3 reviews
This product went above and beyond my expectations the kid was well laid out went together with no problems instructions were very good and complete after finishing assembly and installing some electronics the truck is a beast and I love it thank you
This kit was excellent! It took about 2 weeks to include lights and snowplow. It came with light buckets which was not mentioned in the literature and a wonderful surprise to me. The only upgrade I did were the tires. The body is very ridged and will take lots of tumbling. The chassis is very strong and no visible body clips.
When i ordered this kit it showed in stock and changed to ships in 3 to 4 days the following day and when inquiring through Email with customer service stated that the kit will be here mid next week and is not backordered well its now the end of the week and when i called customer service he informed me it was BACKORDERED !!! Kinda bad business practice Amain dont ya think ? I will not be ordering much from Amain if any from here on out as this is NOT THE FIRST ORDER ISSUE I HAVE ENCOUNTERED WITH AMAIN!!!
Two verified owners rate the Gmade Komodo GS02F Double Cab kit 5/5, describing it as well laid out with clear, complete instructions and easy assembly. They report a strong chassis, a rigid body that holds up to tumbling, and extras such as light buckets. One reviewer added lights and a snowplow over about two weeks and upgraded only the tires. A third reviewer, an unverified buyer, rated it 1/5, not for the kit itself but for delivery: the order showed in stock and was then reported as backordered by customer service. That reviewer also reports earlier order problems with the seller. The reviews do not comment on the kit's performance beyond the two owners' experiences.
- + Clear, complete instructions
- + Easy assembly with no problems reported
- + Strong chassis
- + Rigid body that handles tumbling
- − Delivery delayed by backorder after showing in stock
- − Reported order problems with seller
