Gmade
Gmade RSD Piggyback Shocks (2) (90mm)
Part # GMA232023.0(2)
Where to buy
$35.00
Prices are as last seen at the store; stock is not tracked.
About this part
Gmade 90mm RSD Piggyback Scale Crawler Shocks.
Features:
- Designed for scale and trail applications
- Functional piggyback reservoir
- Easy setup changes with limited disassembly required
- Sophisticated tuning using piggyback valve
- Silver anodized aluminum threaded shock bodies
- Machined Delrin pre-load nut
- Machined aluminum components for durability
- Machined aluminum shock cartridge
- 8mm Delrin shock pistons
- 2, 3 and 4 hole shock pistons included for tuning
- 3.5mm thick shock shafts
- Dual o-ring sealed cartridge
Length (hole to hole): 90mm
Shock Body Diameter: 11mm
Shock Spring Diameter: 15mm
Shock Spring Length: 46mm
Full Shaft Travel Range: 26mm
Shock Shaft Diameter: 3.5mm

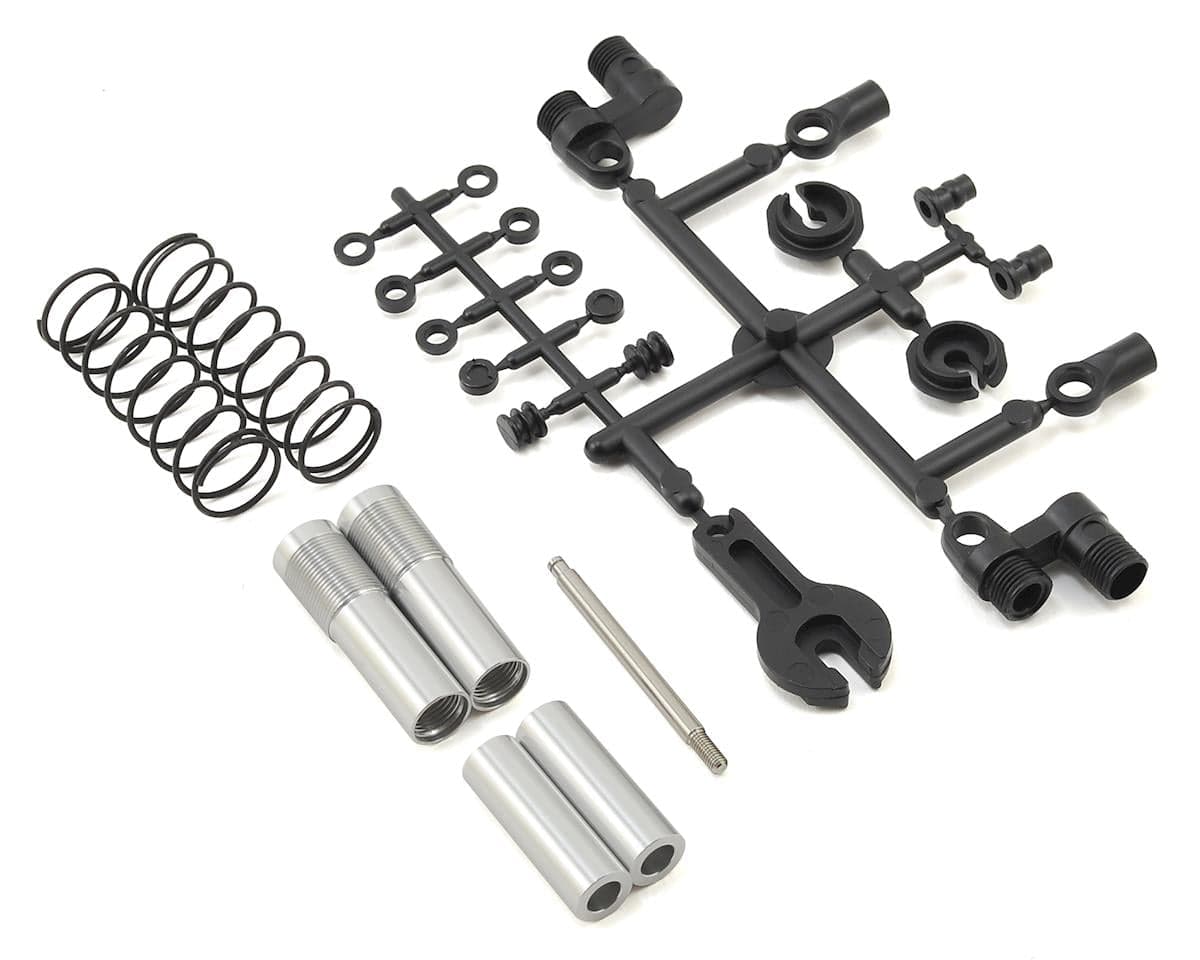

Includes:
- CNC machined & silver anodized aluminum shock bodies, piggyback bodies, shock cartridges
- Lower shock ends include red anodized aluminum balls
- (2) Delrin shock spring adjust nut
- (2) 3.5mm thick shock shaft
- (2) Shock spring

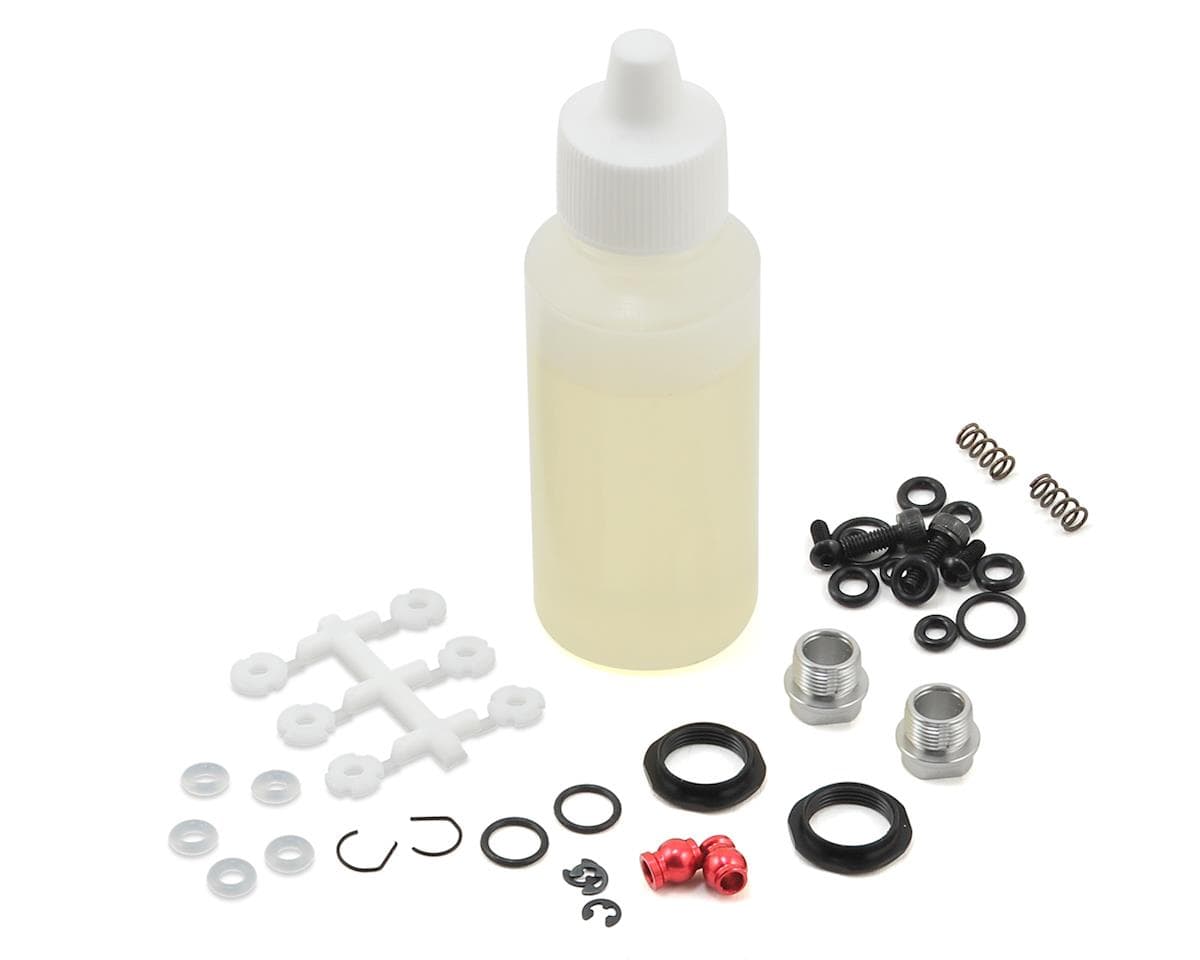

- (1) Bottle of shock oil
- All necessary hardware
- Assembly instructions
Reviews3.0 · 2 reviews
matthew hoyVerified owneron Gmade RSD Piggyback Shocks (2) (90mm)
Nice shocks working well on my SCx10.2. Smooth and good looks.
2 found this helpful
AnonymousVerified owneron Gmade RSD Piggyback Shocks (2) (90mm)
Just awful for crawler applications. Springs are way to hard for crawlers, period. You can not go over an uneven surfaces without the rig rolling over. This is cause shock won’t compress due to stiff spring. Also, the shocks leaked almost immediately and leave a big mess. I Did all that I could to stop the leaks, even bought a rebuild kit, used green slime, used different weight shock oil, changed the O rings. Lastly, u can not adjust springs to travel much due to limited amount of threat travel on the outside of the shock. Look for other shocks please.
1 found this helpful
