Gmade
Gmade RSD Scale Crawler Shocks (2) (90mm)
Part # GMA235041.0(1)
Where to buy
$27.00
Prices are as last seen at the store; stock is not tracked.
About this part
Gmade 90mm RSD Scale Crawler Shocks.
Features:
- Designed for scale and trail applications
- Black anodized aluminum threaded shock bodies
- Machined Delrin pre-load nut
- Machined aluminum components for durability
- Machined aluminum shock cartridge
- 8mm Delrin shock pistons
- 2, 3 and 4 hole shock pistons included for tuning
- 3.5mm thick shock shafts
- Dual o-ring sealed cartridge
- Laser engraved
Length (hole to hole): 90mm
Shock Body Diameter: 11mm
Shock Spring Diameter: 15mm
Shock Spring Length: 46mm
Full Shaft Travel Range: 26mm
Shock Shaft Diameter: 3.5mm

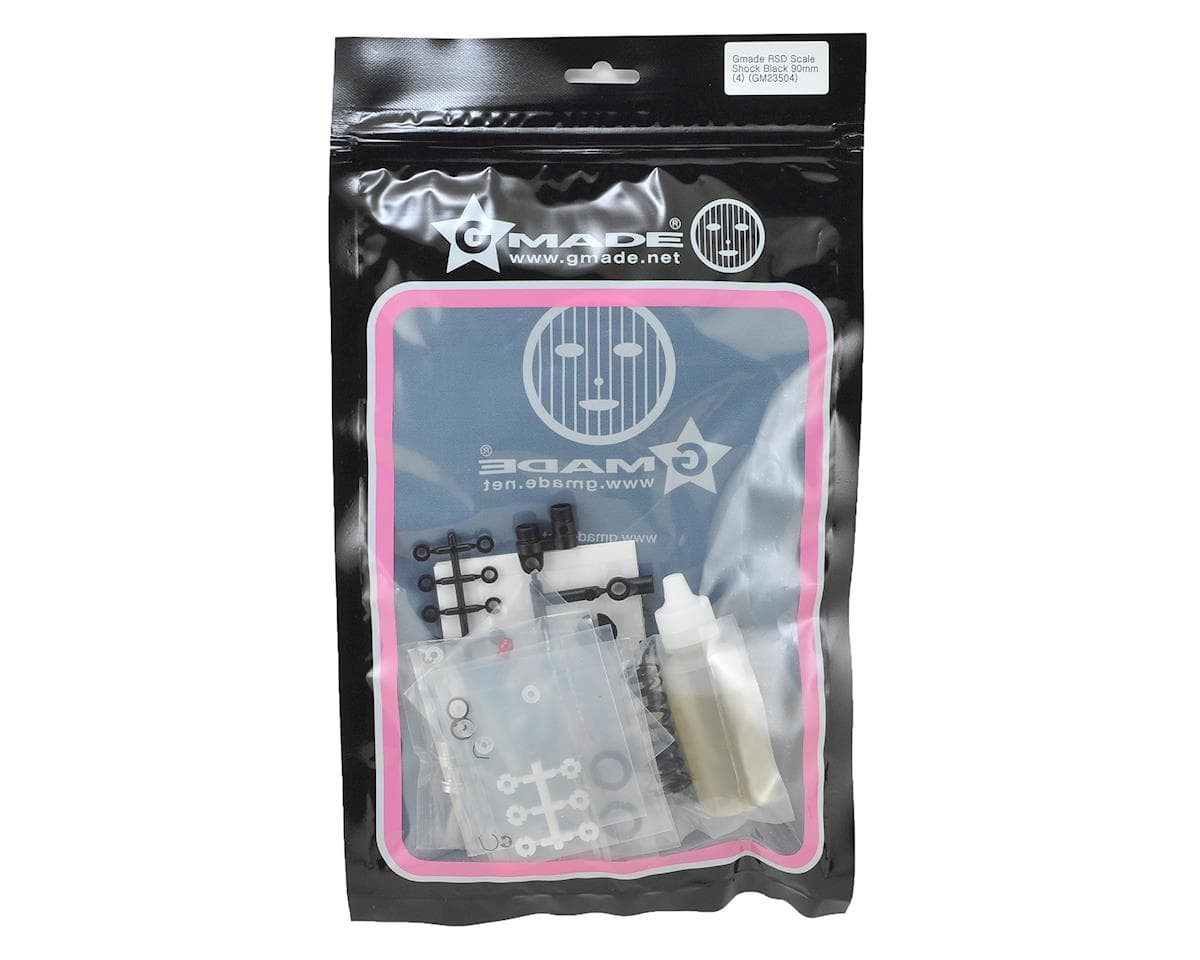

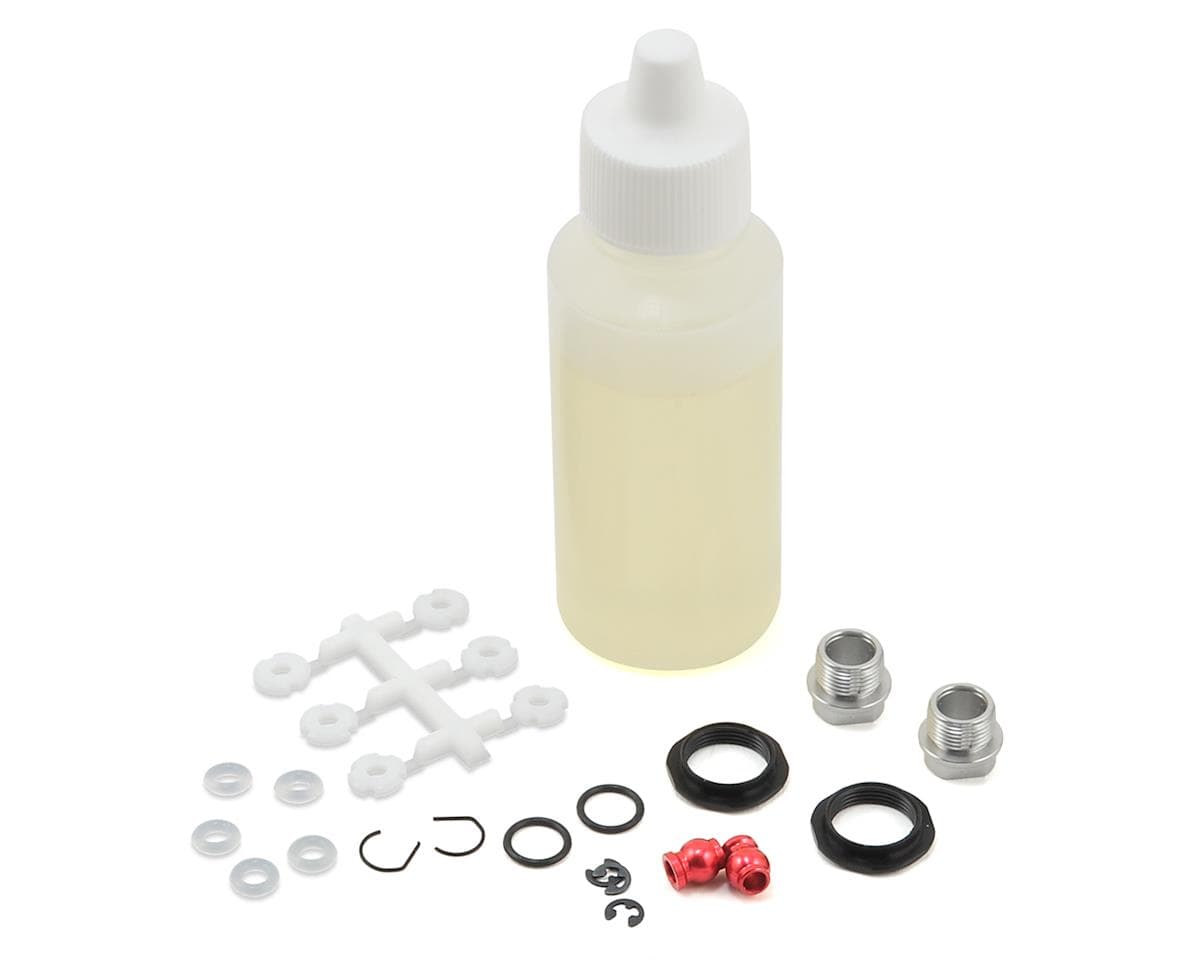

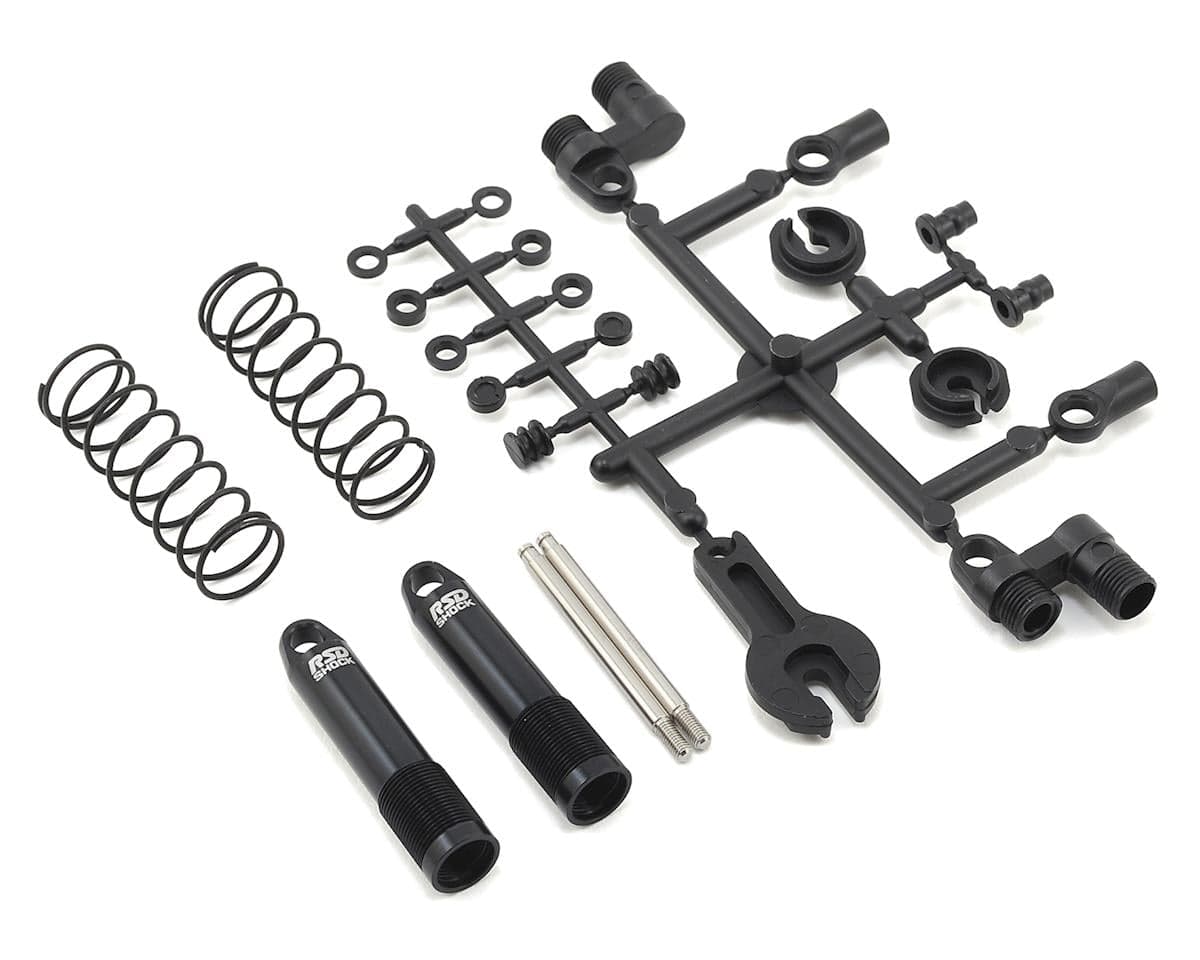

Includes:
- CNC machined and anodized aluminum shock bodies and cartridges
- Lower shock ends include red anodized aluminum balls
- (2) Delrin shock spring adjust nut
- (2) 3.5mm thick shock shaft
- (2) Shock spring
- (1) Bottle of shock oil
- All necessary hardware
- Assembly instructions
Reviews1.0 · 1 review
Dan Clontzon Gmade RSD Scale Crawler Shocks (2) (90mm)
These shocks have very stiff springs and the threads don't go far enough up the body to adjust them properly. Also the piston in side the shock body doesn't do anything. Changing from the 4 hole to the 2 hole piston didn't do anything these shocks have no rebound at all. The truck will ride like its on raw boingy springs.
