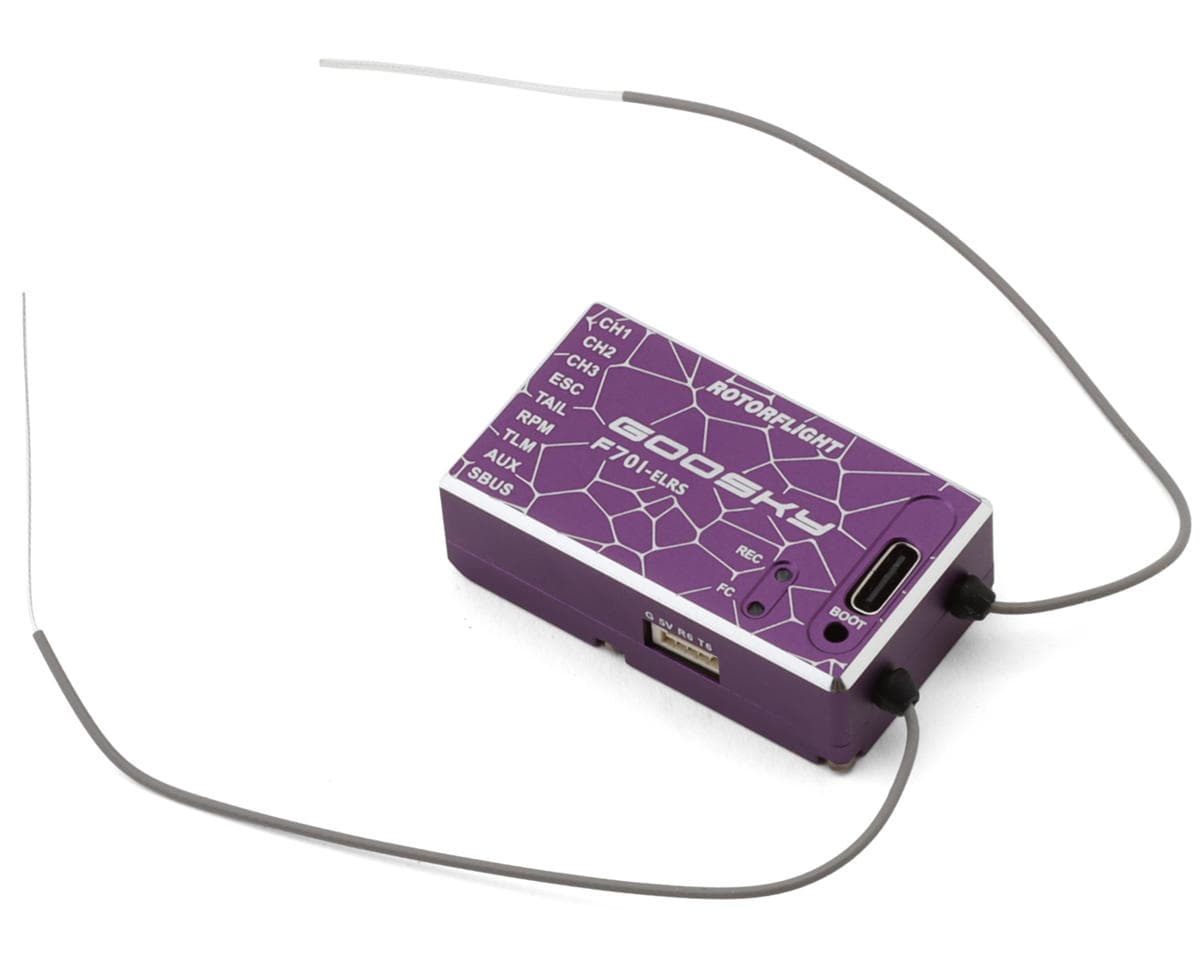

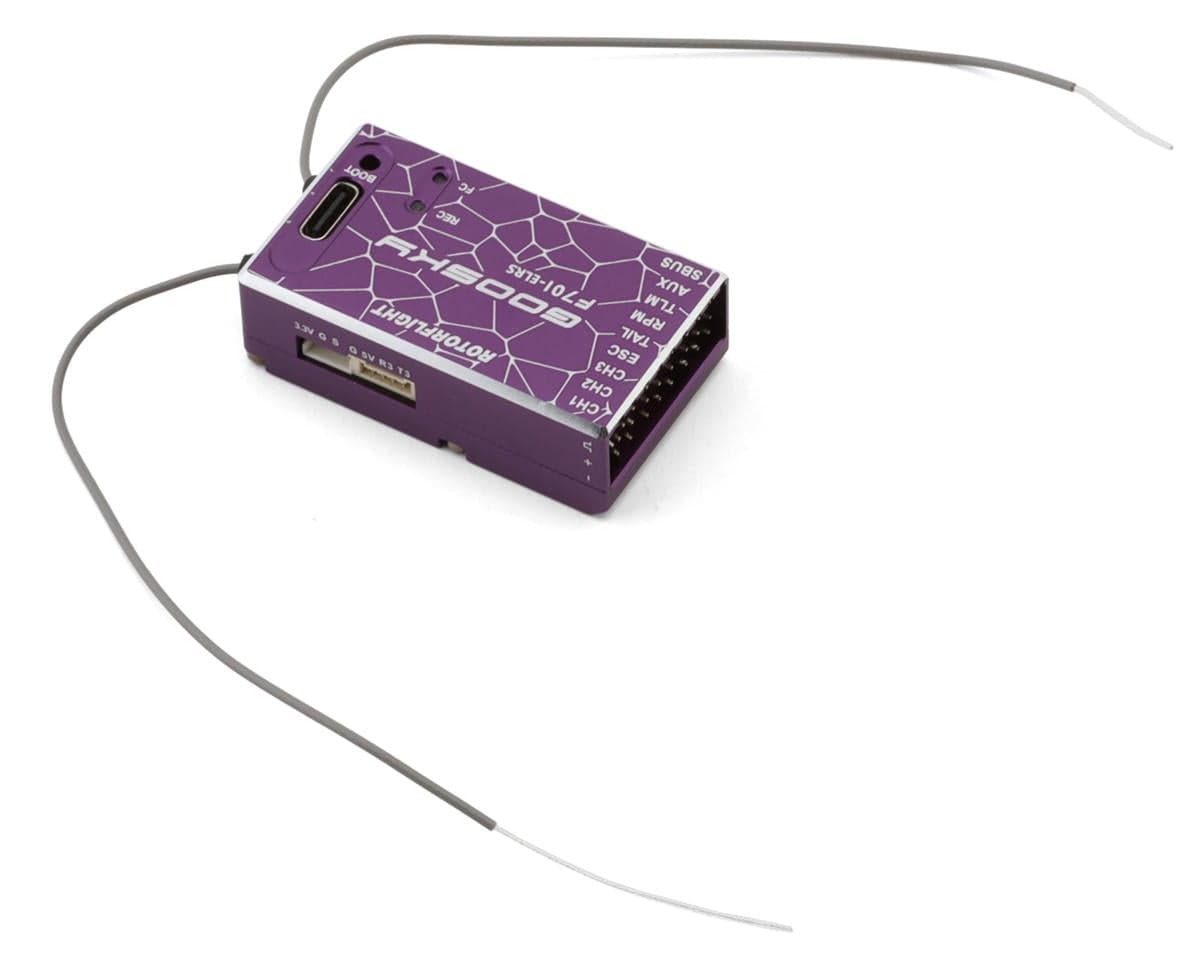

GooSky F701 Rotorflight Helicopter Gyro w/ELRS 2.4GHz Receiver (Purple)
Part # GSK-GT040269
Where to buy
$89.99
Prices are as last seen at the store; stock is not tracked.
About this part
Gyro/Receiver Overview:
Take your RC helicopter setup to the next level with the GooSky F701-ELRS, a Rotorflight-ready flight controller built for fast response, stable control, and clean plug-and-play simplicity.
About the F701 Rotorflight Helicopter Gyro
Advanced Flight Performance
The GooSky F701-ELRS is built for serious RC helicopter performance, pairing Rotorflight-optimized flight control with an STM32F722 processor and ICM42688P gyro for ultra-fast, low-latency response. Its built-in ELRS 2.4GHz receiver connects through UART1 for clean plug-and-play setup with no extra receiver or wiring needed, while 256MB blackbox memory, support for PWM, Oneshot, Multishot, DShot300, and DShot600, plus 6 UART ports for GPS and telemetry, make it a powerful, stable, and highly expandable choice for precise aerobatic flying.
Features:
- Optimized for Rotorflight RC helicopter firmware
- Powerful STM32F722 processor delivers fast response
- ICM42688P gyro provides precise and stable control
- Built-in ELRS 2.4GHz receiver eliminates extra wiring
- 256MB blackbox memory records flight data
- Six UART ports support GPS and telemetry devices

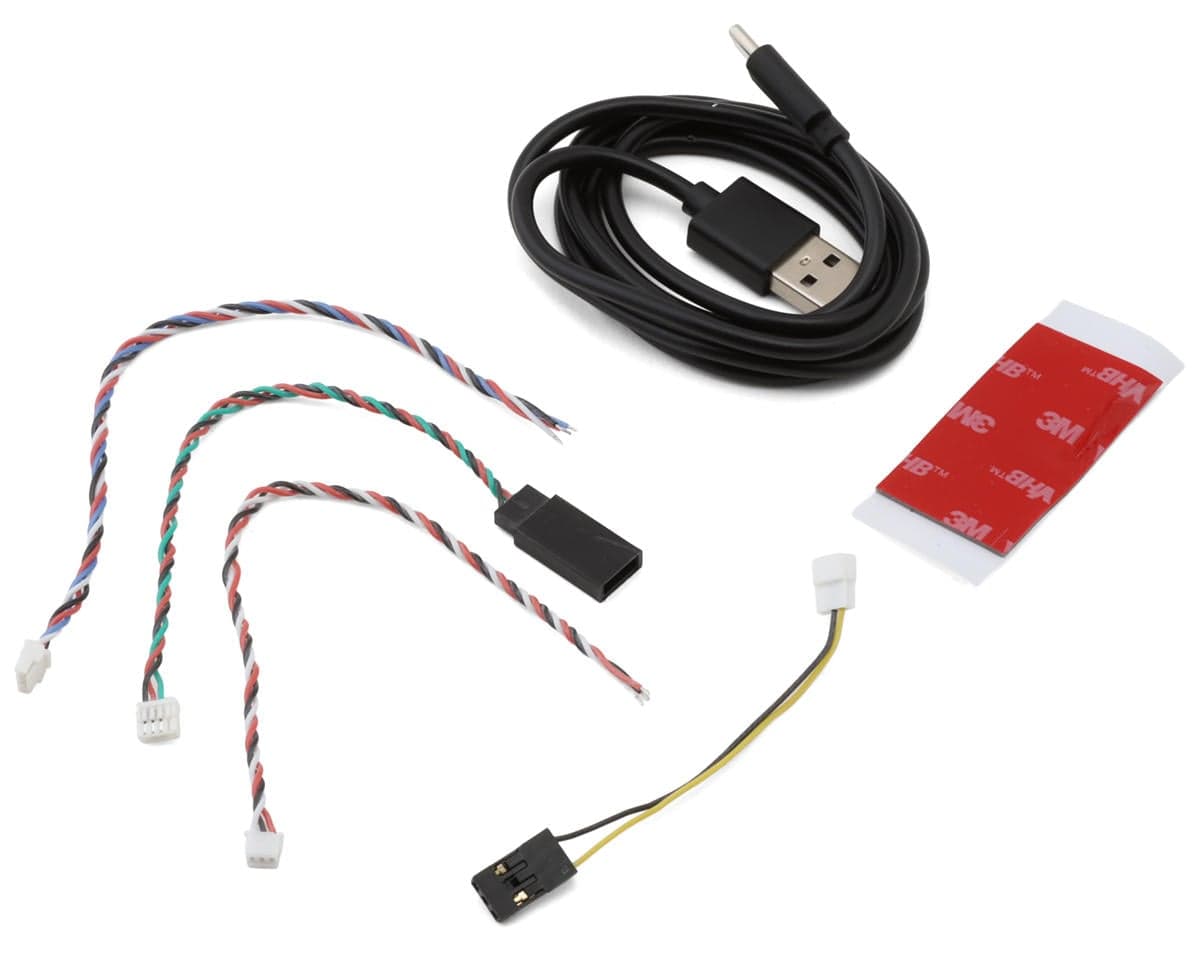

Includes:
- (1) F701 Rotorflight Helicopter Gyro
- (1) USB to USB-C Cable
- (4) Receiver Cables
- (1) Double Sided Tape
Specifications:
| Blackbox Flash Memory: | 256 MB |
|---|---|
| Receiver | Built-in ExpressLRS (ELRS) 2.4GHz |
| Supported Receiver Protocol | CRSF, ELRS, S.BUS, FBUS, PPM, MSP, DSMX |
| Supported ESC Protocol | PWM, Oneshot, Multishot, DShot300, DShot600 |
| UART Ports | 6 |
| Dimensions | 1.8x1.02x0.57in (46x26x14.5mm) |
| Weight | 0.77oz (22g) |
