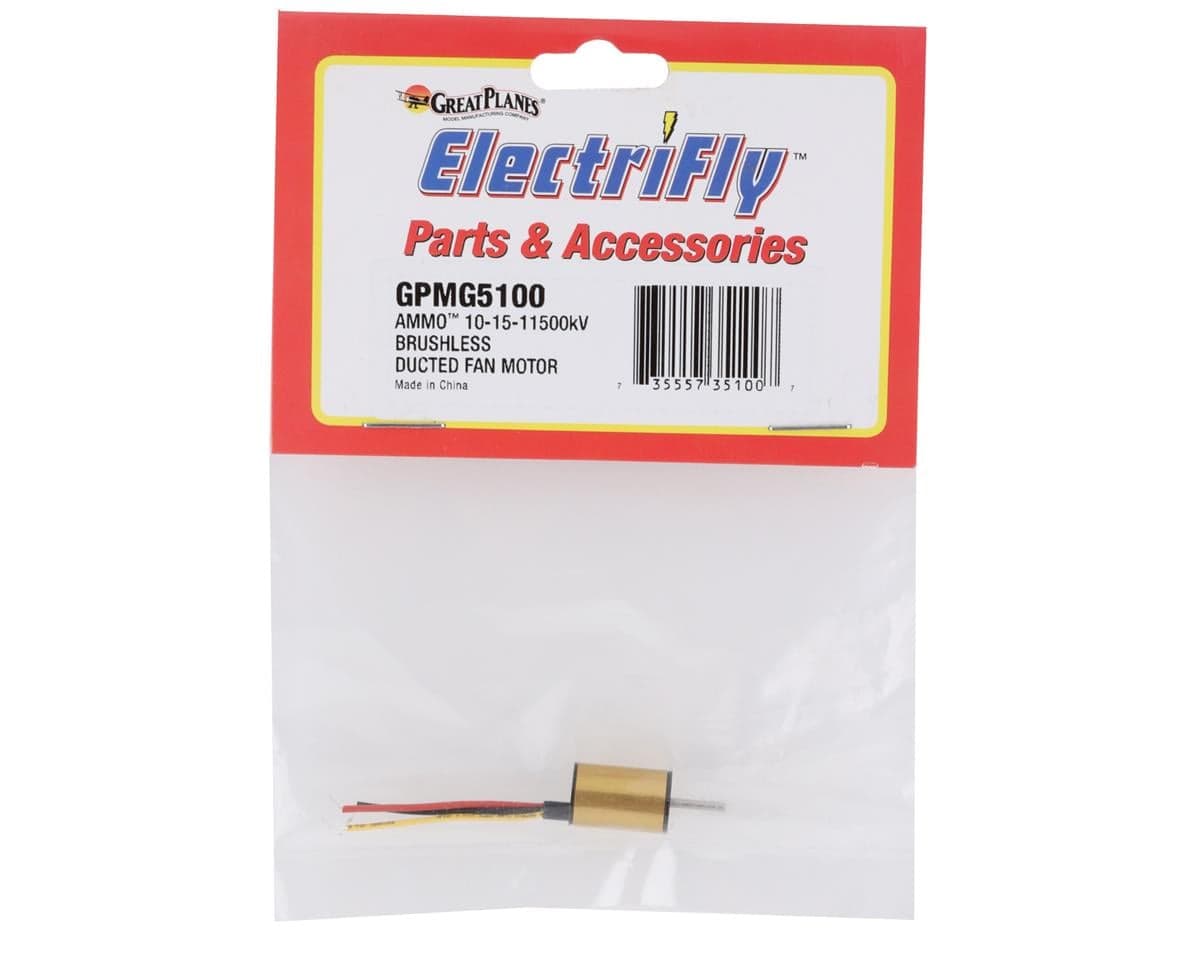

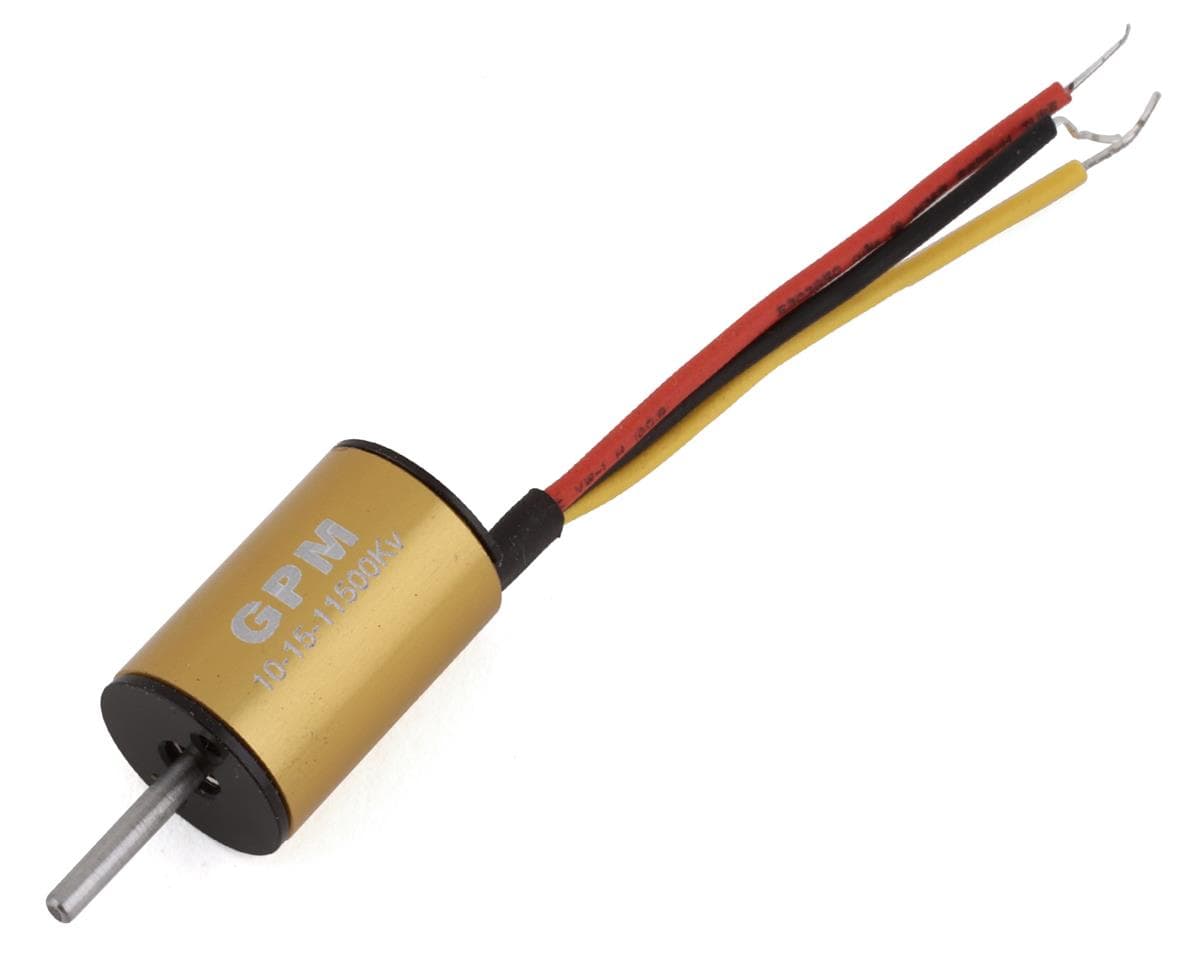

Great Planes Ammo 10-15 In-Runner Brushless Ducted Fan Motor (11500kV)
Part # GPMG5100
Where to buy
$30.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Great Planes Ammo 10-15 In-Runner Brushless Ducted Fan Motor offers an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors. This specific motor is designed for the Great Planes Micro F86 Sabre EDF Jet. The Ammo line of brushless motors feature "Rare Earth" Neodymium magnets, gold plated connectors and double sealed bearings for long lasting high efficiency. Package includes one Ammo motor.
Features:
- Brushless In-Runner design
- Incredible power-to-weight advantage
- Ideal for direct or gear drive use
- Up to 89% efficient and virtually maintenance-free; no brushes to wear out
- Uses "rare earth" Neodymium magnets for high torque and unmatched heat resistance
- Double sealed bearings
kV (RPM/Volts): 11500
Poles: 2
Connector Type: Open Ends
Length: 0.59" (15mm)
Diameter: 0.39" (10mm)
Shaft Diameter: 0.059" (1mm)
Internal Resistance: 0.44miliohms
