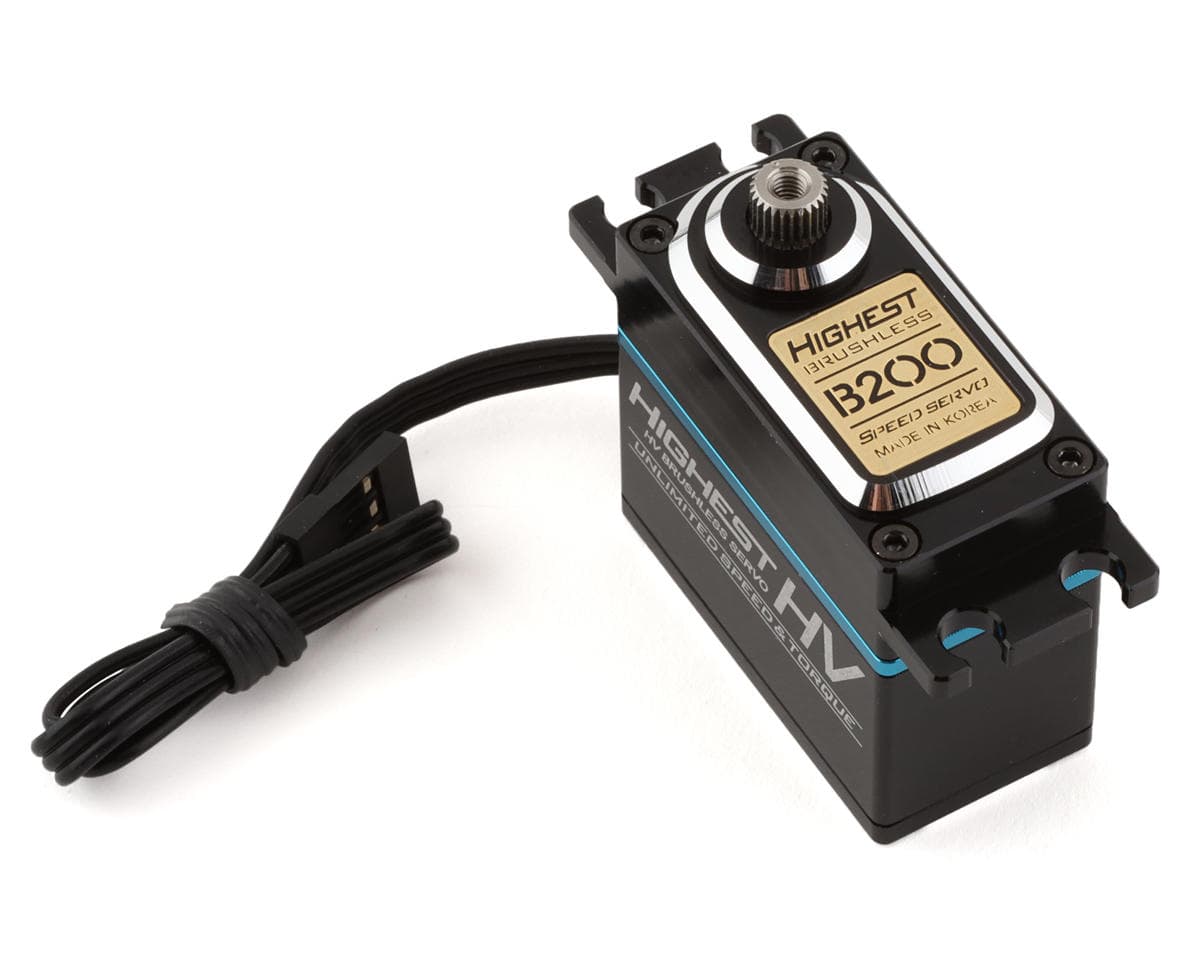

Highest RC B200 High Torque Metal Gear Brushless Servo (High Voltage)
Part # HGH-B200
Where to buy
$147.99
Prices are as last seen at the store; stock is not tracked.
About this part

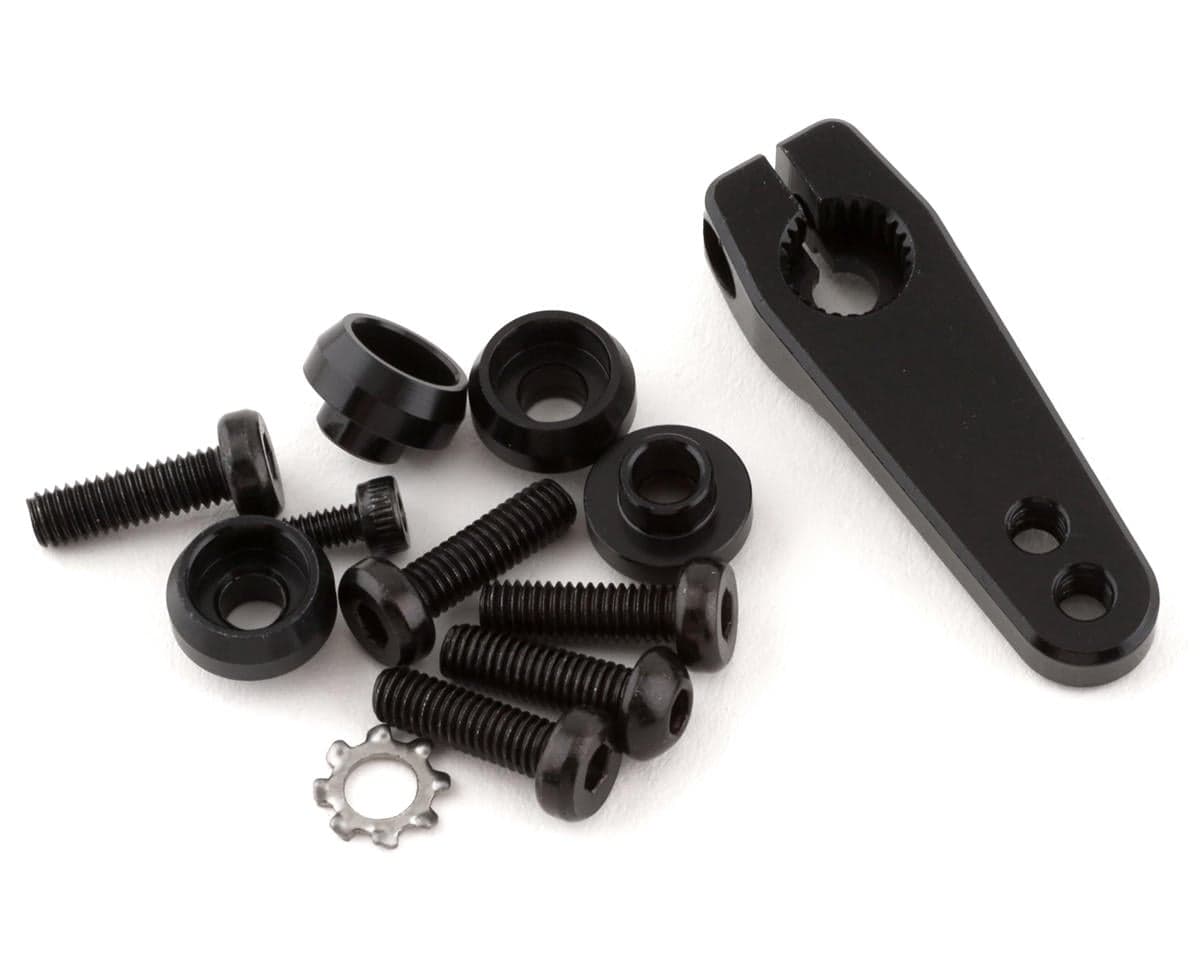

Highest RC B200 "High Torque" Metal Gear Brushless Race Servo. This servo is designed to be a High-Torque option for surface and air applications. The full metal gear drivetrain, double ball bearing design and brushless motor allows for increased precision and durability. This servo is designed to deliver high levels of speed and torque for racing. Package includes one servo and hardware.
Features:
- Full aluminum case
- High voltage capable
- High efficiency brushless motor
- All metal gears for extreme durability and reliability
Specifications:
- Motor: Brushless
- Operating Voltage: 6.0-7.4V
- Spline: 25T
- Speed:
- 6.0V: 0.10/60° sec
- 7.4V:0.08/60° sec
- Torque:
- 6V: 293 oz-in (21.1 kg-cm)
- 7.4V: 362 oz-in (26.1 kg-cm)
- Operating Temperature Range: 14-140°F (-10 to +60°C)
- Dimension: (LxWxH) 1.55x0.78x1.52in (39.5x20.0x38.7mm)
- Weight: 73.2g
Includes:
- (1) B200 High Torque Metal Gear Brushless Servo
