Parts/Radio & control/Servos/Highest RC B250 "High Torque" Metal Gear Brushless Race Servo (High Voltage)
Highest RC

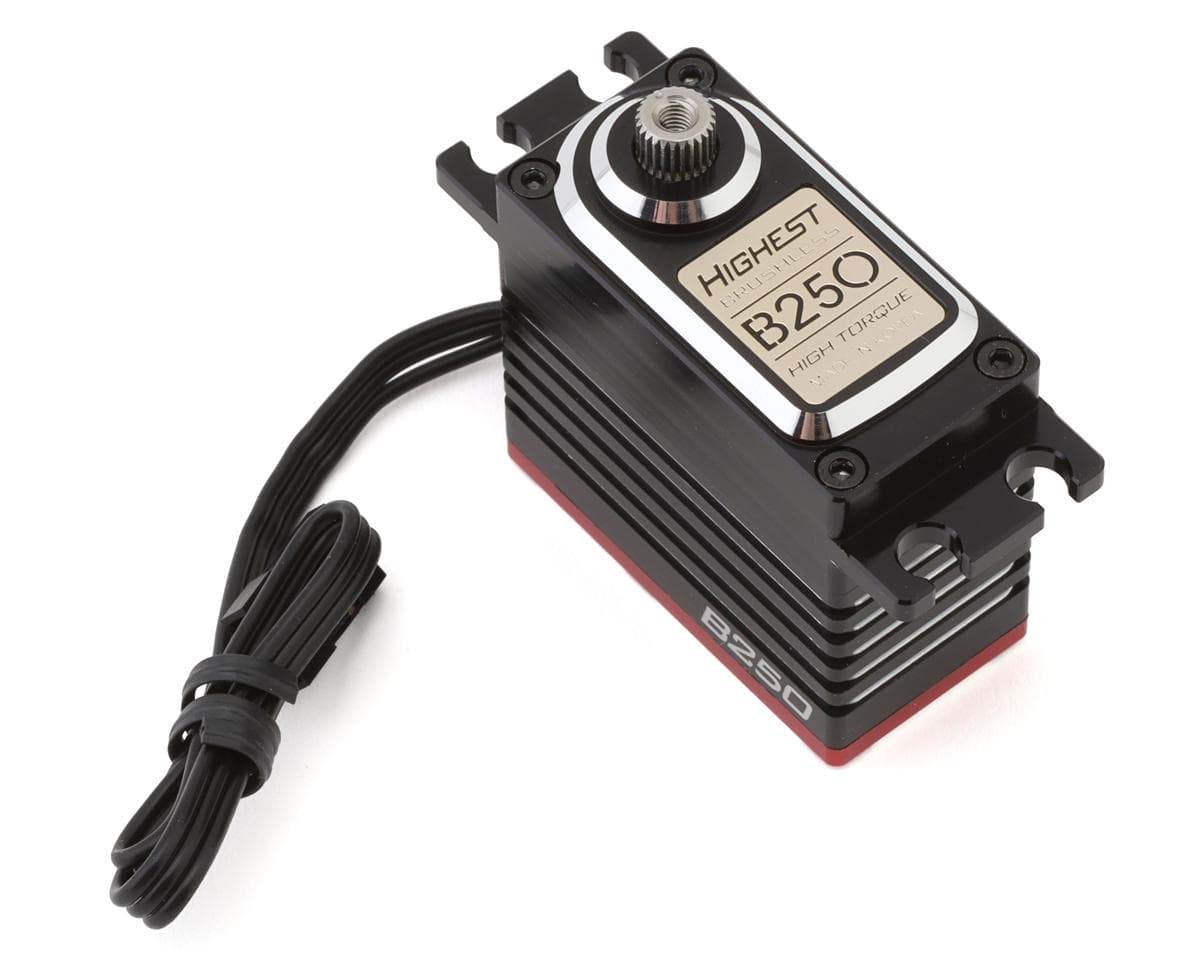

Highest RC B250 "High Torque" Metal Gear Brushless Race Servo (High Voltage)
Part # HGH-B250
Where to buy
$164.99
Prices are as last seen at the store; stock is not tracked.
About this part
Servo Overview:
Highest RC B250 "High Torque" Metal Gear Brushless Race Servo. Features an all-aluminum case with fins in the middle section that provide excellent heat dissipation, a high efficiency brushless motor with all metal gears that ensure supreme durability against the hardest conditions! Designed and specified to suit and feed the demand for a smooth high torque steering servo in the 1/8 scale racing scene! Get the Highest RC B250 and elevate your steering performance and precision to the highest level!
Features
- Designed to fit most 1/8 buggy and truggy application
- High efficiency brushless motor
- All aluminum case with heat sink design
- All metal gears
Specifications:
- Speed:
- @6.0V: 0.13 sec/60°
- @7.4V: 0.10 sec/60°
- @8.4V: 0.09 sec/60°
- Torque:
- @6.0V: 404.12oz-in (29.1kg-cm)
- @7.4V: 513.8oz-in (37kg-cm)
- @8.4V: 583.27oz-in (42kg-cm)
- Dimensions: 39.5x20.0x39.3mm
- Motor: Brushless
- Weight: 74.2g
- Operating Voltage: 6.0V-8.4V
- Operating Temperature: 14F to 140F (-10C to +60C)
- Operating Spline: 25T
Includes:
- (1) B250 "High Torque" Metal Gear Brushless Race Servo

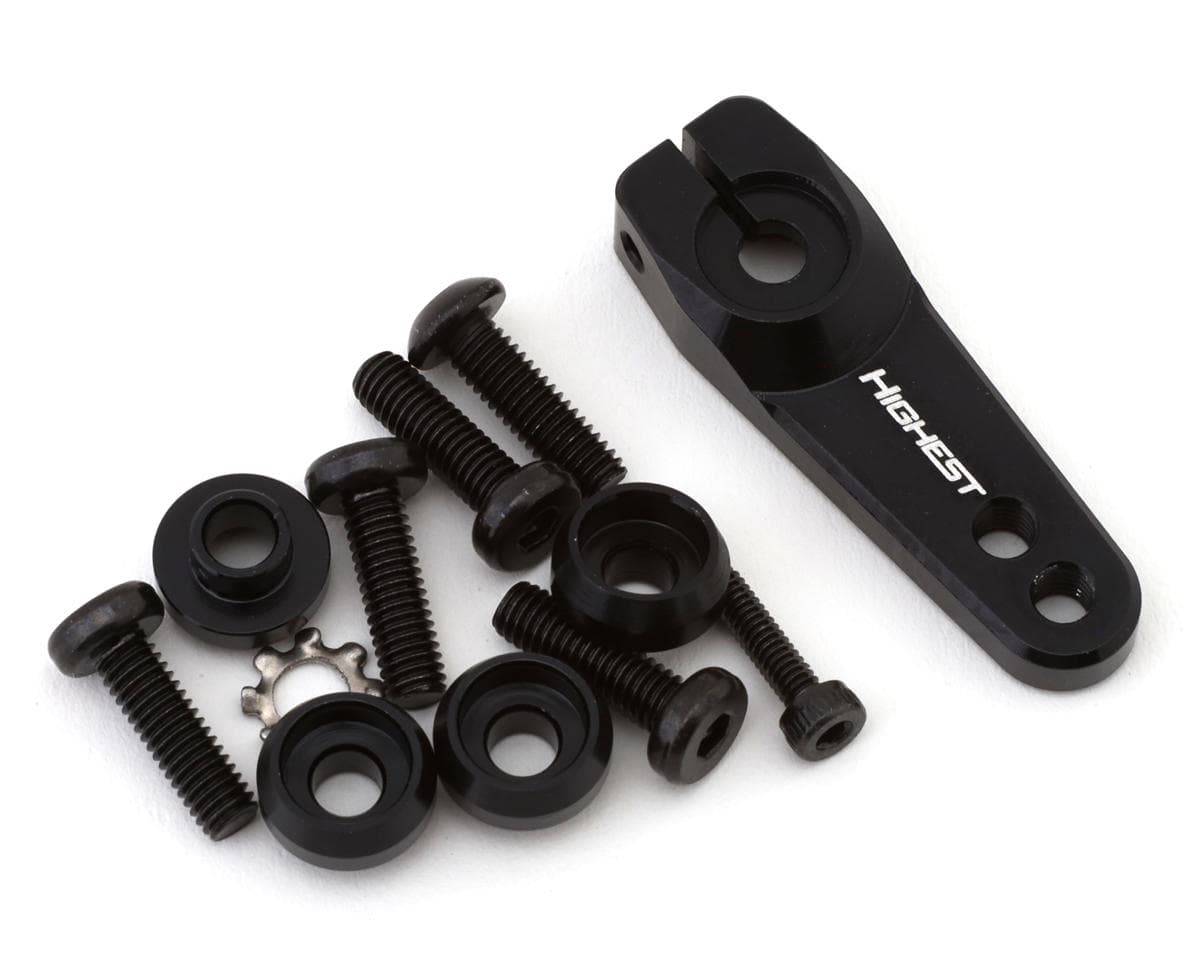

- (1) Aluminum Servo Horn
