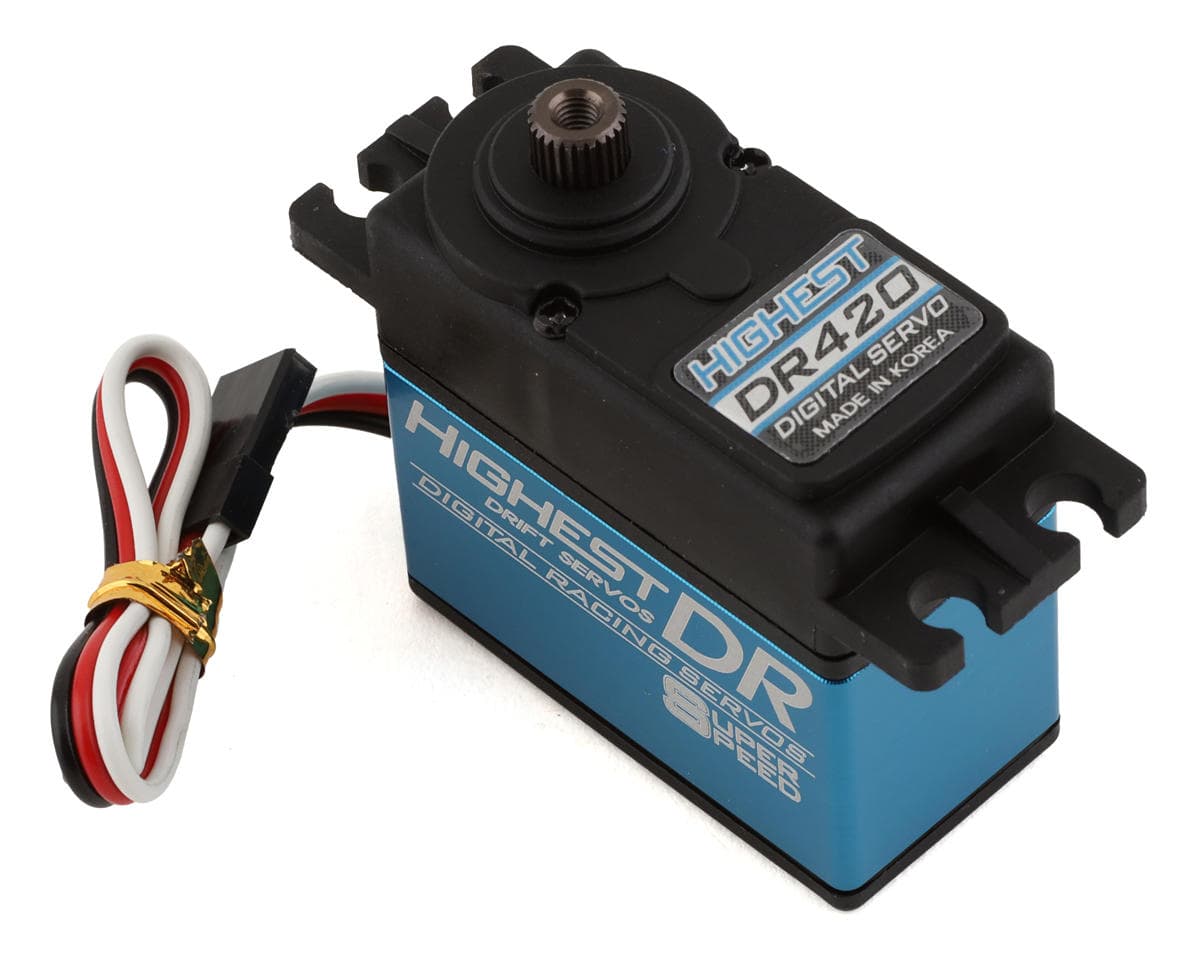

Highest RC DR420 "High Speed" Metal Gear Cored Drift Servo
Part # HGH-DR4202.0(1)
Where to buy
$44.99
Prices are as last seen at the store; stock is not tracked.
About this part
Highest RCDR420 "High Speed" Metal Gear Cored Drift Servo. This servo is designed specifically for 1/10 RC drift applications. The full metal gear drivetrain, double ball bearing design and coreless motor allows for increased precision and durability. Built in a standard size case, this servo will be right at home in your surface application.
Features:
- Full metal gears
- Standard size servo with aluminum center band
- Cored motor design
- Dual ball bearing
- Operating Voltage: 4.8-6.0V DC
- Speed:
- 4.8V: 0.09 sec/60°
- 6.0V: 0.07 sec/60°
- Torque:
- 4.8V: 74.99oz-in (5.4kg-cm)
- 6.0V: 86.10oz-in (6.2kg-cm)
- Operating Temperature: 14-140° F (-10-60° C)
- Dimension: 1.55x0.79x1.51in (39.5x20.2x38.6mm)
- Weight: 1.90oz (54g)
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Details...Reviews2.0 · 1 review
andrew pVerified owneron Highest RC DR420 "High Speed" Metal Gear Cored Drift Servo
Not a great servo, it’s just too fast. Like way too fast. I tried lowering the BEC, still too fast and strong. It would probably be better for a crawler with big heavy tires.
