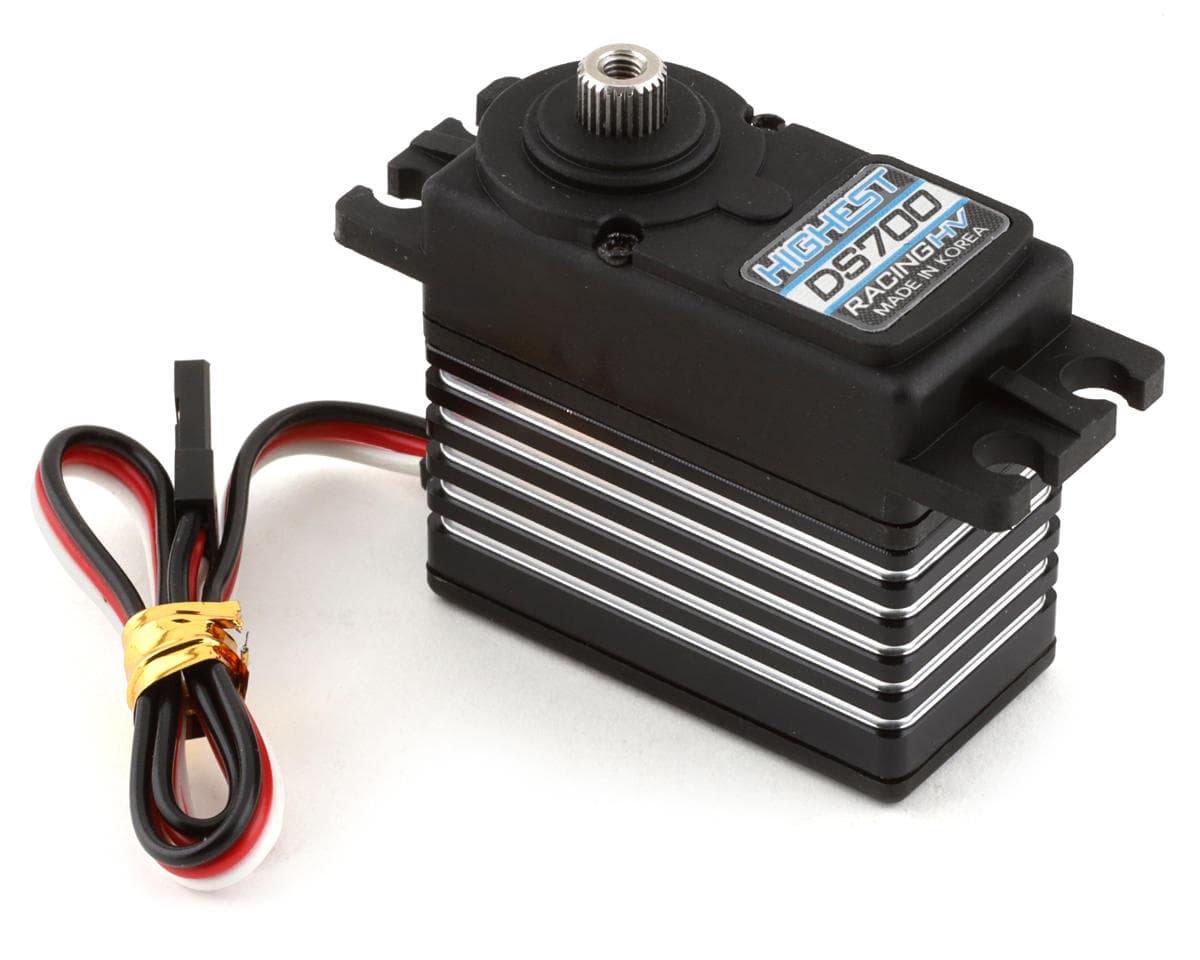

Highest RC DS700 "High Speed" Metal Gear Coreless Servo (High Voltage)
Part # HGH-DS700
Where to buy
$85.99
Prices are as last seen at the store; stock is not tracked.
About this part
Highest DS700 "High Speed" Metal Gear Coreless Servo. This servo is designed both surface and air applications. The full metal gear drivetrain, double ball bearing design and coreless motor allows for increased precision and durability. Built in a standard size case, this servo will be right at home in your application.
Features:
- Full metal gears
- Standard size servo with aluminum center band
- High voltage capable
- Coreless design
- Operating Voltage: 6.0-7.4V DC
- Speed:
- 6.0V: 0.08 sec/60°
- 7.4V: 0.06 sec/60°
- Torque:
- 6.0V: 137.48oz-in (9.9kg-cm)
- 7.4V: 154.14oz-in (11.1kg-cm)
- Operating Temperature: 14-140° F (-10-60° C)
- Dimension: 1.55x0.78x1.51in (39.5x20.0x38.6mm)
- Weight: 2.16oz (61.3g)
