Parts/Radio & control/Servos/Highest RC DT750 "High Torque" Metal Gear Coreless Servo (High Voltage)
Highest RC

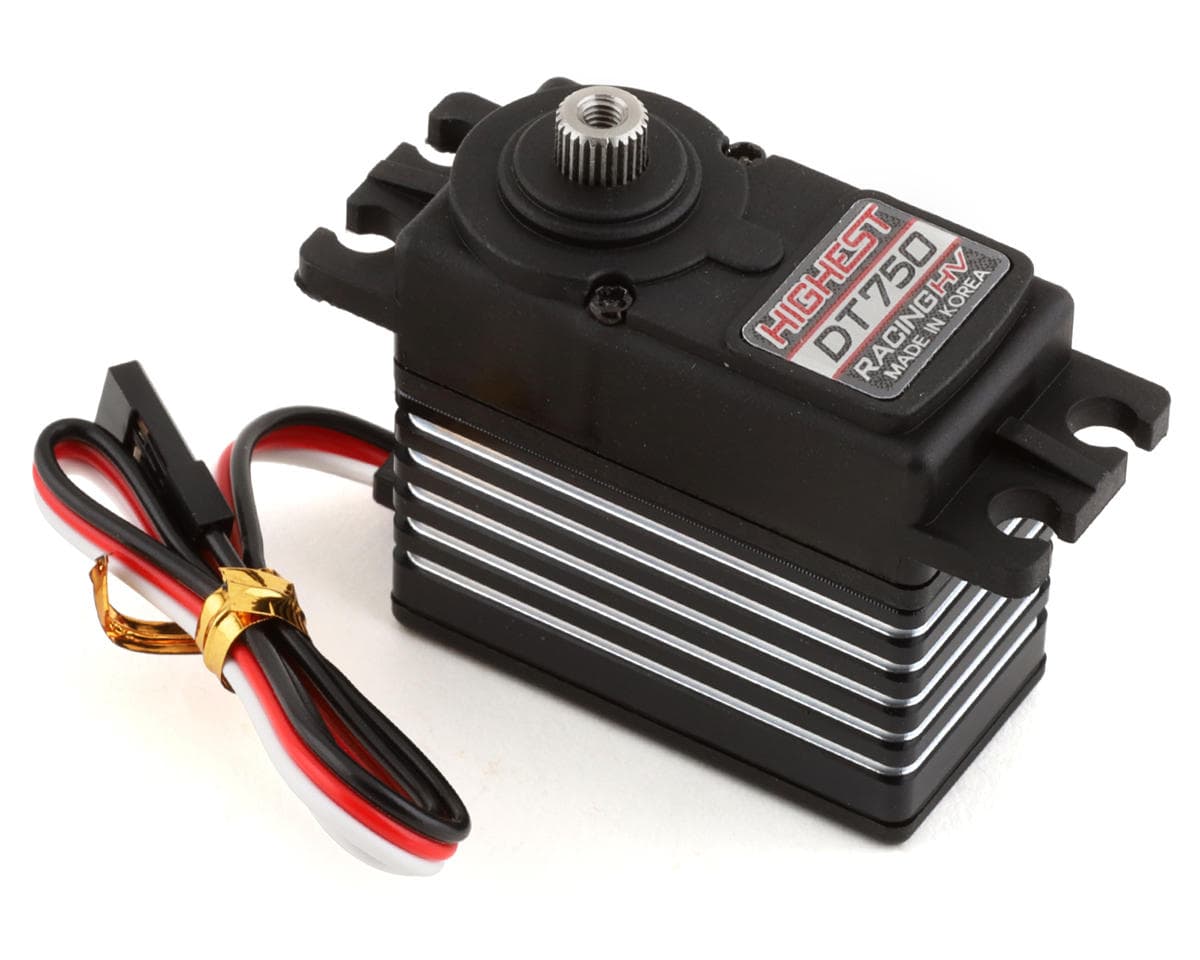

Highest RC DT750 "High Torque" Metal Gear Coreless Servo (High Voltage)
Part # HGH-DT750
Where to buy
$85.99
Prices are as last seen at the store; stock is not tracked.
About this part
Highest DT750 "High Speed" Metal Gear Coreless Servo. This servo is designed both surface and air applications. The full metal gear drivetrain, double ball bearing design and coreless motor allows for increased precision and durability. Built in a standard size case, this servo will be right at home in your application.
Features:
- Full metal gears
- Standard size servo with aluminum center band
- High voltage capable
- Coreless design
- Operating Voltage: 6.0-7.4V DC
- Speed:
- 6.0V: 0.12 sec/60°
- 7.4V: 0.09 sec/60°
- Torque:
- 6.0V: 191.64oz-in (13.8kg-cm)
- 7.4V: 224.97oz-in (16.2kg-cm)
- Operating Temperature: 14-140° F (-10-60° C)
- Dimension: 1.55x0.78x1.51in (39.5x20.0x38.6mm)
- Weight: 2.17oz (61.6g)
