Hitec D845WP Waterproof Monster Torque Steel Gear Large Scale Servo (High Voltage)
About this part

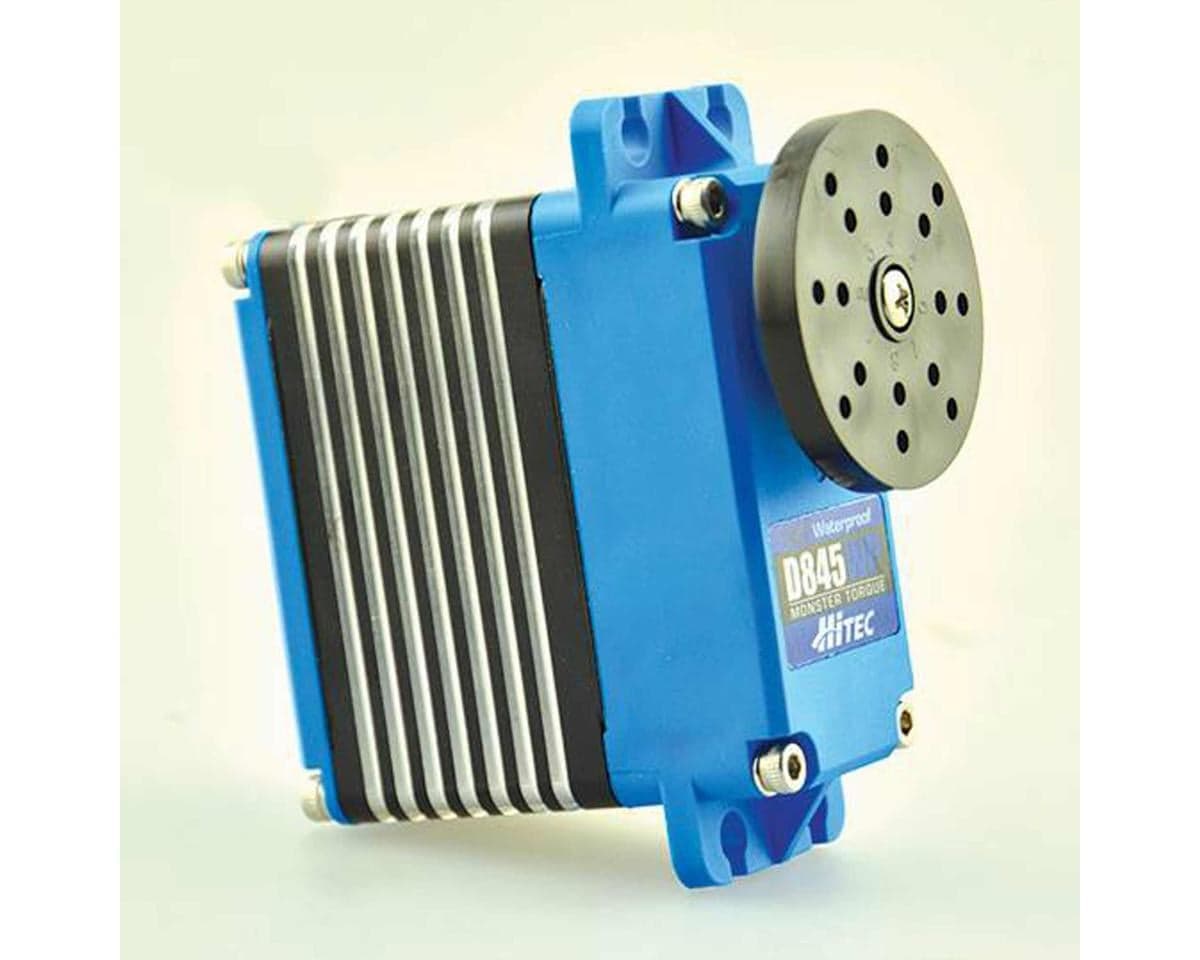

This is the Hitec D845WP Waterproof Monster Torque Steel Gear Large Scale Servo. The steel D-845WP is part of the D-Series servo line. All Hitec D-Series servos have been designed Hitec's cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement.
The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring a 15 tooth HD output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
NOTE: Losi Desert Buggy XL applications will require shimming at the servo or the servo tray, to raise the servo high enough to clear the chassis.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft

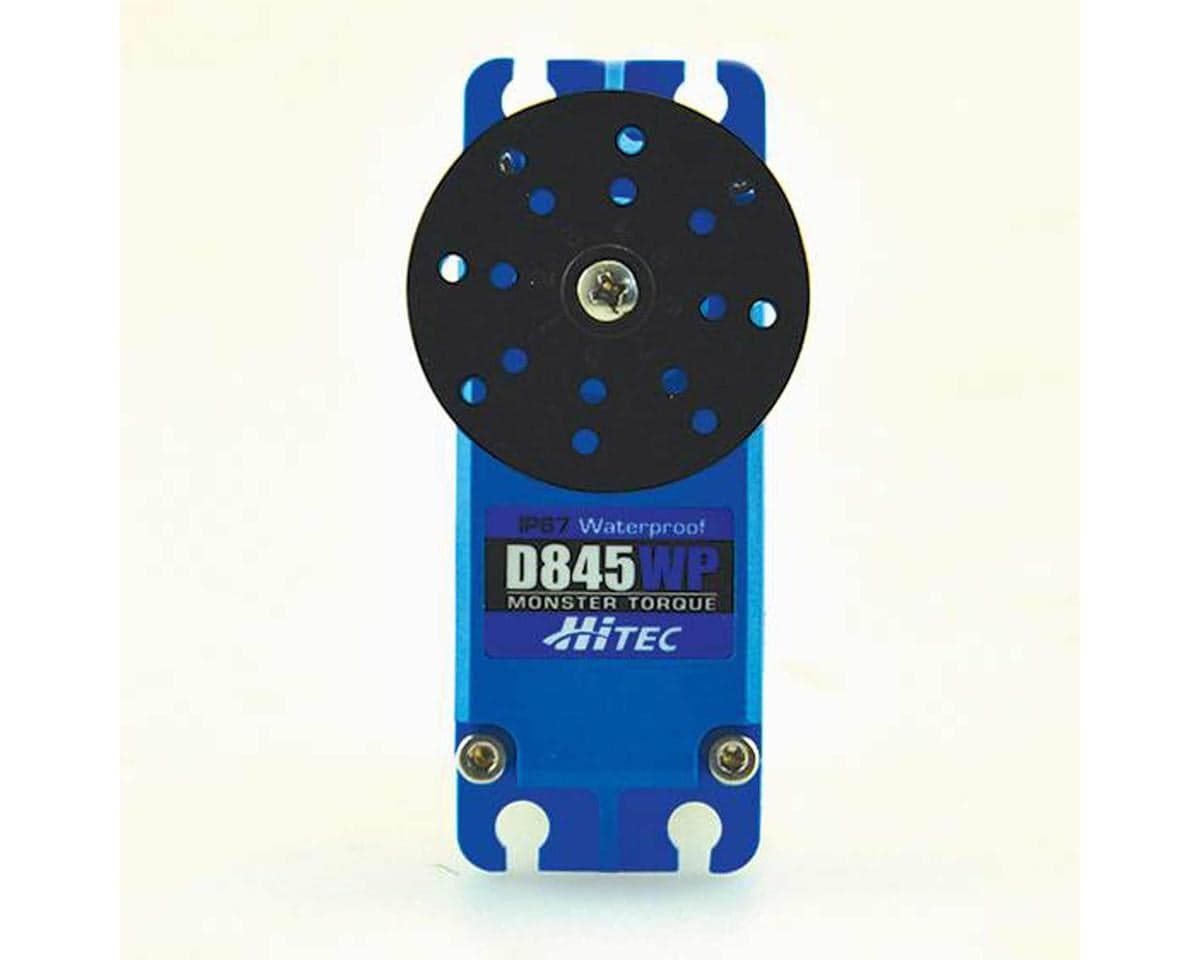

- 15-Tooth 8mm Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case

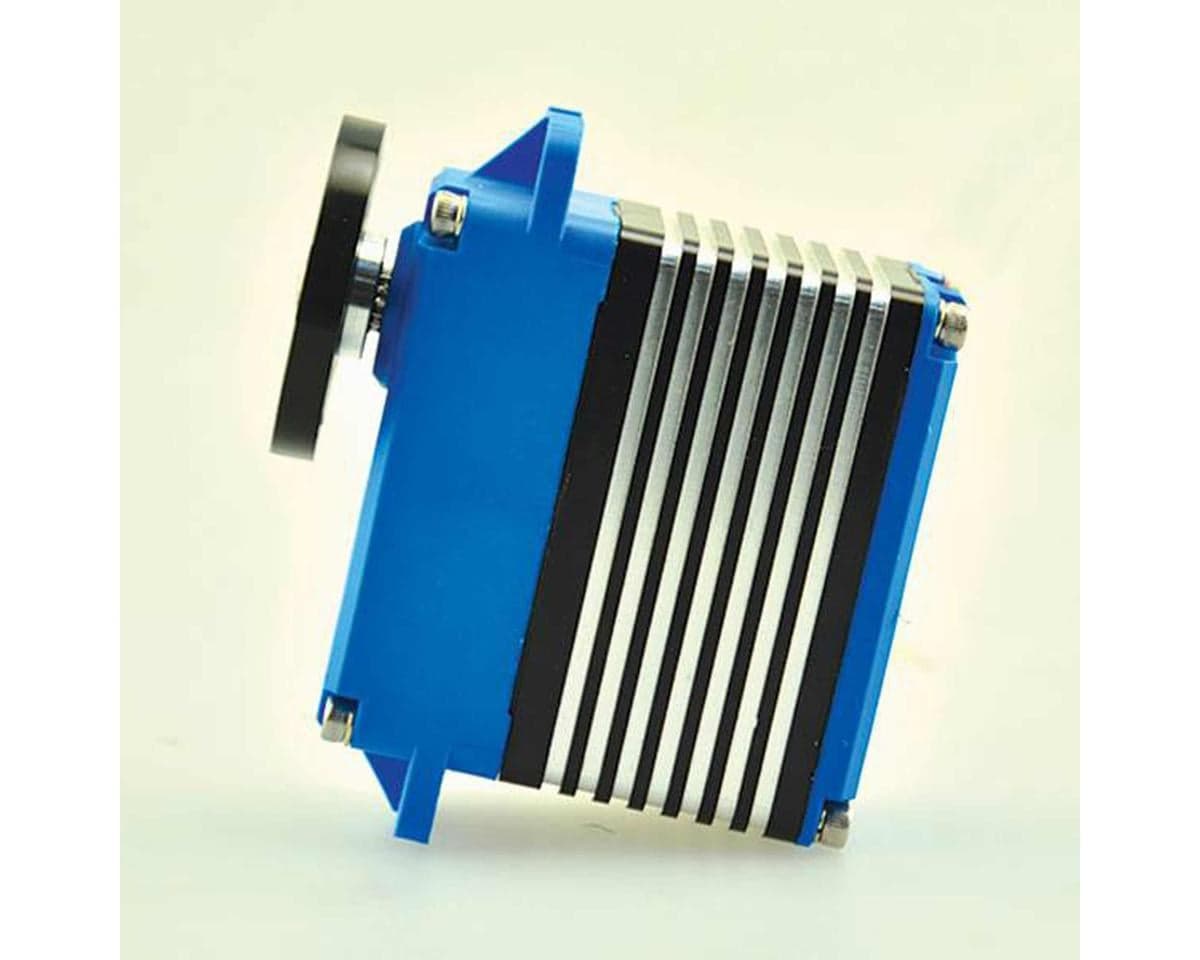

- Diamond Cut Aluminum Heat Sink Center Case
- IPD 67 Rated Water Resistant and Waterproof Proof Case
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Accessories:
- Steel Gear Set
- Metal / Plastic 1st Gear Set
- Plastic / Aluminum Case Set
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V ~ 7.4V
Speed (Second @ 60°): 0.26 ~ 0.21 ~ 0.17

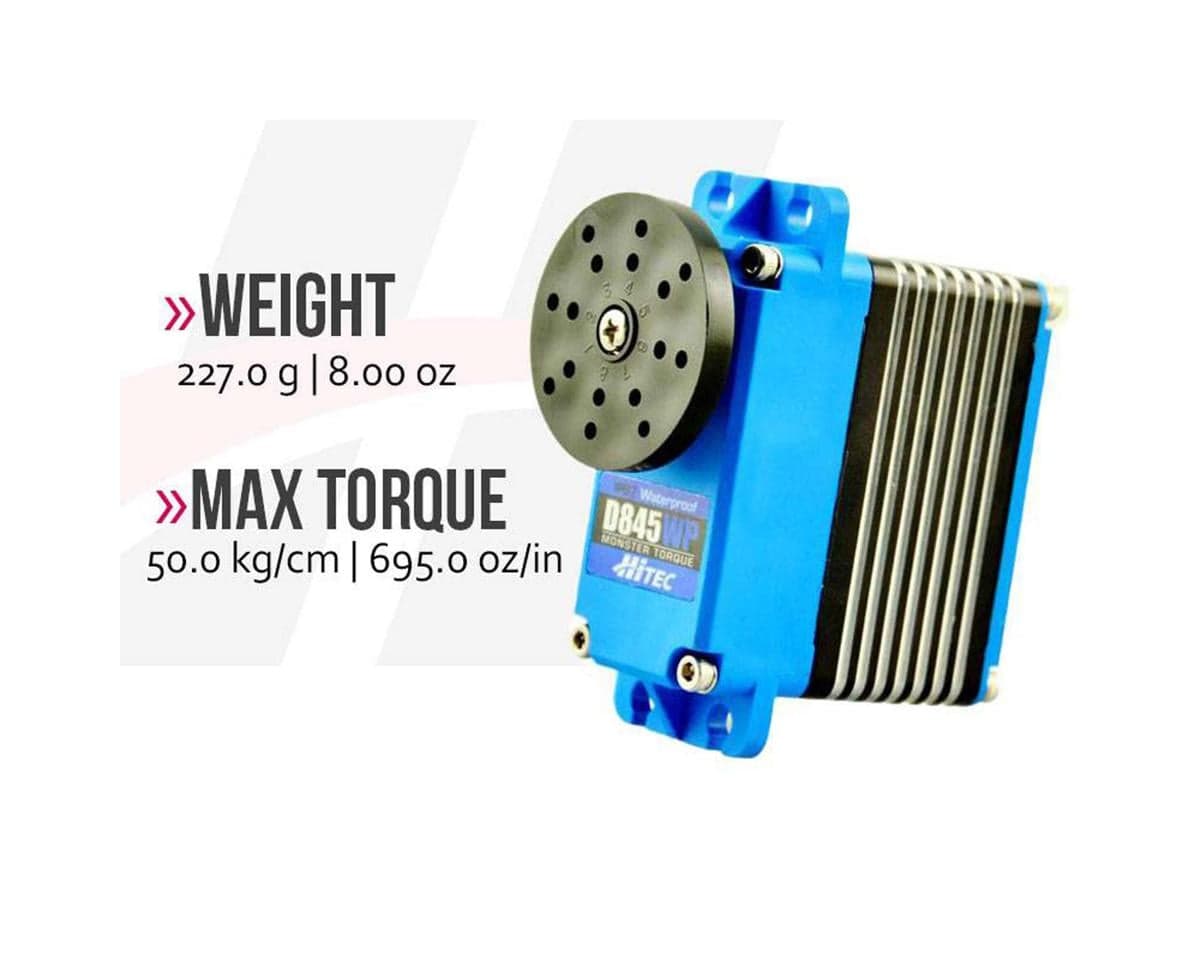

Maximum Torque Range oz. / in.: 454 ~ 566 ~ 698
Maximum Torque Range kg. / cm.: 32.5 ~ 40.5 ~ 50.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 1,600 mA
Stall Current Draw: 10,000 mA
Dead Band Width: 2 µs

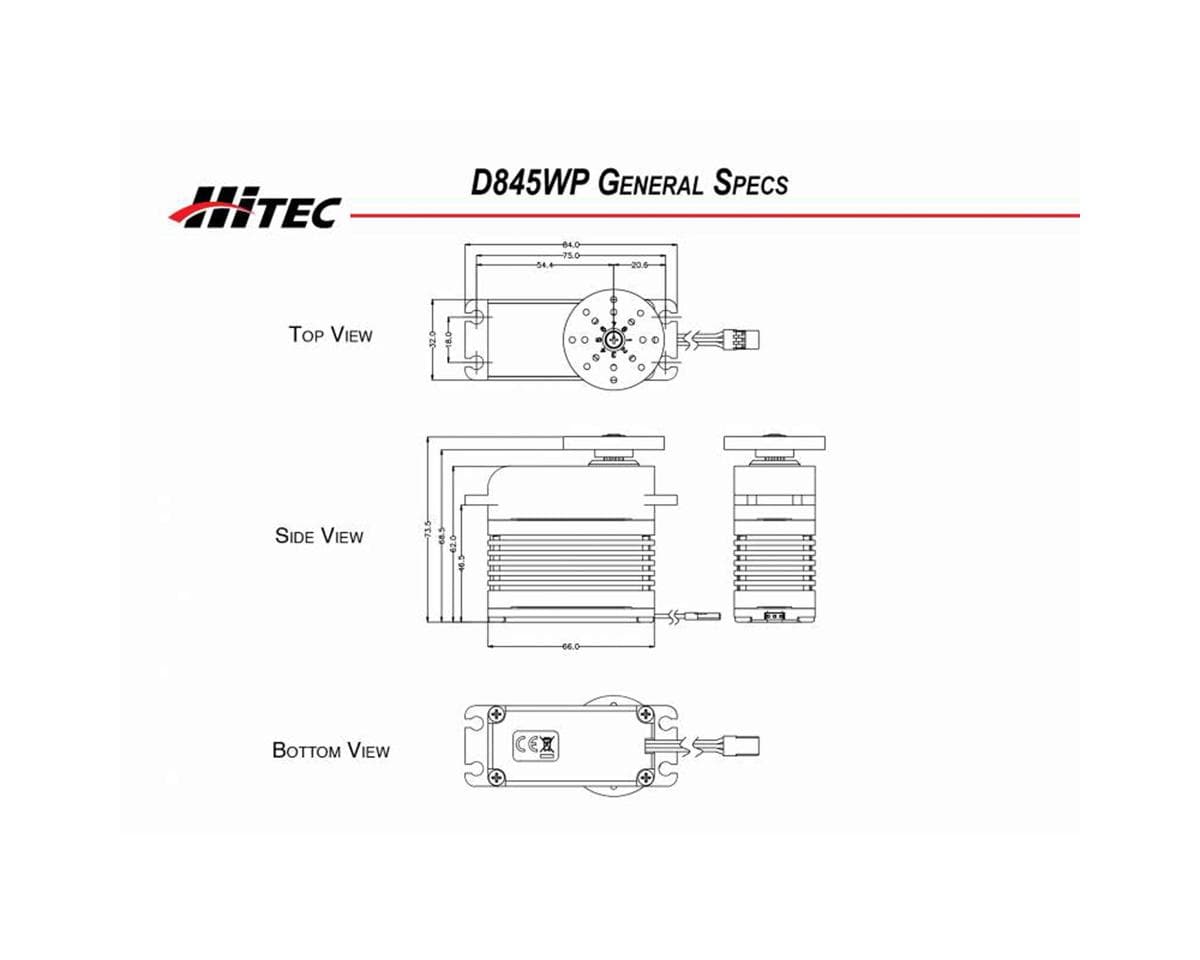

Dimensions (Inches): 2.59 x 1.26 x 2.44
Dimensions (Metric): 66.0 x 32.0 x 62.0
Weight (Ounces): 8.0
Weight (Gram): 227.0
Circuit Type: 32bit Programable Digital
Motor Type: 5 Poles Cored Metal Brush
Gear Material: Steel
Bearing Type: Dual Ball Bearing
Output Shaft (type / Ømm): 15T 8mm
Case Material: Plastic / Aluminum
Dust / Water Resistance: IP 67

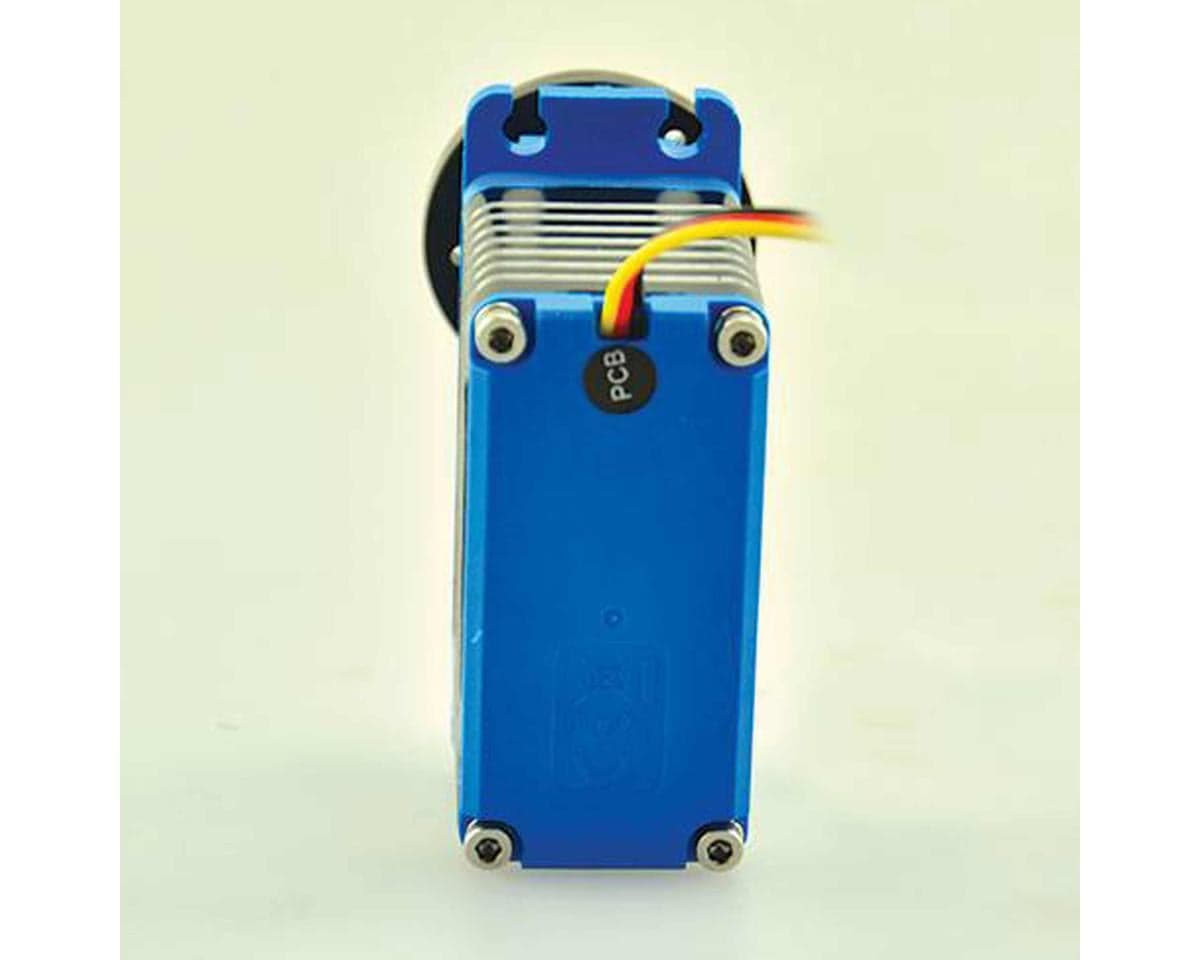

Connector Gauge (AWG) / Strand Count: 20 / 80
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Reviews4.1 · 11 reviews
After 1 week this servo started getting stuck at full lock left or right . Then getting burning hot. Amain would not replace it.even tho ive spent nearly 2k with them this year. I had to send it back to hitec and now they arent responding to my emails either. Love having my brand new dbxl out of service for over a month.
Worked for about 15 minutes, then it stopped working but it seems like some electrical failure in the servo that was affecting my ESC and the LED bar. The ESC fan was intermittent and my LED bar wash flashing. Once the servo was unplugged from the receiver, the ESC fan and the LED bar were working fine. Very disappointed.
Ton of power at 6.0 volts, just what I needed for my HPI Baja. Will need to cut the battery box to fit it, but great upgrade, super happy.
Big servo, lots of power! I have no doubt it will last longer that the stock servo. Amain really helped me out with this. Put this in a Losi DBXL 2.0. It will fit in the servo tray as is, but I would suggest a very slight trim anyway. And the direction is opposite of the stock servo, but a click of a switch on the transmitter fixes that.
Woweee. Go Hitec and never look back! I have this stuck in my absolutely nutter Baja Flux build. Very robust, very fast, runs cool. I couldn't be happier. And as always Amain had the best service and fastest shipping in the game.
Reviewers mostly rate the Hitec D845WP highly, praising its power, speed and responsiveness in 1/5 scale buggies and trucks such as the Losi DBXL 2.0, HPI Baja and Redcat Rampage MT V3, with several noting it runs cool and is a clear upgrade over stock servos. Fit is generally workable, though one reviewer needed to cut a battery box and another suggested a slight trim. Two low ratings describe the servo failing within days or minutes, with one reporting it stuck at full lock and overheating, and another reporting electrical faults affecting the ESC and LED bar. Both reported difficulty getting a replacement or response from the seller or manufacturer. Those two reports are the only negative experiences in the set.
- + Strong torque and power
- + Fast, responsive steering
- + Runs cool
- + Clear upgrade over stock servos
- − Early failure in two reports
- − Overheating and stuck at full lock in one unit
- − Electrical faults affecting ESC and LEDs in one unit
- − Replacement and support problems reported
