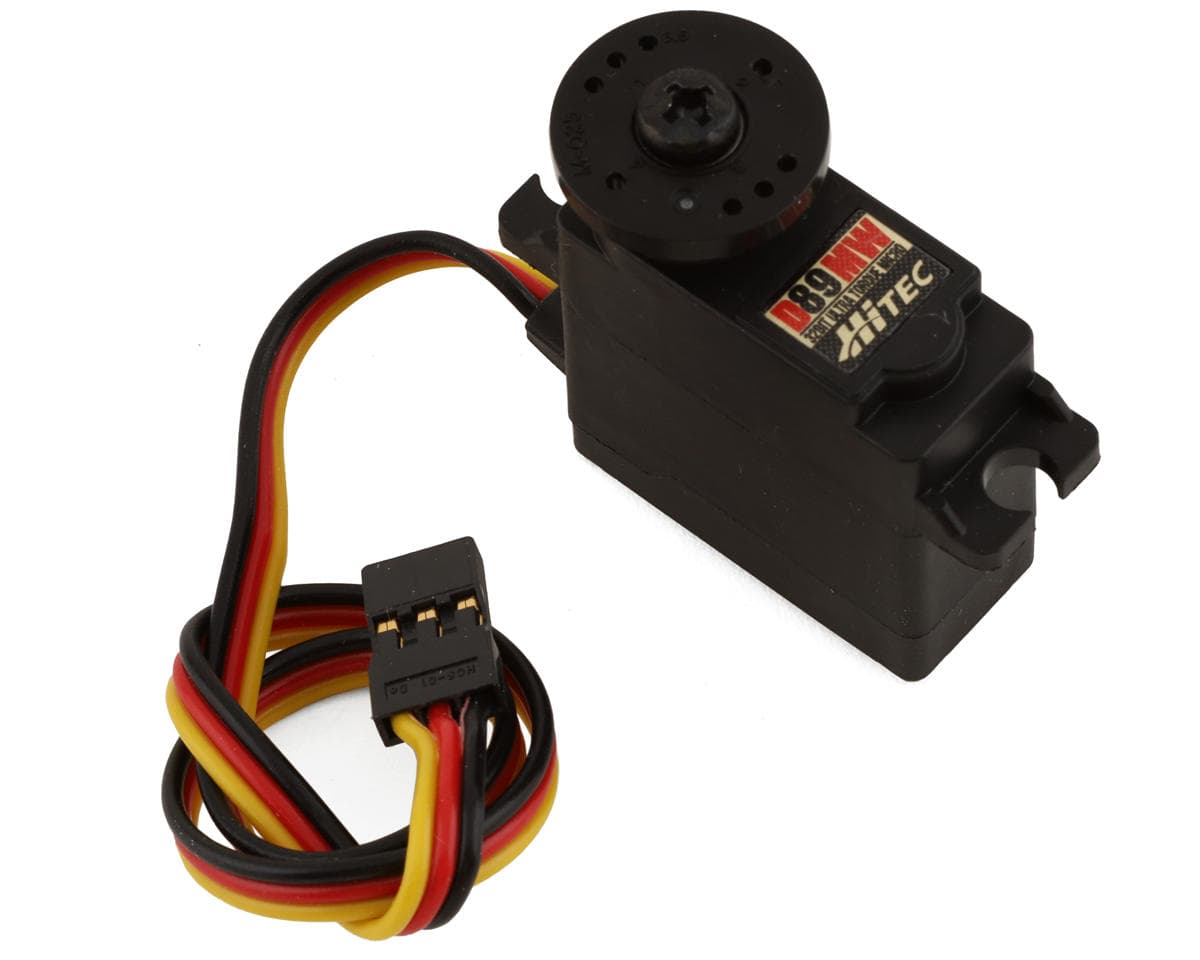

Hitec D89MW 32-Bit Digital Servo (High Voltage)

This is the Hitec D89MW 32-Bit Digital High Voltage Servo. Using high performance 32 bit technology the D89MW offers incredible precision while boasting an abundance of power thanks to the high voltage capability. Its efficient coreless motor makes this mini servo a standout in its class.

Specifications:

• Performance Specifications:
• Operating Voltage Range: 4.8V ~ 7.4V DC
• Speed (Second @ 60°): 0.17 ~ 0.11
• Maximum Torque Range: 74 ~ 118oz/in (5.3 ~ 8.5kg/cm)
• Current Draw at Idle: 30mA
• No Load Operating Current Draw: 300mA
• Stall Current Draw: 2,900mA
• Physical Specifications:
• Dimensions (LxWxH): 1.14x0.51x1.18in. (29.0x13.0x30.0mm)
• Weight: 0.88oz. (25.0g)
• Circuit Type: 32bit Programmable Digital
• Motor Type: Coreless Metal Brush
• Gear Material: 5 Metal Gears
• Bearing Type: Dual Ball Bearing
• Output Shaft: 25 / 6mm Ø
• Case Material: Plastic

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
