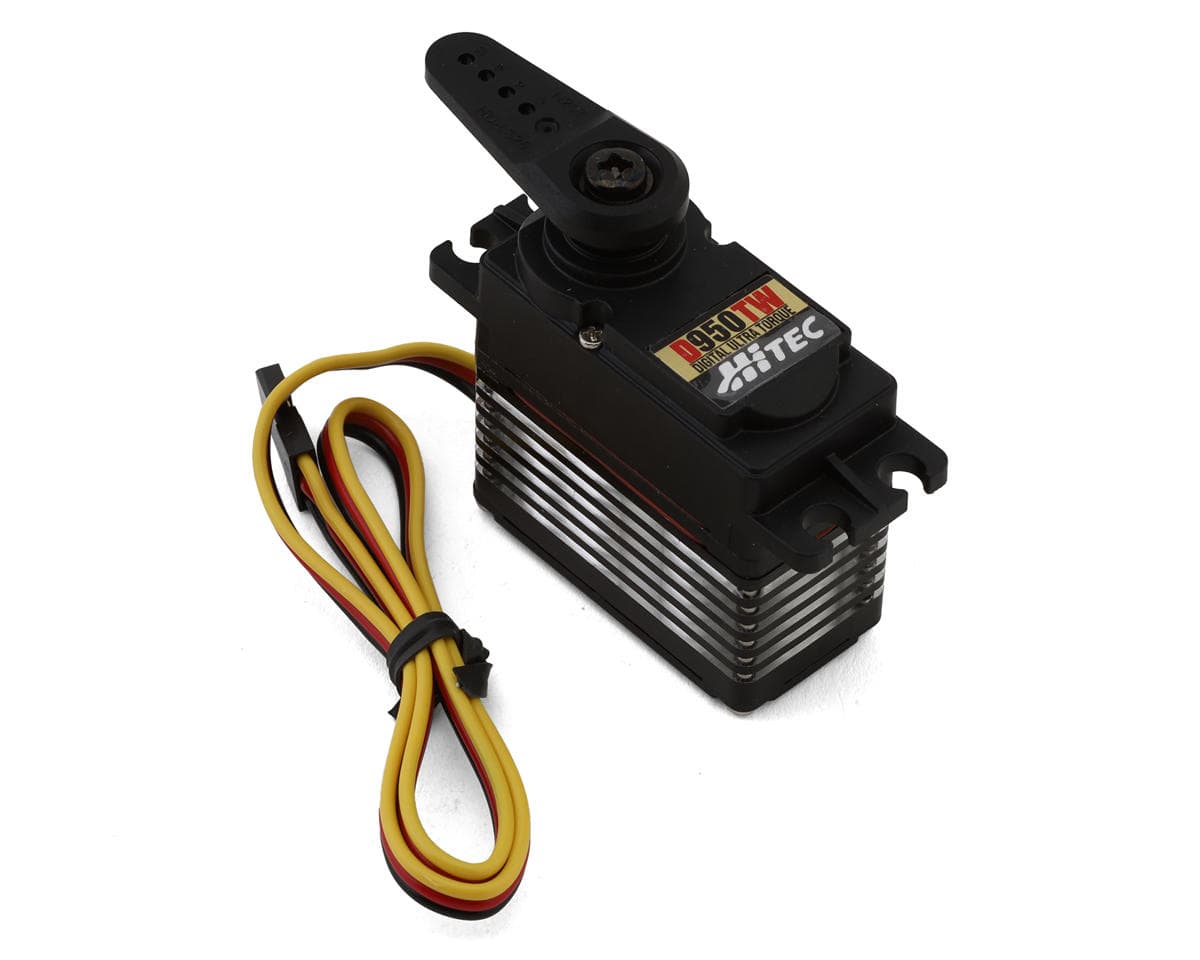

Hitec D950TW Titanium Geared Brushless Servo (HV)

Servo Overview:

Hitec D950TW Titanium Geared Brushless Servo. The Hitec D-950TW is a standout in Hitec's D-Series dynamo servo lineup, featuring advanced, custom engineering. This servo integrates cutting-edge high-resolution and ultra-response technology, powered by a 32-bit MCU and 12-bit ADC, for unparalleled programmability and smooth operation. Capable of running on a broad voltage range of 4.8 to 8.4 volts, it accommodates various battery chemistries without needing adapters or regulators. Equipped with Hitec's standard 25-tooth output spline and 3mm hex screw, the D-950TW delivers exceptional performance.

Features:

• Wide Operating Voltage (4.8 ~ 7.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case

Specifications:

• Speed:
• @4.8V: 0.23sec/60°
• @6.0V: 0.17sec/60°
• @7.4V: 0.14sec/60°
• Torque:
• @4.8V: 292oz-in (21kg-cm)
• @6.0V: 403oz-in (29kg-cm)
• @7.4V: 486oz-in (35kg-cm)
• Motor: Brushless
• Operating Voltage: 6.0V-7.4V
• Dimensions(LxWxH): 1.57x0.79x1.50" (40x20x38mm)
• Weight: 68g (2.4oz)
• Operating Spline: 25T

Includes:

• (1) D950TW Titanium Geared Brushless Servo
