Hitec

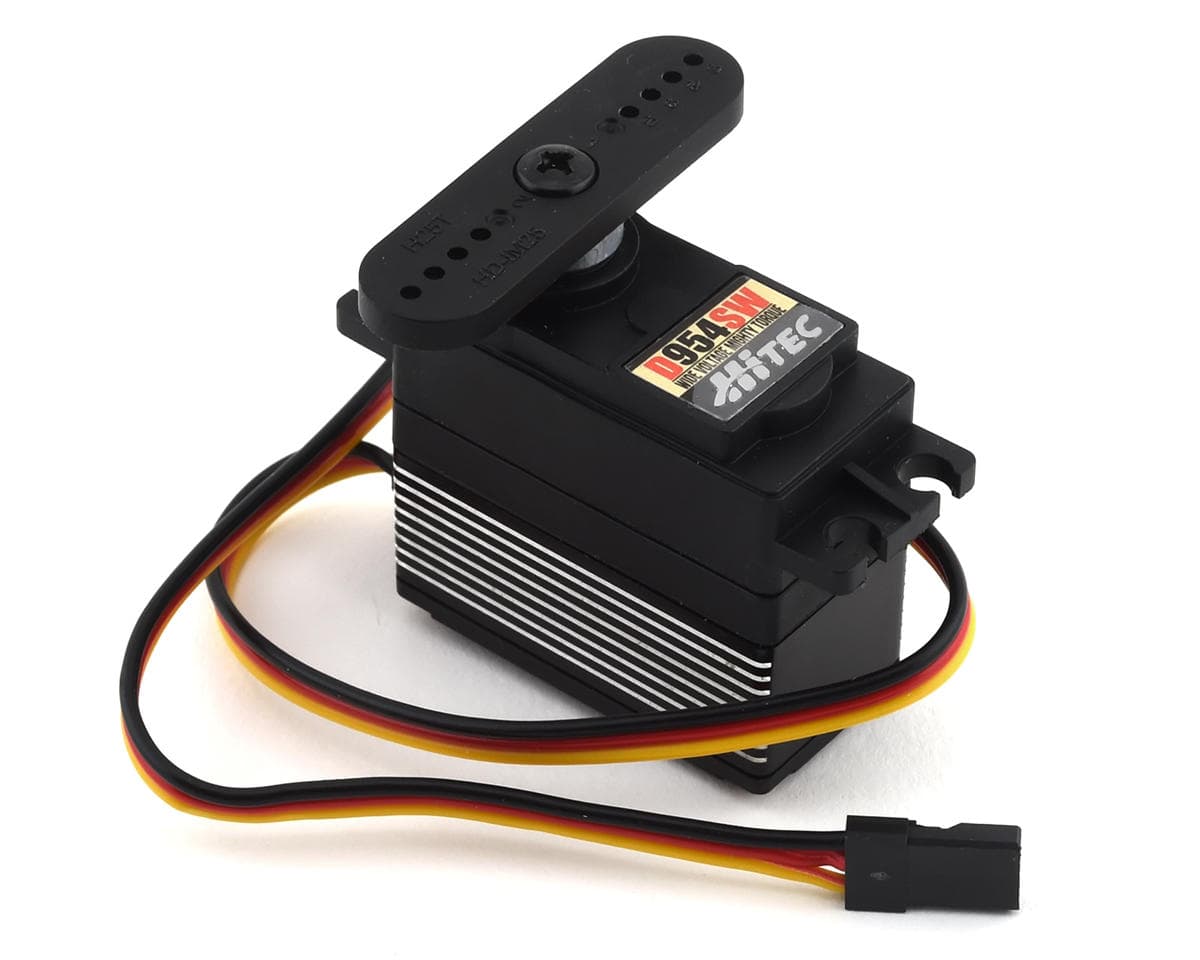

Hitec D954SW High Torque Steel Gear Servo (High Voltage)
Part # HRC36954S4.0(1)
Where to buy
$114.99
Prices are as last seen at the store; stock is not tracked.
About this part
The Hitec D954SW High Torque Steel Gear Servo, a technologically-advanced servo that is powered by Hitec's 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The servos unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from Hitec's popular HS-7954SH servo.
Features:
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline
- Coreless Metal Brush Motors
- Nylon Reinforced Plastic Upper and Lower Case
- Diamond Cut Aluminum Heat Sink Center Case
- Dust Resistant and Splash Proof Case
- Programmable Features:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
Specifications:
Operating Voltage Range (Volts DC): 4.8V ~ 7.4V
Speed (Second @ 60°): 0.19 ~ 0.12
Maximum Torque Range oz./in.: 251 ~ 405
Maximum Torque Range kg./cm.: 18.0 ~ 29.0
Current Draw at Idle: 30 mA
No Load Operating Current Draw: 500 mA
Stall Current Draw: 5,200 mA
Dead Band Width: 1 µs
Dimensions (Inches): 1.57 x 0.78 x 1.46
Dimensions (Metric): 40.0 x 20.0 x 37.0
Weight (Ounces): 2.40
Weight (Gram): 68.0
Circuit Type: 32bit Programable Digital
Motor Type: Coreless Metal Brush
Gear Material: MK 1st Gear & 3 Steel Alloy Gears
Bearing Type: Dual Ball Bearing
Output Shaft (type/Ømm): H25T
Case Material: Plastic/Aluminum
Dust/Water Resistance: Splash Proof
Connector Gauge (AWG)/Strand Count: 20/80
Includes:
- (1) D954SW High Torque Steel Gear Servo
- (3) Steel Alloy Gears Set
- Metal / Karbonite 1st Gear Set
- Plastic/Aluminum Case Set

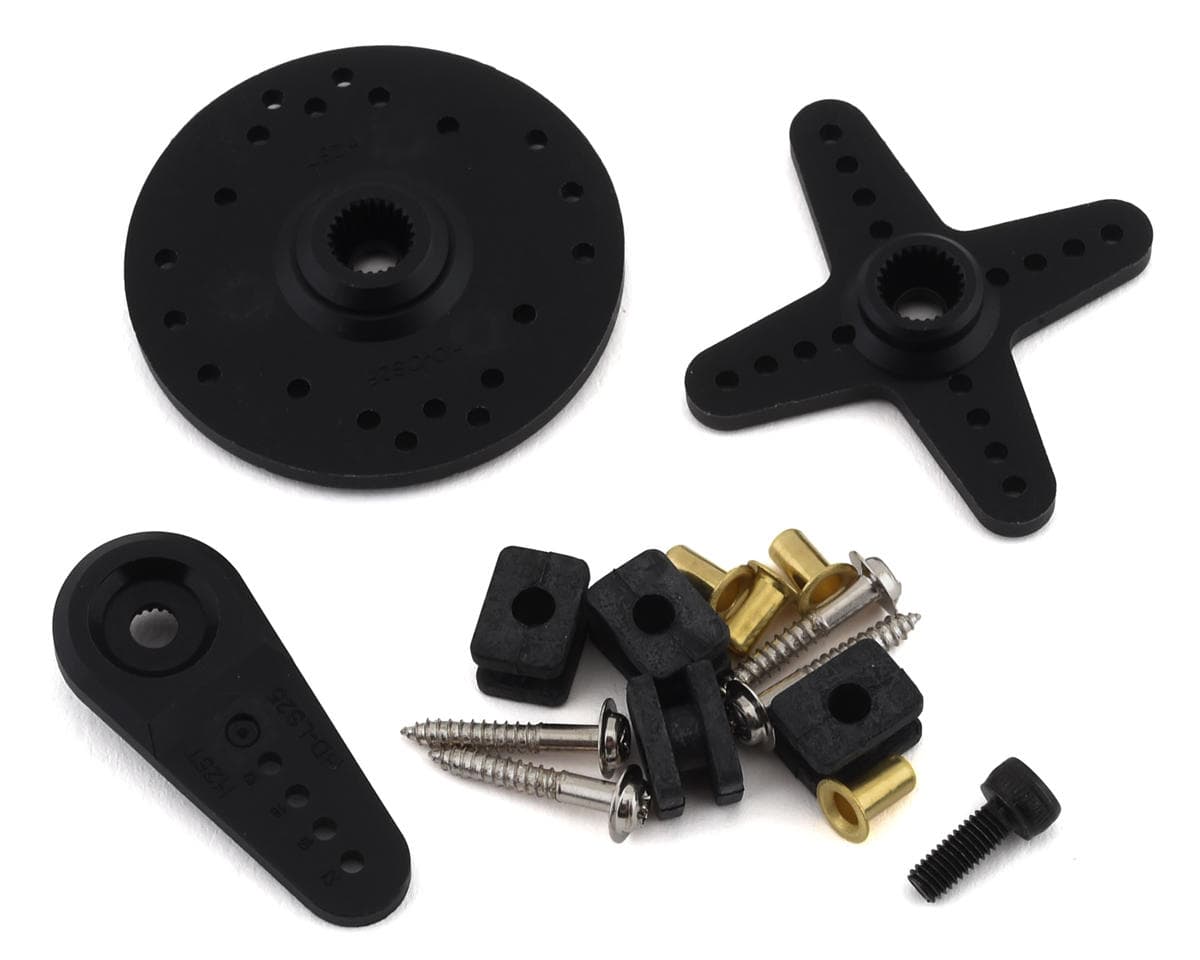

- Applicable Horns & Screws
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Reviews4.0 · 1 review
Matt Leeon Hitec D954SW High Torque Steel Gear Servo (High Voltage)
Worked well for 1-1/2 years through several pretty severe tumbles on my Axial Capra. Broke a tooth on a very minor tumble, and 10 mins later the whole thing was stripped. Called Hitec, gears aren't covered under their two-year warranty, and that's not mentioned in the section for servo warranty, it's covered later under the general limitations of the warranty, which I didn't read until after I was badgering them about the warranty. However, they honored the first paragraph after I was a squeaky wheel by sending me a new gear set. All that said, it's not quite perfect, but it's quite good, and after all is said and done, I'd buy another.
1 found this helpful
