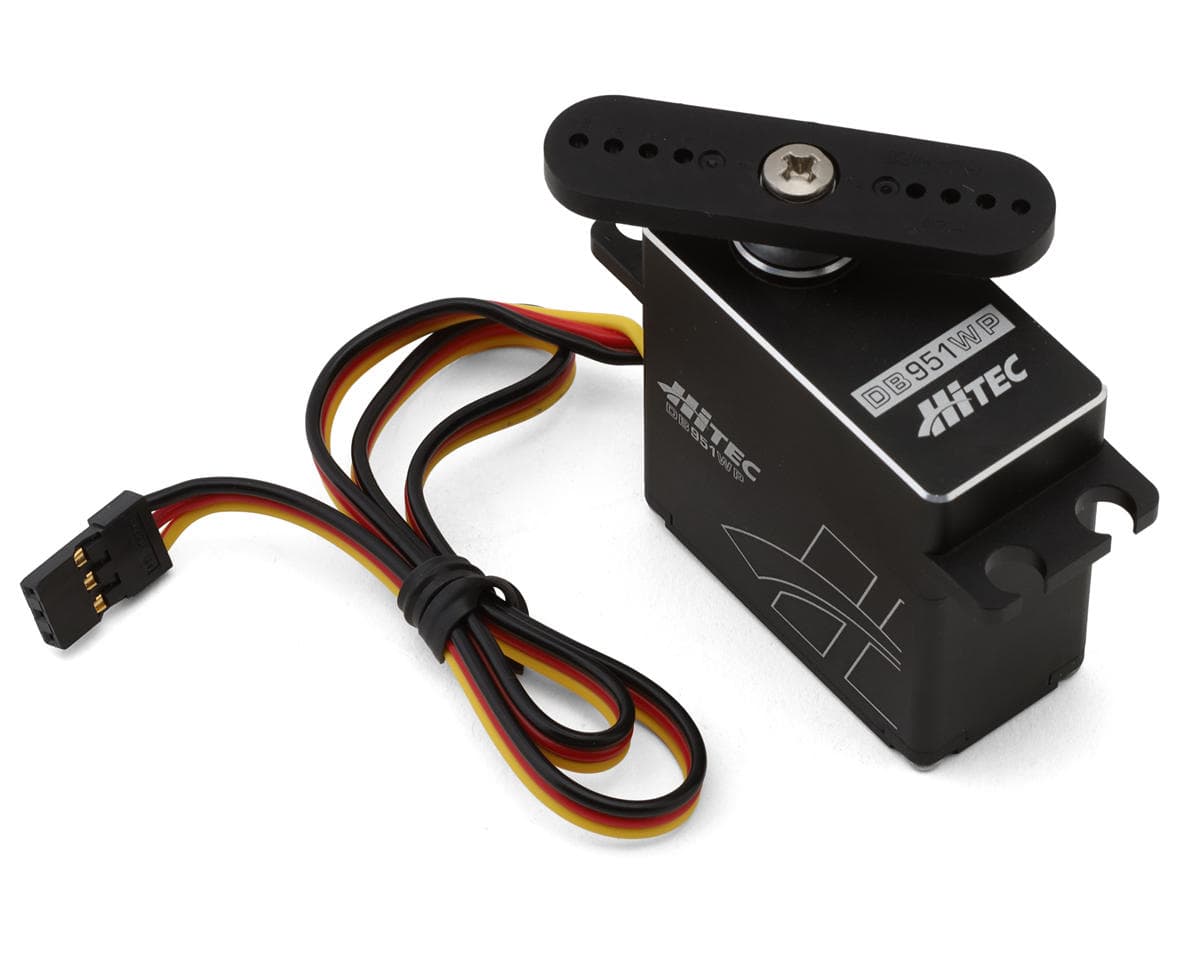

Hitec DB951WP High Speed Waterproof Brushless Servo (High Voltage) (Aluminum Case)
About this part
Servo Overview:
Push your build to the limit with the Hitec DB951WP High Speed Waterproof Brushless Servo — engineered for relentless speed, razor-sharp precision, and all-weather durability. With a powerful brushless motor, advanced 32-bit control, and a rugged waterproof aluminum case, this servo delivers uncompromising performance when it matters most.
About the DB951WP High Speed Waterproof Brushless Servo
Uncompromising Speed
The Hitec DB951WP High Speed Waterproof Brushless Servo delivers elite-level performance with a high-efficiency brushless motor, 32-bit MCU technology, and ultra-fine 4096 resolution for lightning-fast response and exceptional accuracy. Its low deadband circuitry ensures precise control, while Smart Sense Technology provides advanced servo analytics. Designed for high-voltage operation from 4.0V to 8.4V and optimized for up to 2S LiPo use, it offers full programmability — including thermal cutoff — making it a powerful, customizable solution for demanding applications.
Rugged & Waterproof Design
Built to thrive in extreme conditions, this servo features a fully waterproof IP67-rated, CNC-machined aluminum case that doubles as a heat sink for superior thermal management. Inside, a hardened steel gear train, dual oversized bearings, and reinforced steel pins provide long-lasting durability and smooth operation under heavy loads. Finished with an industry-standard H25T output spline and next-generation case design, the DB951WP is engineered for reliability, strength, and consistent performance in any environment.
Features:
- High-performance brushless motor for fast, smooth operation
- 32-bit MCU with 4096 resolution for precise control
- Fully programmable settings for custom performance tuning
- Smart Sense Technology provides real-time servo analytics
- IP67 waterproof rating for all-weather reliability
- CNC-machined aluminum case improves strength and cooling
- Hardened steel gears for long-lasting durability
- High-voltage capable from 4.0V to 8.4V (2S LiPo ready)
Includes:
- (1) DB951WP High Speed Waterproof Brushless Servo (High Voltage)

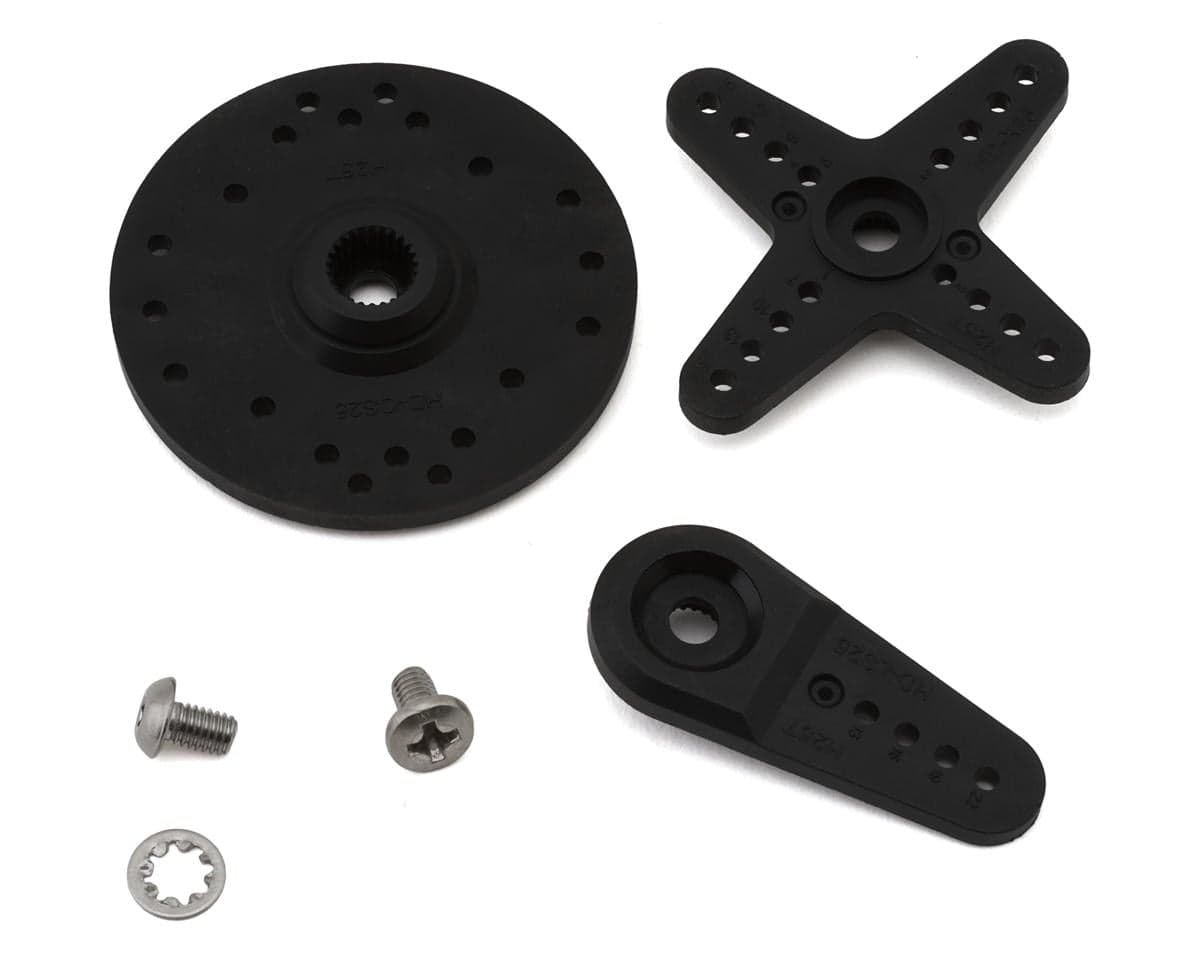

- Composite Servo Horns & Accessories
Specifications:
| Application | 1/10-1/8 |
|---|---|
| Input Voltage | 4.0-8.4V |
| Operating Speed @ 6.0V | 0.12 sec/60° |
| Operating Speed @ 7.4V | 0.10 sec/60° |
| Dynamic Torque @ 6.0V | 563oz-in (40.54Kg-cm) |
| Dynamic Torque @ 7.4V | 563oz-in (40.54Kg-cm) |
| Gear Material | Metal |
| Motor Type | Brushless |
| Output Shaft Spline | 25T |
| Dimensions | 1.58x0.79x1.54in (40x20x39mm) |
| Weight | 3.18oz (90g) |
