About this part

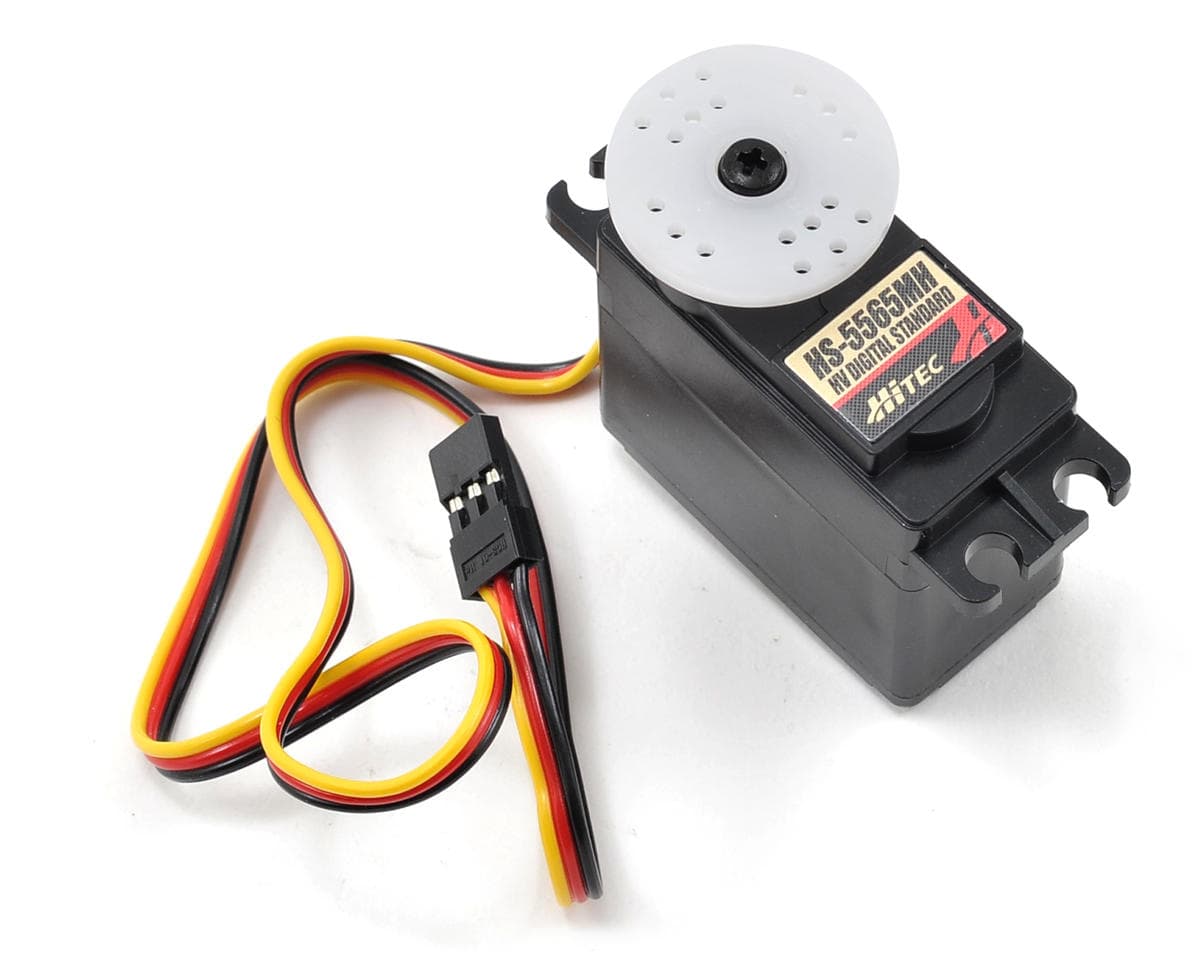

This is the Hitec HS-5565MH Coreless High Voltage Metal Gear High Speed Digital Servo. Increase performance, not your budget with the high voltage, digital HS-5565MH. This premium sport servo features a coreless motor, heavy-duty metal gears and dual ball bearings. Rated at 7.4 volts for 2S LiPo operation, it provides the durability and power your RC hobby demands. The HS-5565MH brings lightning speed and acceleration to your 1/10th scale touring cars, buggies and short course vehicles, helicopters up to .90-size and sport to high performance aircraft up to 25 percent.
Specifications:
- Speed:
- 6.0V: 0.11 sec/60 deg.
- 7.4V: 0.09 sec/60 deg.
- Torque:
- 6.0V: 153 oz/in
- 7.4V: 194 oz/in
- Length: 1.57in (39.8mm)
- Width: 0.78in (19.8mm)
- Height: 1.49in (37.8mm)
- Weight: 2.12oz (60g)
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Reviews5.0 · 3 reviews
Just installed in my losi RTR SCTE. This thing is really fast and strong. It has great centering and rock solid position holding force. It blows the stock servo out of the water in all four areas. You may need to run an external BEC or direct wire the Red lead to the +7.4 of your battery. I had to. The SCTE stock ESC internal BEC that normally powers the reciever and servo was not able to handle the power this servo wanted, as I found when I didn't even have the horn connected to the sreering (no load) the servo stopped responding a second or two of rapid left-right controller steering. I expected to have ths issue, and planned on wiring it to get 7.4v instead of the ESC's internal BEC.
This servo has been working very well. I run it in my tenth scale models.
Este servo es una maravilla, yo lo uso en mi MBX6R en el acelerador/ freno y funciona muy bien, es rapido y tiene mas que suficiente torque para parar el carro en seco,me atreveria a decir que en la direccion tambien es mas que suficiente, funciona perfecto con una bateria lipo de 7.4 sin necesidad de reguladores
All three reviewers are verified owners who rate the Hitec HS-5565MH high-voltage servo 5 out of 5 and report good performance. One reviewer, using it in a Losi SCTE, describes it as fast, strong, well-centred and firm in position holding, and says it outperformed the stock servo in those areas. The same reviewer reports that the SCTE's internal BEC could not supply enough power, causing the servo to stop responding under rapid steering with no load, and that an external BEC or direct 7.4V feed was needed. A Spanish-language reviewer using it for throttle/brake on an MBX6R reports sufficient speed and torque to stop the car and says it runs well on a 2S LiPo without a regulator. A third reviewer reports it works well in a 1/10 scale model with no further detail. Power supply is the only recurring…
- + Fast response
- + Strong torque
- + Good centering
- + Firm position holding
- − Insufficient power from stock SCTE BEC
- − Stops responding without external BEC or direct 7.4V feed
