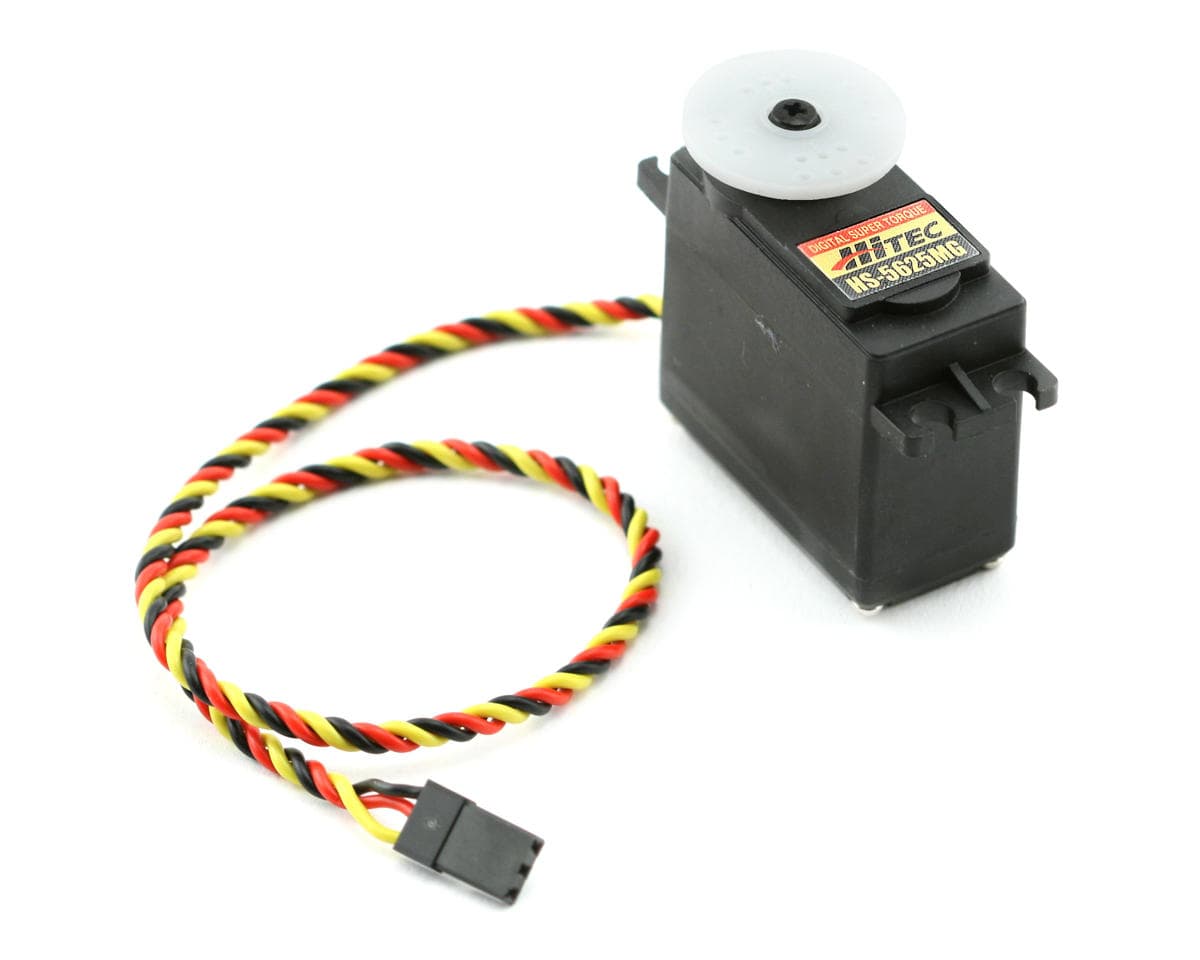

Hitec HS-5625MG Hi-Speed Metal Gear Servo
About this part
For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique MP/metal gear train technology, the HS-5645MG will deliver powerful high speed results!

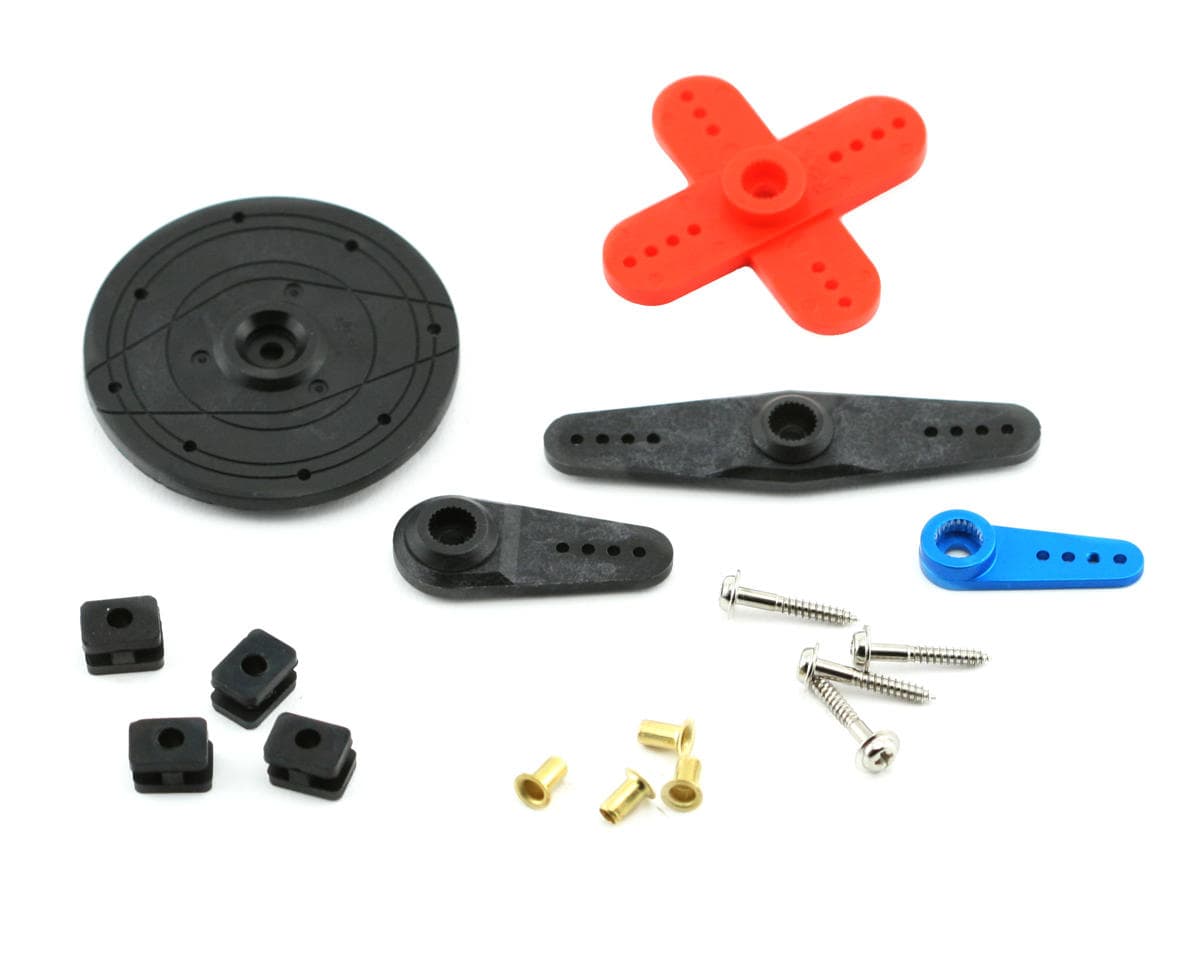

Metal Horn Included
Key Features:
- Programmable Digital Circuit
- Unique MP/Metal Gear Train Technology
- Speed:
- 4.8V: 0.17 sec/60 deg.
- 6.0V: 0.14 sec/60 deg.
- Torque:
- 4.8V: 109.7 oz/in
- 6.0V: 130.53 oz/in
- Length: 1.59in (40.38mm)
- Width: 0.77in (19.5mm)
- Height: 1.48in (37.5mm)
- Weight: 2.11oz (59.7g)
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Reviews4.2 · 5 reviews
I like this servo in 2wd sct. They are light and have worked good. Have been enjoying these servos for almost 10 years. Its nice to see the servo still available at a fair price.
Good servo for the price. I have these servos in two of my planes. A goldberg anniversary Cub and a SIG Kadet senior. They have both the speed and torque to fly the planes great and dont kill a flight battery. Definatly recommend and will be using again in future.
i run this in my rc8e and hyper 10sc w/ no problems
I have run in thottle of my Losi 8 for a few races now with no problems. For the price, great speed and reliability. It's nice not to pay $100 for a good servo!
Avoid this servo, the one i got was faulty and would not center. I sent it back to hitech and the replacement was also faulty!! Do not buy this servo!
Reviewers generally rate the Hitec HS-5625MG highly for its price, citing good speed, torque and reliability in cars such as a Losi 8 and RC8E, and in planes including a Goldberg Anniversary Cub and SIG Kadet. Several note the light weight and that the servo has remained in service for years. One verified reviewer reported a faulty unit that would not center, and a replacement was also reported faulty. Overall sentiment is positive, but the sample is small and the defect report is a single case.
- + Good speed and torque for the price
- + Reliable in racing and flying use
- + Light weight
- + Lower cost than many comparable servos
- − Reported centering fault on one unit
- − Replacement unit also reported faulty
