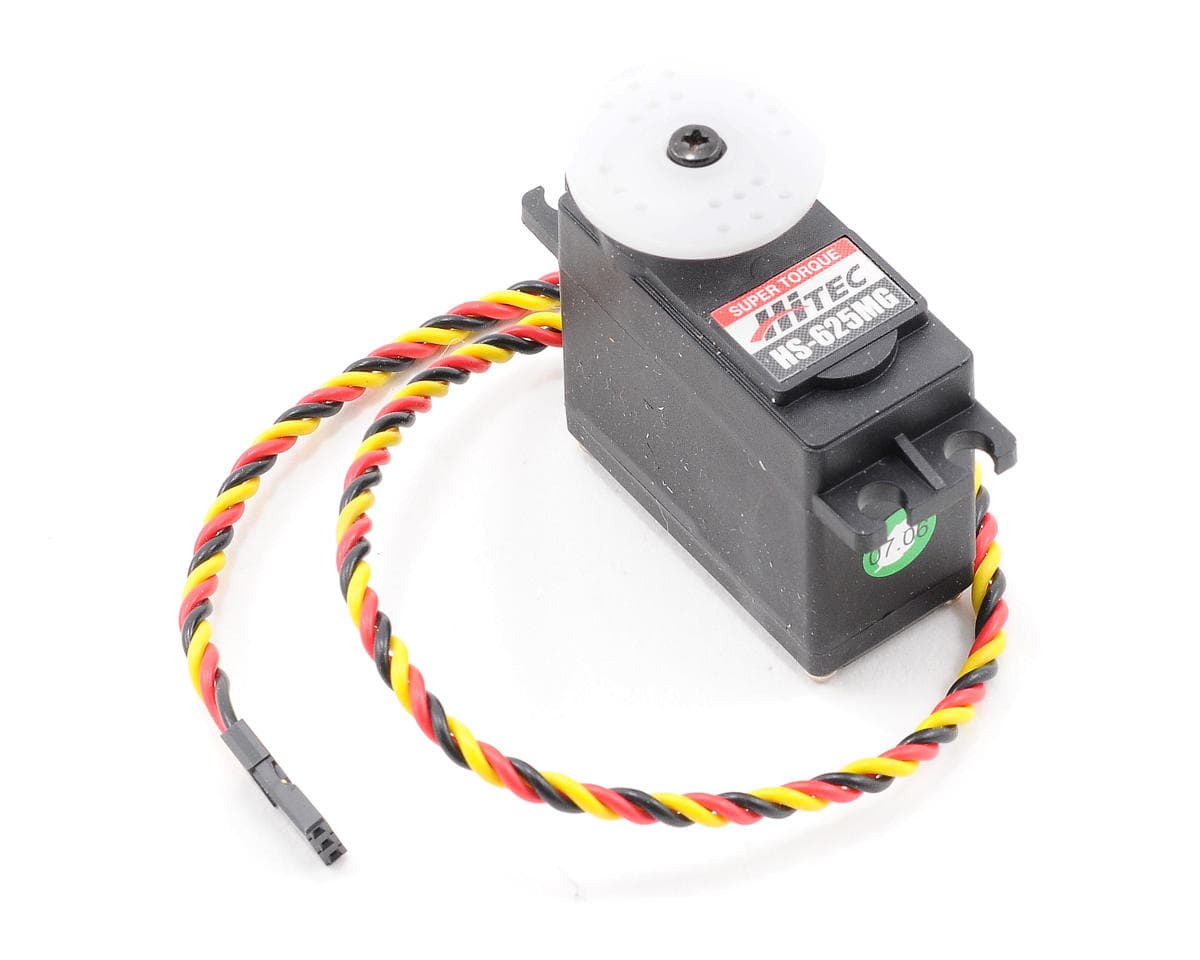

Hitec HS-625MG Metal Gear Super Torque Servo
About this part
The powerful high speed HS-625MG is a perfect choice for those applications requiring a fast and strong standard size servo. Utilizing our M/P and metal gear train technology, the HS-625MG is a fantastic sport servo for larger planes and 10th scale sport vehicles.
- Speed:
- 4.8V: 0.18 sec/60 deg.
- 6.0V: 0.15 sec/60 deg.
- Torque:
- 4.8V: 76.4 oz/in
- 6.0V: 94.4 oz/in
- Length: 1.6in (40.6mm)
- Width: 0.78in (19.8mm)
- Height: 1.49in (37.8mm)
- Weight: 1.95oz (55.2g)
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
Reviews3.0 · 7 reviews
This is what both my wife and I use for our throttle and brake servo. Has all the power and speed that we need while racing our turmoil's.
this is one looser of a servo,unless you just want to steer right,or never go straight also very noisy. I called hi-tek and left a message with a salesman telling them to bump up there quality control.
When I was racing back in the days I used to run only hitec servos. I got this to replace an RTR servo and i was very disappointed,the first minor crash and the gears broke. I was able to swap out the broken gear from another servo i had and it seems to be working ok now. I guess for the price I should not expect more.
Just 10 points! No words to describe the great performance of this servo!
Bought one at the local hobby shop and it never made a sound.. nothing.. I took it back and they did not refund or exchange it so I basically threw the money in the toilet. I threw the servo in the trash and got a different one on line and decided against buying from the shop. I like to support local business but when they don't support the customer it creates a bit of tension.
Reviews are sharply split. Two reviewers praise the servo's power and speed for throttle and brake use on racing vehicles, and one reports it works well as a throttle servo. Three reviewers rate it 1/5, reporting a servo that does not return to center on a rock crawler, a noisy unit, a stripped included screw, a gear that broke in a minor crash, and one unit that did not operate at all and was not refunded or exchanged by a local shop. A 3/5 reviewer reports a broken gear that was replaced with a spare. Recurring themes are gear durability and centering or quality control issues. Reviews do not clearly say whether problems are widespread, and the sample is small.
- + Strong power and speed for throttle and brake
- + Works well as a throttle servo
- − Fails to center in some units
- − Gears break after minor crashes
- − Included hardware can strip easily
- − Noisy operation in some units
