About this part

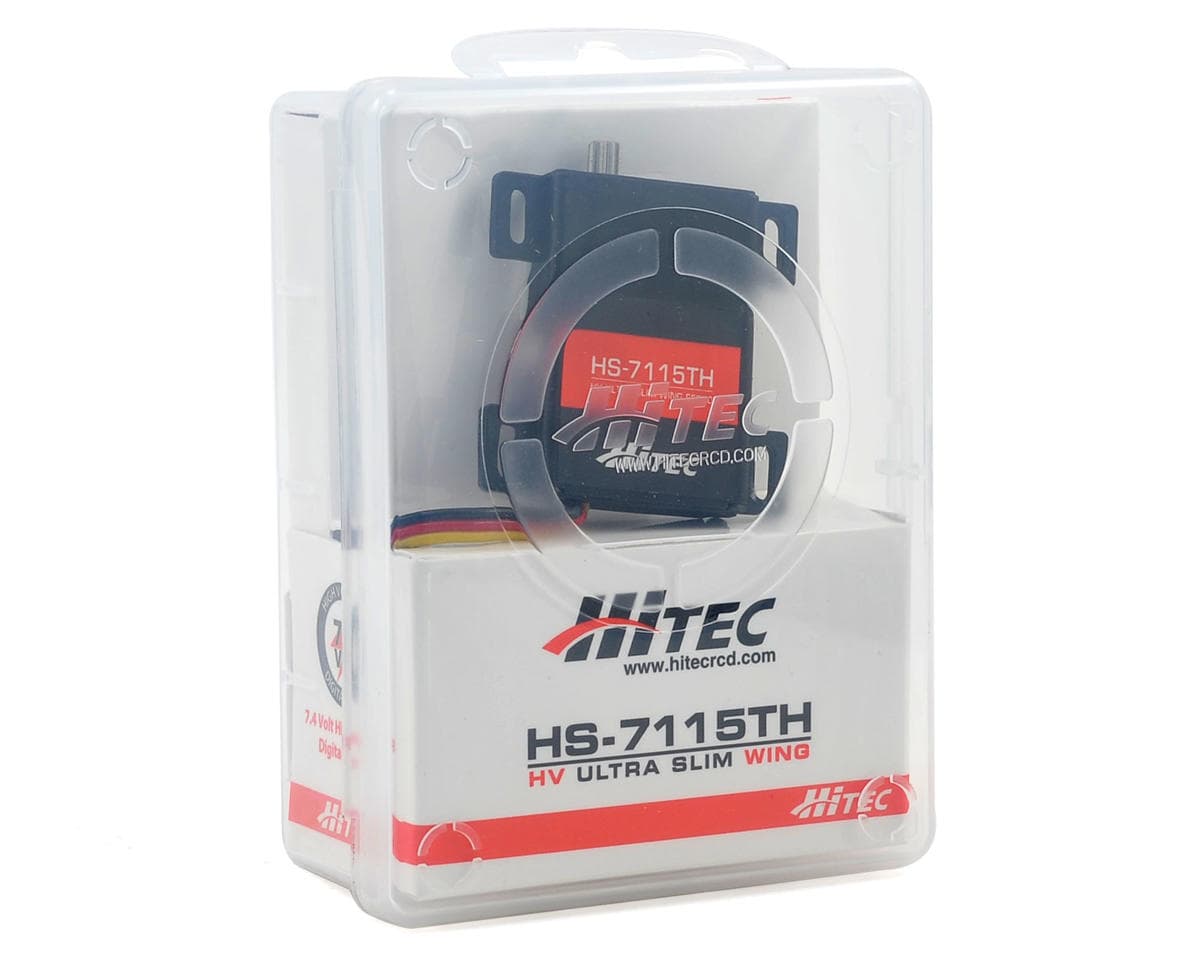

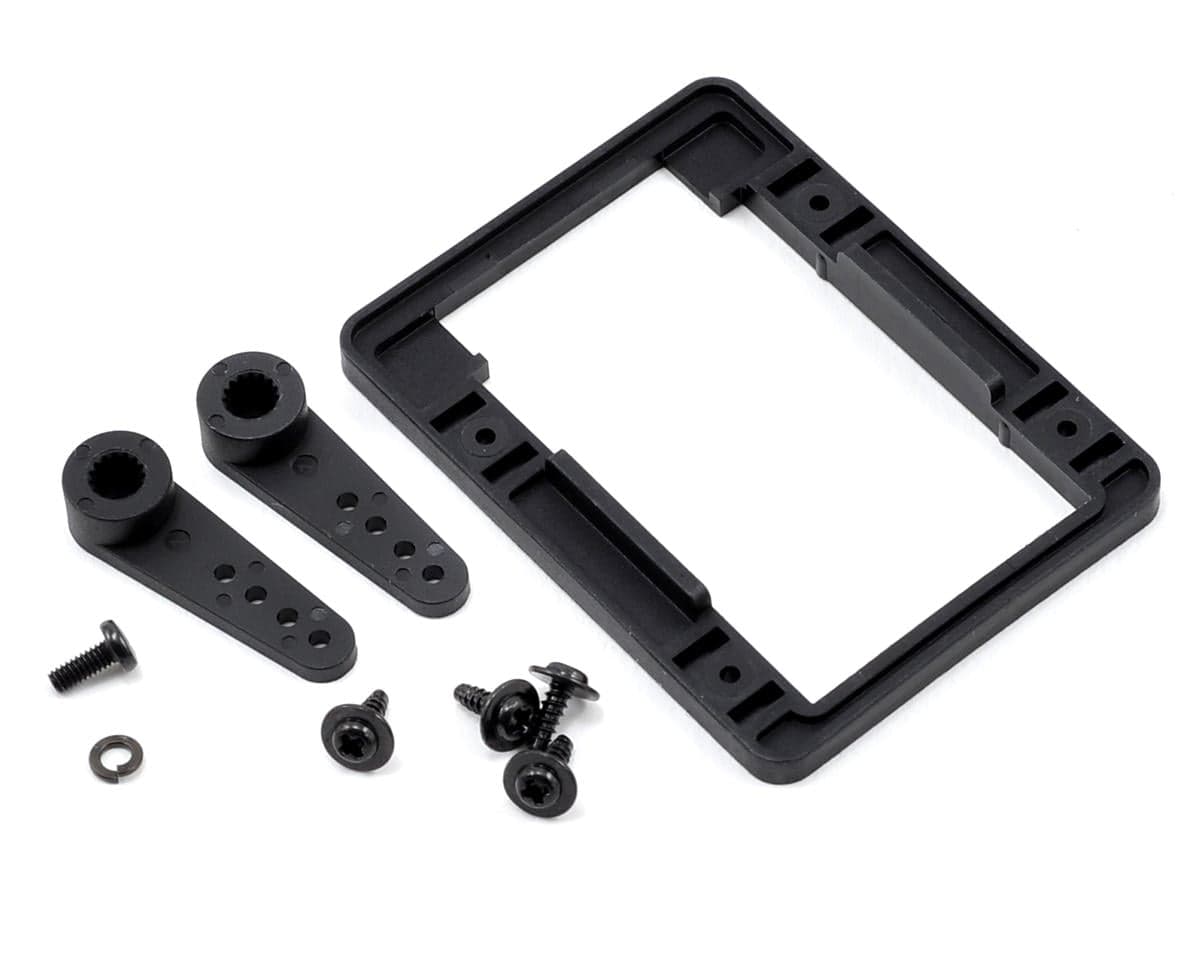

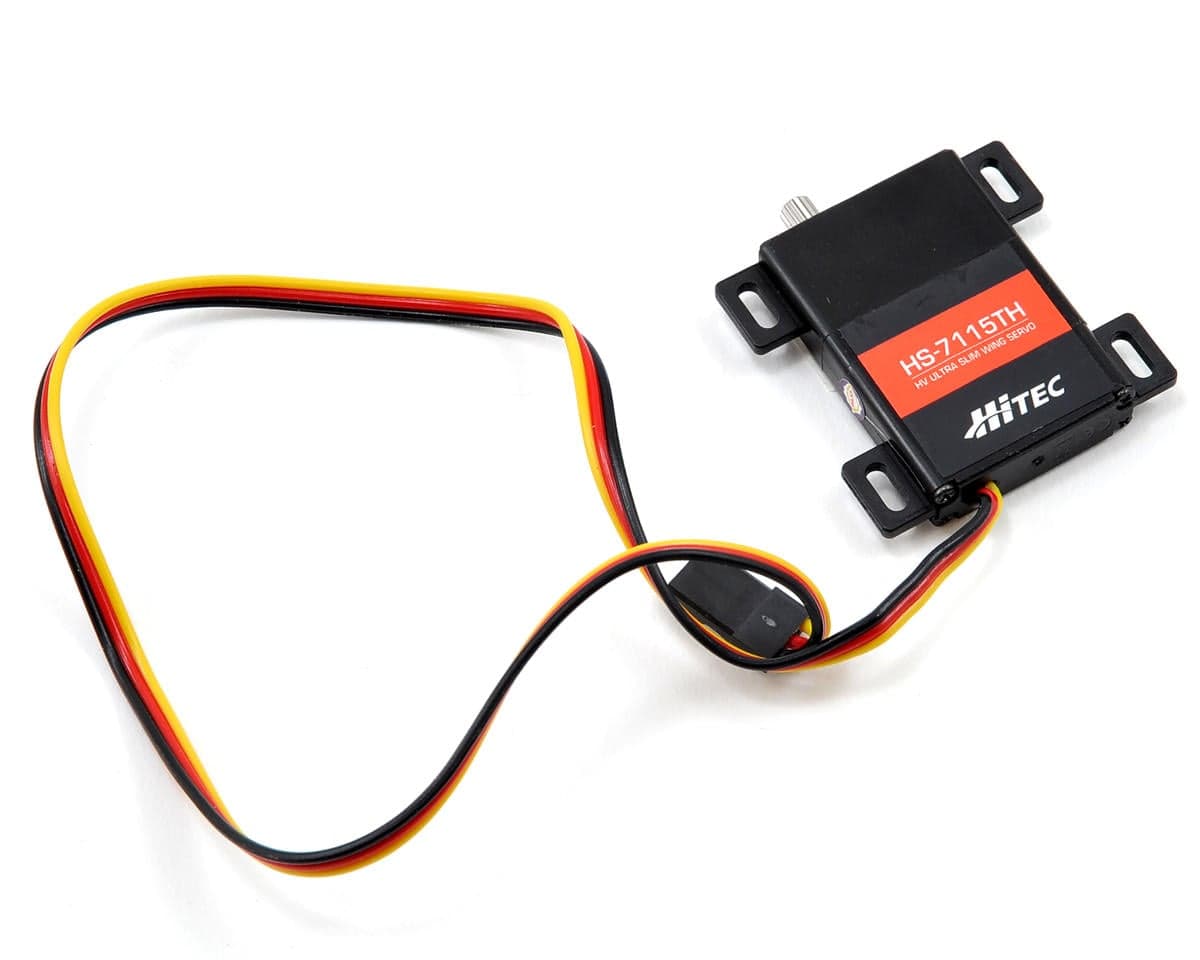

This is the Hitec HS-7115TH Ultra Premium High-Voltage Titanium Gear Slim Wing Servo. The HS-7115TH will fulfill every pilot's dream when it comes to flying slim-wing aircraft. With its efficient, powerful three pole, metal-brushed motor and mighty titanium gear train, this servo brings the ultimate in high performance to your sailplanes, pylon racers and smaller scale models. The extremely thin, 8mm case with included mounting bracket allows it to fit into the tightest wings and most compact spaces. Constructed with dual ball bearings, the high voltage HS-7115TH provides an impressive 50 oz-in of torque at 7.4 volts
Specifications:
Size Category: Specialty
Type: Digital
Application: Sailplanes, pylon racers, smaller scale aircraft models
Torque: 44 oz-in (3.2 kg-cm) @ 6.0V; 50 oz-in (3.6 kg-cm) @ 7.4V
Speed: 0.12 sec/60° @ 6.0V; 0.10 sec/60° @ 7.4V
Length: 1.50 in (38mm)
Width: 1.02 in (26mm)
Height: 0.31 in (8.0mm)
Weight: 0.71 oz (20 g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: 3-pole ferrite
Gear Type: Metal
Gear Material: Titanium
Voltage: 6.0V-7.4V
