Hitec RDX2 1000 Dual LiPo Balance Charger (6S/20A/AC-450W/DC-1000W)
About this part

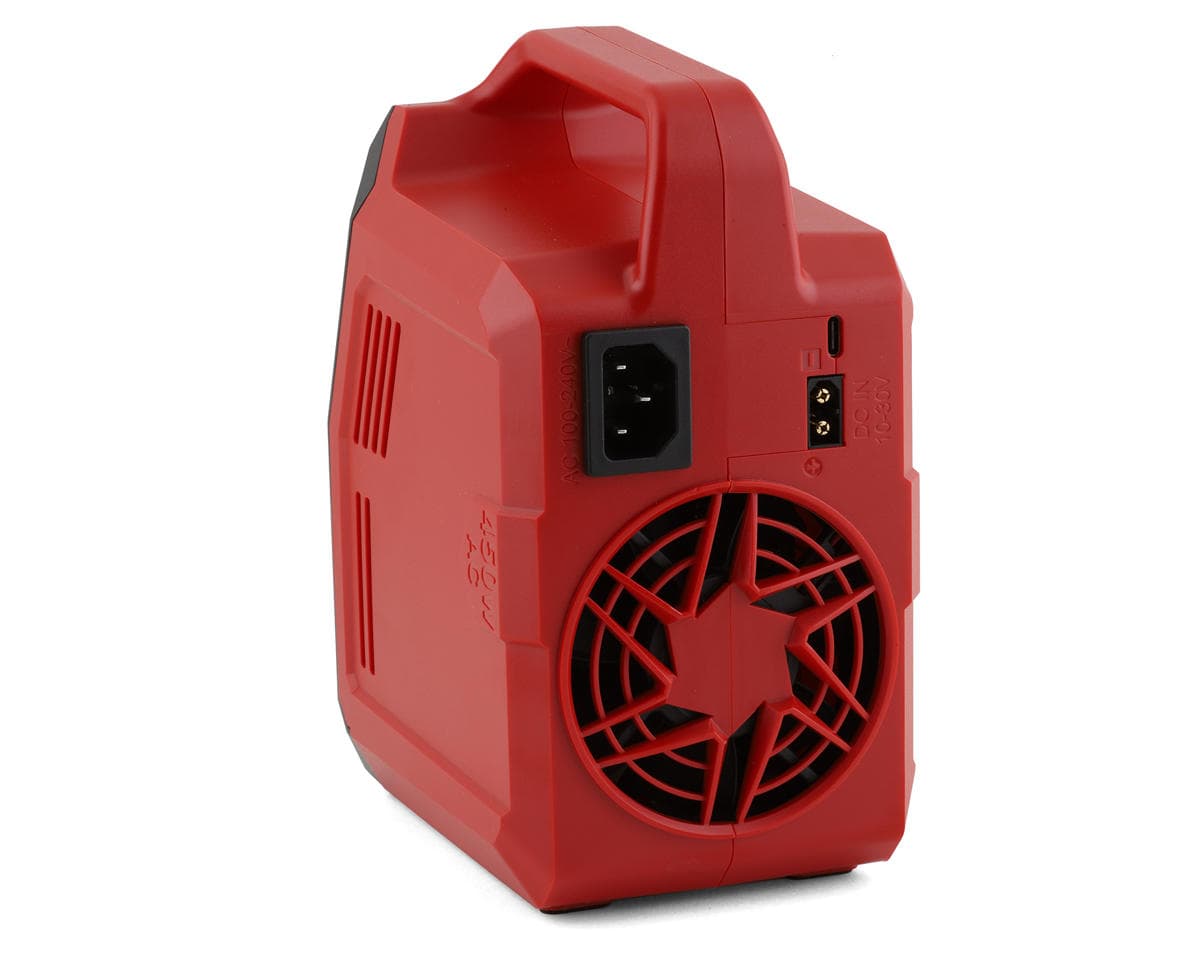

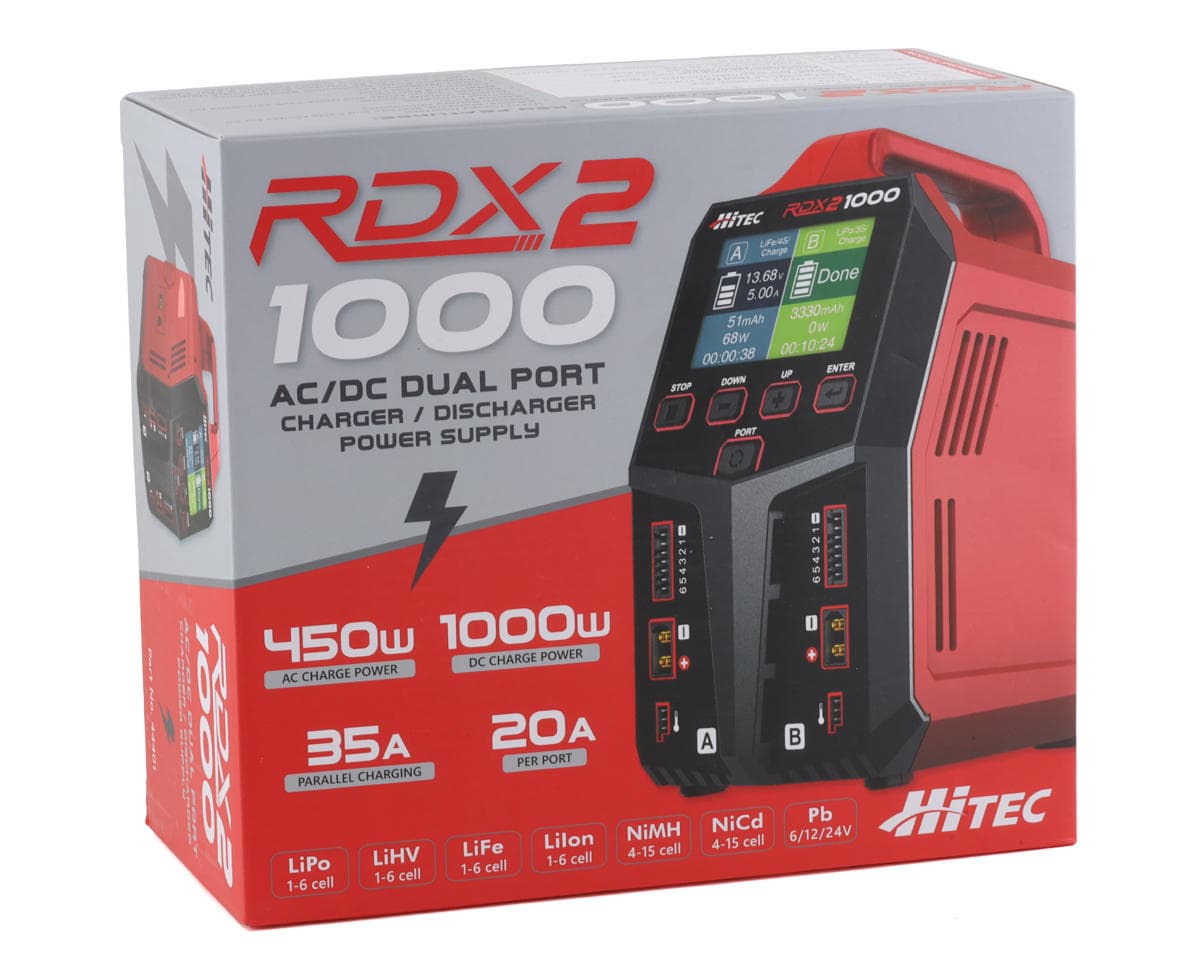

Hitec RDX2 1000 AC/DC Dual Charger
This is the Hitec RDX2 1000 AC/DC Dual Charger. This AC/DC powerhouse charger gives you the ability to rapidly charge your high capacity battery packs. The dual output ports each offer up to 20 amps of power to simultaneously charge two batteries of any chemistry at the same time, or you can pair the outputs to charge at rates up to 35 amps!
With a sleek modern design that implements an easy to transport handle and user friendly interface with handy push buttons, this RDX2 1000 from Hitec is ideal for charging at home or in the field, making it perfect for all hobbyists who need an ultra fast charger for their larger battery packs.
Features:
- User friendly interface
- (Balance/Standard/Storage/Cycle) modes for all types of lithium battery chemistries
- Battery capacity meter
- Internal resistance
- Terminal Voltage Control
- Re-peak charge mode and delta-peak sensitivity for NiMH/NiCd batteries
- Capacity cut-off limit
- Smart ventilation fan
- Intelligent power distribution between ports
- USB-C socket for PC interface and firmware upgrades
- Programmable power supply function 5-27V / 1-15A
- Tire warmer power supply output (16V/8A)
- PC interface with downloadable software
Specifications:
- AC Operating Voltage Range: 100V–240V
- Charge Circuit Power: 450W-AC/1000W-DC
- Discharge Circuit Power: 10W (350W w/ AD350 Discharge Module-Sold Separately)
- Charger Current Range:(0.1A–20A x 2) / (0.1A–35A Parallel)
- Power Supply Mode: 12V
- Length: 7.5in (190mm)
- Width: 6.0in (152mm)
- Height: 3.9in (99mm)
- Weight: 3.0lbs (1.36kg)
Includes:
- (1) Hitec RDX2 1000 AC/DC dual charger

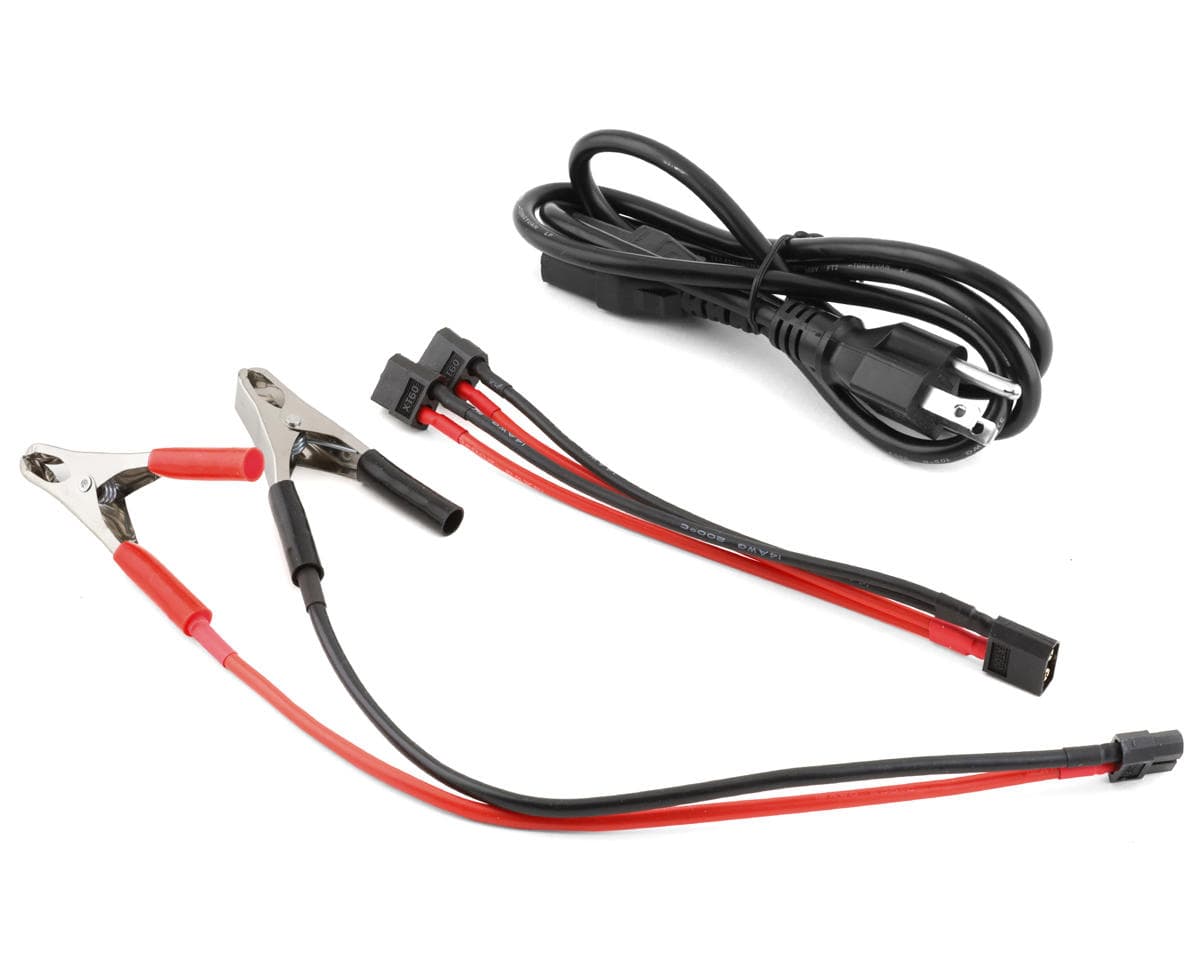

- (1) AC power cord
- (1) Parallel charging cable
- (1) 12V power cord with 4mm bullets and clamps
Reviews4.9 · 8 reviews
Excellent charger, powerful, compact, well finished, nice display
The HiTec RDX2 1000 is a fine instrument. When coupled with AD350 it is a real time saver for discharging. I was spending close to 4 hours discharging a 2s. 6400 MAh battery. With the RDX2 and the AD350 it takes less than 10 minutes. I’m proud to own the setup.
Worth every penny. Running a DC power source this charger puts out some serious amperage to charge your batteries quickly! I purchased the discharging unit for storage charging, just keep in mind it only discharges at high rate from one port: https://www.amainhobbies.com/hitec-ad350-battery-workstation-analyzer-discharger-hrc44405/p1474716
Good charger and discharger combo. Would highly recommend.
I Love all the features this charger has. It worked AMAZING and has the power I wanted for bigger batteries and charged them with authority. Amain Hobbies is a OUTSTANDING company from there products to there training videos you will not be disappointed.
All eight reviews are five or four stars from verified owners, and the charger is praised for its power, compact build, finish, and display. Several reviewers pair it with the AD350 discharger and report large time savings during discharging. One reviewer notes that the discharger only works on one port, a limitation they found was not clearly disclosed. Reviewers also mention fast charging on a DC supply and ease of use. Reviews are mostly brief and focus on general satisfaction rather than detailed testing.
- + Powerful, fast charging
- + Compact, well-finished build
- + Clear display
- + Strong combination with AD350 discharger
- − Discharger works on only one port
- − Port limitation not clearly disclosed
