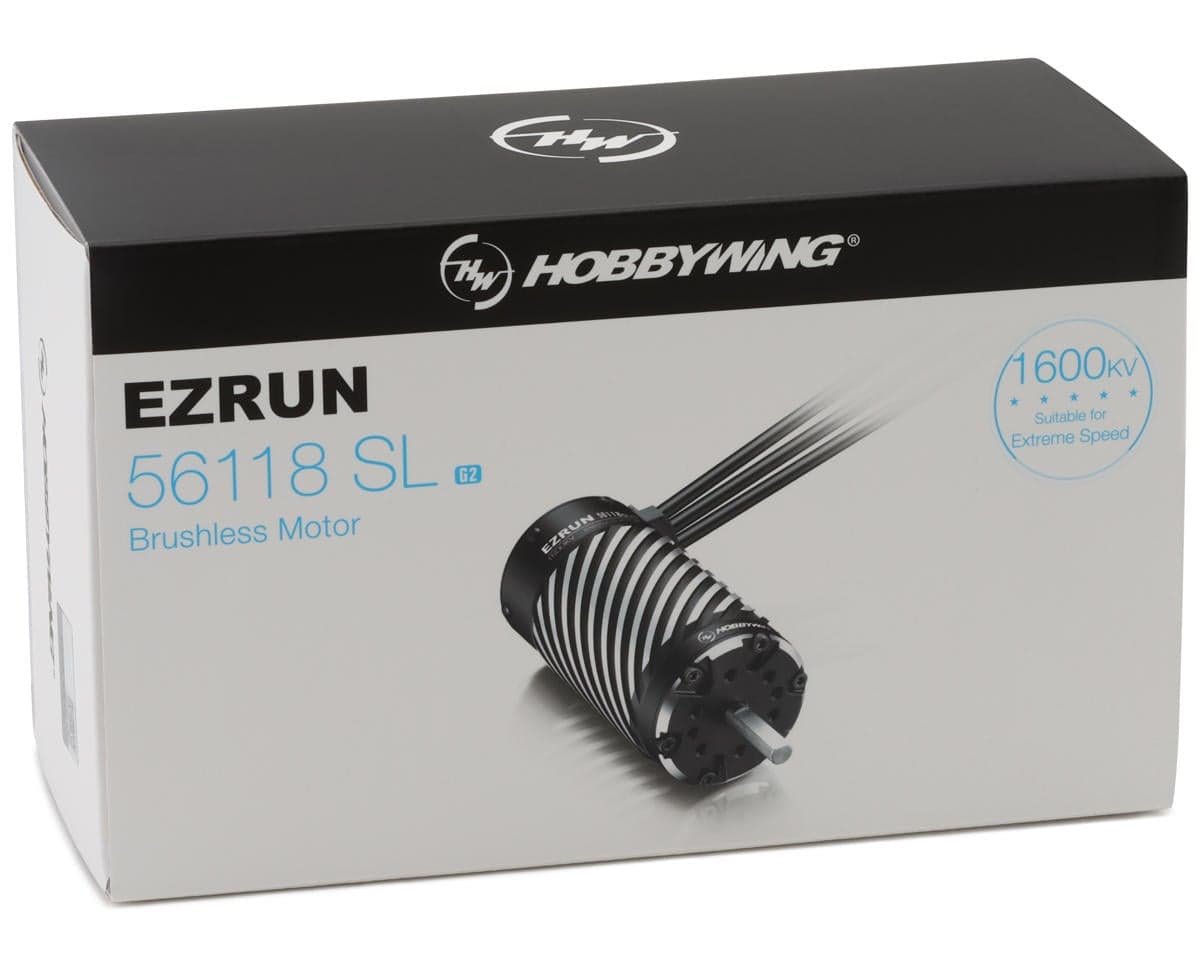

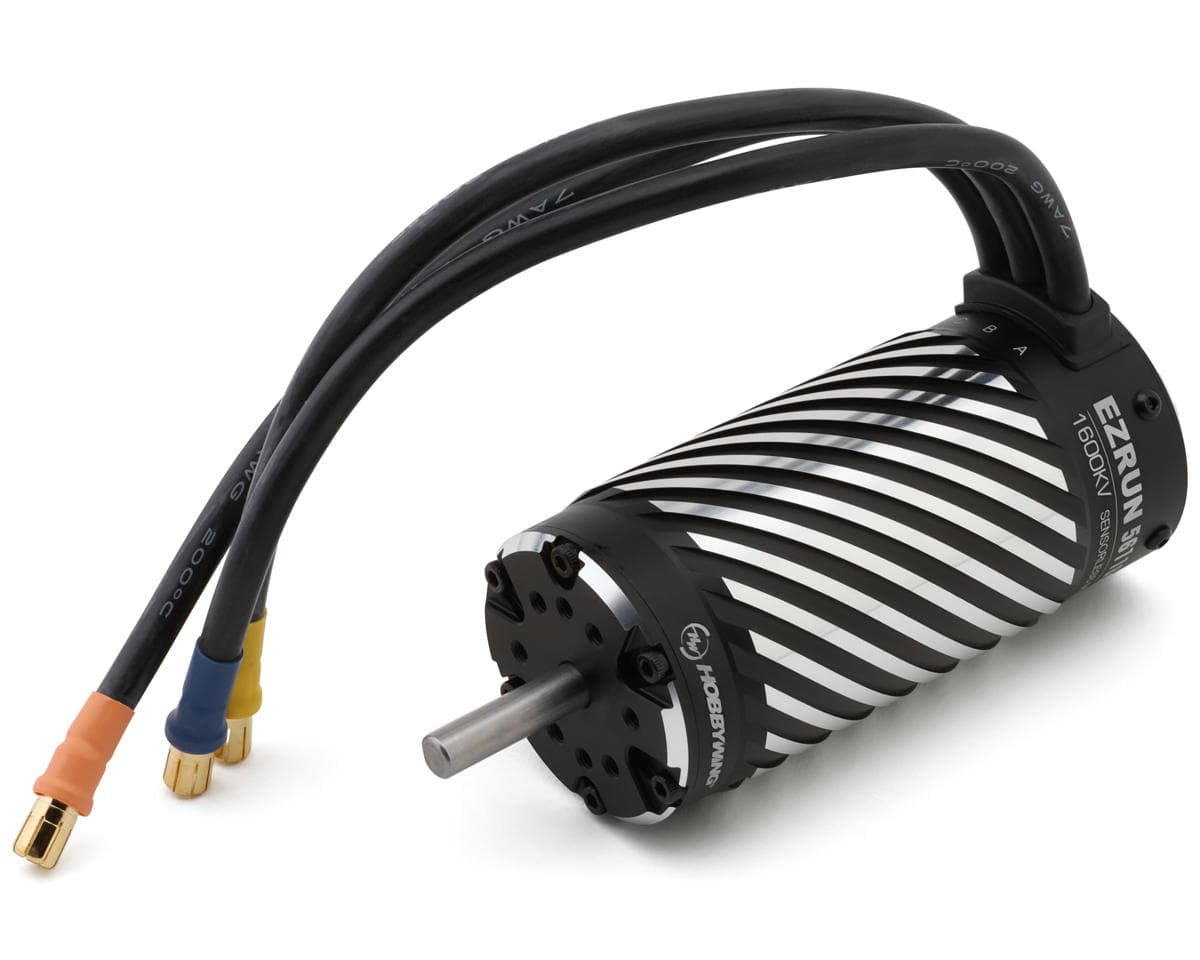

Hobbywing EZRun 56118SL G2 4-Pole 1/5 Sensorless Brushless Motor (1600kV) (Speed)
About this part
Supreme Durability & Precision for Extreme Speed Runs!
Unleash blistering speed and unmatched power with the Hobbywing EZRun 56118SL G2 Brushless Motor, engineered for adrenaline-pumping performance in 1/5 to 1/8 scale RC beasts. Whether you're chasing records or dominating the track, this motor is built to push the limits.
About the EZRun 56118SL G2 Motor
Extreme Speed Performance
The Hobbywing EZRun 56118SL G2 4-Pole 1/5 Sensorless Brushless Motor (1600kV) delivers exceptional power and performance, built specifically for high-speed 1/5 to 1/8 scale RC applications. With a maximum RPM of 78,000, this motor is engineered for speed runs and high-torque acceleration, making it a go-to choice for serious racers. It’s designed for perfect integration with the EzRun MAX5 HV Plus G2 ESC, enabling greater efficiency and output when paired. Whether you're pushing a single- or dual-motor setup, this motor ensures peak power with smooth, responsive throttle control thanks to its Sensorless configuration.
Durability Meets Design
Constructed from premium materials, the 56118SL G2 features a CNC-machined aluminum housing, high-temp oxygen-free copper windings, and a Kevlar-reinforced carbon fiber rotor for durability under extreme loads. Its spiral-grooved shell enhances heat dissipation, reducing thermal stress during extended high-RPM use. The motor's modular design allows for easy maintenance, while its sleek, modern look complements its high-performance internals. Designed for demanding speed enthusiasts, it combines cutting-edge tech and rugged construction for consistent top-tier performance.
Features:
- Waterproof and dustproof for all-weather use
- Handles 6-12S LiPo batteries for extreme power
- Delivers up to 500A continuous current (8S)
- Built-in BEC with adjustable voltage (6V-8.4V)
- Bluetooth integration for easy app setup
- Turbo timing for increased top speed
- Built-in data logging for performance analysis
- Large 4080?F capacitor for better efficiency
- Anti-spark connectors for safety
- Easy programming via app or LCD
Includes:
- (1) EZRun 56118SL G2 4-Pole 1/5 Sensorless Brushless Motor
Specifications:
| Suggested Application | 1/7, 1/6 & 1/5 |
|---|---|
| Type | Brushless - Sensorless |
| Turn/kV | 1600kV |
| Pole | 4 |
| Input Voltage | 6-12S LiPo |
| Adjustable Timing | No |
| Watts | - |
| Connector | 8mm |
| Dimensions (LxW) | 4.65x2.2in (118.7x56mm) |
| Weight | 44.79oz (1270g) |
| Shaft Length | 1.18in (30mm) |
| Shaft Diameter | 8mm |
Reviews5.0 · 1 review
I own the 800 1100 and now the 1600 kv 56118 motors and can say that this paired with the max 5 g2 plus is insanely quick and you need to have some room for the chEEEtah to run. It’s sensorless compared to the other motors so it doesn’t have that extra protection from over heating, so you’ll have to monitor closely yourself. High cc rating battery’s is a must! This is a speed run motor as it’s listed and underhyped in my opinion and would highly recommend. QUICKLY AND SECURELY packed by the best Amanhobbies. Thank you!
