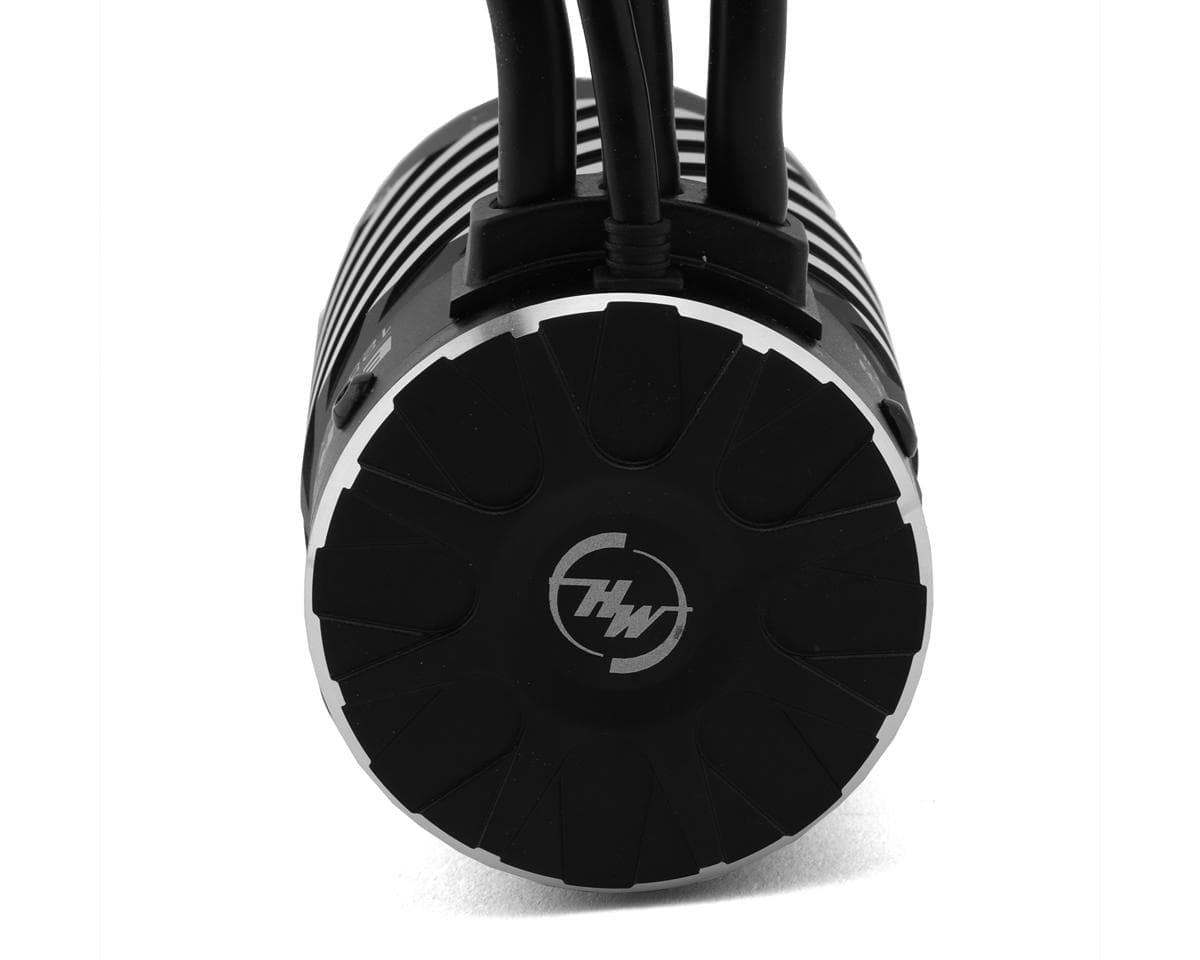

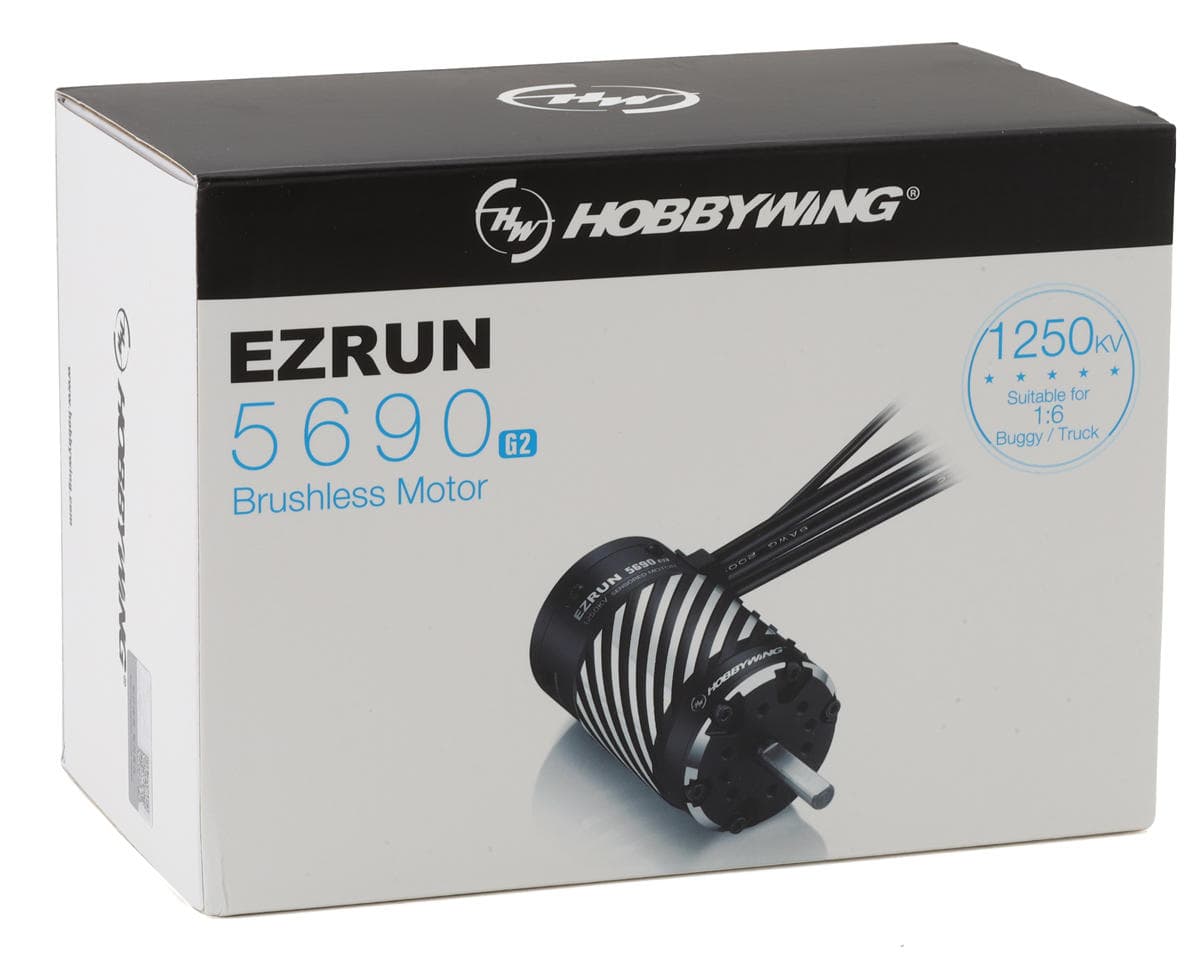

Hobbywing EZRun 5690SD G2 4-Pole 1/5 Scale Sensored Brushless Motor (1250kV)
About this part
Hobbywing EZRun 5690SD G2 4-Pole brushless motor, a powerhouse designed to elevate your RC experience. With cutting-edge technology and precision engineering, this motor delivers unrivaled performance and efficiency. Whether you're a seasoned racer or a casual enthusiast, the 5690SD G2's design ensures smooth acceleration and high torque output, while its advanced construction guarantees durability and longevity. Unleash the full potential of your large scale vehicle with the EZRun 5690SD G2, where innovation and performance converge to provide herculean power that will send your rig to the next zip code.
Features:
- 4-pole rotor design for more torque with strong explosive force
- Detachable motor design for easy maintenance
- Waterproof sensor interface
- Explosion proof rotors
- Spiral CNC shell
Specifications:
- Input Voltage: 3-8S LiPo
- KV: 1250kV
- Pole: 4
- Motor Diameter: 2.20" (56mm)
- Motor Length: 3.55" (90.2mm)
- Shaft Diameter: 0.31" (8mm)
- Shaft Length: 1.18" (30mm)
- Front Bearing size: D22*D8*T7
- Rear Bearing size: D19*D5*T6
- Weight: 867g
Includes:
Reviews4.9 · 9 reviews
I'm running this beast in my Traxxas XRT paired to MAX6 G2 on a M2C motor mount(Vitavon MOD1.5 20/35 gearing). WOW, big difference from stock setup. It has plenty of torque and speed for this application (almost too much). I love the short/stubby CAN so you don't have to worry about bending motor mounts. Highly recommended.
Great motor for the x-maxx, power is always on tap, don’t know why anyone would need or want a bigger more powerful motor than this.
Hobbywing is a great brand and this 1250kv is my second purchase from this brand. Plenty of power and speed for my XRT Ultimate 30 pinion and 46 spur. Using a Max 5G 2 ESC perfect combo
My Traxxas. XRT is a much better RC with this motor and the Max 6 G2 esc.
Perfect motor for the xmaxx. Pair with the bow house motor mount and get the risers 20/35 1.5 mod gears fit perfectly it’s a beast
Nine verified owners rate this 1250kV sensored brushless motor highly, averaging close to five stars. Reviewers commonly pair it with Hobbywing MAX G2 ESCs in Traxxas XRT and X-Maxx chassis, often with Vitavon 1.5 module gearing and a motor mount. Recurring praise centres on strong torque, speed and power delivery, with several noting it is a large step up from stock. One reviewer reports the short, stubby can reduces the risk of bending motor mounts. Reviewers mention good gear fit and gear durability when used with Vitavon gears. No significant complaints or reliability problems appear in these reviews, though several are brief and offer limited detail on runtime, heat or long-term durability.
- + Strong power and torque
- + Large improvement over stock motor
- + Short can reduces motor mount stress
- + Good fit with Vitavon 1.5 gears
- − Power may be excessive for some setups
- − Limited long-term durability feedback
