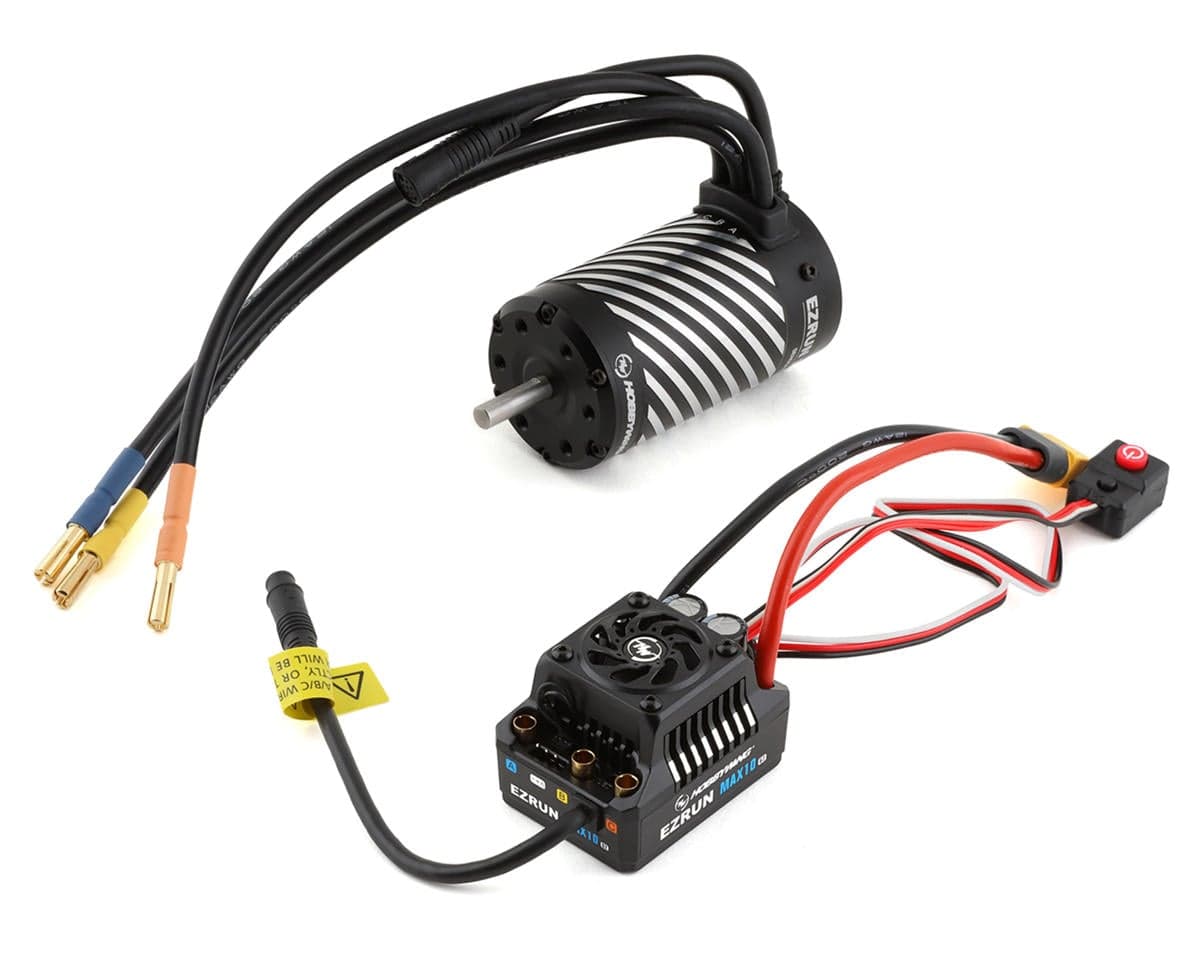

Hobbywing EZRun MAX10 G2 140 Amp Sensored Brushless Waterproof ESC/3665SD Motor Combo (3200kV)
About this part
This is the Hobbywing EZRun MAX10 G2 140 Amp Sensored Brushless Waterproof ESC/3665SD Motor Combo. Using IP67 waterproofing and featuring a smart sensored brushless system this versatile combo is an excellent choice for 1/10th 4X4 Trucks and Monster Trucks.
Features:
- The EzRun Max10 G2 ESC features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Wireless module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
Specifications:
- ESC:
- Continuous Current: 140A
- Burst Current: 880A
- Battery: 2-4S Lipo
- Built-in BEC: 6V/7.4V @ 5A(Switch-mode)
- ESC Programming: Independent programming port
- Motor Supported: Sensor and sensorless brushless motor
- Motor Limit:
- 3S Lipo: Kv <4000 3665 size motor
- 4S LiPo: Kv <2600 4268 size motor
- Application: 1/10 4X4 Short Course, Truck, Monster Truck
- Cooling Fan: Powered by BEC
- Size: 53x39.5x37.2mm (LxWxH)
- Weight: 120g (Including weight of wire)
- Motor:
- LiPo: 2-3S
- Motor Kv: 3200
- No-load Current: 7.1A
- Diameter: 37mm
- Length: 65.8mm
- Shaft Diameter: 5mm
- Shaft Length: 16.5mm
- Pole: 4
- Weight (g): 304.5
Includes:
- (1) EZRun MAX10 G2 140 Amp Sensored Brushless Waterproof ESC with XT60 Plug

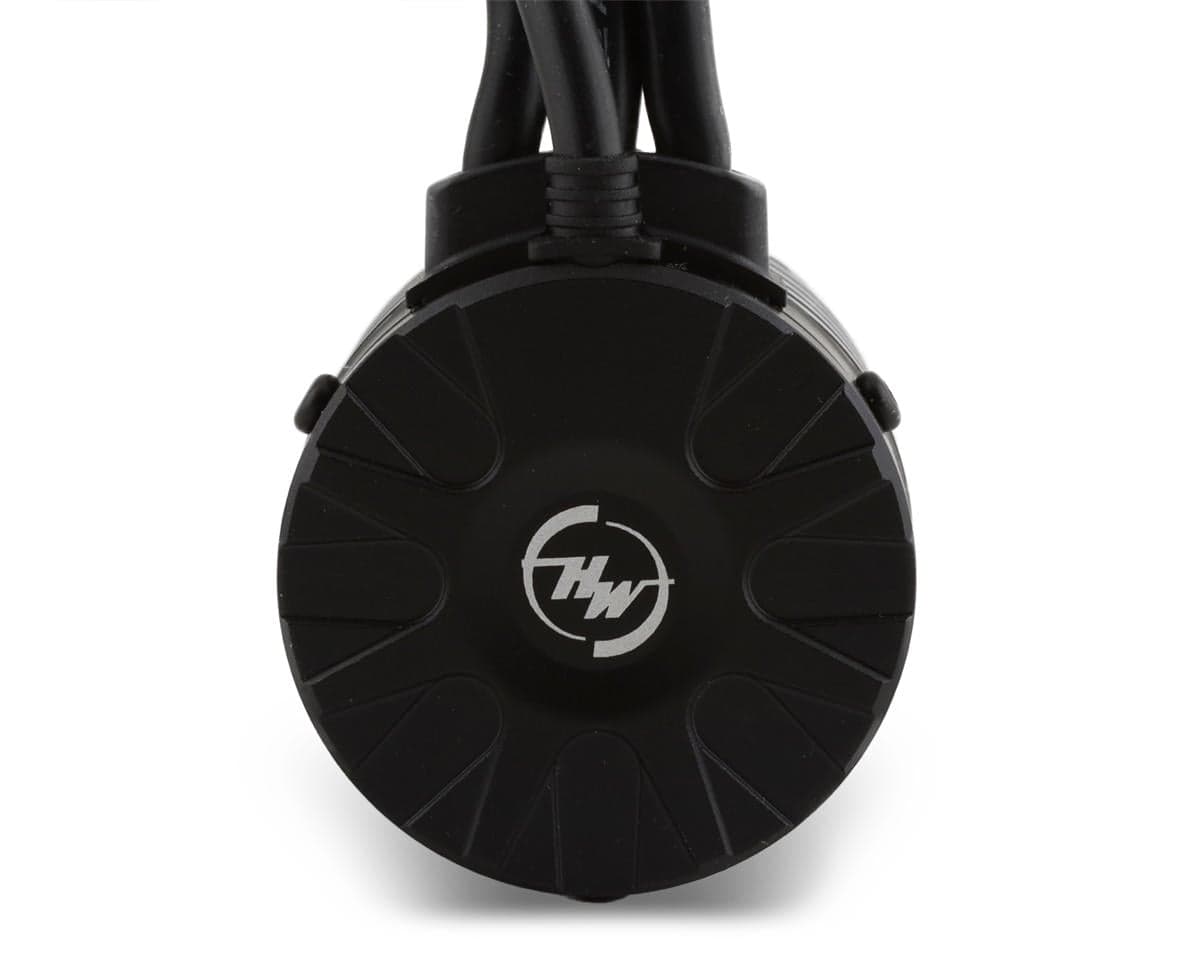

- (1) EZRun 3665SD G3 Sensored Brushless Motor

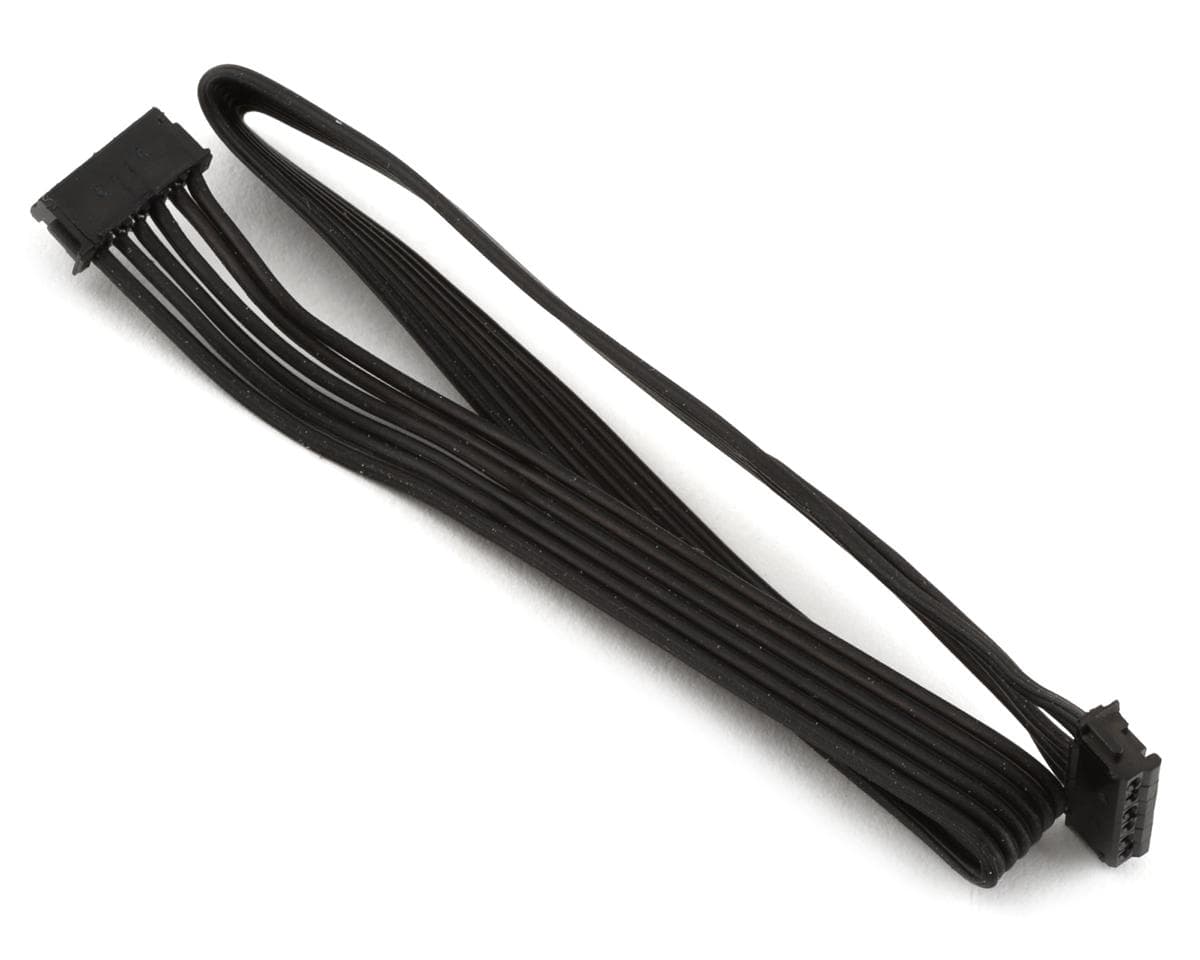

- Sensor Cable
Reviews4.8 · 12 reviews
I put this in my Pro4 SC10, it's tight even with the receiver box turned around but, it fits. 3200kv runs fantastic on 2S with a 16t pinion. my only complaint is that I can't change the temperature limits on the esc or motor with this esc(at least with the current firmware as of 2024-8-23), I would have liked to have the option.
I'm currently running Hobbywing Max10's in 5 of my rigs. I love this combo. So much better quality than the stock T parts. The motors stay significantly cooler and run longer than the Stock parts too. I don't really have any cons. But It'd be nice if we could either choose a battery connector to be soldered on. Or, more likely, NOT have a connector at all. It's not a big deal to have to cut and solder a new connector but would be nice to at least be able to maximize the length of the wires. But honestly, there's not a better combo right now. I'm running 3300KV and 4000KV. The 3300 is just as fast, if not faster that stock and as I said, runs cooler and longer. The 4000KV on 3s is a weapon. I have that combo in a rustler and a 1/8 Infraction and those rigs absolutely FLY! Get one, you won't be sorry.
Highly recommended for short course 1/10th scale applications. I have this in both my Tekno SCT 410SL and my Traxxas 2wd slash. Fully programmable speed controller that can cater to your needs with the HobbyWing program box or blue tooth module. The motor is plenty fast that give out both good torque for bottom end and fast top end. Pretty much a plug and play system which is very user friendly.
Talk about a combo that rips, this thing is redonkulous, I put it in my Traxxas Bigfoot running gens ace redline lipos only on 2s and it will wheelie at 40 mph with giant clod size tires woo hoo!?
Pretty sweet little kit here. And I get telemetry data to my Flysky with a little addon. Powering my Big Rock at 4s with this kit.
Reviewers overwhelmingly rate this 140A sensored ESC and 3665SD 3200kV motor combo 5 out of 5, with verified owners using it across short course, buggy, rally, bashing and 4x4 platforms. Recurring praise covers strong acceleration and top speed on 2S and 3S, cooler motor running compared with stock parts, easy programmability via program box or Bluetooth, and smooth operation. Fit can be tight in some chassis, such as a Pro4 SC10, where the receiver box may need repositioning. One reviewer reported a defective ESC handled through warranty, though shipping and support were praised. Criticisms include a lack of user-adjustable temperature limits on current firmware and the pre-attached battery connector, which some would prefer omitted or soldered on. Several reviews note that gearing and aluminium mounts may be needed for some installs.
- + Strong acceleration and top speed
- + Motor runs cooler than stock
- + Easy to program and use
- + Good performance on 2S and 3S
- − Tight fit in some chassis
- − Cannot adjust temperature limits
- − Pre-attached battery connector
- − Reported defective unit
