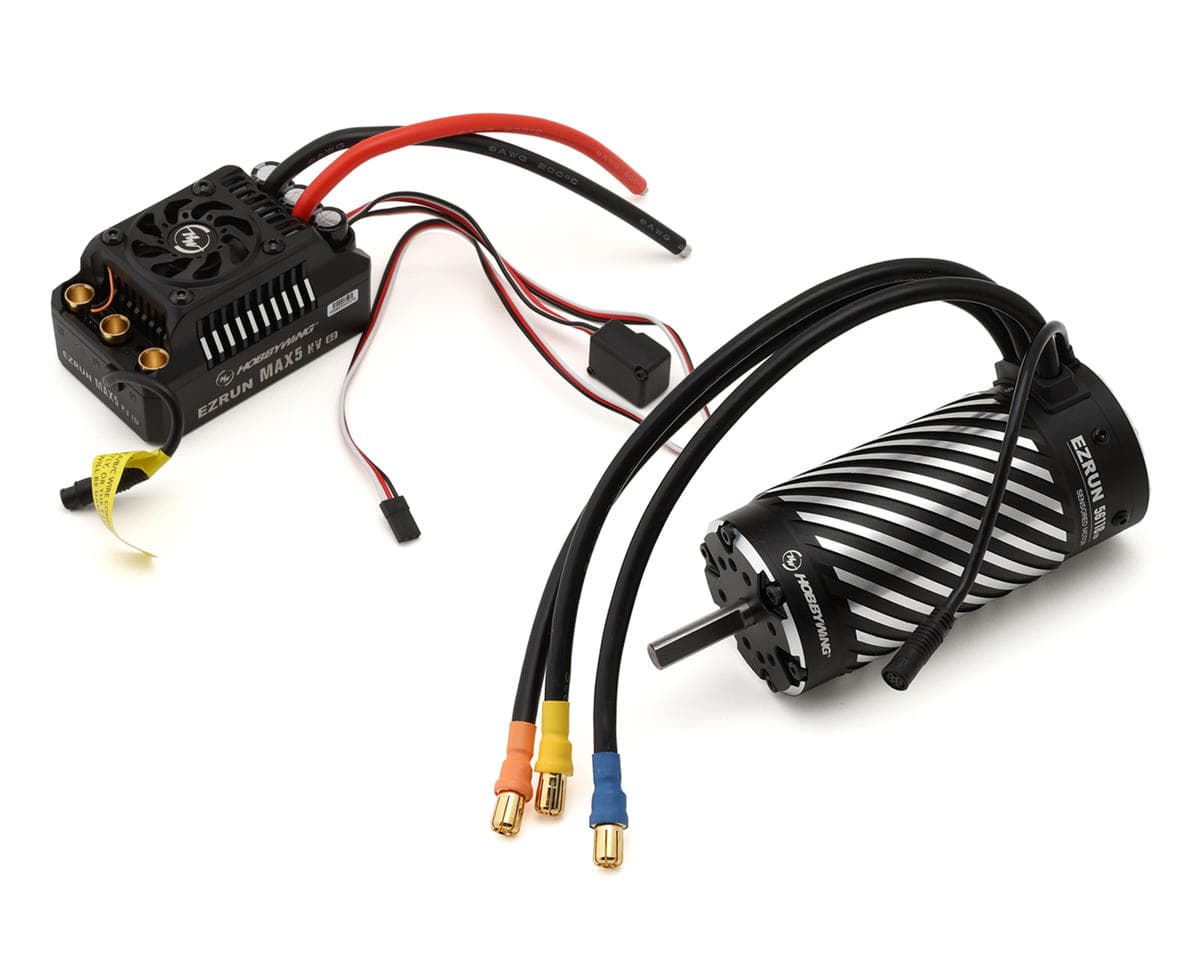

Hobbywing EZRun MAX5 HV G2 Sensored Brushless ESC & Motor Combo w/56118SD (1100kV)

EZRun MAX5 G2 Sensored Brushless Combo

The EZRun MAX5 G2 Sensored Brushless ESC and Motor Combo is a must have for your large scale needs. The Max5 G2 ESC is stacked with fancy features such as the Freewheeling Technology which increases driving efficiency and will in turn lower operating temperatures. The ESC acquired an IP-67 waterproofing rating and high voltage handling capabilities of 29.6V, this combo will have enough power to send your rig to the next ZIP code, the Hobbywing Max5 combo is everything you want and more.

Features:

• MAX5 G2 ESC
• Enhanced Performance
• Intelligent Freewheeling Technology
• Turbo Timing Technology
• 56118SD G2 Motor
• 4-pole rotor design for more torque with strong explosive force
• Detachable motor design for easy maintenance
• Waterproof sensor interface
• Explosion proof rotors
• Spiral CNC shell

Specifications:

• ESC:
• Scale: 1/5th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Waterproof: IP-67
• Current:
• Continuous: 250A
• Peak: 1,600A
• Input Voltage: 6-12S LiPo
• BEC Output: 6V-8.4V
• Output Connectors: 8mm Bullet
• Dimensions: 3.7x2.3x2.0" (94.5x59.4x50.9mm)
• Weight: 15.1oz (428.5g)

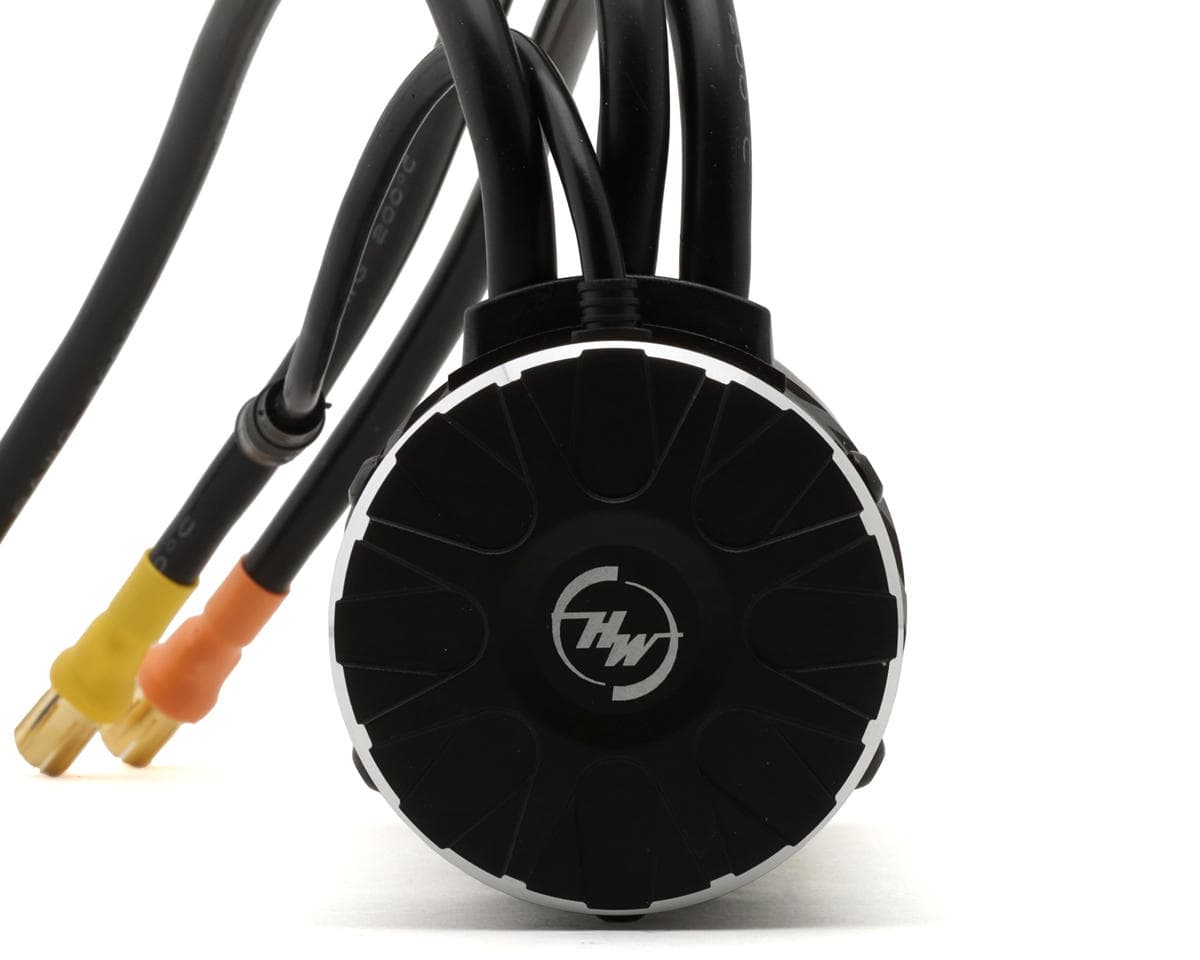

• Motor:
• Input Voltage: 6-8S LiPo
• KV: 1100kV
• Pole: 4
• Motor Diameter: 2.20" (56mm)
• Motor Length: 4.69" (119.2mm)
• Shaft Diameter: 0.31" (8mm)
• Shaft Length: 1.18" (30mm)
• Front Bearing size: D22*D8*T7
• Rear Bearing size: D19*D5*T6
• Weight: 45.39oz (1287g)

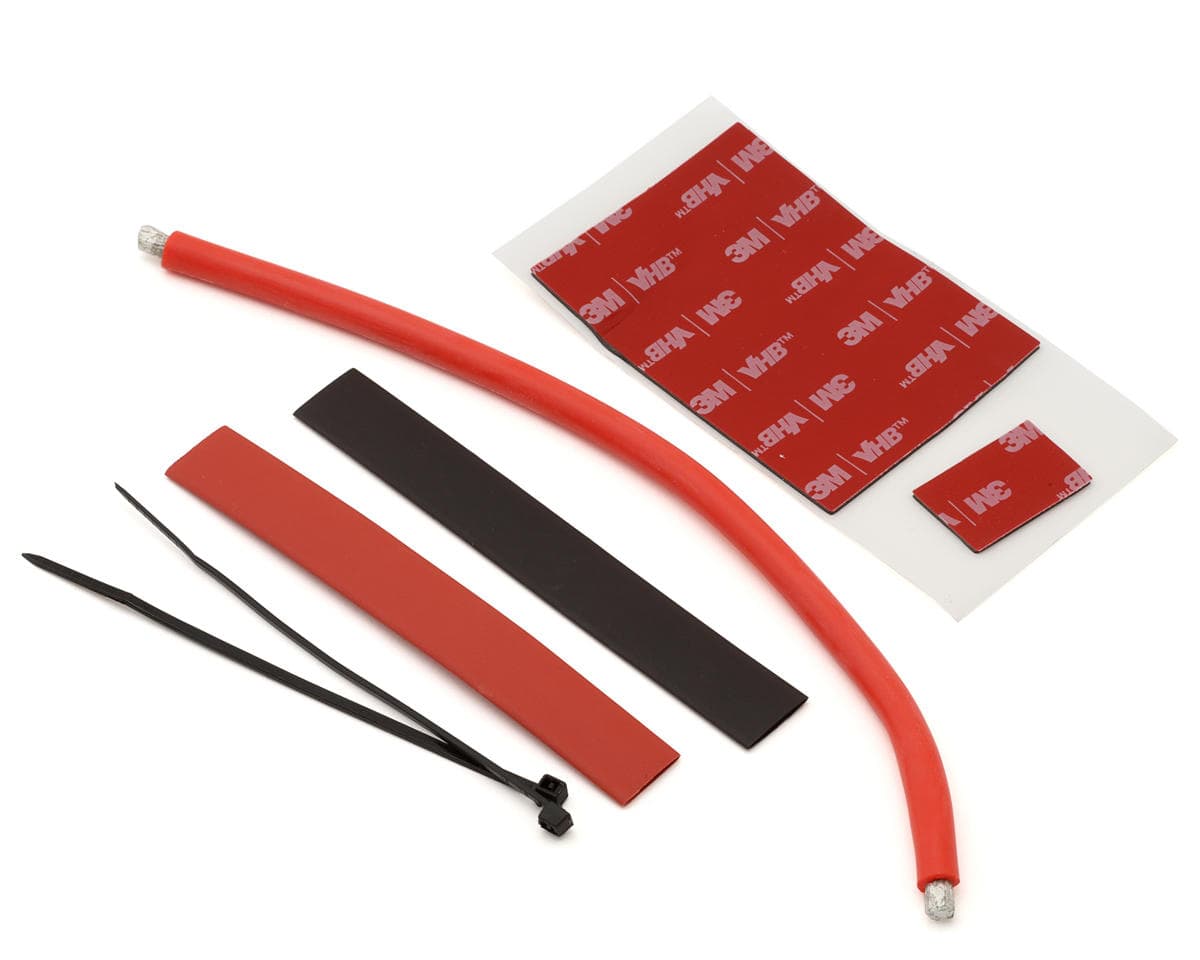

Includes:
