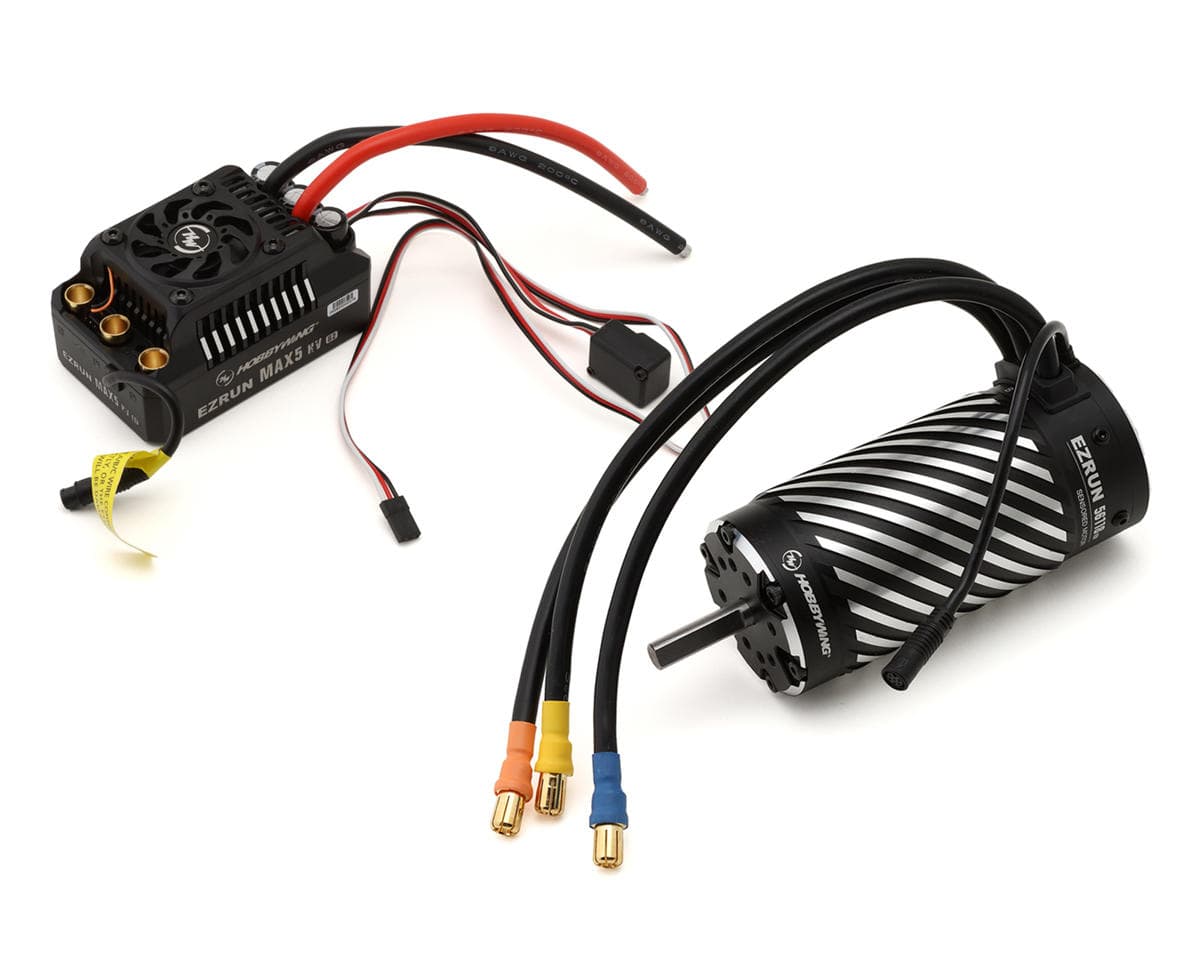

Hobbywing EZRun MAX5 HV G2 Sensored Brushless ESC & Motor Combo w/56118SD (800kV)
About this part
EZRun MAX5 G2 Sensored Brushless Combo
The EZRun MAX5 G2 Sensored Brushless ESC and Motor Combo is a must have for your large scale needs. The Max5 G2 ESC is stacked with fancy features such as the Freewheeling Technology which increases driving efficiency and will in turn lower operating temperatures. The ESC acquired an IP-67 waterproofing rating and high voltage handling capabilities of 44.4V, this combo will have enough power to send your rig to the next ZIP code, the Hobbywing Max5 combo is everything you want and more.
Features:
- MAX5 G2 ESC
- Enhanced Performance
- Intelligent Freewheeling Technology
- Turbo Timing Technology
- 56118SD G2 Motor
- 4-pole rotor design for more torque with strong explosive force
- Detachable motor design for easy maintenance
- Waterproof sensor interface
- Explosion proof rotors
- Spiral CNC shell
Specifications:
- ESC:
- Scale: 1/5th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensored
- Waterproof: IP-67
- Current:
- Continuous: 250A
- Peak: 1,600A
- Input Voltage: 6-12S LiPo
- BEC Output: 6V-8.4V
- Output Connectors: 8mm Bullet
- Dimensions: 3.7x2.3x2.0" (94.5x59.4x50.9mm)
- Weight: 15.1oz (428.5g)

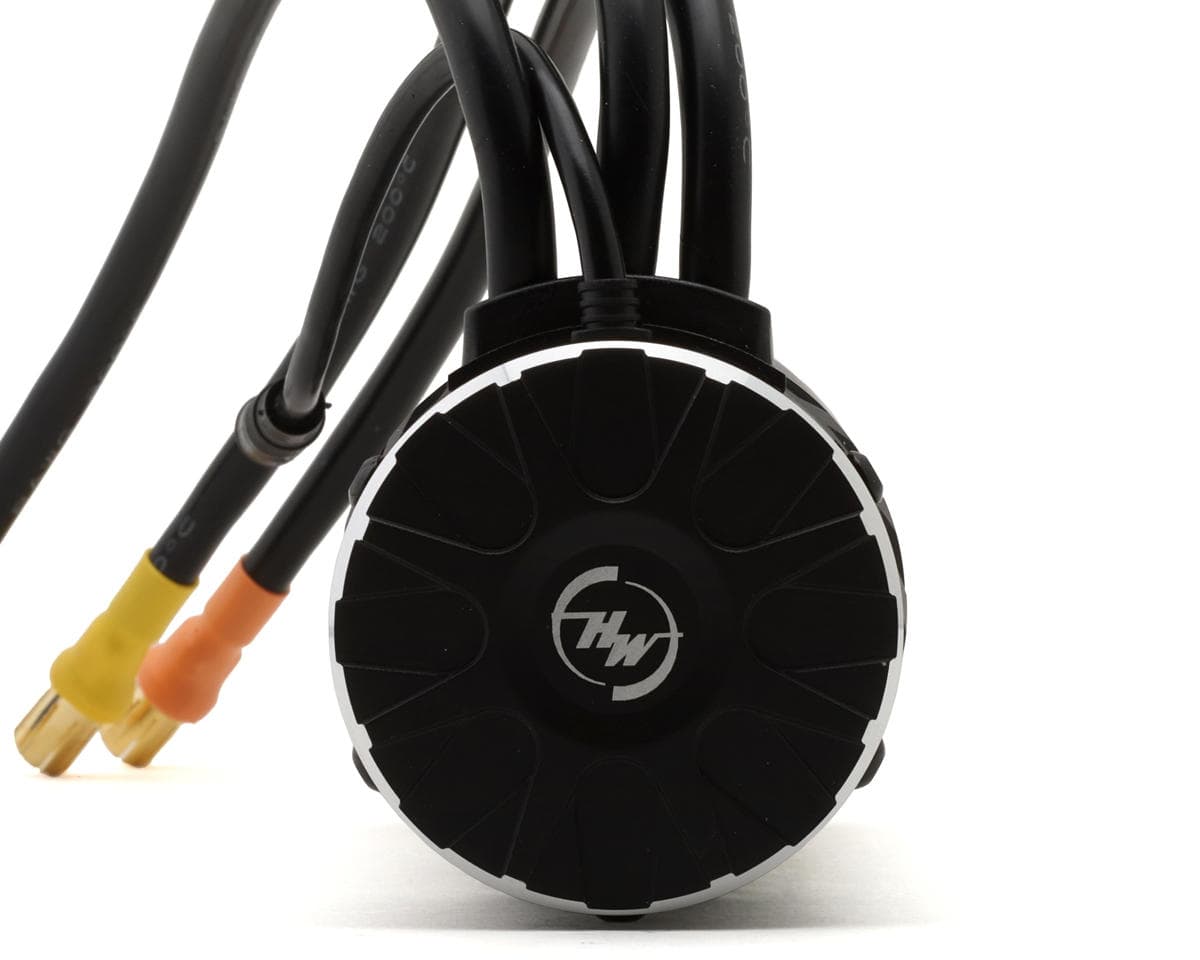

- Motor:
- Input Voltage: 8-12S LiPo
- KV: 800kV
- Pole: 4
- Motor Diameter: 2.20" (56mm)
- Motor Length: 4.69" (119.2mm)
- Shaft Diameter: 0.31" (8mm)
- Shaft Length: 1.18" (30mm)
- Front Bearing size: D22*D8*T7
- Rear Bearing size: D19*D5*T6
- Weight: 45oz (1277g)

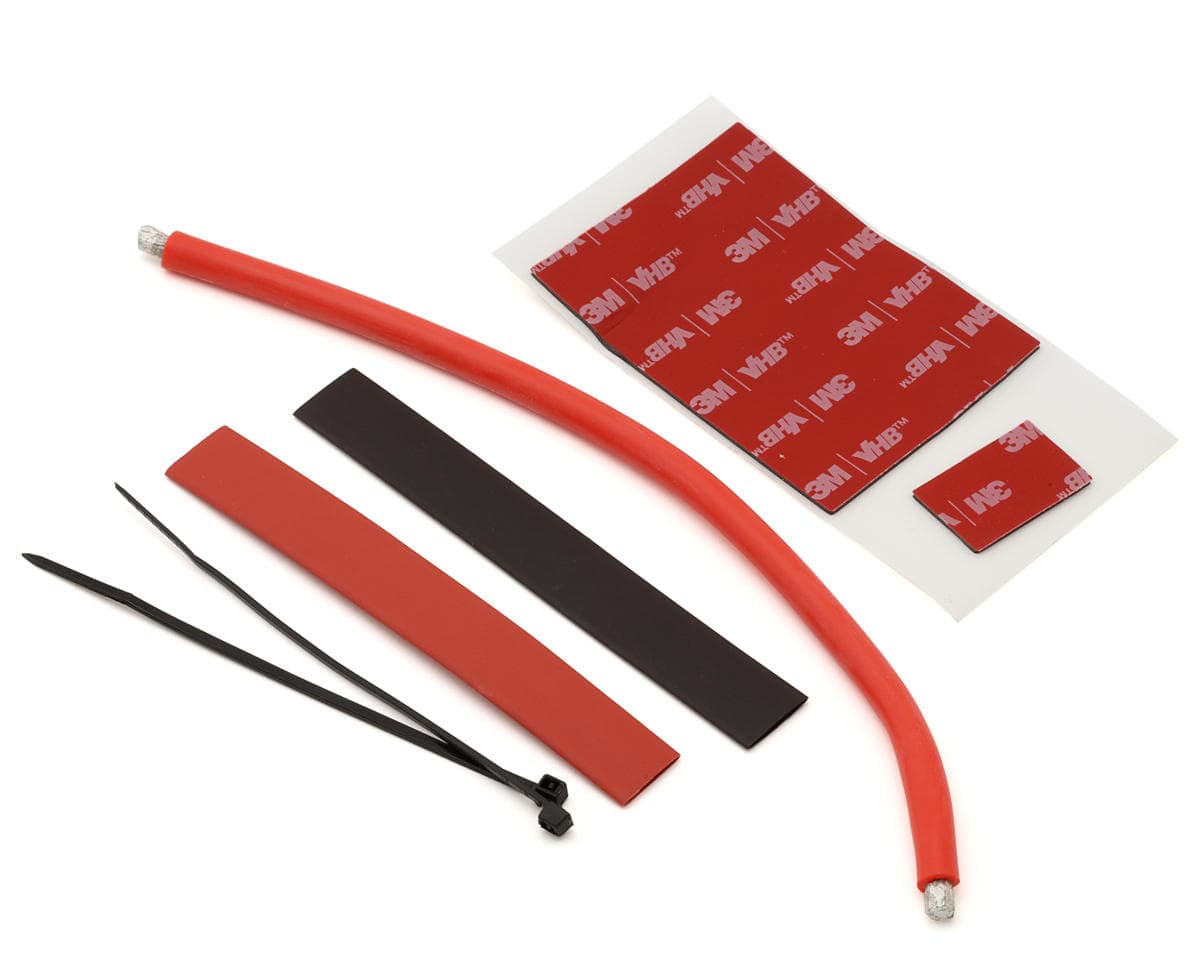

Includes:
Reviews5.0 · 2 reviews
I bought this for my Losi DBXL-e 2.0. I have it all set up and used QS8 connectors. I calibrated everything and after the first run I am so very impressed. The quality of both the ESC and motor is A1. It is a beast. So far I ran the first run with 8s and it was just as if not faster than stock. Once I get a couple 6s batteries I will run 12s. Over all, a great upgrade to the stock Spektrum system.Just waiting until spring now. Too much snow.
This motor ESC combo is a beast!! 12s in my xmaxx is pure insanity!!!
