About this part
ESC Overview:

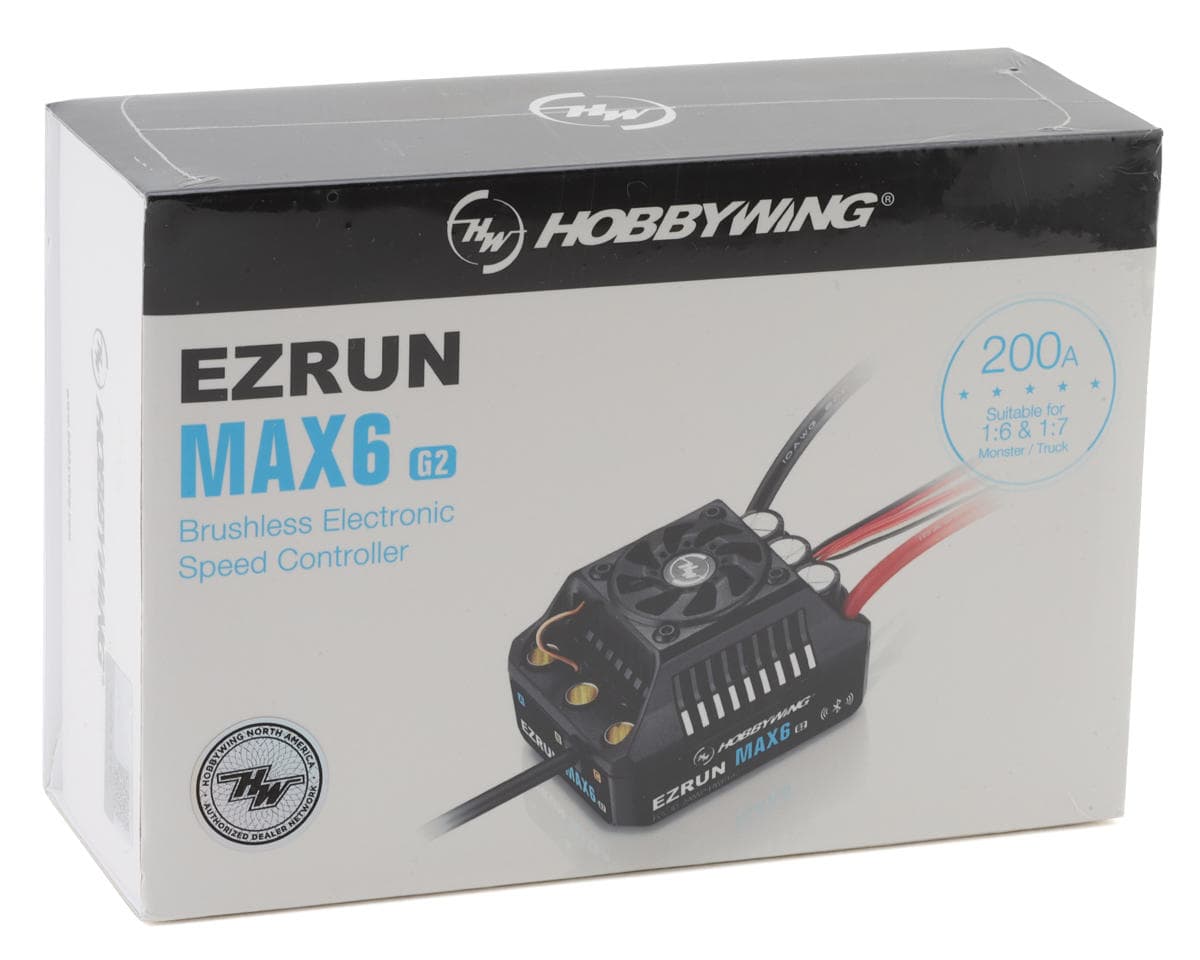

The Hobbywing EZRun MAX6 G2 ESC is built with the most rugged and high-quality components, featuring cutting-edge firmware for unmatched power and performance, making it ideal for hardcore racing applications. This ESC is designed to handle extreme power demands while offering responsive protection against damage due to overloading, overuse, or human error.
With remarkable acceleration capabilities and a stable output, the MAX6 can deliver instant full-torque start-ups, high-speed racing on straightaways, and the ability to power through rough terrain. Users have the flexibility to adjust ESC parameters to suit their preferences and skills.
The ESC boasts an innovative all-weather conditions waterproof sensor interface design, enhancing its overall waterproof and dustproof performance. It includes a built-in ultra-powerful switch mode BEC with continuous current of 8A, instant 25A, and support for 6V/7.4V/8.4V. The MAX6 also supports turbo timing settings and offers multiple protection functions.
Additional features of this ESC include high voltage built-in BEC, a data logging function that allows users to view various running data on the HW LINK app, an advanced and secure electronic switch, and a built-in anti-spark system for added safety. The Hobbywing EZRun MAX6 G2 ESC is designed for 1/6 and 1/7 scale touring cars, buggies, truggies, and trucks, making it a versatile and powerful choice for RC enthusiasts.
Features:
- Built with the most rugged and high-quality components
- Unmatched power and performance for racing applications
- Responsive protection against overloading and damage
- Incredible acceleration and stable output
- Innovative all-weather conditions waterproof sensor interface
- Ultra-powerful switch mode BEC with 8A continuous current
- Supports turbo timing settings
- Multiple protection functions
- Data logging function for monitoring running data
- Built-in wireless module
ESC Specifications:
- Type: Sensored Brushless
- Application: 1/6 & 1/7 Scale Touring Car, Buggy, Truggy, and Truck
- Input Voltage: 3-8S LiPo Battery
- Continuous Current: 200A
- Peak Current: 1200A
- BEC Output: Switchable (6.0V-8.4V)
- Length: 70mm
- Width: 56mm
- Height: 45.5mm
- Weight: 245g
- Motor Limit: (6S) <2400kV - (8S) <1700kV
Includes:
- (1) EZRun MAX6 G2 ESC

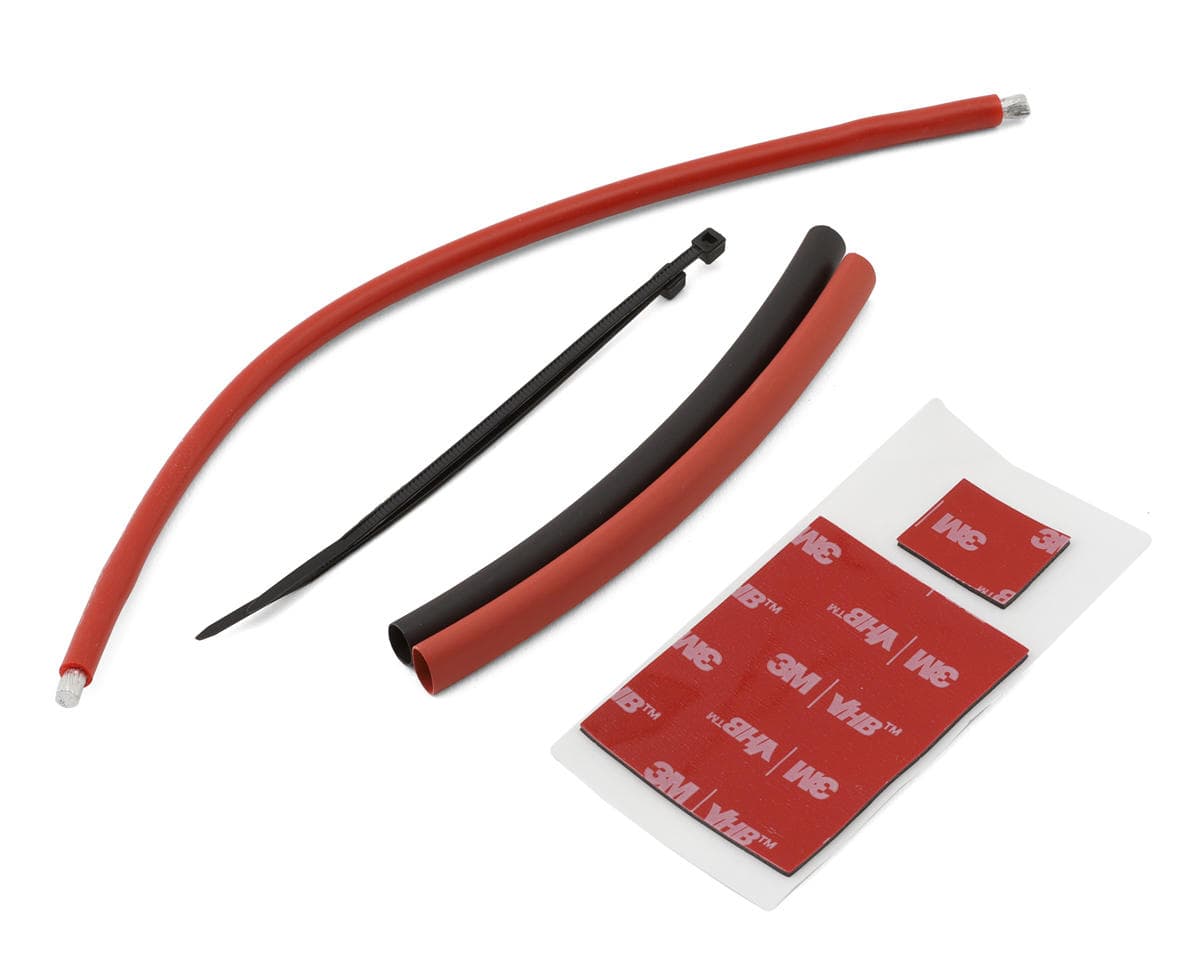

- (1) Extra set of 10 AWG 200C RED power wire
- (1) Double side tape
- (2) Heat shrink tube
- (1) Hobbywing decal sheet
- User's manual
Recommended Hobbywing Programmers:
- HWA30502000014: Hobbywing Multifunction LCD Program Box
- HWA86020010: Hobbywing Program Box
Reviews4.9 · 9 reviews
Bought this on a late night after six beers internet tour. Very nice with the Bluetooth edition. Sits in my xrt and made it a whole new animal. Love it
10 out of 10 amazing plenty of power and smooth wish I could get the max 5 tho for more power
Easy to order and good communication. Only downside was the delivery time from US to NZ but that is largely out of Amains hands.
i put this in my xmaxx and the traxxas esc coged bad but i put this in still cogs but not nearly as bas as traxxas esc
Just installed one in my new Xmaxx and it’s pretty sweet , the Bluetooth is awesome so much easier to setup the only problem is it blew apart the 44 tooth mod 1 wide face spur gear and Cush drive within 5 minutes lol punch is at 6 which is what my XRT is at with the prior version Max6 with 20-44 gearing as well but the new Max6 gives way more power so now I gotta figure out what gears to run but I definitely recommend the G2 Max6
Reviewers rate the Hobbywing EZRun MAX6 G2 highly, with most describing strong power, smooth throttle response and easy Bluetooth setup, and several calling it an upgrade over the earlier MAX6. One reviewer noted it was more responsive than a Castle Monster X 8s for 6S bashing. Reported drawbacks are mixed: one owner had a unit shut off under load after about three months and received a replacement through the seller; another reported cogging in a Traxxas-style setup, though less than the Traxxas ESC. One reviewer said the BEC capacitors were enlarged, so some aftermarket fan mounts no longer fit. Delivery time from the seller to New Zealand was noted as slow. Most reviews are five-star from verified owners, though the sample is small.
- + Strong power and smooth throttle
- + Easy Bluetooth setup
- + Responsive for 6S bashing
- + Holds up under hard use
- − Unit shut off under load in one case
- − Cogs at low speed in one setup
- − Larger BEC capacitors block some fan mounts
- − Slow delivery to New Zealand
