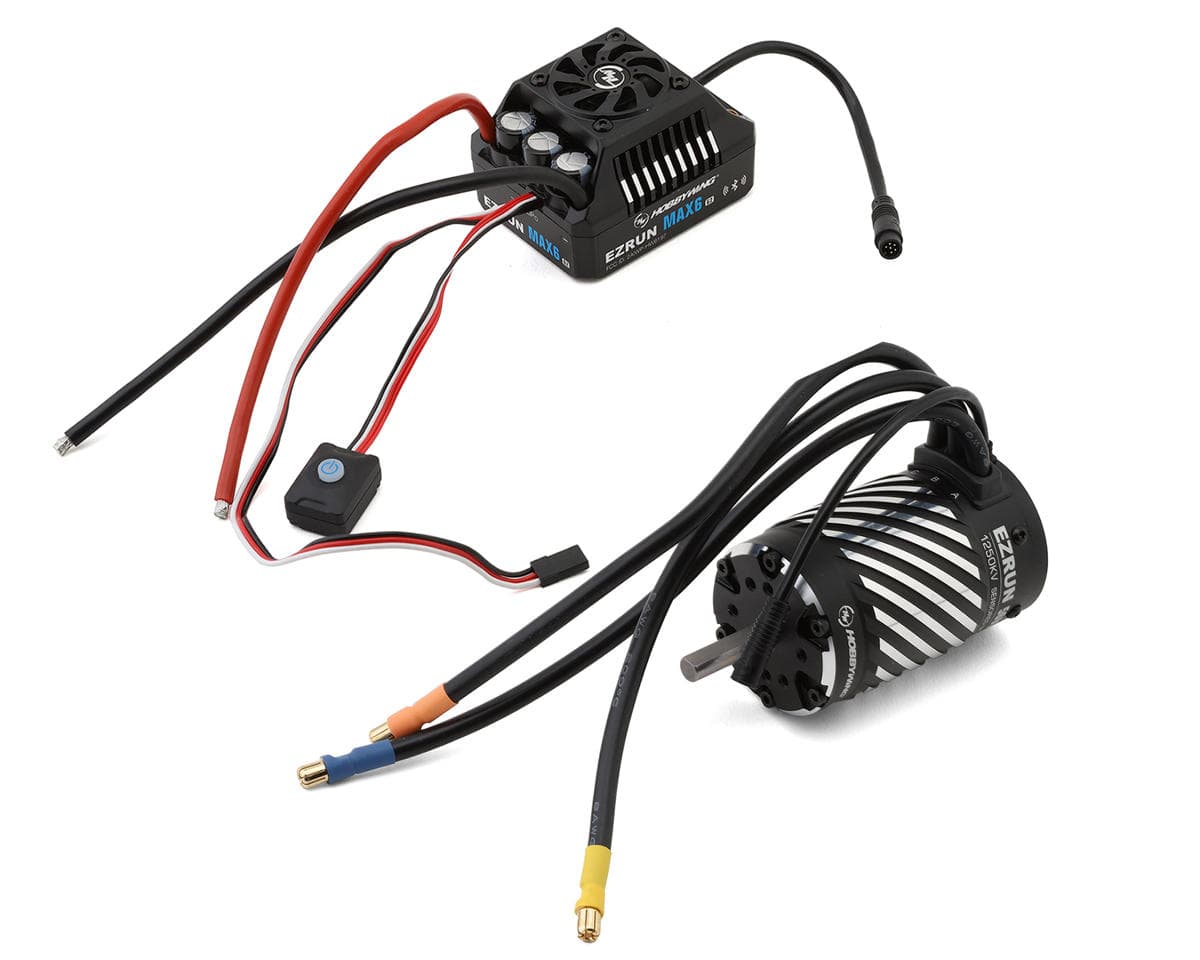

Hobbywing EZRun MAX6 G2 Sensored Brushless ESC & Motor Combo w/5690SD G2 (1250kV)
About this part
Combo Overview:
The Hobbywing EZRun MAX6 G2 ESC is built with the most rugged and high-quality components, featuring cutting-edge firmware for unmatched power and performance, making it ideal for hardcore bashing applications. This ESC is designed to handle extreme power demands while offering responsive protection against damage due to overloading, overuse, or human error.
With remarkable acceleration capabilities and stable output, the MAX6 can deliver instant full-torque start-ups, high-speed racing on straightaways, and the ability to power through rough terrain. Users have the flexibility to adjust ESC parameters to suit their preferences and skills.
The ESC boasts an innovative all-weather conditions waterproof sensor interface design, enhancing its overall waterproof and dustproof performance. It includes a built-in ultra-powerful switch mode BEC with a continuous current of 8A, instant 25A, and support for 6V/7.4V/8.4V. The MAX6 also supports turbo timing settings and offers multiple protection functions including an intelligent automatic fan start-stop function.
Additional features of this ESC include high voltage built-in BEC, a graph data logging function that allows users to view various running data on the HW LINK app, an advanced and secure electronic switch, and a built-in anti-spark system for added safety. The Hobbywing EZRun MAX6 G2 ESC is designed for 1/6 and 1/7 scale touring cars, buggies, truggies, and trucks, making it a versatile and powerful choice!
Features:
- ESC
- Built with the most rugged and high-quality components
- Unmatched power and performance for racing applications
- Responsive protection against overloading and damage
- Incredible acceleration and stable output
- Innovative all-weather conditions waterproof sensor interface
- Ultra-powerful switch mode BEC with 8A continuous current
- Supports turbo timing settings
- Multiple protection functions including an intelligent automatic fan start-stop function
- Data logging function for monitoring running data
- Built-in wireless module

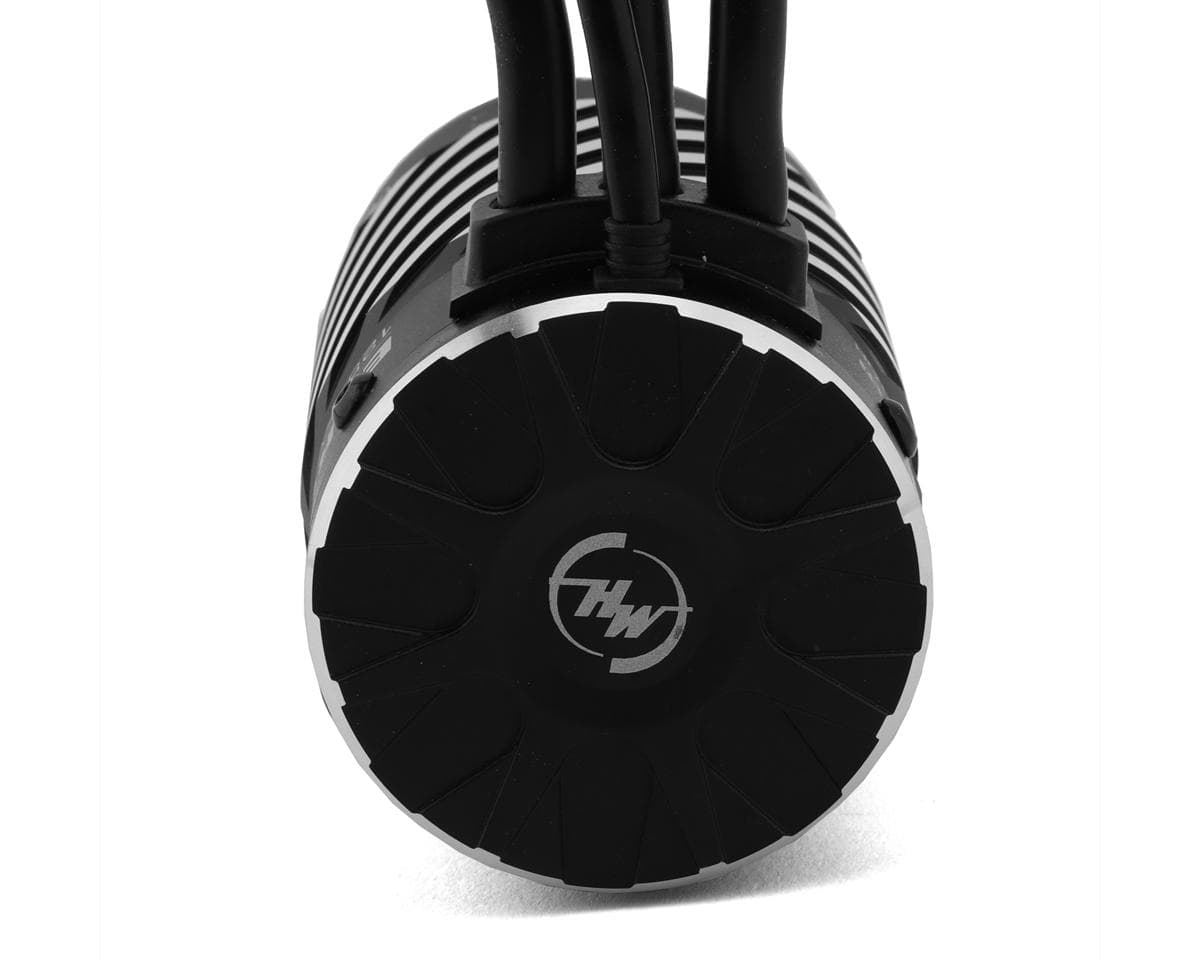

- Motor
- IP-67 Water and elements proof design
- 4-Pole rotor design for more torque with strong explosive force
- Sensored interface
- Precision CNC-machined shell
Specifications:
- ESC:
- Type: Sensored Brushless
- Application: 1/5 & 1/6 lightweight Scale Touring Car, Buggy, Truggy, and Truck
- Input Voltage: 3-8S LiPo Battery
- Continuous Current: 200A
- Peak Current: 1200A
- BEC Output: Switchable (6.0V-8.4V)
- Length: 70mm
- Width: 56mm
- Height: 45.5mm
- Weight: 245g
- Motor Limit: (6S) 2400kV - (8S) 1700kV
- Motor:
- kV Rating: 1250kV
- Type: Sensored Brushless
- Applications: Lightweight 1/7 & 1/8 Scale Touring Cars, Buggies, Truggies, and Trucks
- Input Voltage: 3-8S LiPo
- No Load Current: 6.6A
- Poles: 4
- Diameter/Length: 56mm (2.20") / 90.2mm (3.55")
- Shaft Diameter/Length: 8mm (0.31") / 30mm (1.18")
- Front Bearing: 22x8x7mm
- Rear Bearing: 19x8x6mm
- Weight: 867g
Includes:
- (1) EzRun MAX6 G2 ESC
- (1) EzRun 5690 SD Brushless Motor (1250kV)
- (1) Hobbywing decal sheet
- User's manual
Reviews5.0 · 4 reviews
Installed in my XRT with a 20/30 belt drive, it's a completely different animal compared to stock electronics!!
This power system is a ridiculously good value for the money. The data logging is neat, though I wish I could figure out how to export the data. Built in Bluetooth is awesome, most Hobbywing systems require the OTA Bluetooth attachment. The power is just right and it's a pretty nice upgrade from stock in my Outcast 8s. Highly recommend this system to anyone with a 6s or 8s truck that needs a bit more punch.
Works perfectly on my Losi 1/6 8ight Super Lasernut. I highly recommend it.
Better than I expected but still had some problems with trying to fit a heatsink and fans, sits low in chasis(good thing) but with some usual make it work fashion it turned out great, so much power and controllability, love the bluetooth app and adjustable settings tailored by you for you 10/10
All four reviewers are verified owners who rate the Hobbywing EZRun MAX6 G2 combo 5/5. They report strong power and a clear upgrade over stock electronics in several trucks, including an XRT, Outcast 8S and Losi 8ight Super Lasernut. Reviewers praise the value, the built-in Bluetooth and the adjustable settings in the app. Data logging is noted as useful, though one reviewer could not work out how to export the logs. One reviewer had to modify the fitting to add a heatsink and fans, but found the result satisfactory. Sample size is small.
- + Strong power and throttle control
- + Built-in Bluetooth with app and adjustable settings
- + Good value for money
- + Clear upgrade over stock electronics
- − Data export unclear to one reviewer
- − Fitting a heatsink and fans required workarounds
