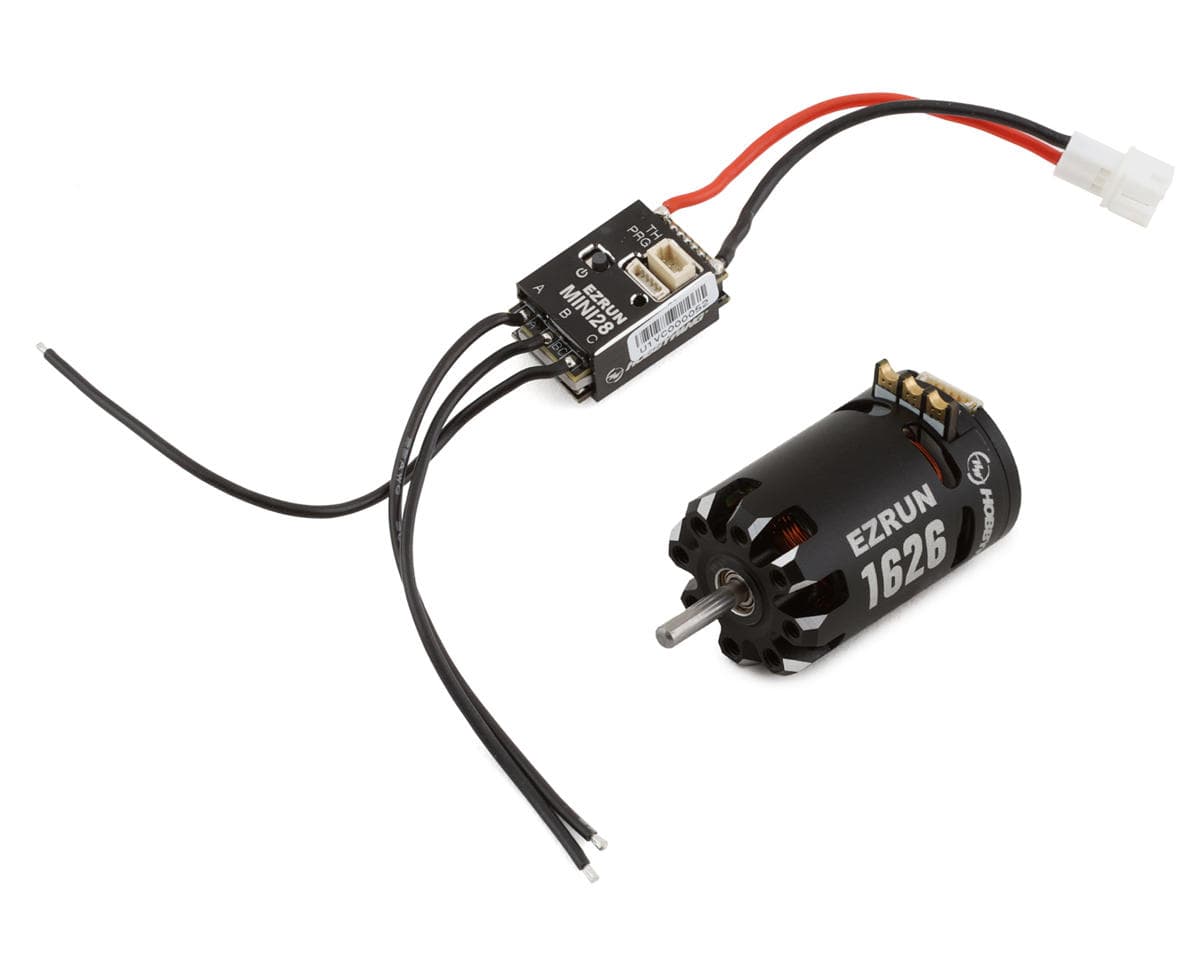

Hobbywing EZRun MINI28 1/28th Scale Sensored Brushless Combo (6500Kv)
About this part
- ESC:
- Built specifically for 1/28 scale racing
- Small and lightweight design
- Large integrated heat sink
- Built in dual app mode
- High Voltage adjustable BEC
- OTA Wireless compatible
- Motor:
- Improved top speed
- Precision response
- High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
- ESC:
- Cont./Peak Current: 30A / 80A
- Motor Type: Sensored / Sensorless Brushless Motors
- Motor Limit: 1626 Size Motor
- LiPo/NiMH Cells: 2S Lipo
- BEC Output: 6V/7.4V Adjustable, 3.5A Peak (Switch-mode)
- Size: 22.7x14.2x11.8mm
- Weight: 5g (without wires)
- Programming Port: Shared with throttle cable
- Motor:
- kV: 6500
- Poles: 2
- No-Load Current: 0.6A
- Input Voltage: 2S
- Motor Diameter: 16mm
- Motor Length: 26mm
- Motor Shaft Length: 8.5mm
- Motor Shaft Diameter: 1.8mm
- Weight: 18g
- Application: 1/28th Mini
- (1) EZRun MINI28 1/28th Scale Sensored Brushless ESC
- (1) ESC Manual

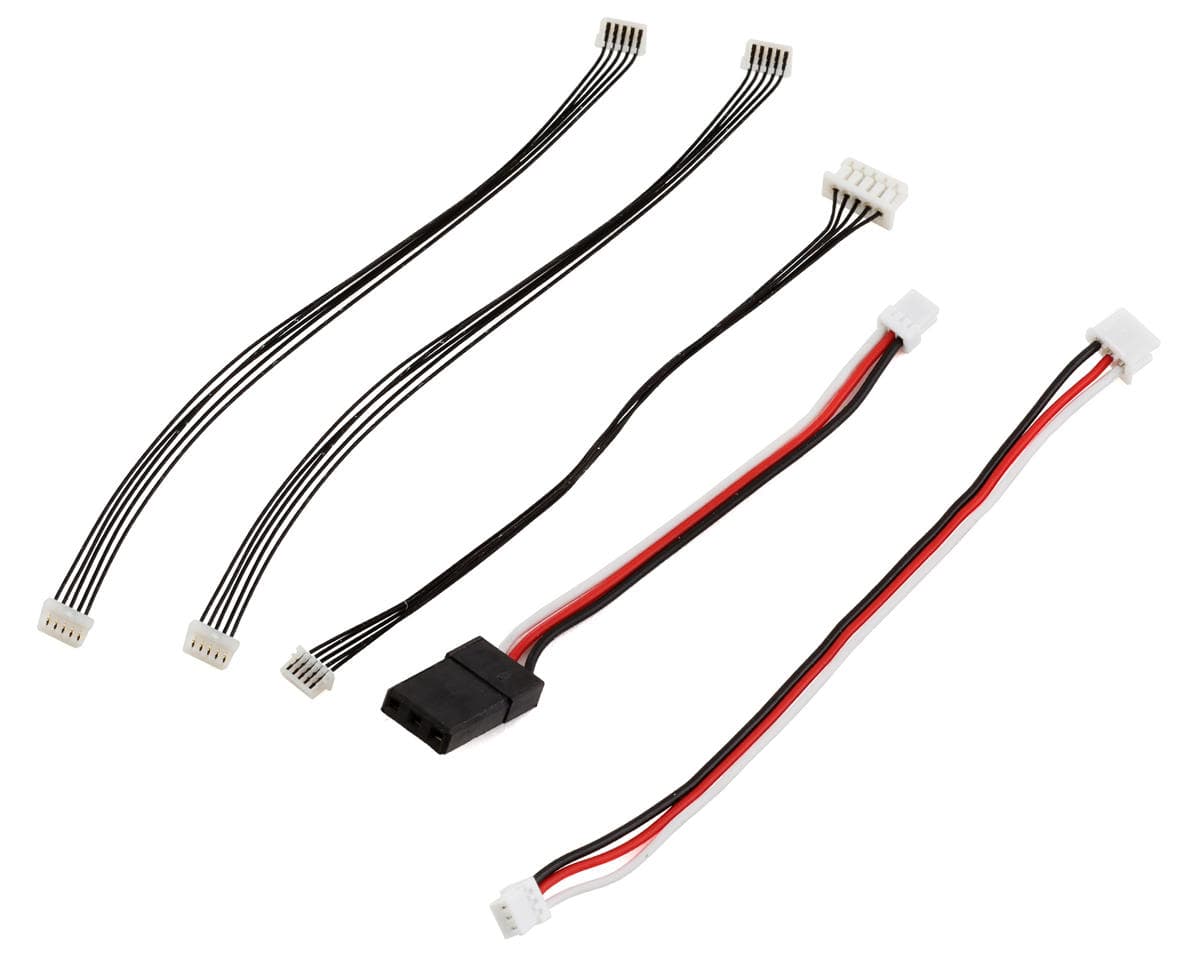

- Various wiring harnesses
- (1) EZRun 1626 Sensored Brushless Motor (6500Kv)
Reviews3.0 · 2 reviews
What a mess. I've heard good things ablut his set up, and it seems great. Unfortunately my local hardware store doesnt carry screws short enough to mount the motor. This really need to come with the proper screws as I damaged the motor using the smallest screws I could find, they were still slightly too large. The battery connection to the ESC is nothing I've seen before. Nobody here at A main or the facebook groups could tell me properly what kind of connector it was, everyone was saying something different so I had to solder JST onto the ESC which was not easy and I almost fried the ESC in the process. This may be a great setup but it absolutely at the very least needs to come with motor mounting screws and a universal esc connection. I would absolutely return this if I could and go with a plug and play ESC motor combo. This has been a nightmare. I've been wating for about two months and still am having problems.
Beast of a setup! Tons of adjustability with the esc and a strong dependable motor. I just soldered the wires and changed the plug to a xt30 and it was good to go. Now to mess with the settings to get the handling where I want it. People should stop blaming the equipment when it’s user error or lack of knowledge.
