About this part
ESC Overview:

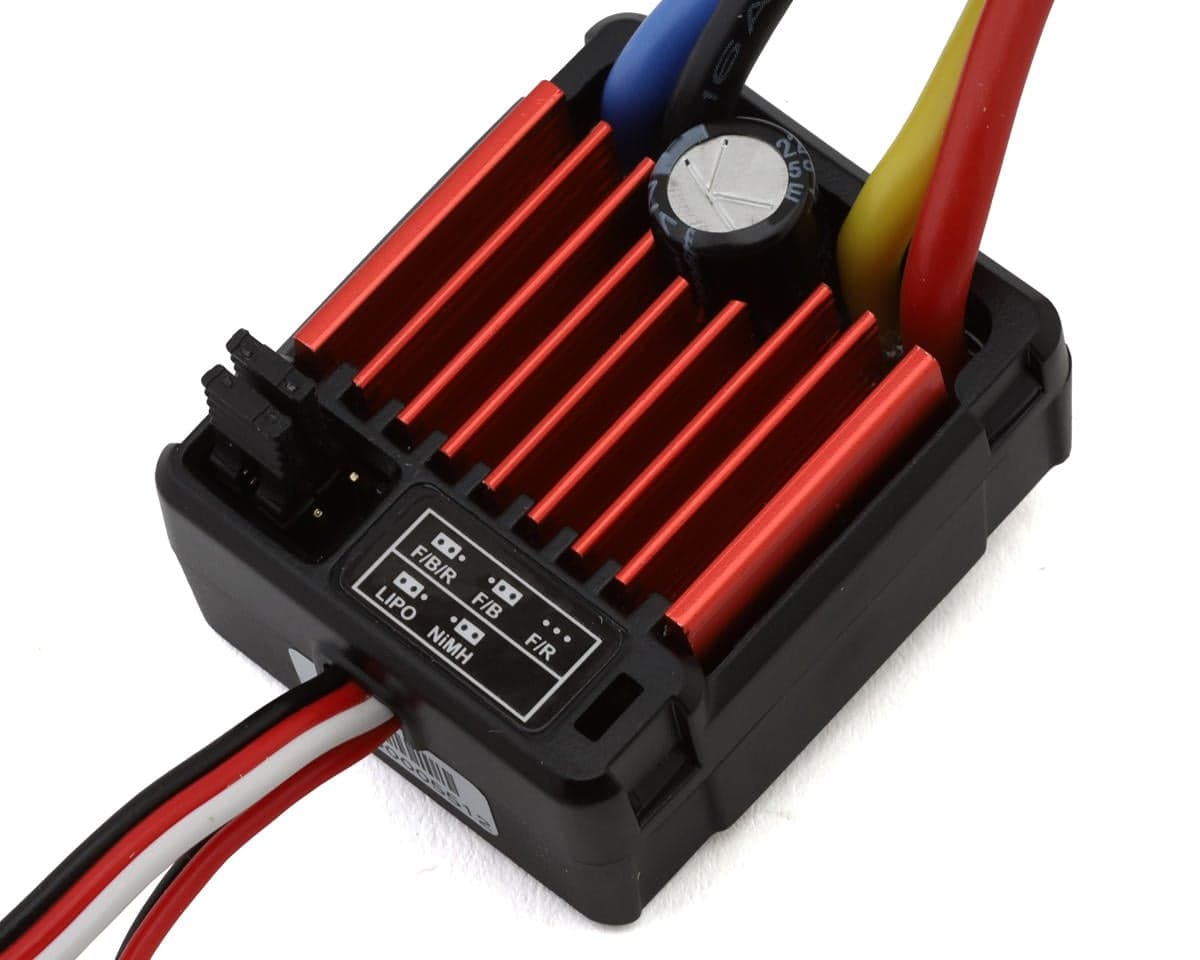

The Hobbywing Quicrun 1060, is meticulously crafted to serve as the ideal ESC for 1/10th scale applications powered by brushed motors. This compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures.
Features:
- Extreme performance
- Small in size, with a built-in capacitor module
- Great current endurance capability
- Parameters are easily set with ESC jumpers
- Easy-to-use automatic throttle range calibration
- Great built-in BEC output capacity
- Built-in capacitor
- IP-67 waterproof Rating
Specifications:
- Scale: 1/10
- Brushed/Brushless: Brushed
- Sensored/Sensorless: Sensorless
- Waterproof: IP-67
- Current:
- Continuous: 60A
- Peak: 360A Reverse:
- Continuous: 30A
- Peak: 180A
- Input Voltage: 2-3S LiPo
- BEC Output:5V @ 2 A
- Output Connectors: 4mm Bullets
- Battery Connector: T-Style
- Dimensions: 1.39x1.26x0.70" (35.5x32.18x18mm)
- Weight: 1.37oz (39g)
- Forward:
Includes

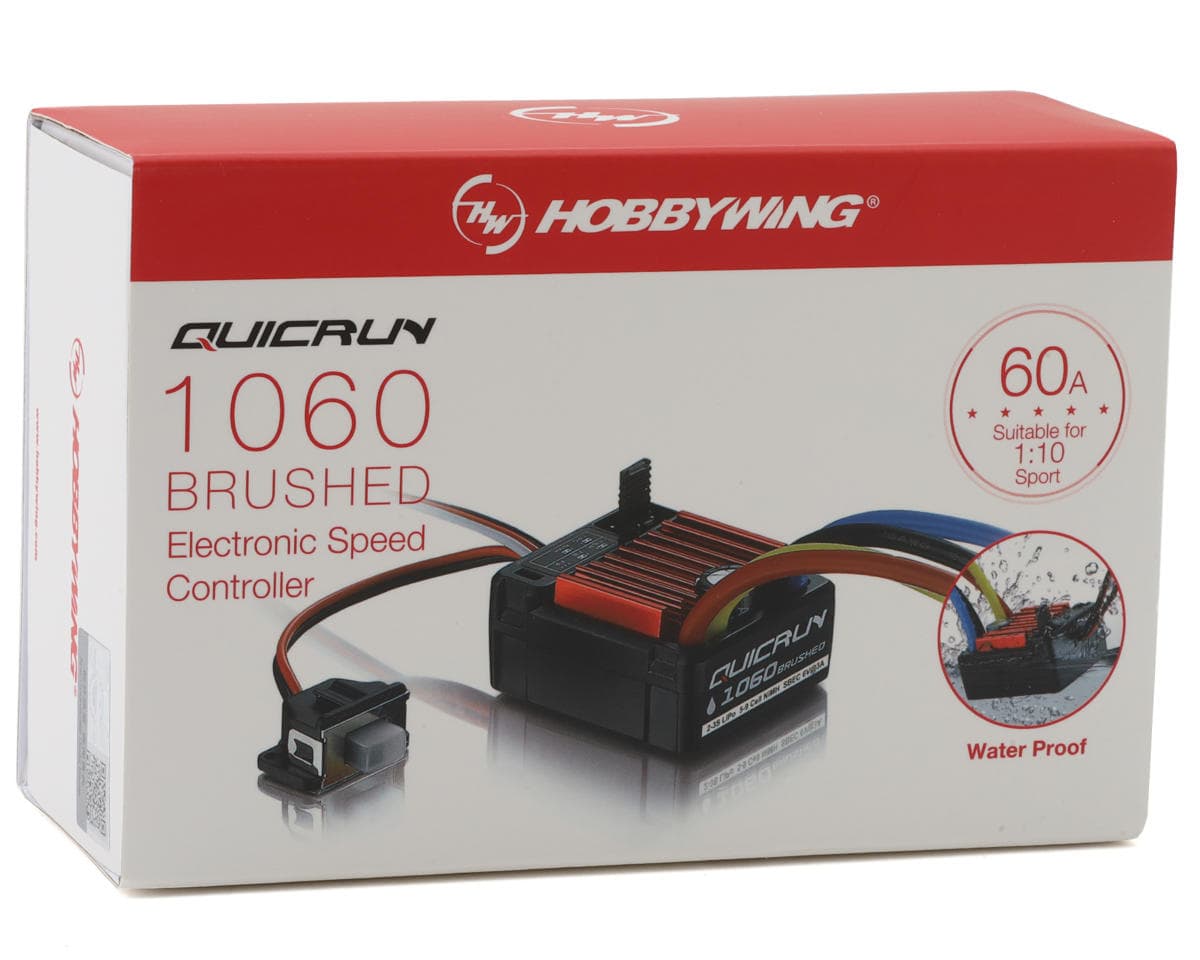

- (1) Quicrun 1060 Brushed ESC
Reviews4.3 · 7 reviews
Works 100% as it should A real bargain for the money ! Use for Lt duty applications , otherwise buy the 1080 Note ::: Can not use where your going to turn throttle epa to 75% as when you shut it off and turn it back on it thinks the 75 is now 100 with its auto end point settings
Great product. Easy to install into my RC Surfer. And shipping is always lightning fast.
I've had a couple of these and they're great especially for the price. And comparing to an xl-5 for the price it's stupid to buy an xl-5. Does everything the same at a way better price.
2-3 S at a price that doesn’t break the bank and does what it’s made for. Can’t argue with that.
Bought this and finally installed it and sterring only works,looks the speed control is shot,tried many variables,guess try them before time expires,i buy a car in advance to have something to work on wont happen again
Reviewers generally rate this brushed ESC highly for its price, describing it as a reliable, easy-to-install option for 1/10 scale vehicles, with fast shipping praised. Several note it performs comparably to pricier alternatives for 2-3S use. One verified buyer reported the speed control failed on arrival, with steering still working. Another reviewer noted a problem with throttle endpoint settings: a 75% endpoint setting reportedly reset to 100% after power cycling, which the reviewer considered a limitation for that use. One reviewer found the on/off switch lead short for some kit mounting positions. Reviews are mostly 5-star, with one 1-star report of a failure.
- + Good value for the price
- + Easy installation and setup
- + Reliable performance in 1/10 scale vehicles
- + Fast shipping
- − Speed control failure reported on one unit
- − Endpoint setting reportedly resets after power cycle
- − On/off switch cable is short
