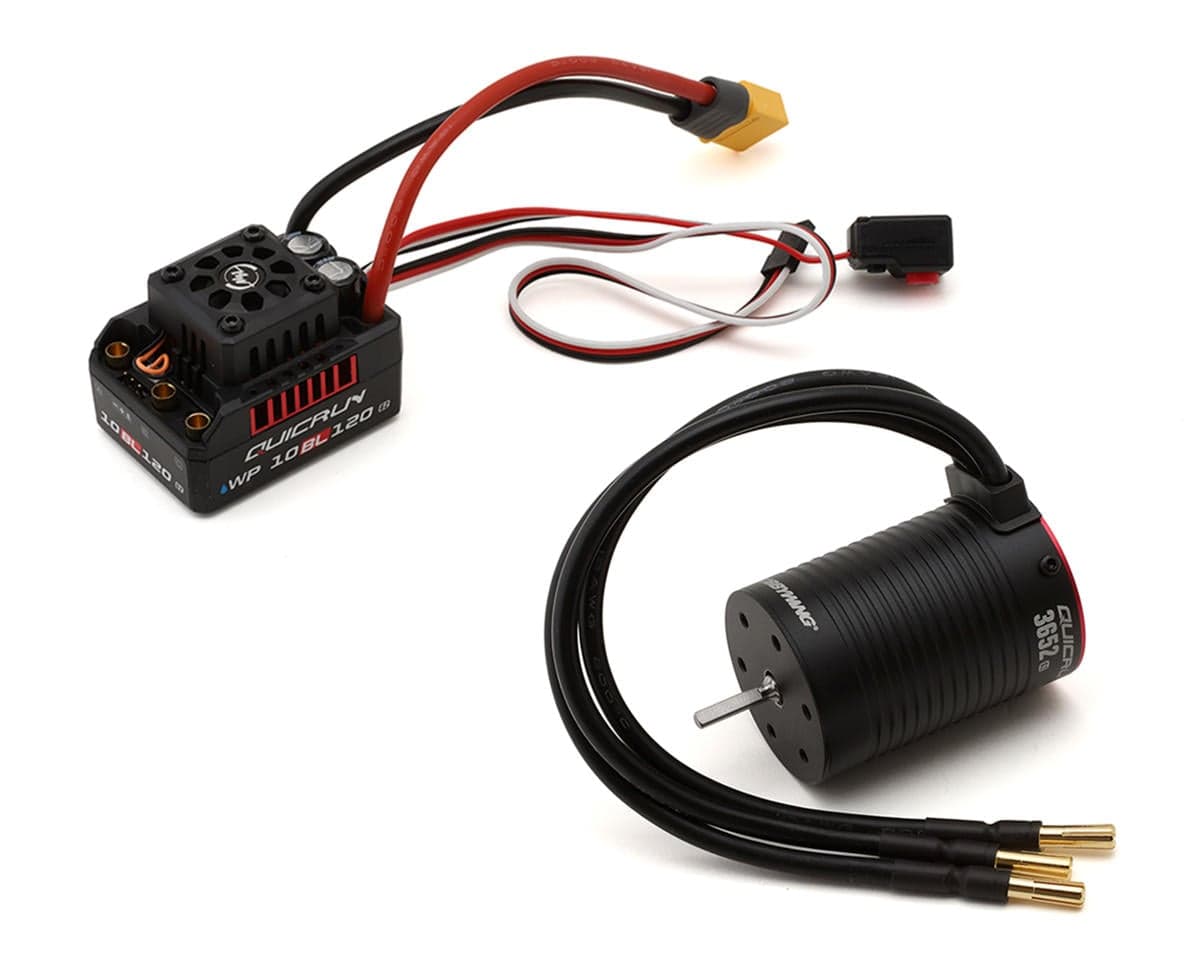

Hobbywing QuicRun 10BL120 G2 Sensorless Brushless ESC/3652SL Motor Combo (4000kV)
About this part
Hobbywing Quicrun 10BL 120A ESC & Motor Combo
The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.
Features:
- G2 QuicRun 10BL120
- Intelligent freewheeling technology
- Extreme performance
- Powerful built-in BEC
- Efficient cooling system
- Capacitor Thermal Protection
- Built-in capacitor
- IP-67 waterproof Rating
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
- ESC:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: IP-67
- Current:
- Continuous: 120A
- Peak: 760A
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V @ 5A
- Output Connectors: 4.0mm Bullets
- Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
- Weight: 4.19oz (119g)

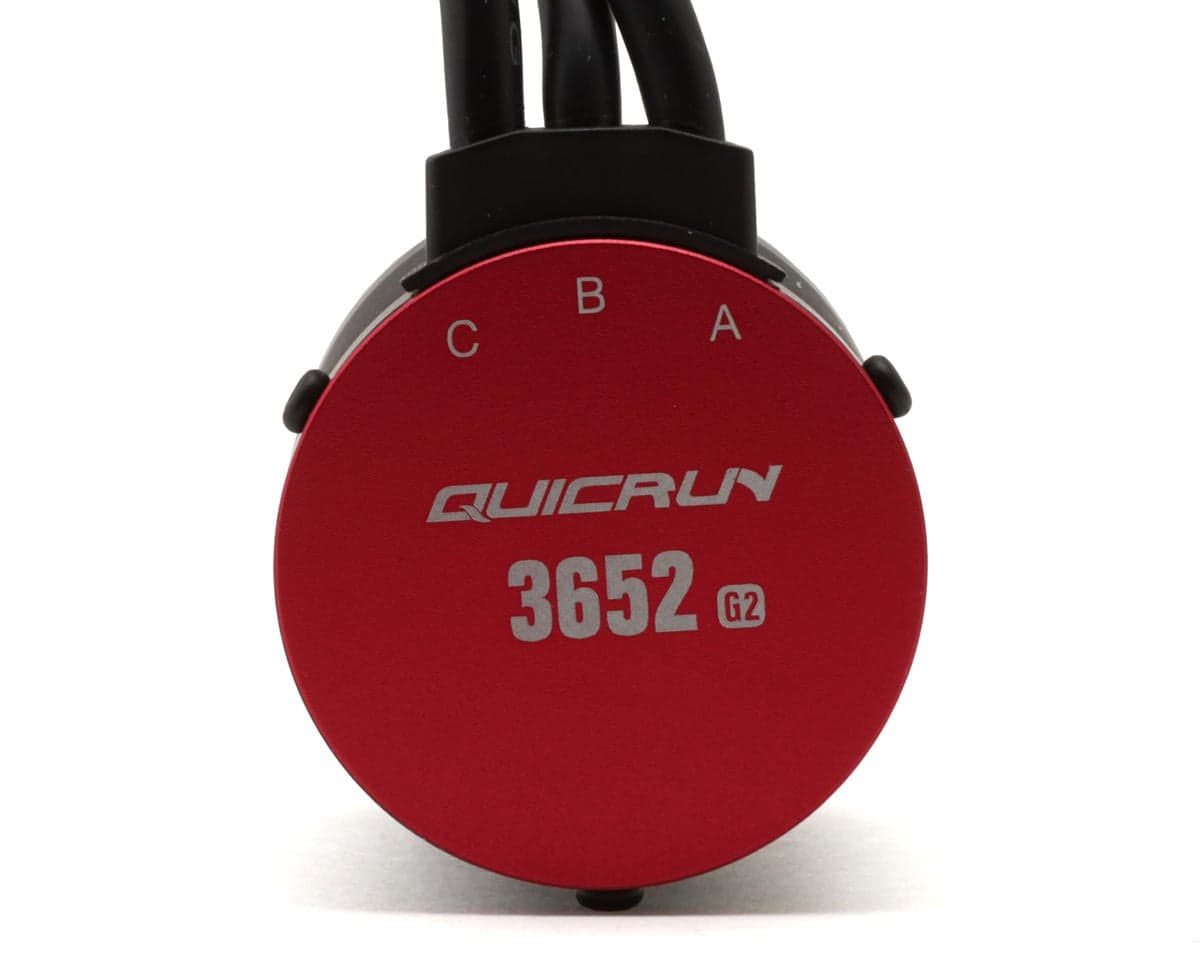

- Motor:
- Input Voltage: 2S-3S LiPo
- KV: 4000kV
- Pole: 4
- Motor Diameter: 1.42" (36mm)
- Motor Length: 2.05" (52mm)
- Shaft Diameter: 0.13." (3.175mm)
- Shaft Length: 0.59" (15mm)
- Front Bearing size: D13*D5*T5
- Rear Bearing size: D13*D5*T4
- Weight: 224g
- (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
- (1) QuicRun 3652SL G2 Sensorless Brushless Motor (4000kV)
Specifications:
Includes:
Reviews4.9 · 8 reviews
Fast and has all the settings I need in a system. Compared to my $350 xr10 8.5t sensored combo, I like this quicrun better, price and performance of the quicrun system has the xr10pro beat. Installed the quicrun system in the new B7D.
Absolutely shreds!!!! Very well built motor and esc. The price point is excellent for this high quality item(s) I am running this on a Tamiya tt02 and it rips with plenty of power. The set up as far as the programming ,may be a little confusing at first but once you understand it it’s pretty simple. I wound up buying a programming card and it was really easy to set up ( I recommend one)
Installed in a 2wd rustler. has plenty of power on 2s and insane on 3s running 23/86 gearing. It did have a noticeable delay on takeoff, i turned up the punch control and set timing to 0 which eliminated it. good purchase, can’t beat the price for the quality.
If you get this on a sale or with a coupon, it is 100% worth it. Running in a geared up Slash 2wd and the thing nearly takes off.
Best cheap brushless system out there. Put in a 1/16 slash with no problems
Reviewers consistently rate this Hobbywing QuicRun 10BL120 G2 sensorless ESC and 3652SL motor combo very highly, with all eight reviews at 4 or 5 out of 5. Owners report strong power and speed in 2WD buggies, trucks, and drift cars on 2S and 3S setups, and describe the price as good for the quality. Several note that programming can be confusing at first, though a programming card is recommended and makes setup easier. One reviewer reported a takeoff delay that was reduced by raising punch control and setting timing to 0. Reviews mention use on a Traxxas Bandit, Slash, Rustler, Stampede, Tamiya TT-02, Redcat EPX drift, and a 1/16 Slash. No reliability problems beyond that takeoff delay were reported.
- + Strong power and speed
- + Good value for price
- + Easy setup with programming card
- + Reliable in reviewed use
- − Programming can be confusing at first
- − Takeoff delay reported on one setup
- − Programming card recommended for setup
