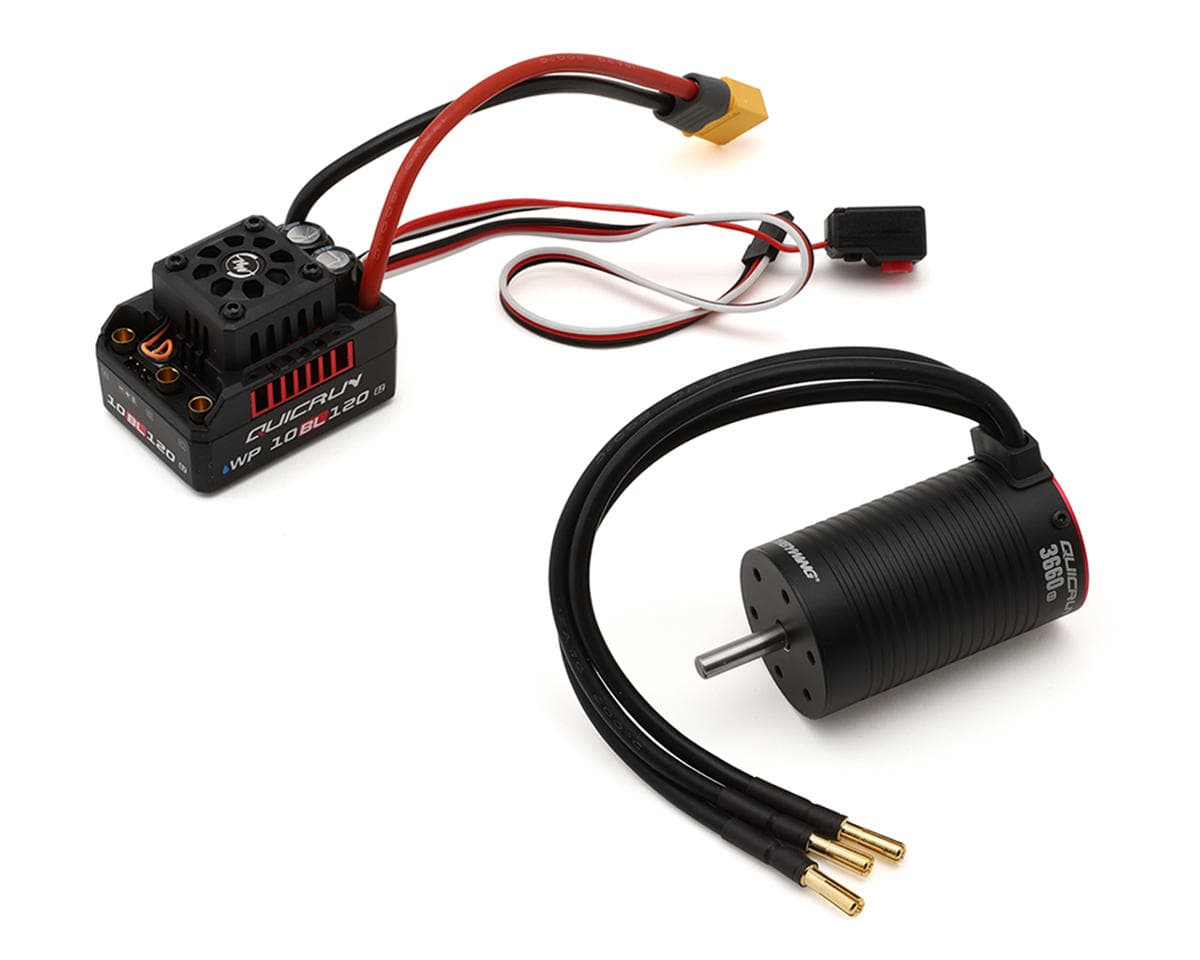

Hobbywing QuicRun 10BL120 G2 Sensorless Brushless ESC/3660SL Motor Combo (3150kV)
About this part
Hobbywing Quicrun 10BL 120A ESC & Motor Combo
The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.
G2 QuicRun 10BL120 Features:
- Intelligent freewheeling technology
- Extreme performance
- Powerful built-in BEC
- Efficient cooling system
- Capacitor Thermal Protection
- Built-in capacitor
- IP-67 waterproof Rating

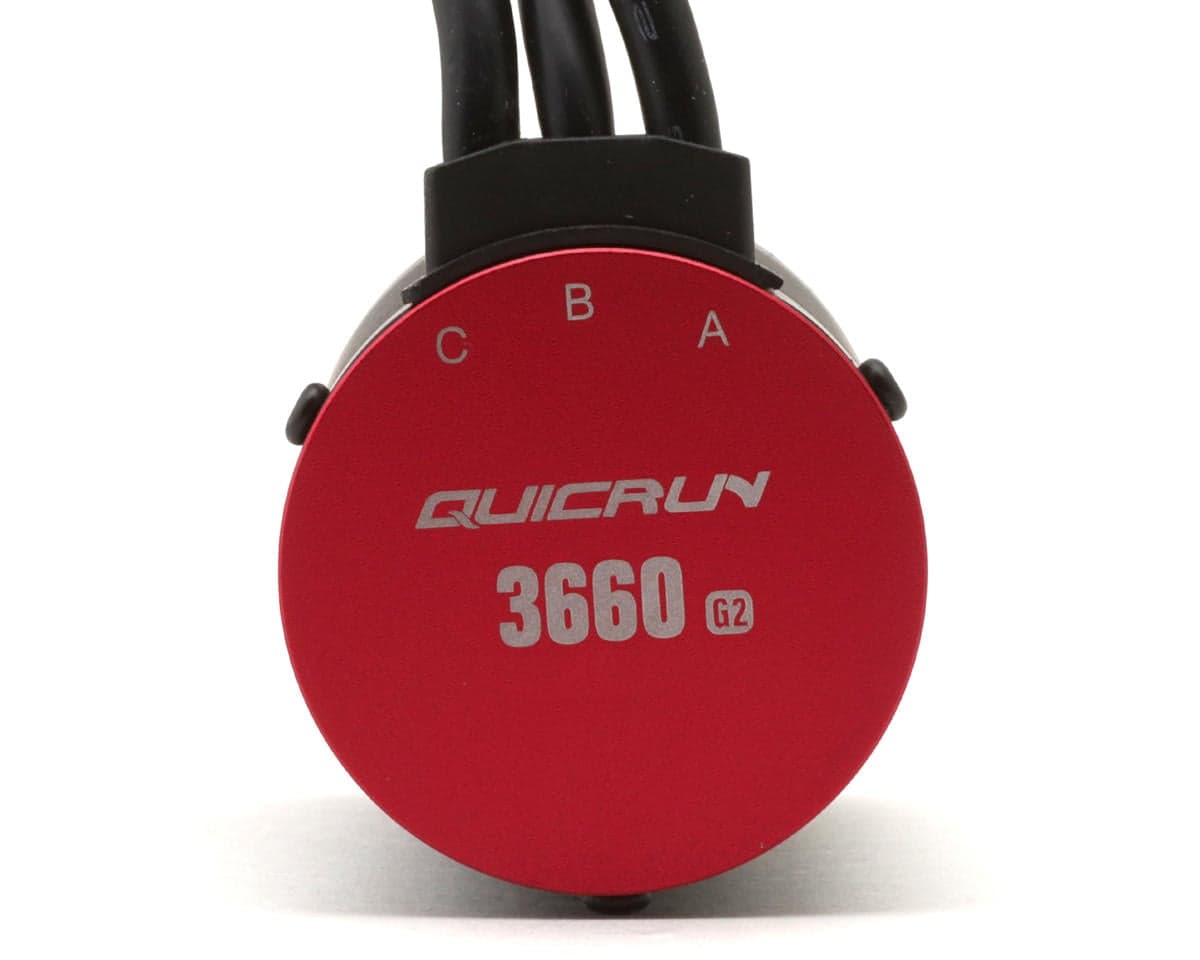

G2 QuicRun 3660SL Features:
- High efficiency for more power with lower temperatures!
- 4-pole rotor design for more torque with strong explosive force.
- Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
- 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.
Specifications:
- ESC:
- Scale: 1/10th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: IP-67
- Current:
- Continuous: 120A
- Peak: 760A
- Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V @ 5A
- Output Connectors: 4.0mm Bullets
- Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
- Weight: 4.19oz (119g)
- Motor:
- Input Voltage: 2S-3S LiPo
- KV: 3150kV
- Pole: 4
- Motor Diameter: 1.42" (36mm)
- Motor Length: 2.36" (60mm)
- Shaft Diameter: 0.20" (5mm)
- Shaft Length: 0.73" (18.5mm)
- Front Bearing size: D16*D5*T5
- Rear Bearing size: D13*D5*T4
- Weight: 278g
Includes:
Reviews4.6 · 5 reviews
installed in RC10 Metallic edition and it runs very nicely. just enough extra to spin the car out and enough smooth torque and speed to make this thing unstoppable! Easy installation. everything fit and runs as described. very happy with it and so far would purchase again!
Couldn't be happier with this setup, bought it for my T-Maxx conversion. I was going to go with a bigger 1/8th scale motor, but the friends at A-Main convinced me this was enough. Let me tell you, on 3s in my T-Maxx Original this thing RIPS!!! full backflips from standing still. I did buy the programming card to help adjust the braking and throttle punch, it seems extra sensitive with sticky wheels on pavement.
Good combo for an excellent price. The Amazon kits aren’t but maybe 30% cheaper and you get much lower specs and performance. Would easily buy again and recommend
I purchased a Arrma Big Rock 223S truck, upon driving it for the first time, the truck was “dogging” or “coughing” when starting off / accelerating, Customer Service treated me very well, listened to my explanation of how the truck was behaving, they suggested I needed a new motor, ESC and receiver. The new parts replacement parts arrived quickly and the Big Rock 223S performs very nicely. Thank you Amain Hobbies! I am a happy customer. Anthony F.
Asked the staff at A main what motor/esc i should put in my arrma gorgon to make it 3s brushless on a budget. They got back to me fast with a hobbywing motor esc combo that was under $200. I bought it and got 45mph out of it and, the system runs perfectly! Couldn't be happier with my purchase. Thanks again to the staff, y'all rock!!
Five reviews, mostly from verified owners, are broadly positive about this ESC and motor combo. Reviewers report strong performance in several chassis, including an Arrma Gorgon, a T-Maxx conversion and an RC10, with one describing very high speed on 3S. Installation is described as easy and the setup as good value for the price. One reviewer bought the combo after a dealer recommendation and reported a problem with a different truck, the Arrma Big Rock 223S, that was resolved by replacing the motor, ESC and receiver; that review is not clearly about this combo's own performance. One reviewer mentions a programming card was needed to tune braking and throttle punch, which felt sensitive on pavement. The sample is small, and reviews describe different vehicles.
- + Strong acceleration and speed
- + Easy installation
- + Good value for the price
- + Smooth torque
- − Throttle punch sensitive on pavement
- − Programming card needed for tuning
